Page 14 of 284
12

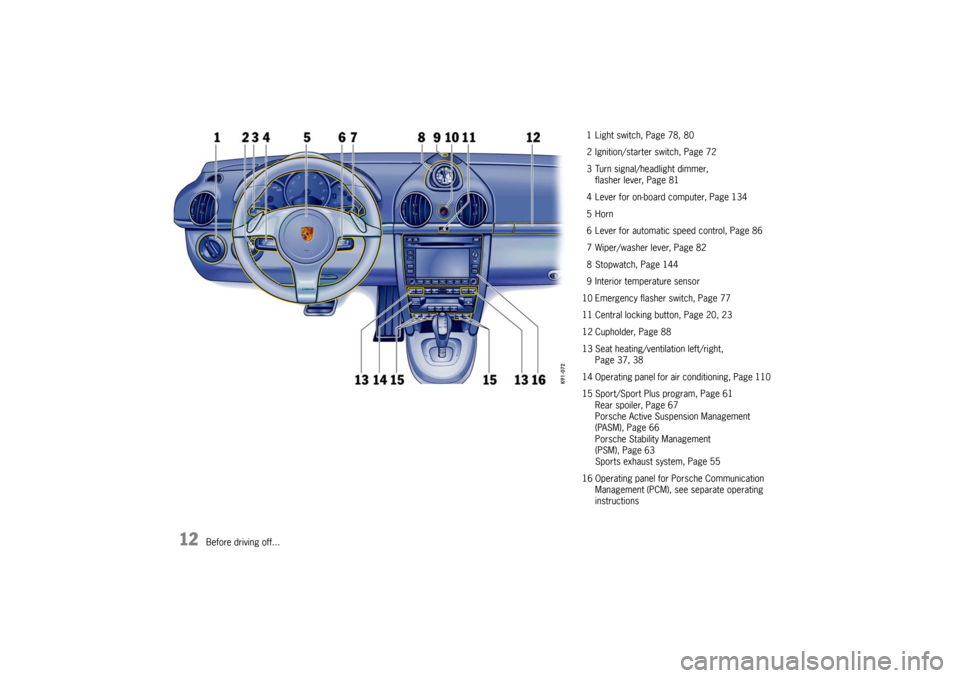

Before driving off...1 Light switch, Page 78, 80
2 Ignition/starter switch, Page 72
3 Turn signal/headlight dimmer,
flasher lever, Page 81
4 Lever for on-board computer, Page 134
5Horn
6 Lever for automatic speed control, Page 86
7 Wiper/washer lever, Page 82
8 Stopwatch, Page 144
9 Interior temperature sensor
10 Emergency flasher switch, Page 77
11 Central locking button, Page 20, 23
12 Cupholder, Page 88
13 Seat heating/ventilation left/right, Page 37, 38
14 Operating panel for air conditioning, Page 110
15 Sport/Sport Plus program, Page 61 Rear spoiler, Page 67
Porsche Active Suspension Management
(PASM), Page 66
Porsche Stability Management
(PSM), Page 63
Sports exhaust system, Page 55
16 Operating panel for Porsche Communication Management (PCM), see separate operating
instructions
Page 66 of 284
64
Operation, Safety
– The system compensates for undesired lateral
vehicle reactions when the driver releases the
accelerator pedal or brakes when cornering.
This compensation functions up to the
maximum lateral acceleration.
– PSM actively stabilizes the vehicle as required during dynamic driving maneuvers (e.g. rapid
steering movements, during lane changes or
on alternating bends).
– Improved braking stability on bends and on different or varying road surfaces.
– It improves braking function and shortens stopping distance in the event of emergency
braking.
Readiness for operationPSM is switched on automatically every time you
start the engine.
PSM should always be switched on during
“normal” driving.
However, it may be advantageous to switch off
PSM temporarily in exceptional situations, for
example:
– On a loose surface or in deep snow,
– When “rocking” the vehicle free and
– When using snow chains.

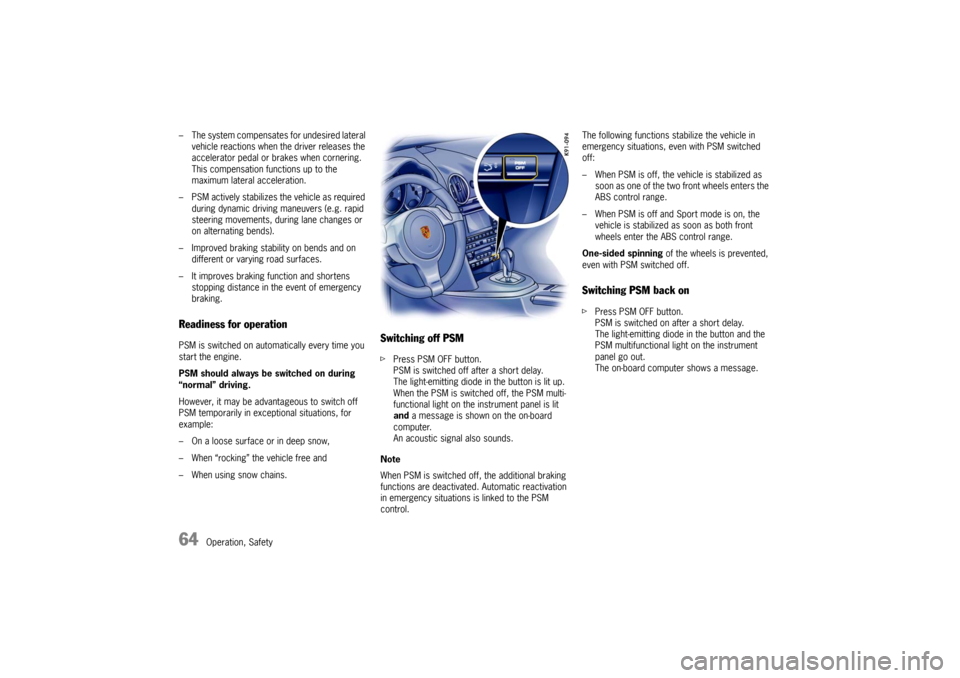

Switching off PSMf Press PSM OFF button.
PSM is switched off after a short delay.
The light-emitting diode in the button is lit up.
When the PSM is switched off, the PSM multi-
functional light on the instrument panel is lit
and a message is shown on the on-board
computer.
An acoustic signal also sounds.
Note
When PSM is switched off, the additional braking
functions are deactivated. Automatic reactivation
in emergency situations is linked to the PSM
control. The following functions stabilize the vehicle in
emergency situations, even with PSM switched
off:
– When PSM is off, the vehicle is stabilized as
soon as one of the two front wheels enters the
ABS control range.
– When PSM is off and Sport mode is on, the vehicle is stabilized as soon as both front
wheels enter the ABS control range.
One-sided spinning of the wheels is prevented,
even with PSM switched off.
Switching PSM back onf Press PSM OFF button.
PSM is switched on after a short delay.
The light-emitting diode in the button and the
PSM multifunctional li ght on the instrument
panel go out.
The on-board computer shows a message.

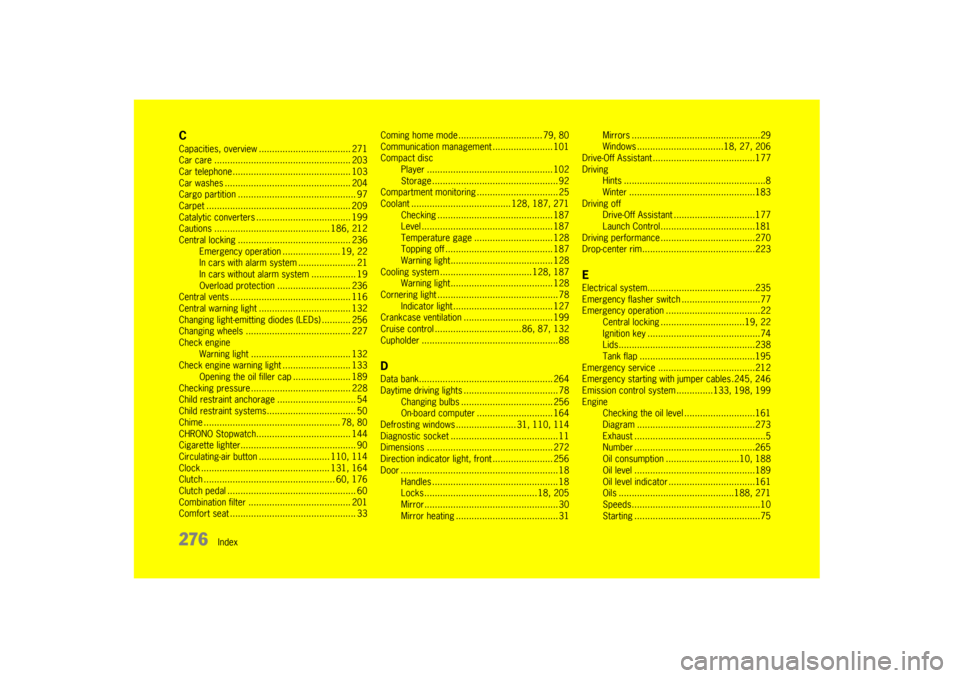

Page 278 of 284
276
Index
CCapacities, overview ................................... 271
Car care ........................ ............................ 203
Car telephone ............. ................................ 103
Car washes .................... ............................ 204
Cargo partition ........... .................................. 97
Carpet ....................................................... 209
Catalytic converters .... ................................ 199
Cautions ........................ .................... 186, 212
Central locking ........... ................................ 236
Emergency operation ...................... 19, 22
In cars with alarm system ...................... 21
In cars without alar m system ................. 19
Overload protection ............................ 236
Central vents .............. ................................ 116
Central warning light ................................... 132
Changing light-emitting diodes (LEDs) ........... 256
Changing wheels ........ ................................ 227
Check engine Warning light .......... ............................ 132
Check engine warning li ght .......................... 133
Opening the oil filler cap ...................... 189
Checking pressure ...... ................................ 228
Child restraint anchor age .............................. 54
Child restraint system s.................................. 50
Chime ............... ......................... ............ 78, 80
CHRONO Stopwatch.... ................................ 144
Cigarette lighter.......... .................................. 90
Circulating-air button ... ........................ 110, 114
Clock ............................................. .... 131, 164
Clutch ............... ............................. ...... 60, 176
Clutch pedal ............... .................................. 60
Combination filter ....... ................................ 201
Comfort seat .............. .................................. 33 Coming home mode ......
.......................... 79, 80
Communication manage ment ....................... 101
Compact disc
Player ...................... .......................... 102
Storage .................... ............................ 92
Compartment monitoring ................ ............... 25
Coolant ........... ........................... 128, 187, 271
Checking ............................................ 187
Level .................................................. 187
Temperature gage .... ..........................1
28
Topping off ........... .............................. 187
Warning light......... .............................. 128
Cooling system ............. ...................... 128, 187
Warning light......... .............................. 128
Cornering light .......... .................................... 78
Indicator light ........ .............................. 127
Crankcase ventilation .................................. 199
Cruise control ................................. 86, 87, 132
Cupholder ......................................... ........... 88
DData bank................................................... 264
Daytime driving lights .................................... 78
Changing bulbs ..... .............................. 256
On-board computer ............................. 164
Defrosting windows ....... ................ 31, 110, 114
Diagnostic socket ..... .................................... 11
Dimensions ....................................... ......... 272
Direction indicator lig ht, front ....................... 256
Door ............................ ................................ 18
Handles ................................................ 18
Locks....................... .................... 18, 205
Mirror....................... ............................ 30
Mirror heating ....... ................................ 31 Mirrors ....................
.............................29
Windows ...................... ...........18, 27, 206
Drive-Off Assistant ....... ................................177
Driving Hints .............. ........................................8
Winter ......................... .......................183
Driving off Drive-Off Assistant .... ...........................177
Launch Control......... ...........................181
Driving performance .... ................................270
Drop-center rim........... ................................223
EElectrical system..... ....................................235
Emergency flasher swit ch ..............................77
Emergency operation . ...................................22
Central locking ......... .......................19, 22
Ignition key ......... ..................................74
Lids................ ......................... ...........238
Tank flap ................. ...........................195
Emergency service ..... ................................212
Emergency starting with jumper cables.245, 246
Emission control system ..............133, 198, 199
Engine Checking the oil leve l ...........................161
Diagram ...................... .......................273
Exhaust ................... ...............................5
Number ..............................................265
Oil consumption ....... .....................10, 188
Oil level ................... ...........................189
Oil level indicator ...................... ...........161
Oils ............................................188, 271
Speeds.................... .............................10
Starting ................................................75
Page 282 of 284
280
Index
Heating
................................................ 37
Memory ..................... .......................... 35
Position....................................... ......... 32
Sports bucket seat ............................... 34
Sports seat ............ .............................. 33
Standard seat ......... .............................. 33
Ventilation .............. .............................. 38
Seat memory
Operating with the remote control .......... 36
Operation with person buttons ............... 35
Selector lever position ........................ 120, 122
Selector lever position indicator,
PDK transmission ....... ................................ 179
Service ...................................................... 141
SET Basic setting on on-board computer ...... 163
Shift indicator ............. ................................ 127
Shifting gears
Drive-Off Assistant... ............................ 177
Manual transmission............................ 176
Porsche Doppelkupplung (PDK) ............ 178
Side light, front ........... ................................ 256
Side marker light ........ ............................ 78, 80
Changing bulb......... ............................ 255
Side storage compartm ent ............................ 92
Side vents .................. ................................ 116
Snow chains ................... ............ 221, 267, 269
Snow tires.......................................... 220, 268
Socket ....................................................... 235
Spacers ......................... ............................ 233
Spare key ...................... .............................. 15
Spare wheel ............................................... 267
Speed code letter ....... ................................ 222
Speed control....................................... 87, 110 Automatic............... .............................. 86 Indicator light ........
.............................. 124
Speed limit ................... ...................... 137, 222
Speedometer .................................... ......... 126
Spoiler .............................................. ........... 67
Fixed ........................ ............................ 68
Retractable ................................ ........... 67
Sport Chrono Plus package CHRONO stopwatch . ........................... 144
Sport mode .............. ............................ 61
Sport mode .................. ................................ 65
PDK transmission .. .............................. 180
Switching on/off.... ................................61
Switching PASM on/o ff
.......................... 66
Sport plus mode ....... .................................... 61
Sports bucket seat ... .................................... 34
Sports exhaust system .................................. 55
Sports seat ................................... ............... 33
Stability management system ........................ 63
Standard seat ........... .................................... 33
Starter switch ........... .................................... 72
Starting ........................ ................................ 73
Starting engine ......... .................................... 75
Steering column
Locking .................... ............................ 73
Steering lock ............ .................................... 72
Steering wheel
Adjustment ........................................... 38
Function keys........ ................................ 40
Heating .................... ............................ 39
Lock ........................ ............................ 73
Multi functional ........................... ........... 40
PDK shift buttons .. .............................. 178
Stopping engine........ .................................... 76
Stopwatch .................... .............................. 144Storage options ......
......................................91
Storage possibilities ......................................91
Storing your Porsche ...................................210
Sun visors .................. ..................................41
Suspension manageme nt ...............................66
TTachometer ..................... ...........................127
Tail light .......................... ...........................256
Tank .................. ............................. ...195, 196
Ventilation system .... ...........................197
Technical data ................................. ...........266
TEL Telephone informat ion...........................141
Telephone ....................................... ...........103
Microphone.............. ...........................104
Temperature setting ......... ...........110, 113, 114
Temperature, outside in dicator.....................131
Test stand, measure ments ............................65
Theft protection ...... ......................................14
Tie-down rings ........ ......................................96
Tire Care...................................................217
Damage .............................................217
Designations ............ ...........................221
Pressure plate ......... ...........................215
Replacements .............. .......................218
Traction................... ...........................216
Wear ..................................................216
Tire pressure monitoring Warning light ............ ...........................159
Wheels ........................ .......................219
Tire pressure monitoring (TPM) ....................151
Tires ...................... ..............10, 213, 268, 269
Care...................................................213
