Page 11 of 284
Before driving off...
9
In the driver’s seat... fCheck operation of the horn.
f Position seat for easy reach of foot pedals and
controls.
To reduce the possibility of injury from the
airbag deployment, you should always sit back
as far from the steering wheel as is practical,
while still maintaining full vehicle control.
f Adjust the inside and outside rear view mirrors.
f Buckle your safety belts.
f Check operation of the foot and parking brake.
f Check all warning and indicator lights with
ignition on and engine not running.
f Start engine and check all warning displays for
warning symbols.
f Never leave an idling car unattended.
f Lock doors from inside, especially with chil-
dren in the car to prevent inadvertent opening
of doors from inside or outside.
Drive with doors locked.
On the road... fNever drive after you have consumed alcohol
or drugs.
f Always have your safety belt fastened.
f Always drive defensively.
Expect the unexpected.
f Use signals to indicate turns and lane changes.
f Turn on headlights at dusk or when the driving
conditions warrant it.
f Always keep a safe distance from the vehicle in
front of you, depending on traffic, road and
weather conditions.
f Reduce speed at night and during inclement
weather.
Driving in wet weather requires caution and re-
duced speeds, particularly on roads with
standing water, as the handling characteristics
of the vehicle may be impaired due to hydro-
planing of the tires.
f Always observe speed limits and obey road
signs and traffic laws.
f When tired, get well off the road, stop and take
a rest. Turn the engine off. Do not sit in the ve-
hicle with engine idling.
Please see the chapter “ENGINE EXHAUST” on
Page 5. f
When parked, always set the parking brake.
Move the PDK selector le ver to ”P“ or the gear-
shift lever to reverse or first gear.
On hills also turn the front wheels toward the
curb.
f When emergency repairs become necessary,
move the vehicle well off the road. Turn on the
emergency flasher and use other warning de-
vices to alert other motorists. Do not park or
operate the vehicle in areas where the hot ex-
haust system may come in contact with dry
grass, brush, fuel spill or other flammable ma-
terial.
f Make it a habit to have the engine oil checked
with every refueling.
Page 12 of 284
10
Before driving off...
Break in hints for the first
2,000 miles/3,000 kilometers The following tips will be helpful in obtaining opti-
mum performance from your new Porsche.
Despite the most modern, high-precision manufac-
turing methods, the moving parts must still wear
in with each other. This we aring-in occurs mainly in
the first 2,000 miles/3,000 kilometers.Therefore: f Preferably take longer trips.
f Avoid frequent cold starts with short-distance
driving whenever possible.
f Avoid full throttle starts and abrupt stops.
f Do not exceed maximum engine speed of
4,200 rpm (revolutions per minute).
f Do not run a cold engine at high rpm either in
Neutral or in gear.
f Do not let the engine labor, especially when
driving uphill. Shift to the next lower gear in
time (use the most favorable rpm range).
f Never lug the engine in high gear at low
speeds. This rule applies at all times, not just
during the break-in period. f
Do not participate in motor racing events,
sports driving schools, etc. during the first
2,000 miles/3,000 kilometers.
There may be a slight stiffness in the steering,
gear-shifting or other controls during the break-in
period which will gradually disappear.
Break in brake pads and brake discsNew brake pads and discs ha ve to be “broken in”,
and therefore only attain optimal friction when the
car has covered several hundred miles or km.
The slightly reduced braking ability must be com-
pensated for by pressing the brake pedal harder.
This also applies whenev er the brake pads and
brake discs are replaced. New tires New tires do not have maximum traction. They
tend to be slippery.
f Break in new tires by driving at moderate
speeds during the first 60 to 120 miles/100 to
200 km. Longer braking distances must be an-
ticipated.
Engine oil and fuel consumption During the break-in peri od oil and fuel consump-
tion may be higher than normal.
As always, the rate of oil consumption depends on
the quality and viscosity of oil, the speed at which
the engine is operated, the climate and road con-
ditions, as well as the amount of dilution and oxi-
dation of the lubricant.
f Make a habit of checking engine oil with every
refueling, add if necessary.
Page 13 of 284
Before driving off...
11
1 Inner door handle, Page 18
2 Power windows, Page 27
3 Door mirror control, Page 29
4 Hands-free microphone
5 Seat memory, Page 35
6 Diagnostic socket (OBD)
7 Front and rear lid release, Page 93, 95
8 Steering-wheel adjustment, Page 38
9 Seat adjustment, Page 32
Page 14 of 284
12
Before driving off...1 Light switch, Page 78, 80
2 Ignition/starter switch, Page 72
3 Turn signal/headlight dimmer,
flasher lever, Page 81
4 Lever for on-board computer, Page 134
5Horn
6 Lever for automatic speed control, Page 86
7 Wiper/washer lever, Page 82
8 Stopwatch, Page 144
9 Interior temperature sensor
10 Emergency flasher switch, Page 77
11 Central locking button, Page 20, 23
12 Cupholder, Page 88
13 Seat heating/ventilation left/right, Page 37, 38
14 Operating panel for air conditioning, Page 110
15 Sport/Sport Plus program, Page 61 Rear spoiler, Page 67
Porsche Active Suspension Management
(PASM), Page 66
Porsche Stability Management
(PSM), Page 63
Sports exhaust system, Page 55
16 Operating panel for Porsche Communication Management (PCM), see separate operating
instructions
Page 15 of 284
Operation, Safety
13
Operation, Safety
Keys ................
......................... ................. 15
Security Wheel Bolts .................................... 15
Doors ........................... .............................. 18
Central Locking in Cars without Alarm System 19
Central Locking in Cars with Alarm System ... 21
Alarm System,
Passenger Compartment Monitoring ............. 25
Power Windows ............. .............................. 27
Mirrors ...................... .................................. 29
Rear Window Defogger, Door Mirror Heating .. 31
Seat Adjustment and Head Restraints ............ 32
Seat Memory ............. .................................. 35
Heated Seats ............ .................................. 37
Seat Ventilation ...... ...................................... 38
Steering Wheel Adjust ment ........................... 38
Steering Wheel Heatin g ................................ 39
Multi-Functional Steering Wheel ..................... 40
Sun Visors ................. .................................. 41
Safety Belts ............... .................................. 42
Airbag Systems ......... .................................. 44
Child Restraint System s ............................... 50
LATCH System
Child seat bracket on the passenger’s seat .... 53
Child Restraint Anchorage ............... ............. 54
Sports Exhaust System ................................ 55
Parking Brake ............ .................................. 55
Brakes ..................... .................................. 56
ABS Brake System (Antilock Brake System) ... 59
Clutch Pedal .............. .................................. 60
Sport Mode ............... .................................. 61
Porsche Stability Mana gement (PSM) ............. 63 Porsche Active Suspension Management ............
(PASM) ........................
................................ 66
Retractable Spoiler ..................................... 67
Fixed rear spoiler . ........................................ 68
Interior lights ................................ ............... 69
Parking Aids ........... .................................... 70
Ignition/Starter Switch with
anti-theft Steering Lo ck ................................ 72
Starting Procedures ..................................... 75
Stopping Engine . ........................................ 76
Emergency Flasher Swit ch ............................ 77
Light Switch on Vehicles
with Bi-Xenon Headlights ............................... 78
Light Switch on Vehicles
with Halogen Headlights ............................... 80
Turn Signal / Headlight Dimmer /Parking light /
Flasher Lever ........... .................................... 81
Windshield Wiper/ Wash er Lever
................... 82
Fire Extinguisher .. ........................................ 85
Automatic Speed Control .............................. 86
Cupholder ................... ................................ 88
Ashtray ....................... ................................ 89
Cigarette Lighter ...... .................................... 90
Storage in the Passenger Compartment ........ 91
Front Luggage Compartm ent Lid ................... 93
Front Luggage Compartm ent ........................ 94
Rear Lid .................. .................................... 95
Rear luggage compartm ent .......................... 96
Trunk Entrapment ... .................................. 100
Porsche Communication Management (PCM) 101
Car Telephone and Aftermarket Alarms ....... 103
iPod, USB and AUX .. .................................. 104 Roof Transport System
............................... 105
HomeLink ................... ............................... 106
Page 16 of 284
14
Operation, Safety
Never invite car theft! An unlocked car with the key in the ignition lock
invites car theft.
A steering wheel lock and a gong alarm are
standard equipment in your Porsche.
The gong alarm will sound if you open the driver’s
door while the key is still in the ignition lock. It is
your reminder to pull the key out of the ignition
lock and to lock the doors.
Warning!
Any uncontrolled movement of the vehicle
may result in property damage, serious per-
sonal injury or death.
Never leave your vehicle unattended with the
key in the ignition lock, especially if children
and/or pets are left unattended in the vehi-
cle. They can operate power windows and
other controls. If the engine is left running,
they may accidentally engage the shift lever.
Serious personal injury or death could result
from loss of control of the vehicle.
f Always remove the ignition key.
f Always set the parking brake.
fLock the doors with the remote control.
Warning!
Risk of a serious accident.
The steering column will lock when you re-
move the key while you are driving or as the
car is rolling to a stop. You will not be able to
steer the car.
Serious personal injury or death could result
from loss of control of the vehicle.
f Never remove the key from the steering lock while you are driving. To protect your vehicle and your possessions
from theft, you should always proceed as
follows when leaving your vehicle:
f
Close windows.
f Lock glove compartment.
f Remove ignition key.
f Close storage tray between the seats.
f Remove valuables (e.g. car documents, cell
phones, house keys) from the car.
f Lock doors.
Page 17 of 284
Operation, Safety
15

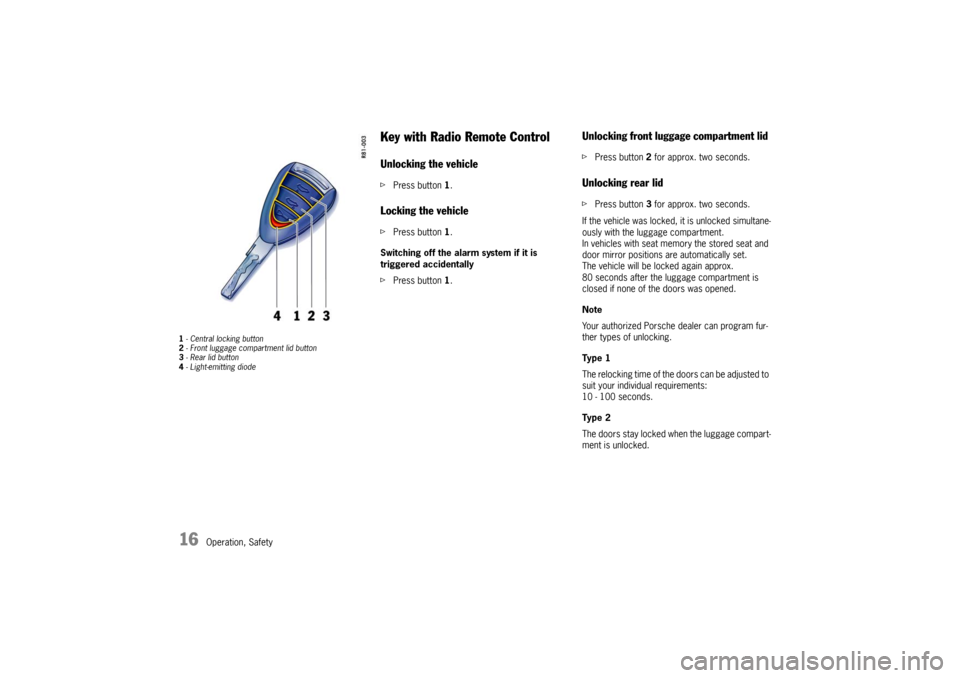

Keys fPlease see the chapter “ALARM SYSTEM, PAS-
SENGER COMPARTMENT MONITORING” on
Page 25.
f Please see the chapter “CENTRAL LOCKING IN
CARS WITHOUT ALARM SYSTEM” on Page 19.
f Please see the chapter “CENTRAL LOCKING IN
CARS WITH ALARM SYSTEM” on Page 21.
Two car keys are supplied with your Porsche.
These keys operate all the locks on your vehicle.
f Be careful with your car keys: do not part with
them except under exceptional circumstances.
f To avoid battery run-down, always remove the
ignition key from the ignition lock. Emergency operationfPlease see the chapter “EMERGENCY OPERA-
TION – PULLING OUT THE IGNITION KEY” on
Page 74.
Replacement keys Replacement car keys can be obtained only from
your authorized Porsche dealer, and this can
sometimes be very time-consuming.
You should therefore always keep a spare key on
your person.
Keep it in a safe place (e.g. wallet), but under no
circumstances in or on the vehicle.
The key codes of new keys have to be “reported”
to the car control unit by your authorized Porsche
dealer.
A total of 6 car keys can be reported to the control
unit.
Disabling key codes
If a key is lost, the key codes can be disabled by
an authorized Porsche dealer.
All the remaining car keys are required for this pur-
pose.
Disabling the code ensures that the car can be
started only using authorized keys.
Note
f Please note that the other locks can still be
opened with the disabled key.
Immobilizer There is a transponder (an electronic component)
in the key grip, conta ining a stored code.
When the ignition is switch ed on, the ignition lock
checks the code.
The immobilizer can be deactivated and the en-
gine started only using an authorized ignition key.
Switching off the immobilizer
f Insert the ignition key into the ignition lock.
If the ignition is left on for more than 2 minutes
without the engine being started, the immobilizer
is switched on again.
f If this happens, turn the ignition key back to
position 3 (ignition off) before starting the
engine. The immobilizer is switched off again,
and the engine can be started.
f Please see the chapter “IGNITION/STARTER
SWITCH WITH ANTI-THEFT STEERING LOCK”
on Page 72.
Switching on the immobilizer
f Remove ignition key.Security Wheel Bolts fIf wheels have to be removed during a work-
shop visit, do not forget to hand over the sock-
et for the security wheel bolts along with the
car key.
Page 18 of 284
16
Operation, Safety
1- Central locking button
2 - Front luggage compartment lid button
3 -Rear lid button
4 - Light-emitting diode
Key with Radio Remote Control Unlocking the vehiclef Press button 1.Locking the vehiclef Press button 1.
Switching off the alarm system if it is
triggered accidentally
f Press button 1.
Unlocking front luggage compartment lid f Press button 2 for approx. two seconds. Unlocking rear lid f Press button 3 for approx. two seconds.
If the vehicle was locked, it is unlocked simultane-
ously with the luggage compartment.
In vehicles with seat memory the stored seat and
door mirror positions are automatically set.
The vehicle will be locked again approx.
80 seconds after the luggage compartment is
closed if none of the doors was opened.
Note
Your authorized Porsche dealer can program fur-
ther types of unlocking.
Ty p e 1
The relocking time of the doors can be adjusted to
suit your individual requirements:
10 - 100 seconds.
Ty p e 2
The doors stay locked when the luggage compart-
ment is unlocked.
Page 19 of 284
Operation, Safety
17
Malfunction of the remote controlThe remote control may not function correctly due
to local radio wave interference. The vehicle will
then not lock properly.
This can be identified by the missing locking
sound and the missing check-back signal of the
emergency flasher.
If this should occur:
f Lock the vehicle with the key in the door.
The remote-control standby function
switches off after 7 daysIf the vehicle is not started or unlocked with the re-
mote control within 7 days, the remote control
standby function is switched off (to prevent dis-
charging of the vehicle battery).
1. In this case, unlock the driver’s door with the
key at the door lock.
Leave the door closed in order to prevent the
alarm system from being triggered.
2. Press button 1 on the remote control.
The remote control is now activated again and
the alarm system is switched off.
Operational readiness of the remote
control interruptedEncoded data is transmitted to the vehicle each
time the wireless remote control is operated. If the
remote control is operated too often outside the
range of the vehicle, this can result in the central
locking system no longer responding.
In this case, the remote control and vehicle must
be synchronized.
Carrying out the synchronization
1. Unlock the driver's door with the key at the door lock.
2. Open driver’s door and insert the ignition key into the ignition lock within 10 seconds to
prevent the alarm system from being
triggered.
3. With the key inserted, press and hold button 1
on the remote control for approx. 5 seconds.
The synchronization is now complete.
Page 20 of 284
18
Operation, Safety
DoorsIf the door windows are closed, they will be auto-
matically opened by a few millimeters when the
doors are opened and, when the doors are closed,
they will be closed again. This makes it easier to
open and close the doors and protects the seals.
f Therefore, you should pull the door handle
slowly so that the door window can be lowered

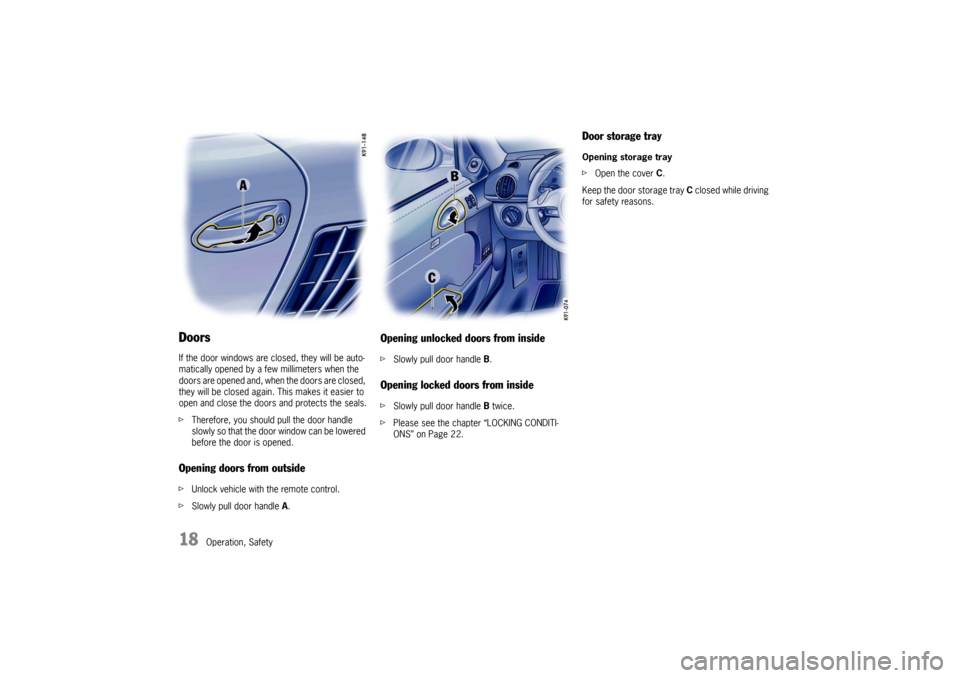

before the door is opened.Opening doors from outside f Unlock vehicle with the remote control.
f Slowly pull door handle A.
Opening unlocked doors from inside f Slowly pull door handle B. Opening locked doors from inside fSlowly pull door handle B twice.
f Please see the chapter “LOCKING CONDITI-
ONS” on Page 22.
Door storage trayOpening storage tray
fOpen the cover C.
Keep the door storage tray C closed while driving
for safety reasons.
