Warnings
169
Oil pressure gage faultyHave the fault remedied at an authorized
Porsche dealer.
Oil level display faulty Have the fault remedied at an authorized
Porsche dealer.
Oil temperature gage faulty Have the fault remedied at an authorized
Porsche dealer.
Oil temperature
too high Switch engine off and let
it cool. Check oil level
and, if necessary, add oil.
Please observe the chapter “OIL DISPLAY AND
MEASUREMENT OF THE ENGINE OIL LEVEL“.
Indicator faulty Coolant indicator failed.
Have the fault remedied at an authorized
Porsche dealer.
Brake pad wear Have the brake pads changed immediately at an
authorized Porsche dealer.
Warning – Brake fluid level Stop immediately in a suitable place.
Do not continue driving. Have the fault remedied
at an authorized Porsche dealer.
Warning – Brake circuit division Stop immediately in a suitable place. Do not continue driving. Have the fault remedied
at an authorized Porsche dealer.
ABS failure Have the fault remedied at an authorized
Porsche dealer.
PSM off Porsche Stability Management has been
switched off.
Instrument
panel On-board
computerText display on on-board
computer Meaning/measure

Maintenance, Car Care
187
Coolant LevelfPlease see the chapter “EXERCISE EXTREME
CAUTION WHEN WORKING ON YOUR VEHICLE”
on Page 186.
The cooling system is filled at the factory with a
permanent coolant.
It provides year-round protection from corrosion
and freezing down to –31 °F/–35 °C .
f Only use antifreeze authorized by Porsche. Checking coolant level The expansion tank with its filler orifice is located
in the rear luggage comp artment under the serv-
ice flap.
f Check the coolant level regularly.
When the engine is cold and the car is level the
fluid level must lie between the “MIN” and “MAX”
markings.
Topping off coolant
Warning!
Danger of serious personal injury or death
from scalding. Coolant is hazardous to your
health, and may be fatal if swallowed.
f Do not open the cap of the expansion tank
while the engine is hot.
f Allow the engine to cool down before opening
the cap and protect your hands, arms and face
from any possible escape of hot coolant.
f Keep coolant out of children’s reach.
f Also, keep coolant away from your pets.
They can be attracted to it should there be a
spill, or to used coolant left in an open contai-
ner. Coolant can be deadly to pets if consu-
med.
Risk of damage from overflowing coolant.
f Take care while topping off coolant not to soil the luggage compartment or items of luggage.
1. Switch engine off and let it cool. Please see the chapter “COOLING SYSTEM” on
Page 88. 2. Press catch button on the service flap and
open flap.
3. Cover the expansion tank cap with a thick rag. Open cap slowly and ca refully and allow over-
pressure to escape.
Then unscrew cap completely.
4. Only add a mixture of antifreeze and water in
equal parts, and do not exceed the ”Max.“
mark.
Antifreeze in coolant:
50% gives protection down to –31 °F/–35 °C
60% gives protection down to –58 °F/–50 °C
5. Screw cap firmly on.
6. Close service flap.

Maintenance, Car Care
189
If the vehicle is driven at a high rate of speed,
climatic conditions are warm, and the load is high,
the oil should be checked more frequently, as
driving conditions will determine the rate of oil
consumption.
– The engine in your vehicle depends on oil to lubricate and cool all of its moving parts.
Therefore, the engine oil should be checked
regularly and kept at the required level.
– Make it a habit to have the engine oil level checked at every fuel filling.
– The oil pressure warning light is not an oil level
indicator.
The oil pressure warning light indicates serious
engine damage may be occuring when lit, if en-
gine rpm is above idle speed.Engine Oil Level f Please see the chapter “EXERCISE EXTREME
CAUTION WHEN WORKING ON YOUR VEHICLE”
on Page 186.
f Regularly check the oil level using the on-board
computer after the vehicle is refuelled.
Please see the chapter “OIL DISPLAY AND
MEASUREMENT OF THE ENGINE OIL LEVEL”
on Page 161.
The difference between the minimum and maxi-
mum marks on the segment display is approx.
1.3 quarts (1.25 liters).
Each segment of the display corresponds to ap-
prox. 0.42 quart (0.4 liter).
Topping off engine oil
Warning!
Engine oil is hazardous to your health and
may be fatal if swallowed.
f Keep engine oil out of children’s reach.
Used engine oil contains chemicals that have
caused cancer in laboratory animals.
f Always protect your skin by washing thorough-ly with soap and water. Caution!
Risk of damage from overflowing engine oil.
f Take care while checking and topping up
engine oil not to soil the luggage compartment or items of luggage.
Note
The Check Engine warning light may light up if the
cap of the oil filler opening is opened while the
engine is running.
The oil inlet opening is located in the rear luggage
compartment under the service flap.
1. Measure the oil level and read off the required top-up quantity on the on-board computer.
2. Switch off the engine. 3. Press catch button on the service flap and
open flap.
4. Unscrew the oil filler cap.
5. Add at most 0.5 quarts (0.5 liter) of engine oil at a time.
Never add more engine oil than required
to reach the max. mark.
6. Close oil filler cap until you feel it reach its end position.
7. Measure oil level again with the on-board computer. Switch off the engine.
8. If necessary, repeat the process and add more engine oil as required.

190
Maintenance, Car Care
Engine Oil RecommendationPorsche recommends .
The right oil for your vehicle.1) Generally, you can find details of the
manufacturer approvals on the oil containers or as
a notice displayed by the retailer.
The current approval status is also available from
your Porsche partner.2) SAE viscosity class - Example: SAE 0W - 40
Specification 0W = Visc osity specification for
low temperatures (winter).
Specification 40 = Viscosity specification for
high temperatures.3) For all temperature ranges.4) For the temperature range over --13 °F (--25 °C).Always observe the following points:
– Use engine oils approved
by Porsche only. This
is a precondition for optimum and problem-free
operation of your vehicle.
– Regular oil changes are part of servicing. It is important that the service intervals,
particularly the oil change intervals, are
observed in accordance with the specifications
in the “Maintenance” booklet.
– Oils approved by Porsche can be mixed with each other.
– Porsche engines are designed so that no oil additives may be used.
– A label is located in the engine compartment, which provides you with information on suitable
oil for your engine.
Your Porsche partner will be pleased to
advise you.
Oil changeThe engine oil has to be changed regularly at the
intervals listed in your Maintenance Schedule .
f Please see the chapter “CAPACITIES” on
Page 271.
We recommend that you have the engine oil
changed at your Porsche dealer, who has the re-
quired oils and the necessary filling equipment.
If you suspect an oil leak in the engine have your
dealer check it out immediately.
All current engine oils are compatible with each
other, i.e. when making an oil change it is not nec-
essary to flush the engine if you wish to use a dif-
ferent brand or grade of oil.
Since, however, each brand of oil has a special
composition, you should, if possible, use the
same oil brand if it becomes necessary to top up
between oil changes.
Porsche engines have long intervals between oil
changes. You can make best use of these long oil
change intervals by usin g multigrade oils since
these are largely independent of seasonal fluctua-
tions in temperature.
Complies with
approval
1)
Viscosity class
2)
Porsche A40 SAE 0W - 40
3)
SAE 5W - 40
4)
SAE 5W - 50
4)

Maintenance, Car Care
195
Fuel
Warning!
Fuel is highly flammable and harmful to
health.
f Fire, open flame and smoking are prohibited
when handling fuel.
f Avoid contact with skin or clothing.
f Do not inhale fuel vapors.
To prevent damage to the emission control
system and engine:
f Never drive the tank completely out of fuel.
f Avoid high cornering speeds after the warning lights have come on.
f Please see the chapter “FUEL ECONOMY” on
Page 194.
Please see the chapter “EMISSION CONTROL
SYSTEM” on Page 198.
Please see the chapter “LEVEL GAGE” on
Page 130.
Check engine warning light
If the warning lights in the instrument panel and on-
board computer come on and remain on while
driving, it suggests:
– a potential engine control problem and the need for system service or
– an improperly fastened tank cap or – refueling with engine running.
Opening the filler flapThe filler opening is under th
e filler flap in the front
right fender.
f With the vehicle unlocked, press on the front
part of the filler flap ( arrow) to open the flap.
The filler flap is centrally locked along with the oth-
er locks. If there is a defect in
the automatic unlocking
system:
f Open the passenger door.
f Pull the ring in the right-hand door aperture
(arrow ).

Maintenance, Car Care
201
Power Steering
Warning!
Risk of accident resulti ng in serious personal
injury or death.
When the engine is stopped (e.g. when being
towed) or the hydraulic system fails, there is
no assistance for steering.
Therefore, substantially more force will have
to be exerted in order to steer.
f Exercise great care when being towed.
f Have the fault remedied at your nearest autho-rized Porsche dealer.
Note
The flow noise heard at full steering lock is system
related and does not indi cate a defect in the
steering system.
Checking hydraulic fluid f Please see the chapter “EXERCISE EXTREME
CAUTION WHEN WORKING ON YOUR VEHICLE”
on Page 186.
The hydraulic fluid reservoir is located in the engi-
ne compartment.
Regular checking of hydraulic fluid is part of
servicing.
Air Filter A dirty air filter not only reduces engine perform-
ance, but can lead to premature engine wear.
Regular filter replacement is part of the routine
maintenance service.
f In dusty conditions, check the filter element
more frequently and replace if necessary.Combination Filter The fresh air passing through the combination fil-
ter into the passenger co mpartment is virtually
free of dust, pollen, and unpleasant odors.
f If the outside air is polluted by exhaust fumes,
press the circulating-air button.
A dirty filter can be the cause of reduced air flow:
f Have filter replaced by your authorized
Porsche dealer.
Regular filter replacement is part of the routine
maintenance service.
Fluids/Oils for Manual
Transmission and Porsche
Doppelkupplung (PDK)The transmission fluids/oils have to be checked
and changed at the intervals listed in your Mainte-
nance Schedule.
f Please see the chapter “CAPACITIES” on
Page 271.
Do not tow the car or run the engine without fluid/
oil in the transmission. The transmission may be
damaged by even a tiny speck of dirt, only a clean
funnel or spout must be used when adding fluid/
oil.
We recommend that you have the fluids/oils
changed at your Porsche dealer, who has the re-
quired lubricants and the necessary filling equip-
ment.
f If you suspect an oil leak in the transmission,
have your authorized Porsche dealer check it
out immediately.

210
Maintenance, Car Care
Storing your Porsche If you intend to store your Porsche for a prolonged
period, please consult your authorized Porsche
dealer. The staff will be glad to advise you on the
most suitable and necessary methods.
fClean your vehicle thoroughly inside and out-
side.
Clean the engine compartment.
The under carriage and chassis components
should be free of dirt and salt deposits.
f Fill up the fuel tank.
f Change the oil and oil filter, and run the engine
for several minutes.
f Increase the tire pressure to 50 psi (3.5 bar).
It is not recommended to lift the vehicle, due to
the possibility of corrosion on shock absorber
piston shafts.
The vehicle should be moved slightly, approxi-
mately every four weeks, to prevent flat spot
on the tires. Climate control
The air conditioning system should be in good
working condition and fully charged.
Windshield/Headlight washer
f
Check and correct antifr eeze/cleaning solution
level as necessary.
Electrical system
f Remove the battery from the vehicle and store
it in a cool dry place, not on a cement floor.
When the battery is disconnected, the
alarm system is deactivated.
f Recharge the battery every 3 months. If the
battery remains in the vehicle with the cables
connected, it is necessary to check, remove
and recharge the battery every 2-3 weeks.
Do not fast charge the battery.
f Please see the chapter “BATTERY” on
Page 239.
Vehicle interior
The interior must be dry, especially in the area of
the floor carpets. The use of drying agents (Silica-
Gel) is recommended in vehicles with leather inte-
rior and in areas with high humidity. The recom-
mended amount is 3 fabric bags of 1.1 lbs.
(500 grams) each placed on the floor carpets.
Windows, doors and lids must be closed. The air
vents should be opened.

Practical Tips, Emergency Service
241
Winter operation The capacity and ability of the battery to store
power decreases at low outside temperatures.
Moreover, the battery is more heavily loaded in
winter months, e.g. by the heated rear window,
more frequent use of additional lights, the fans
and the windshield wipers, etc.
f Have the battery checked before the start
of winter.
Maintenance note
Keep the battery well charged to prevent it
from freezing.
A discharged battery can freeze at 23 °F (--5 °C),
but a fully charged battery only freezes at -- 40 °F
(--40 °C).
A frozen battery must always be thawed before
connecting jump leads.
Replacing battery The service life of the batt ery is subject to normal
wear; it depends greatly on care, climatic condi-
tions, and driving conditions (distances, loads).
f Only use an original Porsche battery, with the
correct part number, as a replacement.
f Please observe the disposal instructions for
batteries.
Putting vehicle into operationAfter the battery is co nnected or after an exhaus-
tively discharged battery is charged, the multi-
functional PSM light lights up on the instrument
panel and a message appears on the on-board
computer to indicate a fault.
This fault can be remedied with a few simple
steps:
1. Start the engine.
2. With the vehicle stationary, perform a few steering movements to the left and right and
then drive a short distance in a straight line
until the multifunctinal PSM light goes out and
the message on the on-board computer
disappears.
3. If the warnings do not disappear, then:
Drive carefully to the nearest authorized
Porsche dealer.
Have the fault remedied.
4. After the warnings disappear: Stop the vehicle in a suitable place.
f Perform adaptation of the power windows:
Please see the chapter “STORING END
POSITION OF THE WINDOWS” on Page 28.

276
Index
CCapacities, overview ................................... 271
Car care ........................ ............................ 203
Car telephone ............. ................................ 103
Car washes .................... ............................ 204
Cargo partition ........... .................................. 97
Carpet ....................................................... 209
Catalytic converters .... ................................ 199
Cautions ........................ .................... 186, 212
Central locking ........... ................................ 236
Emergency operation ...................... 19, 22
In cars with alarm system ...................... 21
In cars without alar m system ................. 19
Overload protection ............................ 236
Central vents .............. ................................ 116
Central warning light ................................... 132
Changing light-emitting diodes (LEDs) ........... 256
Changing wheels ........ ................................ 227
Check engine Warning light .......... ............................ 132
Check engine warning li ght .......................... 133
Opening the oil filler cap ...................... 189
Checking pressure ...... ................................ 228
Child restraint anchor age .............................. 54
Child restraint system s.................................. 50
Chime ............... ......................... ............ 78, 80
CHRONO Stopwatch.... ................................ 144
Cigarette lighter.......... .................................. 90
Circulating-air button ... ........................ 110, 114
Clock ............................................. .... 131, 164
Clutch ............... ............................. ...... 60, 176
Clutch pedal ............... .................................. 60
Combination filter ....... ................................ 201
Comfort seat .............. .................................. 33 Coming home mode ......
.......................... 79, 80
Communication manage ment ....................... 101
Compact disc
Player ...................... .......................... 102
Storage .................... ............................ 92
Compartment monitoring ................ ............... 25
Coolant ........... ........................... 128, 187, 271
Checking ............................................ 187
Level .................................................. 187
Temperature gage .... ..........................1

28
Topping off ........... .............................. 187
Warning light......... .............................. 128
Cooling system ............. ...................... 128, 187
Warning light......... .............................. 128
Cornering light .......... .................................... 78
Indicator light ........ .............................. 127
Crankcase ventilation .................................. 199
Cruise control ................................. 86, 87, 132
Cupholder ......................................... ........... 88
DData bank................................................... 264
Daytime driving lights .................................... 78
Changing bulbs ..... .............................. 256
On-board computer ............................. 164
Defrosting windows ....... ................ 31, 110, 114
Diagnostic socket ..... .................................... 11
Dimensions ....................................... ......... 272
Direction indicator lig ht, front ....................... 256
Door ............................ ................................ 18
Handles ................................................ 18
Locks....................... .................... 18, 205
Mirror....................... ............................ 30
Mirror heating ....... ................................ 31 Mirrors ....................
.............................29
Windows ...................... ...........18, 27, 206
Drive-Off Assistant ....... ................................177
Driving Hints .............. ........................................8
Winter ......................... .......................183
Driving off Drive-Off Assistant .... ...........................177
Launch Control......... ...........................181
Driving performance .... ................................270
Drop-center rim........... ................................223
EElectrical system..... ....................................235
Emergency flasher swit ch ..............................77
Emergency operation . ...................................22
Central locking ......... .......................19, 22
Ignition key ......... ..................................74
Lids................ ......................... ...........238
Tank flap ................. ...........................195
Emergency service ..... ................................212
Emergency starting with jumper cables.245, 246
Emission control system ..............133, 198, 199
Engine Checking the oil leve l ...........................161
Diagram ...................... .......................273
Exhaust ................... ...............................5
Number ..............................................265
Oil consumption ....... .....................10, 188
Oil level ................... ...........................189
Oil level indicator ...................... ...........161
Oils ............................................188, 271
Speeds.................... .............................10
Starting ................................................75

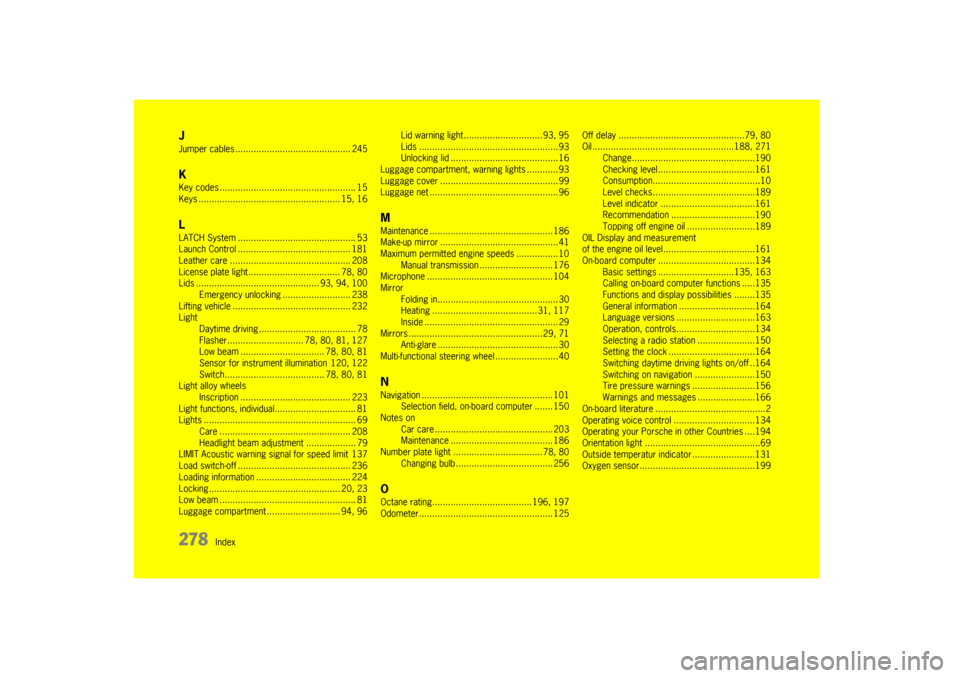

278
Index
JJumper cables ............................................ 245KKey codes ...................... .............................. 15
Keys ................. ......................... ............ 15, 16LLATCH System ............... .............................. 53
Launch Control ........................................... 181
Leather care .............. ................................ 208
License plate light................................... 78, 80
Lids ............................................... 93, 94, 100
Emergency unlocking .......................... 238
Lifting vehicle ............. ................................ 232
Light
Daytime driving ....... .............................. 78
Flasher....................... ...... 78, 80, 81, 127
Low beam .................. .............. 78, 80, 81
Sensor for instrument illumination 120, 122
Switch........................ .............. 78, 80, 81
Light alloy wheels
Inscription .............. ............................ 223
Light functions, indivi dual............................... 81
Lights ................................................. ......... 69
Care .................................................. 208
Headlight beam adju stment ................... 79
LIMIT Acoustic warning signal for speed limit 137
Load switch-off ........... ................................ 236
Loading information .... ................................ 224
Locking.......................... ........................ 20, 23
Low beam ...................... .............................. 81
Luggage compartment ............................ 94, 96 Lid warning light........
...................... 93, 95
Lids ..................................................... 93
Unlocking lid ......... ................................ 16
Luggage compartment, warning lights ............ 93
Luggage cover ............. ................................ 99
Luggage net ................. ................................ 96
MMaintenance ................. .............................. 186
Make-up mirror ............. ................................ 41
Maximum permitted engi ne speeds ................ 10
Manual transmission ............................ 176
Microphone ....................................... ......... 104
Mirror Folding in.............. ................................ 30
Heating .................... .................... 31, 117
Inside ................................................... 29
Mirrors ............................. ...................... 29, 71
Anti-glare ................................... ........... 30
Multi-functional steeri ng wheel ........................ 40NNavigation .................... .............................. 101
Selection field, on-board computer ....... 150
Notes on Car care ................... .......................... 203
Maintenance ............. .......................... 186
Number plate light ........ .......................... 78, 80
Changing bulb ....... .............................. 256OOctane rating................ ...................... 196, 197
Odometer.......................................... ......... 125Off delay ....................
............................79, 80
Oil...................... ............................. ...188, 271
Change........................ .......................190
Checking level.......... ...........................161
Consumption............ .............................10
Level checks............ ...........................189
Level indicator ......... ...........................161
Recommendation ......... .......................190
Topping off engine oi l ..........................189
OIL Display and measurement
of the engine oil leve l...................................161
On-board computer ..... ................................134
Basic settings .......... ...................135, 163
Calling on-board computer functions .....135
Functions and display possibilities ........135
General information . ............................164
Language versions ... ...........................163
Operation, controls... ...........................134
Selecting a radio station ......................150
Setting the clock ...... ...........................164
Switching daytime driving lights on/off ..164
Switching on navigation .......................150
Tire pressure warnings ........................156
Warnings and messag es ......................166
On-board literature ..........................................2
Operating voice contro l ...............................134
Operating your Porsche in other Countries ....194
Orientation light ...... ......................................69
Outside temperatur indicator........................131
Oxygen sensor............ ................................199
