Luggage stop
Rear luggage space
Front luggage compartment
Front luggage compartment.
The front luggage compartment
is lined with black carpet and
of fers 150 litres of loadspace.
Rear luggage space.
The luggage space located
beneath the upholstered rear lid
is lined with carpet in the interior
colour and consists of both a
Transport concept.
The Cayman models satisf y your
need for independence, whatever
your destination or purpose. Af ter
all, there are occasions when
you don’t get into your car merely
for the sake of it. Sometimes, you
simply need to get from A to B.
Such as a trip to the shops, or
to pursue your favourite leisure
activities. storage surface above the engine
cover and the luggage compart
-
ment behind it. This design enables
the convenient loading of longer
items of luggage. It has a capacit y
of 260 litres and a high-qualit y
finish. On request, you can have

the panels surrounding the engine
cover and the integral strut tower
mouldings finished in the vehicle’s
exterior colour.
A retaining rail at the front of the
engine cover helps to secure any
luggage under braking. A luggage
stop behind the seats is also
available as an option. Smaller
items can be secured on top of
the engine cover using a luggage
net with four lashing eyelets. A
stainless steel partition provides
an elegant transition to the lower
rear luggage area. This is the
ideal space for larger items and
also has four lashing eyelets for
at taching a luggage net.
Another useful feature is the
covered service opening, which
conceals the conveniently located
coolant and engine oil filler tubes.
With their generous transport
concept, which includes two

luggage compartments, a wide
range of storage spaces and the
optional roof transport system,
the Cayman models are extremely
practical. And, of course, they
still of fer an abundance of driving
pleasure, whatever the reason
for your journey.
Cayman | Comfort

8889
Rear luggage space Cup holder
Lockable glove compartment
Door compartment
Cayman roof transport system
Storage compartments.
The interior of the Cayman models
is packed with a wide range
of ingenious and ergonomically
positioned storage spaces. On the
passenger’s side, there is a large,
lockable glove compartment, which
will contain integral CD storage
if you have selected an optional
sound system. Other storage
compartments can be found
beneath the radio or PCM, in the
rear centre console and in the
door armrests. In the Cayman S,
the lids of these compartments are
trimmed in leather. Bet ween the
t wo seats, on the engine bulkhead,
is another compartment offering
4.5 litres of storage space.
The dashboard trim strip neatly
conceals t wo separate cup holders.
mounting the roof transport
system is fit ted as standard,
while at tachments are available
from Porsche Tequipment through
your Porsche Centre.
at tachments is available for the
roof transport system, such as a
roof box and carriers for bikes
and skis/snowboards – for sport y
activities 365 days a year. The
maximum permissible roof load
is 60 kg. The preparation for Roof transport system.
The optional roof transport system
is aerodynamically efficient and
made of aluminium. Its low weight
and uncomplicated mechanism
make it easy to fit. A range of
Cayman | Comfort

9091
CDR-30 audio system
When you’re driving along with bells and whistles,
why not listen to some music, too?
Porsche audio and communication systems.
output stages. For an even more
impressive sound experience,
you could opt for the Sound
Package Plus or BOSE
® Surround
Sound System.
Controlling the CDR-30 could not
be more simple: the function keys
ensure that all the main functions
are directly at your fingertips,
and it is possible to conveniently
control all of the most important
functions using the but tons on
any of the optional multifunction
steering wheels.
Admit tedly, to outperform the
distinctively powerful Porsche
sound is a real challenge.

Nevertheless, we’ve tried and
have developed audio systems
that offer a genuine alternative.
CDR-30 audio system.
Both Cayman models are
equipped as standard with the
CDR-30 audio system with
a 5-inch display (monochrome)
and an MP3- compatible CD drive. An integrated six- disc CD/ DVD
autochanger is available as an
option.
The FM dual tuner with RDS
diversit y, a total of 30 memory
presets, dynamic autostore and
speed-sensitive volume control
are, as usual, all part of the
standard package. Just like the
high-qualit y sound, which is

delivered by t wo high -range
speakers in the dashboard, t wo
low/mid-range speakers in the
door trims and t wo 25-wat t
Cayman | Comfort

9293
Porsche Communication Management (PCM)
No time for instruction manuals?
We thought as much.
Porsche Communication Management (PCM)
including navigation module.
Navigation module for PCM.
The GPS navigation system
included with the optional PCM has
an internal hard drive containing
maps for most European countries.
A touchscreen enables rapid
destination input and instant view -
ing of traffic information and points
of interest (POIs) by simply allowing
you to touch the symbols on
the map. Route diversions, e.g.
the nearest service stations,
can therefore be incorporated
quickly and easily into the current
route guidance.
As the central control unit
for audio, navigation and
communications, the optional
PCM is multifunctional and
ergonomic to operate.
The main feature is the 6.5-inch
colour touchscreen with a durable,
easy-to - clean coating. Functional,
innovative and easy to use, you
will find the display very clearly

presented and a maximum of five
list entries per page enable you to
operate the unit quickly and safely.
Alternatively, you can choose to
operate PCM using the rotary
pushbut ton on the right. Radio functions include up to 42
memory presets and an FM dual
tuner frequency diversit y with
RDS, which continuously scans in
the background for the best
signal. The integrated single CD/
DVD drive supports the MP3
format and – in combination with
the optional BOSE
® Surround
Sound System – is able to play
back music from audio and
video DVDs in 5.1 digital format.
An integrated six- disc CD/ DVD
autochanger with MP3 playback
is also available as an option for
PCM.
Cayman | Comfort

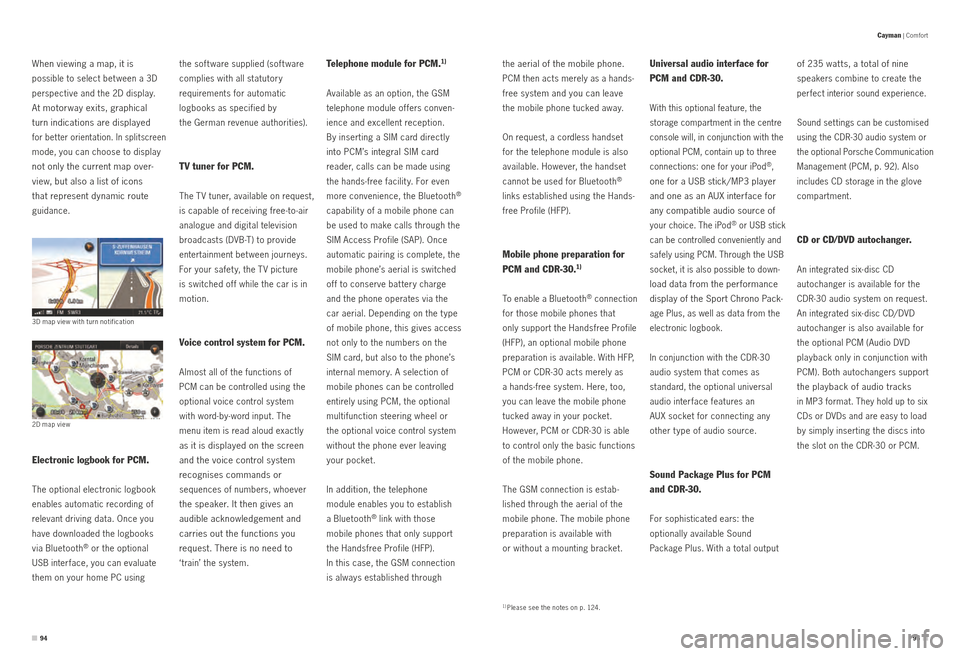

9495
1) Please see the notes on p. 124.
Telephone module for PCM.1)
Available as an option, the GSM
telephone module offers conven -
ience and excellent reception.
By inserting a SIM card directly
into PCM’s integral SIM card
reader, calls can be made using
the hands-free facilit y. For even
more convenience, the Bluetooth
®
capabilit y of a mobile phone can
be used to make calls through the
SIM Access Profile (SAP). Once
automatic pairing is complete, the
mobile phone’s aerial is switched
of f to conserve bat tery charge
and the phone operates via the
car aerial. Depending on the t ype
of mobile phone, this gives access
not only to the numbers on the
SIM card, but also to the phone’s
internal memory. A selection of
mobile phones can be controlled
entirely using PCM, the optional
multifunction steering wheel or
the optional voice control system
without the phone ever leaving
your pocket.
In addition, the telephone
module enables you to establish
a Bluetooth
® link with those
mobile phones that only support
the Handsfree Profile (HFP).
In this case, the GSM connection
is always established through
of 235 wat ts, a total of nine
speakers combine to create the
perfect interior sound experience.
Sound set tings can be customised
using the CDR-30 audio system or
the optional Porsche Communication
Management (PCM, p. 92). Also
includes CD storage in the glove
compartment.
CD or CD/DVD autochanger.
An integrated six- disc CD
autochanger is available for the
CDR-30 audio system on request.
An integrated six- disc CD/ DVD
autochanger is also available for
the optional PCM (Audio DVD
playback only in conjunction with
PCM). Both autochangers support
the playback of audio tracks
in MP3 format. They hold up to six
CDs or DVDs and are easy to load

by simply inserting the discs into
the slot on the CDR-30 or PCM.
the
aerial of the mobile phone.
PCM then acts merely as a hands-
free
system and you can leave
the mobile phone tucked away.
On request, a cordless handset
for the telephone module is also
available. However, the handset
cannot be used for Bluetooth
®
links established using the Hands -
free Profile (HFP).
Mobile phone preparation for
PCM and CDR-30.
1)
To enable a Bluetooth® connection
for those mobile phones that
only support the Handsfree Profile
(HFP), an optional mobile phone
preparation is available. With HFP,
PCM or CDR-30 acts merely as
a hands-free system. Here, too,
you can leave the mobile phone
tucked away in your pocket.
However, PCM or CDR-30 is able
to control only the basic functions
of the mobile phone.
The GSM connection is estab -
lished through the aerial of the
mobile phone. The mobile phone
preparation is available with
or without a mounting bracket.
the sof t ware supplied (sof t ware
complies with all statutory
requirements for automatic
logbooks as specified by
the German revenue authorities).
TV tuner for PCM.
The T V tuner, available on request,
is capable of receiving free-to -air
analogue and digital television
broadcasts (DVB-T) to provide
entertainment bet ween journeys.
For your safet y, the T V picture
is switched of f while the car is in
motion.
Voice control system for PCM.
Almost all of the functions of
PCM can be controlled using the
optional voice control system
with word-by-word input. The
menu item is read aloud exactly
as it is displayed on the screen

and the voice control system
recognises commands or
sequences of numbers, whoever
the speaker. It then gives an
audible acknowledgement and
carries out the functions you
request. There is no need to

‘train’ the system.
Universal audio interface for
PCM and CDR-30.
With this optional feature, the
storage compartment in the centre
console will, in conjunction with the
optional PCM, contain up to three
connections: one for your iPod
®,
one for a USB stick/ MP3 player
and one as an AUX interface for
any compatible audio source of

your choice. The iPod
® or USB stick
can be controlled conveniently and
safely using PCM. Through the USB
socket, it is also possible to down-
load data from the performance
display of the Sport Chrono Pack-
age Plus, as well as data from the
electronic logbook.
In conjunction with the CDR-30
audio system that comes as
standard, the optional universal
audio interface features an
AUX socket for connecting any
other t ype of audio source.
Sound Package Plus for PCM
and CDR-30.
For sophisticated ears: the
optionally available Sound
Package Plus. With a total output
3D map view with turn notification
2D map view
Cayman | Comfort
When viewing a map, it is
possible to select bet ween a 3D
perspective and the 2D display.
At motorway exits, graphical
turn indications are displayed

for bet ter orientation. In splitscreen
mode, you can choose to display
not only the current map over -
view, but also a list of icons
that represent dynamic route

guidance.
Electronic logbook for PCM.
The optional electronic logbook
enables automatic recording of
relevant driving data. Once you
have downloaded the logbooks
via Bluetooth
® or the optional
USB interface, you can evaluate
them on your home PC using

9697
8.0 cm neodymium mid - range speaker and
20.0 cm Nd® bass speaker1)
Seven - channel
digital amplifier
Active subwoofer, 10.2 cm x 15.3 cm bass
speaker in the passenger foot well
7.0 cm centre speaker
8.0 cm neodymium mid - range speaker
1) Neodymium subwoofer with BOSE® patented technolog y for an extremely slim design and superior bass per formance. Microphone for AudioPilot
®
on the steering column
2.5 cm neodymium t weeter
To complement these features,
the BOSE
® Surround Sound
System of fers a comprehensive
selection of equaliser presets for
customised sound. The dynamic
loudness function increases
bass levels as you decrease the
volume, thereby compensating for
the decreasing sensitivit y of the
human ear at these frequencies.
Moreover, the AudioPilot
® Noise
Compensation Technology uses a
microphone to continuously
measure the ambient noise inside
the vehicle and adapts music
playback automatically so that a
consistent sound is maintained in
all driving conditions.
The BOSE
® Surround Sound
System. A genuine – perhaps the
only – alternative to the character -
istic engine sound.
BOSE® Surround Sound System
for PCM and CDR-30.
The optional BOSE® Surround
Sound System is compatible with
both the CDR-30 audio system,
which comes as standard, and
the optionally available PCM.
Developed specifically for

Porsche, it has been optimised
for the Cayman models. A total
of 10 loudspeakers, including
an active subwoofer and central
speaker, and a seven-channel
digital amplifier with a total
output of 385 wat ts, combine
to produce a truly memorable

sound experience.
During audio playback from audio
or video DVDs (only in conjunction
with the optional PCM), the system
is able to make full use of the
impressive sound spectrum of 5.1
digital recordings. With music
in 5.1 digital format, the sound
has already been recorded in a
multi- channel format and is
faithfully reproduced exactly as
the original. Five dedicated audio channels
(front lef t, front right, centre,
surround lef t, surround right)
deliver a sound that is as authen
-
tic as it is natural. The digital
5.1 surround sound is balanced,
lifelike and crystal clear. It ’s
a sound that ’s as true to a live
performance or cinematic
experience as you can get.
Of course, you can still play
traditional music sources such
as CDs (only format supported
by CDR-30), either in stereo or
in one of the surround modes
generated by the patented BOSE®
Centerpoint® system. The
algorithm of Centerpoint® II
extracts an even more precise
and realistic sound from the
stereo signal.
The SurroundStage
® signal
processing circuitry developed
by BOSE® assigns each individual
audio channel, whether sourced
from a DVD or generated by
Centerpoint
®, to a selected
combination of loudspeakers and
is therefore able to deliver an
optimally balanced surround
sound experience to both seat
positions.
Cayman | Comfort

9899
Environment
It’s not only technology that can be forward-looking.
Attitudes can be, too.
The Cayman models exude
character. They are strong-willed,
unyielding, but never disagreeable.
It shows in their at titude, especially
towards the environment. Resolute compliance with
environmental regulations is the
law they follow. As do all Porsche
models. Because efficiency,

too, is a question of character.

100101
Top marks for cleanliness.
each cylinder bank separately,
while another Lambda sensor
on each cylinder bank monitors
pollutant conversion in the respec-
tive cataly tic converter (p. 44).
1)
In an era of intensif ying debate
about global climate change and
CO
2 emissions, every automotive
manufacturer is asking itself
what it has to of fer in terms
of environmental protection. Our
answer has long been the same:
maximum ef ficiency.
Over the last 15 years, Porsche
has managed to reduce the
fuel consumption of its vehicles
by an average of 1.7 % each year.
Improvements in fuel economy
also have a beneficial impact
on CO
2 emissions. This has been
achieved through an ef ficient
drive concept (DFI), light weight
construction, optimum aerody -
namics and low rolling resistance.
The goal? Pure performance – but
not at the expense of the environ -
ment. A goal achieved by the
Cayman models.
Exhaust emission control.
Both engines comply with the Euro
5 emission standard
in Europe and
LEV II/ ULEV in
the USA. Vehicles
manufactured by Porsche demon-
strate that even
high -performance
sportscars can achieve moderate
em issio n
values in their respective
category. In short, the Cayman
is not only sport y, it is also clean.
This at tribute is achieved by
means of a t wo -stage cascade-
t ype cataly tic converter
which comprises t wo monolith
substrates on each of the t win
exhaust tracts. These specially
coated substrates contain
ultra-fine honeycomb channels in
which pollutants are converted
as exhaust gas passes through.
The stereo Lambda control
circuitry controls and monitors
Cayman | Environment
1) Not in markets with leaded fuel.
Cayman models: fuel consumption in l/100 km (mpg) urban 14.1 (20.0) –13.6 (20.8) ·
extra urban 7.1 (39.8) – 6.5 (43.5) · combined 9.5 (29.7) –9.1 (31.0); CO
2 emissions 223–214 g / km

102103
Noise.
The Cayman models comply with
all applicable noise regulations
without any form of engine encap-
sulation. To achieve this, noises
are eliminated at source. Engine
parts are stif f, moving parts are
light weight and tolerances are
kept to a minimum. Large-volume
silencers and resonators in the
air intake system minimise noise
further. For the entire service life
of the vehicle.
Servicing.
Long service intervals of fer
clear advantages. For you: lower
costs and saved time. For the
environment: the use of fewer
consumables and replacement
parts. For full details of service
intervals, please refer to the
separate price list.
Fuel economy and recycling.
At Porsche, a fundamental aspect
of design is intelligent light weight
construction. For both economical
and ecological reasons. This
forms the basis for low fuel con -
sumption values in conjunction
with outstanding performance.
It is economical thanks to the
high proportion of aluminium cast
alloys, plastics and super high-
strength sheet steel used. This
is substantially lighter and more
stable than conventional steel. In
the Cayman models approximately
20 % of components are made
from light weight alloys. We use
only innovative and environmen -
tally friendly components,
and each material is labelled to
facilitate its separation for
recycling. Recycled plastics are
used where they meet exacting
technical requirements. In all, the
Cayman models are approximately
95 % recyclable. In addition, Porsche uses only
environmentally friendly water-
based paints. The Cayman is free
of CFCs and components manu
-
factured using CFCs. This is
because, here at Porsche, environ -
mental protection does not begin
at the end of a vehicle’s life. It
starts at the planning and develop -
ment stage.
Fuel.
The Cayman models are designed
to operate on fuels with an etha -
nol content of up to 10 %. Ethanol
has a positive impact on the CO
2
balance since the plants cultivated
for the production of this biofuel
also absorb CO
2 from the atmos -
phere.
The active carbon filter and
a special coating on the fuel tank
reduce the amount of hydrocar -
bons released from the fuel
system. All fuel lines are made of
aluminium, while vapour- carrying
lines are made from multi-layered
plastic.
Cayman | Environment

104105
Personalisation
We build you the sportscar.
The rest is up to you.
Admit tedly, the Cayman models
are already a declaration of
individualit y. But they’re unable to
express your individualit y until
you’ve given them your personal touch. Using the wide range of
available personalisation options
for inspiration, you can lend
your Cayman model a very special
kind of st yle: your own.
