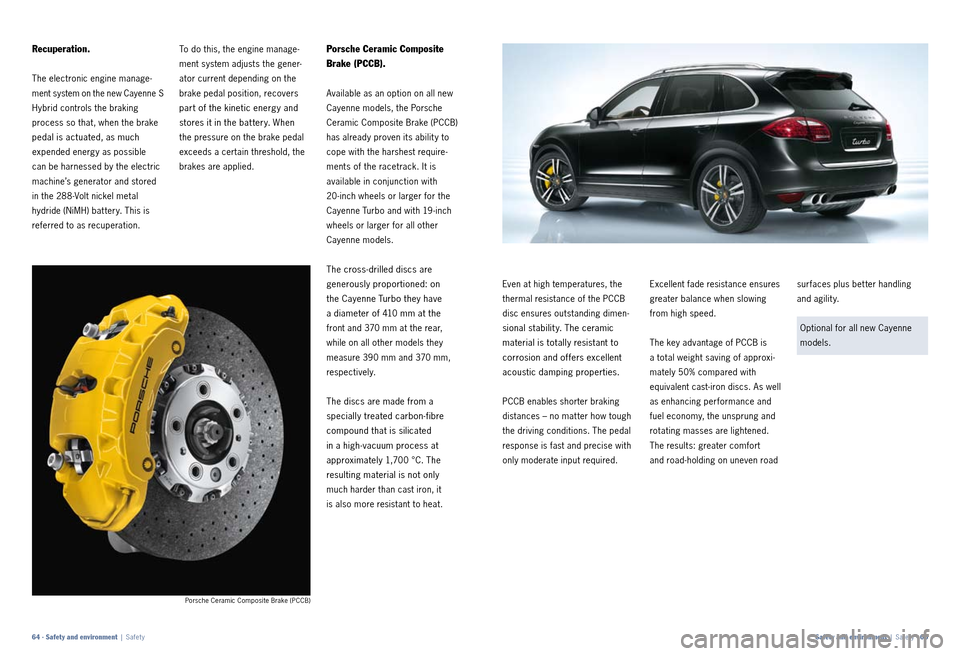

Porsche Ceramic Composite Brake (PCCB)
To do this, the engine manage­
ment system adjusts the gener­
ator current depending on the
brake pedal position, recovers
part of the kinetic energy and
stores it in the bat tery. When

the pressure on the brake pedal
exceeds a certain threshold, the
brakes are applied.
Porsche Ceramic Composite
Brake (PCCB).
Available as an option on all new
Cayenne models, the Porsche
Ceramic Composite Brake (PCCB)
has already proven its abilit y to
cope with the harshest require ­
ments of the racetrack. It is
available in conjunction with
20 ­inch wheels or larger for the
Cayenne Turbo and with 19 ­inch
wheels or larger for all other
Cayenne models.
The cross ­drilled discs are
generously proportioned: on
the Cayenne Turbo they have
a diameter of 410 mm at the

front and 370 mm at the rear,
while on all other models they
measure 390 mm and 370 mm,
respectively.
The discs are made from a
specially treated carbon ­fibre
compound that is silicated
in a high ­vacuum process at
approximately 1,700 °C. The
resulting material is not only

much harder than cast iron, it
is also more resistant to heat. Even at high temperatures, the
thermal resistance of the PCCB
disc ensures outstanding dimen
­
sional stabilit y. The ceramic
material is totally resistant to
corrosion and offers excellent
acoustic damping properties.
PCCB enables shorter braking
distances – no mat ter how tough
the driving conditions. The pedal
response is fast and precise with
only moderate input required. Excellent fade resistance ensures
greater balance when slowing
from high speed.
The key advantage of PCCB is

a total weight saving of approxi ­
mately 50% compared with
equivalent cast ­iron discs. As well
as enhancing performance and
fuel economy, the unsprung and
rotating masses are lightened.
The results: greater comfort
and road ­holding on uneven road surfaces plus bet ter handling
and agility.
Optional for all new Cayenne
models.
Recuperation.
The electronic engine manage ­
ment system on the new Cayenne S
Hybrid controls the braking
process so that, when the brake
pedal is actuated, as much
expended energy as possible
can be harnessed by the electric
machine’s generator and stored
in the 288 ­Volt nickel metal
hydride (NiMH) bat tery. This is
referred to as recuperation.
Safety and environment | Safet y · 65
64 · Safety and environment | Safet y

PSM has three additional func­
tions that help reduce braking
distances. If the throt tle pedal
is released suddenly, PSM

automatically readies the braking
system. The pressure in the
brake lines is marginally increased,
bringing each of the pads into
light contact with the correspond ­
ing disc. If the driver goes on
to apply the brakes, the calipers
respond more quickly and the
braking distance is reduced. In an emergency stop – i.e. when
the pressure on the brake pedal
exceeds a certain threshold –
the brake assist function uses the
PSM hydraulics to apply maximum
braking force at all four wheels.
For added safet y, the system
also readies the brakes whenever
a decreasing distance to the
vehicle in front is detected. The
optional adaptive cruise control
and PSM interact to prefill the
brakes.
Even if adaptive cruise control is
inactive, the system registers the
speed of the vehicle in front and
automatically readies the braking
system. In addition, the system
alerts the driver to the decreasing distance by briefly tugging on
the brakes.
PSM also features a trailer
stabilisation function – for a
significant contribution to car
and trailer safet y.
Within the laws of physics, it
compensates for load transfer
caused by throt tle and brake

inputs up to the maximum degree
of lateral acceleration. It also en ­
hances the car’s driving dynamics
and directional stabilit y when
accelerating on inconsistent road
surfaces.
Other features include a special
control strategy in the ABS
for braking on loose surfaces.
By briefly locking the wheels, a wedge is formed ahead of each
t yre which provides additional
purchase to help slow the car,
e.g. on gravel or snow.
For a more involving driving

experience, PSM can also be
disabled, but remains active in
the background.
Standard on all new Cayenne
models.
accele

ration of the car. Using
this information, it is possible to
calculate the actual direction of
travel at any given moment. If
the car begins to oversteer or
understeer, PSM applies selective
braking on individual wheels to
restore stabilit y. If necessar y,
PSM can also intervene in the
engine management system to
temporarily modif y the amount of
drive transmit ted to the wheels.
Porsche Stability Management
(PSM).
Porsche Stabilit y Management
(PSM) is an electronic control
system that uses a range of
functions – including anti ­lock
braking (ABS) – to help stabilise
the vehicle (and trailer, if fit ted)
in hazardous road scenarios.
Throughout each journey, sensors
monitor the direction, speed,
yaw velocit y and lateral
Preparing for the road ahead.
With a little help from PSM.
Safety and environment | Safet y · 67

Weight reduction is a key aspect
of our design philosophy derived
from our rich racing heritage.
Part of our R&D Centre, the
Motorsport Department is locat ­
ed in Weissach where it shares
premises with the Automotive Industry Exhaust Emission Centre
(ADA).
Just a coincidence? We call
it symbiosis.
In practice: the new Cayenne is
up to 185 kg lighter, depending
on the model.
1) This was achieved
through new weight ­saving devel ­
opments and materials, new pro ­
duction technologies, advanced
functionalities and concept
modifications. By using lighter materials, for example, we have
halved the weight of the tailgate.
New materials are also a feature
of the axle construction, with
steel being replaced where pos­
sible by light weight alter
natives
such as aluminium and plastic.
The benefits for the driver:
greater agilit y and driving
dynamics – with lower fuel
consumption. Ef ficiency at
its best.
This is achieved using advanced
engine concepts featuring tech ­
nologies such as DFI (p. 38),
VarioCam Plus (p. 37), the auto
start /stop function (p. 36), the
parallel full hybrid drive and con ­
sistent light weight construction.The concept behind every car we
build is based around the pursuit
of performance. This has been
the case since 1948. Another
of our traditional core values
is efficiency. At Porsche, we

are continually striving to find a
successful balance bet ween
the t wo.
Great achievements are something to be proud of.
Even more so if they benefit the world around you.
Environment.
1) Compared to previous model.

has a separate control system
which the engine management
system uses to establish the
optimum amount of fuel – for
effective emissions control.
The exhaust­gas recirculation on
the Cayenne Diesel routes part
of the exhaust gas back into the
combustion process, resulting
in lower peak combustion tempera ­
ture
and therefore lower nitrogen
oxide emissions. An oxidation
catalyst also forms an integral part of the process along with

a diesel particulate filter. This
ensures that the new Cayenne
Diesel meets the EU5 emissions
standard.
Fuel and fuel economy.
Increasing performance while
enhancing fuel economy. The
new Cayenne comes in a choice
of three dif ferent drive systems
each featuring state ­of ­the ­art
technology for high ef ficiency and
relatively low fuel consumption.
The petrol ­engined models
already operate on fuels with an
ethanol content of up to 10%. The diesel engine is compatible
with a biodiesel blend of max. 7%.
This further improves the carbon
dioxide balance since the plants
grown for the production of
biofuels absorb carbon dioxide
from the atmosphere. As you
can see, for the benefit of the
environment, we are continually
working on making our cars more
ef ficient – as well as compatible
with alternative fuels. While
ensuring that they remain one
thing: a thoroughbred Porsche.
Fuel system.
We have also applied the highest
standards in order to protect
the environment from fuel
evaporation. The non ­return

fuel supply system provides a
considerable reduction in vapour
emissions. The lines carrying
vapour are made from multi ­layer
plastics. A large active ­carbon
filter and multi ­layer plastic fuel
tank help reduce evaporation still
f u rt h e r.
Standard on the new Cayenne,
new Cayenne S, new Cayenne S
Hybrid and new Cayenne Turbo.
advanced drive concepts –
from petrol and diesel engines to
our new parallel full hybrid drive.
This is further aided by the rapid
warm ­up cycle of the cataly tic
converters. The optimum operat ­
ing temperature is reached earlier
so emissions are reduced sooner
when starting from cold.
On the petrol ­engined and hybrid
models, another important feature
is the use of t win oxygen ­sensor
circuits. Each bank of cylinders Exhaust emissions.
The new Cayenne models are
all equipped with the latest emis ­
sions technology. As a result,
they comply with the stringent
European exhaust emissions
standard, EU5.
Whatever the class, every Porsche
combines high performance
with comparatively moderate
emissions. On the Cayenne
models, this is achieved using
Porsche engines.
Performing for today – and the future.
Safety and environment | Environment · 73

Thanks to single­spark coils on
each of the cylinders, the entire
ignition system on the petrol ­
engined models, with the
exception of the spark plugs,
is maintenance ­free.
These modest service require ­
ments mean less waste disposal
and fewer demands on natural
resources. They also lower the
cost of ownership while keeping
your car on the road. The new Cayenne S Hybrid
doesn’t require any additional
servicing.
Service intervals for the Cayenne
models are dependent on a range
of factors, including local fuel
qualit y. For full details of service
intervals in your country, please
consult the relevant price list
or contact your Porsche Centre.
Materials and recycling.
Owning a Porsche should be a
lasting pleasure with minimal
impact on the environment. This
Porsche principle can be summed
up in one word: sustainabilit y.
The light weight exhaust on the
Cayenne models, for example,

is constructed from long ­life
stainless steel.
Every Porsche model is entirely
free of asbestos, CFCs and
components manufactured using
CFCs. All legal requirements in
respect of recycling are fulfilled.
Materials are clearly labelled for subsequent identification and
sorting to facilitate ef ficient
recycling.
While more than 95
% of the car
can be recycled using current
technologies, the chances are
your new Cayenne may never
need recycling at all. After all,
t wo thirds of all the cars we have
ever made are still on the road
t o day.
For more information on
environmental issues, please
visit w w w.porsche.com.
Servicing.
With lengthy service intervals
and long ­life components, vehicle
maintenance is kept to a min­
imum. In the case of the oil filter,
for example, all that ’s replaced
is an easily recyclable paper
element. The oil filter casing
remains on the car.
All moving parts inside the engine
are fully self ­adjusting. The valve
clearances, for instance, feature
automatic hydraulic control.
Noise.
As paradoxical as it may seem,
the distinctive Porsche sound is
also created by what you don’t
hear – the absence of unwanted
noise. Naturally, its main origin is
deep within the engine. But that ’s
not all. Our holistic approach
to vehicle design also extends
to the acoustics. Which is why
we’ve optimised them for the
entire car.
To minimise ‘play’ bet ween com ­
ponents, we’ve used stronger,
lighter and more temperature ­
resistant materials. This reduces
mechanical noise. Large ­volume
silencers and air intake manifolds
also help to eliminate noise –
throughout the life of the car.
Tyre noise has been drastically
reduced in collaboration with
our of ficial t yre partners. Wind
noise levels have also been
lowered thanks to aerodynamic
refinements.
All that remains is a sound that is
pure Porsche.
74 · Safety and environment | Environment

Porsche Communication
Management (PCM) with
navigation module.
PCM is the central control system
for all information and commu­
nication functions. It is powerful
and versatile, yet easy to use.
Key features include a 7­inch high ­
resolution touchscreen display.
As before, you can also operate
PCM using the rotary push ­but ton
control. The menu layout is ex­
tremely clear, with no more than
five entries per page enabling
fast and accurate operation. A
help function is displayed at the
bot tom of the screen for further
guidance in specific situations.
Radio functions comprise
42 presets, an FM t win ­tuner
with RDS frequency diversit y, which continuously searches the
airwaves for the best possible
signal from the selected radio
station, and dynamic autostore.
The CD/ DVD drive plays CDs

and audio DVDs and is MP3 ­
compatible. Audio playback of
video DVDs is also supported.

An optional integrated six ­disc
CD/ DVD autochanger is available
for PCM. A navigation module with high
­
speed hard drive is included
with PCM. The map display of fers
a perspective view as well as
conventional 2D layout. In some
regions, even topography and
buildings can be displayed in 3D.
The remaining route is automa t­
ically adapted to the maximum
screen size. In split ­screen mode,
you can view the current map
section together with a list of
icons for the next manoeuvre.
The CDR ­31 can also be com ­
bined with the optional BOSE
®
Surround Sound System (p. 92)
or Burmester
® High ­End Surround
Sound System (p. 94) for the
ultimate in audio performance.
Other options available in
conjunction with the CDR ­31
include an integrated six ­disc
CD autochanger.
With an optional mobile phone
preparation (p. 90), you can
connect a Bluetooth
® Hands ­Free
Profile (HFP) ­compatible mobile
phone.
CDR-31 audio system.
A Porsche engine provides an
impressive sound experience in
its own right. The new Cayenne
models offer the perfect accom ­
paniment inside the cockpit.
The CDR ­31 audio system has a
7 ­inch touchscreen colour display
which enables you to navigate
and select the main menus and
functions with ease and efficiency.
The integrated CD radio, featuring
an FM twin ­tuner with RDS,
30 memor y presets, dynamic
autostore and speed ­sensitive
volume control, includes a sound
system with 10 loudspeakers
and a total audio output of
10 0 Wa t t s .
Standard on the new Cayenne,
new Cayenne Diesel, new
Cayenne S and new Cayenne S
Hybrid.
The key to success in management:
focused performance with slices of delight.
The system also indicates the
respective speed limit for the
roads covered in the database
via PCM or the TFT display in
the instrument cluster.
Standard on the new Cayenne
Turbo. Optional for all other
new Cayenne models.
Porsche Communication Management (PCM) with navigation module
Comfort and transport | Comfort · 89
88 · Comfort and transport | Comfor t

Specially custom­engineered
for the Cayenne models, the
system features a total of
14 loudspeakers (including active
subwoofer and centre­fill speaker)
that combine with a 585 ­Wat t
9 ­channel amplifier to produce
a powerful sound experience.
In combination with Porsche
Communication Management
(PCM), the BOSE
® Surround
Sound System enables playback
of audio DVDs, making full use
of the impressive sound spectrum
of 5.1 digital recordings. Of
course, you can still play other
audio sources such as CDs and MP3s. In stereo or, at the push
of a but ton, in one of the virtual
surround modes generated by
BOSE® Centerpoint® 2 technology.
The BOSE®­
patented AudioPilot®
noise compensation technology
uses a microphone in the cockpit
to monitor ambient sound. The
system is then able to provide
real ­time adjustment of all audio
output – for a more consistent
aural experience. Standard on the new Cayenne
Turbo. Optional for all other
new Cayenne models.
compatible with both Porsche
Communication Management
(PCM) and the CDR ­31 audio
system.
BOSE® Surround Sound System.
Providing a compelling 360 ­
degree soundstage, the BOSE
®
Surround Sound System is
Where does a 360-degree sound experience get you?
Back to the point.

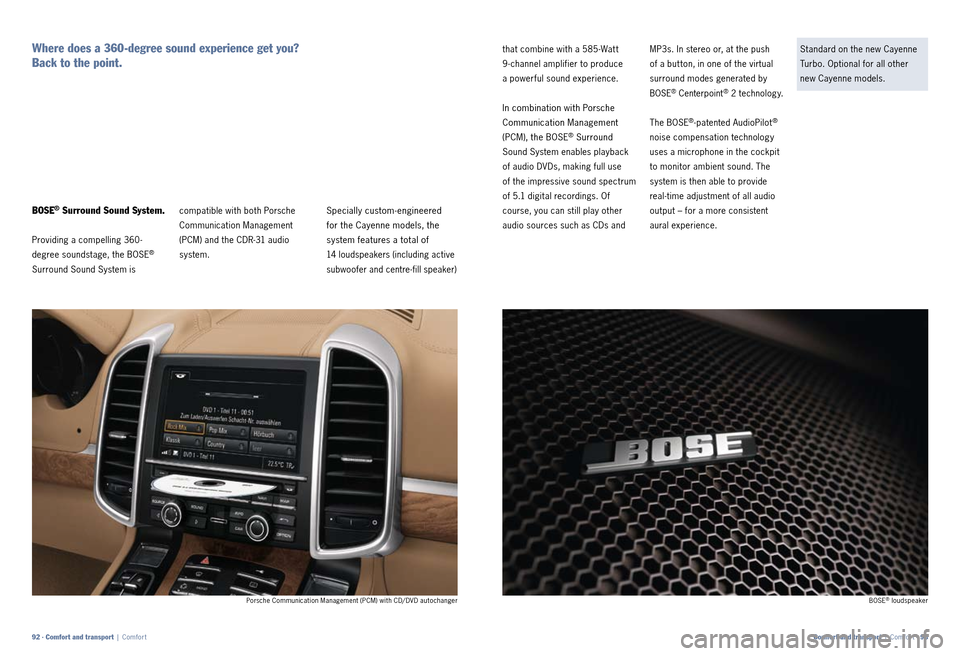

Porsche Communication Management (PCM) with CD/ DVD autochanger BOSE® loudspeaker
Comfort and transport | Comfor t · 93
92 · Comfort and transport | Comfor t

pocket. If the code is accepted,
the doors are unlocked and
you can step inside. To start or
stop the engine, simply push
the ignition but ton.
When you leave the car, all you
have to do is press a but ton on
the outside of the door handle.
Porsche Entry & Drive then locks
the car, arms the immobiliser
and locks the steering column.
Optional for all new Cayenne
models.
Anti-theft protection.
The new Cayenne models are all
equipped as standard with an
engine immobiliser and anti ­thef t
alarm featuring ultrasonic interior
surveillance.
The alarm circuit includes all four
doors, engine lid, tailgate, rear
screen, interior, ignition and trailer
(if fitted).
The immobiliser system works
by automatically communicating
with the vehicle key. If the key
is approved, the engine can be
started as normal.
Washer fluid is delivered via t wo
heated jets, ensuring uniform
coverage of the entire windscreen
area.
The rear wiper system is designed
for maximum visibilit y in all
conditions.
Porsche Entry & Drive.
With Porsche Entry & Drive, you
can avoid the inconvenience of
using a conventional key.
To enter the car, simply touch the
door handle and the system auto ­
matically checks the encrypted
access code on the key in your
Sunscreen.
To protect the interior against
direct sunlight, an electrically
operated sunscreen for the rear
side windows is available as an
option. It can also be controlled
from the driver’s seat.
Optional for all new Cayenne
models.
Rain sensor.
The front wiper system has t wo
fixed speeds and an automatic
rain sensor function.
Inconspicuous. Unobtrusive. Indispensable.When the key is removed from the
ignition, the steering column is
automatically locked to provide
additional securit y.
Preparation for vehicle
tracking system.
This preparation enables future
installation of a vehicle tracking
system obtainable from Porsche
Tequipment. The system can
be used to locate a stolen vehicle
in 25 EU countries as well as
Norway, Switzerland and Russia –
irrespective of where you live. The vehicle is not tracked con­
tinually, only when the alarm is
triggered. In the event of vehicle
thef t or manipulation, or if the
loss of the vehicle is reported by
the owner, a silent alarm is auto
­
matically triggered. The package
includes a special wiring loom,
higher capacit y bat tery (depend ­
ing on vehicle specification) and
tilt sensor for the alarm system.
Optional for all new Cayenne
models.
Rain sensor Sunscreen
Comfort and transport | Comfort · 99
98 · Comfort and transport | Comfor t

Adaptive cruise control.
Optional on all Cayenne models,
adaptive cruise control regulates
the speed of your vehicle in line
with that of the vehicle in front. To
do that, the system uses a radar
sensor in the central air intake
to monitor the road up to 200 m
ahead. If you approach another vehicle
that is travelling slower than

your selected cruising speed,

the system slows the engine or
gently applies the brakes (up to
3.5 m/s
2). This continues until the
distance that you have preset is
maintained. If heavier braking is
required, the driver has to actively
intervene. Your vehicle will now follow the one in front at a
reduced speed.
If the other vehicle decelerates
further, adaptive cruise control
will continue to reduce your speed
– even down to a halt. When the
road ahead is free once more,

the car automatically returns
to your selected cruising speed bet ween 30 and 210 km/ h
(19 and 130 mph). To pull away
after an automatic stop, simply
use the control lever or depress
the accelerator pedal.
For added safet y, the system also
readies the brakes whenever a
decreasing distance to the vehicle
in front is detected. Adaptive
cruise control and PSM (p. 66)
interact to prefill the brakes.
The system visually and audibly
alerts the driver in the event
of a critical
decrease in distance
and briefly tugs on the brakes.
Optional for all new Cayenne
models.
Lane Change Assist (LCA).
The optional Lane Change Assist
(LCA) system monitors the area
behind the vehicle and the blind
spot using radar sensors. At speeds of 30 km/ h (19 mph) or
more, the system alerts the driver
of a vehicle in the blind spot or
approaching quickly from behind
via a visual signal from the
exter

ior mirrors. This enhances
comfort and safet y, particularly
when driving on the motorway.
However, LCA does not actively
intervene in the
controlling of
the vehicle and can be deactivated
at any time.
Optional for all new Cayenne
models.
Lane Change Assist (LCA)
Adaptive cruise control
Comfort and transport
| Driver assistance systems · 105
104 · Comfort and transport | Driver assistance systems

1 ) In conjunction with 275 ­mm t yres for the Cayenne Turbo and 265 ­mm t yres for all other models.2 ) Introduction planned for 07/2010.3) Introduction planned for 08/2010.4 ) Introduction planned for 05/2010.5 ) Stows in internal holder on right ­hand side of luggage compartment.6 ) For Cayenne, Cayenne Diesel, Cayenne S and Cayenne S Hybrid: only in conjunction with PCCB.7 ) Introduction planned for 09/2010.8 ) Introduction planned for 10/2010.
Personalisation · 119
118 · Personalisation
– not available extra­cost option• standard equipment W no­cost option
For more information on the options featured in this catalogue, please refer to the price list.
Wheels.
• 18-inch Cayenne wheel • •w w–C1J
56
• 18-inch Cayenne S III wheel
••• •–C1Q 56
• 19 -inch Cayenne Turbo wheel
••••• C8K 57
• 19-inch Cayenne Design II wheel
1)•••••FO9 57
• 20 - inch RS Spyder Design wheel
•••••CP5 57
• 20 -inch Cayenne SportDesign II wheel
•••••CN7 57
• 21- inch 911 Turbo II wheel with wheel arch extensions
•••••CZ4 57
• 21-inch Cayenne SportEdition wheel with wheel arch extensions
2)
Exclusive
•••••CKO 57
•
21-inch Cayenne SportEdition wheel painted black
3)
with wheel arch extensions
Exclusive
•••••CQ1
• All-season t yre for 18-inch alloy wheel
4)w w w w –H9M
•
All-season t yre for 19 -inch alloy wheel
4)w w w w wHQ3
• All-season t yre for 20 -inch alloy wheel
4)w w w w wHQ4
• Full-size spare wheel (stows inside luggage compartment)
4)••• –•3 F4
•
18 - inch collapsible spare wheel (stows beneath loadspace floor)
••••5)–1G1
• 19 -inch collapsible spare wheel (stows beneath loadspace floor)
6) ••••5)•1G 4
• Typre Pressure Monitoring (TPM)
••••• 7K3 57
• Wheel centre with full - colour Porsche Crest
•••••1N P
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no. Page
Option
Engine, transmission and chassis.
• 8 -speed Tiptronic S with auto start /stop function •• • • • G1G42
• Porsche Torque Vectoring Plus (PT V Plus)
• –•–•1Y 1
50
• Servotronic
•••••1N3 55
• Porsche Active Suspension Management (PASM)
•••• –1B H
51
•
Air suspension with Porsche Active Suspension Management (PASM)
••••• 1B K 52
• Porsche Dynamic Chassis Control (PDCC)
• –•–•0AW
53
•
Porsche Ceramic Composite Brake (PCCB)
Disc diameter (front/rear): 390 mm/370 mm
•••• –PB2
64
•
Porsche Ceramic Composite Brake (PCCB)
3)
Disc diameter (front/rear): 410 mm/370 mm– – – –•PB1 64
• Sports exhaust system
7)
Exclusive
• –•– –OP8
41
• Off-road underbody protection
8) •••••PT1
• 100 - litre fuel tank
w w w w• OM1
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no. Page
Option
