compression ratio PORSCHE CAYNNE 2010 1.G Information Manual

consistently within a specific
temperature range. The engines
in the new Cayenne models are
therefore designed for optimum
cooling.
The V8 engines have an enhanced
coolant management system
offering effective temperature
control throughout the engine.
While 20% of coolant flows longi­
tudinally through the crankcase,
the remaining 80% serves the
cylinder heads using the proven
cross ­flow principle (from hot to
cold).
On all Cayenne models, the piston
heads are cooled using oil ­spray
jets integrated within the main
lubrication system. In addition,
thermal management ensures
that the optimum operating tem ­
perature for the engines is
reached more quickly. This keeps emissions and fuel consumption
low, even when starting from cold.
The entire cooling system is
designed for prolonged heav y
­

dut y use, e.g. of f ­road driving
or heav y towing and carrying
applications.
Lubrication.
The V8 engines use dry ­sump
lubrication to ensure a consistent
supply of oil in all load conditions,
especially in of f ­road terrain.
The oil reservoir is located inside
the engine. This saves on space
and reduces weight.
Oil is circulated around the V8
engines using a demand ­driven
pump. This has been designed for the toughest driving scenarios
on and off road, including per­
formance driving and extreme
gradients.
The V6 engine in the Cayenne has
a wet ­sump lubrication system.
Ensuring a reliable supply of oil,
no mat ter how challenging the
driving conditions.
Direct fuel injection on the
diesel engine (common-rail
injection system).
On the Cayenne Diesel, direct
fuel injection comes courtesy of
a common ­rail injection system.
The injection pressure of up
to 1,800 bar ensures optimum
distribution of the air/fuel mixture
– for greater performance. The
piezoelectric injection valves
provide flexible injection rate

adjustment, using exactly metered
quantities of fuel, with multiple
injections for each power stroke
to deliver smooth combustion.
Cooling systems.
A high ­performance engine can
only maintain its maximum
capabilit y over a long service life
if all components are operating
Direct fuel injection (DFI).
DFI injects fuel directly into the
combustion chamber at up to

120 bar with millisecond precision
using electromagnetic injectors.
The injector position and spray
geometry have been carefully
designed to improve output,
torque, fuel economy and emis ­
sions. The swirling of the fuel as
it enters each chamber increases
the mixing of air and fuel, thereby
enhancing combustion. By form ­
ing the air/fuel mixture directly
in the combustion chamber, DFI
contributes to engine cooling.
As a result, it was possible to in ­
crease the compression ratio and
therefore power and efficiency.

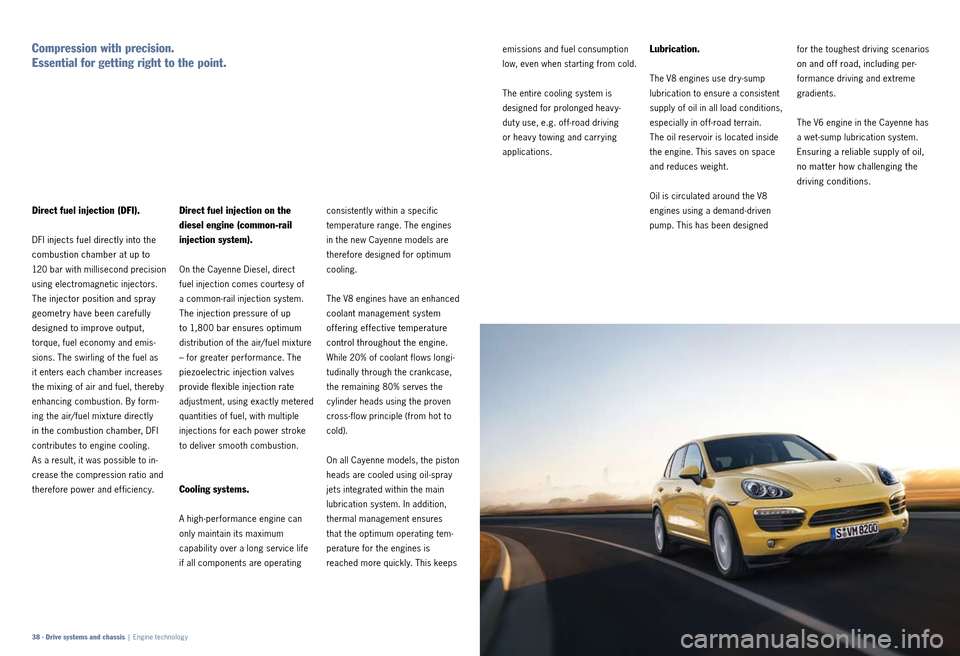

Compression with precision.
Essential for getting right to the point.
38 · Drive systems and chassis | Engine technology

Technical data
Technical data · 131
130 · Technical data
Cayenne Cayenne Diesel
Engine/electric motor
Cylinders 6 6
Displacement 3,598 cm
32,967 cm3
Max. power (DIN)
at rpm220 kW (300 hp)
6,300 176 kW (240 hp)
4,000–4,400
Max. torque
at rpm 400 Nm
3,000 550 Nm
2,000 –2,250
Compression ratio 11.7:1 16 . 8 :1
Max. power (electric motor)
at rpm –
–
Max. torque (electric motor)
at rpm –
–
Max. power (parallel full hybrid)
at rpm –
–
Max. torque (parallel full hybrid)
at rpm –
–
Transmission
Layout Porsche Traction Management (PTM):
active all­wheel drive with elec­
tronically variable, map ­controlled
multi ­plate clutch, automatic
brake dif ferential (ABD) and anti ­slip
regulation (ASR) Porsche Traction Management (PTM):
permanent all
­wheel drive with self ­
locking centre dif ferential, automatic
brake dif ferential (ABD) and anti ­slip
regulation (ASR)
6 ­speed manual gearbox Standard –
8 ­speed Tiptronic S Optional Standard
Chassis
Front axle Extra­large format double wishbone
suspension, fully independent Extra
­large format double wishbone
suspension, fully independent
Rear axle Multi­link suspension,
fully independent Multi
­link suspension,
fully independent
Steering Power­assisted, hydraulic Power­assisted, hydraulic
Cayenne S Cayenne S Hybrid Cayenne Turbo
8 6 8
4,806 cm
32,995 cm34,806 cm3
294 kW (400 hp)
6,500 245 kW (333 hp)
5,500 – 6,500 368 kW (500 hp)
6,000
500 Nm
3,500 440 Nm
3,000 –5,250 700 Nm
2,250 – 4,500
12.5:1 10. 5:1 10. 5:1
– 34 kW (47 hp)
> 1,15 0 –
– 300 Nm
< 1,15 0 –
– 279 kW (380 hp)
5,500 –
– 580 Nm
1,000 –
Porsche Traction Management (PTM):
active all ­wheel drive with elec­
tronically variable, map ­controlled
multi ­plate clutch, automatic
brake dif ferential (ABD) and anti ­slip
regulation (ASR) Porsche Traction Management (PTM):
permanent all
­wheel drive with self ­
locking centre dif ferential, automatic
brake dif ferential (ABD) and anti ­slip
regulation (ASR) Porsche Traction Management (PTM):
active all
­wheel drive with elec­
tronically variable, map ­controlled
multi ­plate clutch, automatic brake
dif ferential (ABD) and anti ­slip
regulation (ASR)
– – –
Standard Standard Standard
Extra ­large format double wishbone
suspension, fully independent Extra
­large format double wishbone
suspension, fully independent Extra
­large format double wishbone
suspension, fully independent
Multi ­link suspension,
fully independent Multi
­link suspension,
fully independent Multi
­link suspension,
fully independent
Power ­assisted, hydraulic Power­assisted, hydraulic Power­assisted, hydraulic
Provisional data only. Of ficial data unavailable at the time of publication. Some of the vehicles featured in this catalogue are fit ted with optional
equipment available at extra cost. All information in respect of features, design, per formance, dimensions, weight, fuel consumption and running
costs is correct at the time of publication. Porsche reser ves the right to alter specifications and other product information without prior notice.
