sensor PORSCHE CAYNNE 2010 1.G Information Manual

response, even at low revs and
road speeds. This is particularly
useful when driving in urban
traf fic. The supercharger has a
low­temperature water cooling
system for cooling the charge air.
Variable Turbine Geometry in
the new Cayenne Diesel.
The turbocharger in the new
Cayenne Diesel features Variable
Turbine Geometry (V TG). The
gas ­flow from the engine is
channelled onto the turbines via
electronically adjustable guide
vanes. By changing the vane
angle, the system can replicate
the geometry in all t ypes of
turbo, large or small, and thus
achieve the optimum gas ­flow characteristics. As a result, even
at low engine rpm, the turbine
speed is maximised. For a sig
­
nificant increase in boost pres ­
sure, excellent cylinder charging
plus greater power and torque.
Electronic engine management.
Cultured performance in all
driving scenarios requires com ­
prehensive engine control. The
electronic engine management
system does this by continually
monitoring the relevant input data
from a variet y of sophisticated
sensors. This data is then com ­
pared with a corresponding set of
reference values. Based on this
information, a range of key engine
functions, e.g. ignition and in­
jection timings as well as injection
quantities, are seamlessly and
automatically adjusted. Other
major functions include automatic
compensation for changes in fuel
qualit y and control of the variable ­
tract intake manifold. On the
new Cayenne Turbo, the engine management system also regu ­
lates the turbo boost pressure.
The results:
optimum fuel eco
n ­
omy and lower CO
2 emissions as
well as greater power and torque
at all times.
Exhaust system.
The light weight exhaust systems
in the new Cayenne models are
made from special, long ­life stain ­
less steel. The key features of
the catalysts are high ef ficiency,
faster warm ­up and a long service
life. The sports exhaust system
1)
available as an option on the
new Cayenne and new Cayenne S
provides an even more distinctive
sound. The package also includes
a specially designed set of t win
dual ­tube tailpipes. All exhaust
systems, standard and sports,
comply with the strict EU5 emis ­
sions legislation.
2)
Turbocharging system in the
new Cayenne Turbo.
In the new Cayenne Turbo, the
engine is assisted by t win turbo ­
charger units arranged in parallel
– one for each bank of cylinders.
Incoming air is passed through
a filter and compressed by the
turbine units. Its temperature is
then reduced in the t win inter­
cooler system, which improves
cylinder charging and limits
thermal loads on the engine.
Supercharging system in the
new Cayenne S Hybrid.
The engine in the new Cayenne S
Hybrid is equipped with a
supercharger. For a more direct

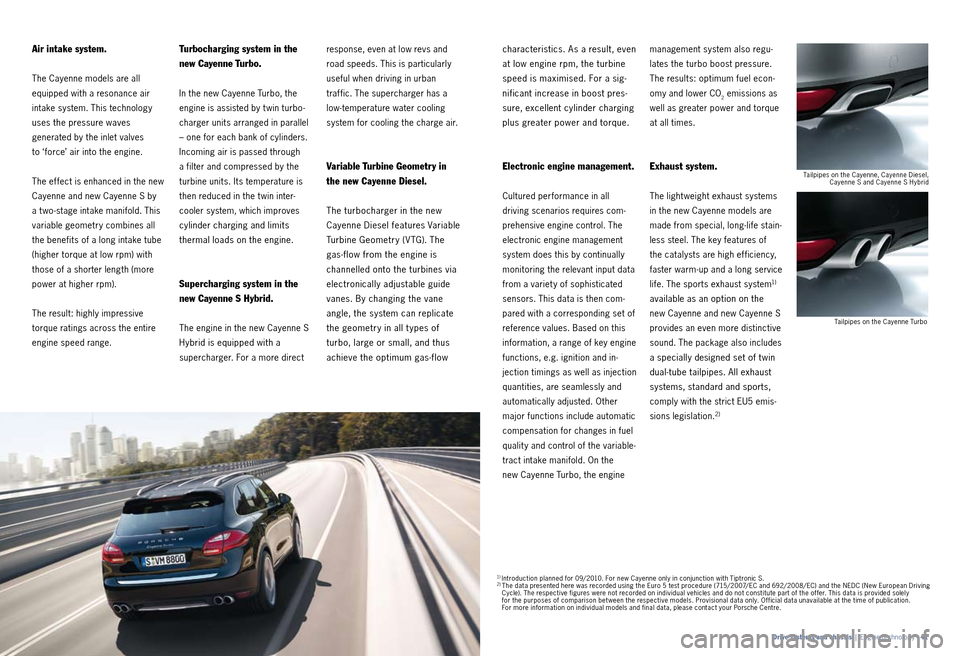

Air intake system.
The Cayenne models are all
equipped with a resonance air
intake system. This technology
uses the pressure waves
generated by the inlet valves
to ‘force’ air into the engine.
The ef fect is enhanced in the new
Cayenne and new Cayenne S by
a t wo ­stage intake manifold. This
variable geometry combines all
the benefits of a long intake tube
(higher torque at low rpm) with
those of a shorter length (more
power at higher rpm).
The result: highly impressive
torque ratings across the entire
engine speed range.
1 ) Introduction planned for 09/2010. For new Cayenne only in conjunction with Tiptronic S.2) The data presented here was recorded using the Euro 5 test procedure (715/2007/ EC and 692/2008/ EC) and the NEDC (New European Driving
Cycle). The respective figures were not recorded on individual vehicles and do not constitute part of the of fer. This data is provided solely
for the purposes of comparison bet ween the respective models. Provisional data only. Of ficial data unavailable at the time of publication.
For more information on individual models and final data, please contact your Porsche Centre. Tailpipes on the Cayenne, Cayenne Diesel,
Cayenne S and Cayenne S Hybrid
Tailpipes on the Cayenne Turbo
Drive systems and chassis | Engine technology · 41

sensors are used to measure a
range of values, including the
rotational speed of all four wheels,
the lateral and longitudinal
acceleration of the car, and
the current steering angle.
If, for example, the rear wheels
threaten to lose traction under
acceleration, a greater proportion
of drive torque is automatically
transmit ted to the front axle by a more positive engagement of
the multi
­plate clutch. In addition,
ASR minimises wheel spin. During
cornering, the required level of
engine torque is distributed to the
front wheels to ensure excellent
lateral stabilit y.
In conjunction with advanced
Porsche Stabilit y Management
(PSM, p. 66), PTM ensures the
perfect distribution of drive
torque for optimum traction in all road scenarios, whether on
long straights, through tight cor
­
ners or on surfaces with dif ferent
friction coef ficients. If one of the
wheels is about to lose traction,
PTM uses the ABD function to
apply the corresponding brake.
As a result, more drive is auto ­
matically transferred to the op­
posite wheel. If both wheels on
one axle are in danger of slipping,
ASR immediately intervenes and
modifies engine output to main ­tain drive. As well as enhancing
traction and active safet y,

Porsche Traction Management
(PTM) of fers exceptional handling
and driving dynamics.
Standard on the new Cayenne,
new Cayenne S and new
Cayenne Turbo.
Torque is distributed bet ween the
front and rear axles by means of
the electronically variable multi
­
plate clutch. For the toughest
off ­road terrain, the differential
can be locked using the PTM
control on the centre console.
With the aid of on ­board sensors,
the status of the car is continu ­
ously monitored and the front /
rear split is adjusted to match
changing driving conditions. The
Porsche Traction Management
(PTM) on the new Cayenne,
Cayenne S and Cayenne Turbo.
Porsche Traction Management
(PTM) is an active all ­wheel drive
system with an electronically
variable, map ­controlled multi ­
plate clutch, automatic brake
dif ferential (ABD) and anti ­slip
regulation (ASR).
Intelligent, discreet, responsive.
The ideal travelling companion.
All ­wheel drive on the Cayenne, Cayenne S and Cayenne Turbo
Drive systems and chassis | Transmission · 45

Making headway without getting in a spin.
An approach we thoroughly support.
Chassis.
In of f­road terrain, PT V Plus
reduces wheel spin on the rear
wheels – even when towing heav y
trailer loads. The electronically
controlled rear dif ferential can
be fully locked using the of f ­road
control on the centre console.
Optional for the new Cayenne,
new Cayenne S and new
Cayenne Turbo.
Porsche Active Suspension
Management (PASM).
PASM is an electronic damping
control system. It of fers con­
tinuous adjustment of individual
damping forces based on current
road conditions and driving st yle.
During performance driving or
heav y of f ­road use, there is an
increased tendency for the body
to sway. PASM prevents this from
happening, thereby improving
stabilit y and occupant comfort. PASM has three setup modes:
‘Comfort ’, ‘Normal’ and ‘Sport ’.
Whichever one you select, the
system uses a series of sensors
to monitor the movement of the
body. It also gathers data on
lateral acceleration, steering
angle, brake pressure and engine
torque and modifies the damping
force on each individual wheel

in accordance with the selected
mode. PASM remains active at all times.
It automatically adapts to the
prevailing driving conditions,

enabling greater car control and
improving comfort and safet y.
Optional for the new Cayenne,
new Cayenne Diesel, new
Cayenne S and new Cayenne S
Hybrid. Standard on the new
Cayenne Turbo: air suspension
with PASM.
This transfers drive torque to the
outside rear wheel which supports
the steering motion of the car,
thereby improving its cornering
dynamics.
At slow and medium speeds, PT V
Plus considerably enhances agilit y
and steering precision. At high
speeds, during fast cornering and
under wheel spin, the mechanical
limited ­slip rear differential
ensures additional stabilit y. Also
on variable ­grip surfaces, in the
wet and on snow, PT V Plus –
combined with Porsche Traction
Management (PTM) and Porsche
Stabilit y Management (PSM) –
provides a major contribution to
active safety.
Porsche Torque Vectoring Plus
(PTV Plus).
A new system for enhancing
driving dynamics and stabilit y,
PT V Plus offers variable distribu ­
tion of engine torque to the rear
wheels and mechanical limited ­
slip rear dif ferential. Depending
on the steering angle, steering
speed, throt tle pedal position,
yaw velocit y and vehicle speed,
PT V Plus optimises steering re ­
sponse and precision by applying
brake pressure to the left or right
rear wheel, as required.
Specifically, this means that when
entering a corner at high speed,
moderate brake pressure is
applied to the inside rear wheel.
Porsche Active Suspension Management (PASM)
50 · Drive systems and chassis | ChassisDrive systems and chassis | Chassis · 51

All Cayenne models have internal­
ly vented discs all round, ensuring
consistent performance during
heav y use. The front disc dimen ­
sions (diameter/thickness) are
350 mm/34 mm on the new

Cayenne and new Cayenne Diesel,
360 mm/36 mm on the new
Cayenne S and new Cayenne S
Hybrid, and 390 mm/38 mm on
the new Cayenne Turbo. All models have six
­piston
monobloc aluminium brake
calipers at the front and four ­
piston equivalents at the rear.
The calipers are black on the new
Cayenne and new Cayenne Diesel
and silver on the new Cayenne S
and new Cayenne S Hybrid. On
the new Cayenne Turbo, they
feature a striking red paint finish. Braking is assisted by a tandem
booster and large brake master
cylinder. Further assistance is
provided by PSM (p. 66).
The pads are equipped with
individual wear sensors. When
new pads are required, a
warning light is illuminated in
the instrument cluster.
Electric parking brake.
Manually activated and deactivat ­
ed, the electric parking brake
releases automatically as you drive
off.
Automatic hold function.
With the automatic hold function,
you can pull away on the flat or a
slope without ever rolling back.
The system automatically detects
when the vehicle has come to a
halt on an uphill gradient. PSM then
maintains the brake pressure at all
four wheels for a brief period to
prevent the vehicle from moving in
the opposite direction.
Braking systems.
Porsche brakes are renowned
worldwide as the benchmark in
performance
and durabilit y.
Equipped with new braking
systems, the new Cayenne
models continue this tradition.
The larger brakes of fer excellent
deceleration – even when the
car is fully laden with five adult
occupants, a full complement
of luggage and a braked trailer
load of up to 3,500 kg (Cayenne
with manual gearbox: 2,700 kg).
Outstanding brake performance.
To the point.
Standard braking system
(Cayenne/Cayenne Diesel) Standard braking system

(Cayenne S/Cayenne S Hybrid) Standard braking system (Cayenne Turbo)
Safety and environment
| Safet y · 63
62 · Safety and environment | Safet y

PSM has three additional func­
tions that help reduce braking
distances. If the throt tle pedal
is released suddenly, PSM

automatically readies the braking
system. The pressure in the
brake lines is marginally increased,
bringing each of the pads into
light contact with the correspond ­
ing disc. If the driver goes on
to apply the brakes, the calipers
respond more quickly and the
braking distance is reduced. In an emergency stop – i.e. when
the pressure on the brake pedal
exceeds a certain threshold –
the brake assist function uses the
PSM hydraulics to apply maximum
braking force at all four wheels.
For added safet y, the system
also readies the brakes whenever
a decreasing distance to the
vehicle in front is detected. The
optional adaptive cruise control
and PSM interact to prefill the
brakes.
Even if adaptive cruise control is
inactive, the system registers the
speed of the vehicle in front and
automatically readies the braking
system. In addition, the system
alerts the driver to the decreasing distance by briefly tugging on
the brakes.
PSM also features a trailer
stabilisation function – for a
significant contribution to car
and trailer safet y.
Within the laws of physics, it
compensates for load transfer
caused by throt tle and brake

inputs up to the maximum degree
of lateral acceleration. It also en ­
hances the car’s driving dynamics
and directional stabilit y when
accelerating on inconsistent road
surfaces.
Other features include a special
control strategy in the ABS
for braking on loose surfaces.
By briefly locking the wheels, a wedge is formed ahead of each
t yre which provides additional
purchase to help slow the car,
e.g. on gravel or snow.
For a more involving driving

experience, PSM can also be
disabled, but remains active in
the background.
Standard on all new Cayenne
models.
accele

ration of the car. Using
this information, it is possible to
calculate the actual direction of
travel at any given moment. If
the car begins to oversteer or
understeer, PSM applies selective
braking on individual wheels to
restore stabilit y. If necessar y,
PSM can also intervene in the
engine management system to
temporarily modif y the amount of
drive transmit ted to the wheels.
Porsche Stability Management
(PSM).
Porsche Stabilit y Management
(PSM) is an electronic control
system that uses a range of
functions – including anti ­lock
braking (ABS) – to help stabilise
the vehicle (and trailer, if fit ted)
in hazardous road scenarios.
Throughout each journey, sensors
monitor the direction, speed,
yaw velocit y and lateral
Preparing for the road ahead.
With a little help from PSM.
Safety and environment | Safet y · 67

curtain­t ype airbags on each
side of the roof offering opti ­
mum head protection for both
rows of seats and side impact
protection elements in each
door. Side airbags at the rear
are also available as an option.
Two impact sensors are located
at the front of the car to enable
bet ter detection of a head­on
collision. The driver and front
passenger airbags use a gas
generant based on an organic
propellant. As a result, the air ­
bags are lighter, more compact
and easier to recycle. A roll ­over
detection system provides
additional protection in the event
that the car were to overturn.
Using sensor ­acquired data, it
enables early deployment of
the curtain airbags and triggers
the seat ­belt pre ­tensioners.
Seat belt system.
The Cayenne models feature
three ­point seat belts on all
five seats, as well as seat ­belt
pre ­tensioners (front and outer
rear seats) and force limiters
(front seats only).
ISOFIX mounting points.
The front passenger seat and
outer rear seats are equipped
with ISOFIX mounting points for
compatible child seats (p. 84)
as standard. If a child seat is
mounted on the front passenger
seat, the corresponding airbag
can be quickly deactivated using
a key ­operated switch.
Airbags.
All Cayenne models are equipped
with full ­size front airbags for
driver and front passenger as
standard. These are augmented
by Porsche Side Impact Protec ­
tion (POSIP). This comprises
a side airbag in each front seat,
Bodyshell construction.
Our ongoing development of
the light weight steel body is a
decisive factor in the enhanced
passive safet y and unparalleled
rigidit y of the Cayenne body.
In the event of an accident, a
system of side and cross ­

members at the front of the car
helps to channel impact energy
in a safe and predetermined
manner. The interior is protected
by hot ­formed super high ­strength
steel reinforcements, including
side intrusion beams in each of
the doors.
High strength and consistent
deformation properties: t wo

key safet y requirements fulfilled
by the multiphase steel used
throughout the body. Thanks to
a safet y cage structure made
from high ­tech steels, the highly
resilient passenger cell of fers
high levels of protection.

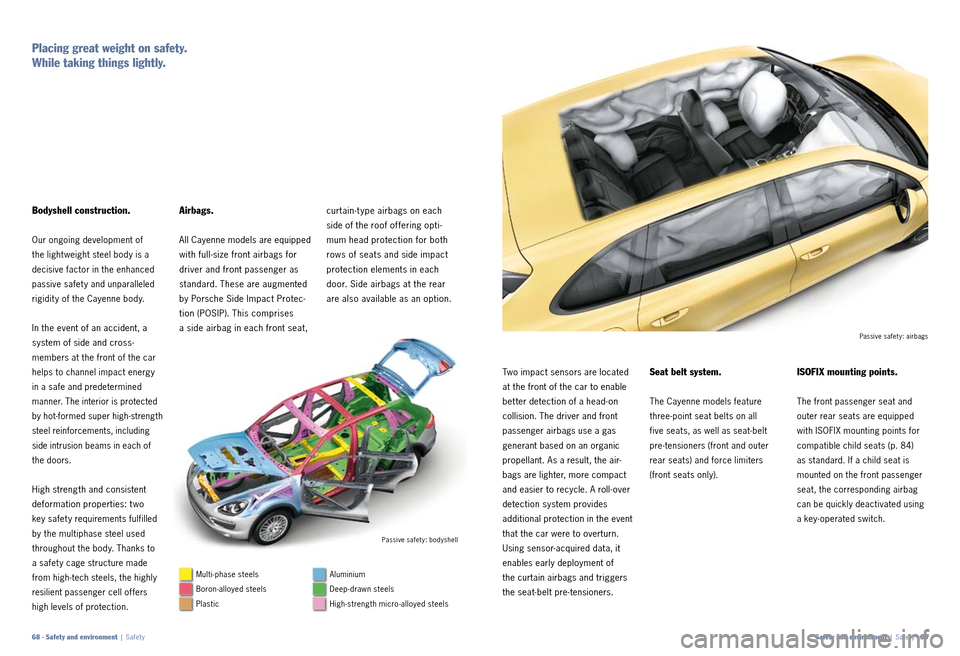

Placing great weight on safety.
While taking things lightly.
Passive safet y: airbags
Safety and environment | Safet y · 69
68 · Safety and environment | Safet y Passive safet y: bodyshell
Multi
­phase steels
Boron ­alloyed steels
Plastic Aluminium
Deep
­drawn steels
High ­strength micro ­alloyed steels

has a separate control system
which the engine management
system uses to establish the
optimum amount of fuel – for
effective emissions control.
The exhaust­gas recirculation on
the Cayenne Diesel routes part
of the exhaust gas back into the
combustion process, resulting
in lower peak combustion tempera ­
ture
and therefore lower nitrogen
oxide emissions. An oxidation
catalyst also forms an integral part of the process along with

a diesel particulate filter. This
ensures that the new Cayenne
Diesel meets the EU5 emissions
standard.
Fuel and fuel economy.
Increasing performance while
enhancing fuel economy. The
new Cayenne comes in a choice
of three dif ferent drive systems
each featuring state ­of ­the ­art
technology for high ef ficiency and
relatively low fuel consumption.
The petrol ­engined models
already operate on fuels with an
ethanol content of up to 10%. The diesel engine is compatible
with a biodiesel blend of max. 7%.
This further improves the carbon
dioxide balance since the plants
grown for the production of
biofuels absorb carbon dioxide
from the atmosphere. As you
can see, for the benefit of the
environment, we are continually
working on making our cars more
ef ficient – as well as compatible
with alternative fuels. While
ensuring that they remain one
thing: a thoroughbred Porsche.
Fuel system.
We have also applied the highest
standards in order to protect
the environment from fuel
evaporation. The non ­return

fuel supply system provides a
considerable reduction in vapour
emissions. The lines carrying
vapour are made from multi ­layer
plastics. A large active ­carbon
filter and multi ­layer plastic fuel
tank help reduce evaporation still
f u rt h e r.
Standard on the new Cayenne,
new Cayenne S, new Cayenne S
Hybrid and new Cayenne Turbo.
advanced drive concepts –
from petrol and diesel engines to
our new parallel full hybrid drive.
This is further aided by the rapid
warm ­up cycle of the cataly tic
converters. The optimum operat ­
ing temperature is reached earlier
so emissions are reduced sooner
when starting from cold.
On the petrol ­engined and hybrid
models, another important feature
is the use of t win oxygen ­sensor
circuits. Each bank of cylinders Exhaust emissions.
The new Cayenne models are
all equipped with the latest emis ­
sions technology. As a result,
they comply with the stringent
European exhaust emissions
standard, EU5.
Whatever the class, every Porsche
combines high performance
with comparatively moderate
emissions. On the Cayenne
models, this is achieved using
Porsche engines.
Performing for today – and the future.
Safety and environment | Environment · 73

for the rear cabin area, with sep­
arate temperature controls for lef t
and right. The rear climate control
set tings can also be adjusted
from the front seats.
Optional for the new Cayenne,
new Cayenne Diesel, new
Cayenne S and new Cayenne
Tu r b o.
Water-repellent side windows.
The front side windows on the
Cayenne models have a water ­
repellent finish that automatically
disperses moisture and dirt.
The result: optimum visibilit y,
even in poor weather conditions.
(Note: surface finish may require
occasional renewal.)
Privacy glass.
The new Cayenne models are all
available with optional privacy
glass for the rear seat and
luggage area.
Optional for all new Cayenne
models.
Heated windscreen.
For added comfort and practi­
calit y, the heated windscreen
ensures optimum visibilit y on
cold days.Optional for all new Cayenne
models.
Heat and noise-insulating glass.
All new Cayenne models are
equipped as standard with heat ­
insulating tinted glass featuring
a grey top tint on the windscreen.
As an optional alternative, heat
and noise ­insulating laminated
glass of fers additional protection
against infrared radiation. Enjoy
peace and quiet, and an even
more pleasant climate, in the
passenger compartment.
The heat and noise ­insulating
glass option also includes privacy
glass at the rear.
Optional for all new Cayenne
models.
humidit y sensor. Other features
include an active carbon filter,
which excludes dust, pollen and
external odours.

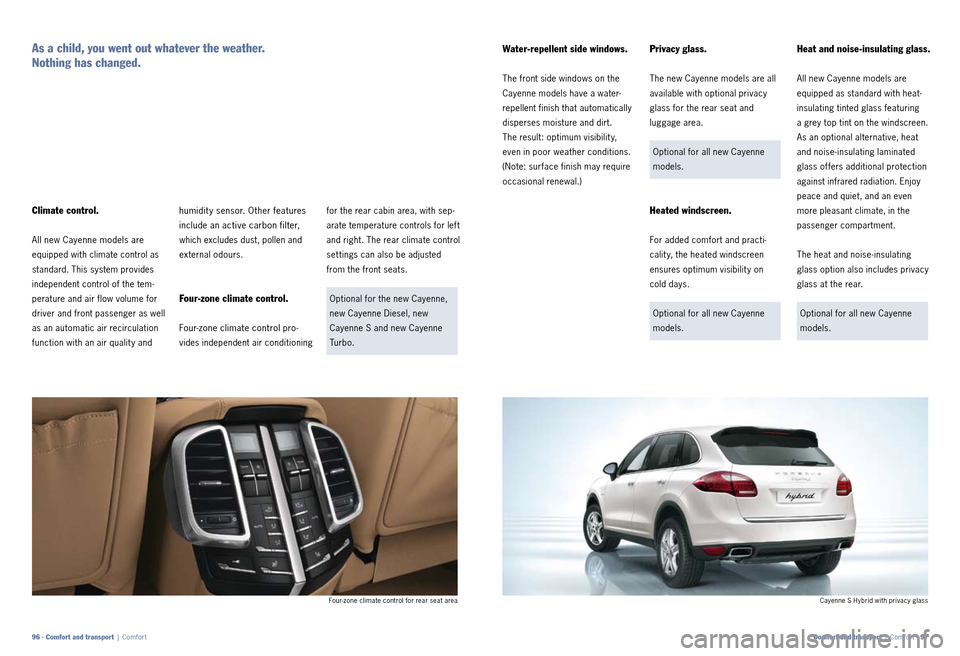

Four-zone climate control.
Four ­zone climate control pro ­
vides independent air conditioning
Climate control.
All new Cayenne models are
equipped with climate control as
standard. This system provides
independent control of the tem ­
perature and air flow volume for
driver and front passenger as well
as an automatic air recirculation
function with an air qualit y and
As a child, you went out whatever the weather.
Nothing has changed.
Cayenne S Hybrid with privacy glass
Four
­zone climate control for rear seat area
Comfort and transport | Comfort · 97
96 · Comfort and transport | Comfor t

pocket. If the code is accepted,
the doors are unlocked and
you can step inside. To start or
stop the engine, simply push
the ignition but ton.
When you leave the car, all you
have to do is press a but ton on
the outside of the door handle.
Porsche Entry & Drive then locks
the car, arms the immobiliser
and locks the steering column.
Optional for all new Cayenne
models.
Anti-theft protection.
The new Cayenne models are all
equipped as standard with an
engine immobiliser and anti ­thef t
alarm featuring ultrasonic interior
surveillance.
The alarm circuit includes all four
doors, engine lid, tailgate, rear
screen, interior, ignition and trailer
(if fitted).
The immobiliser system works
by automatically communicating
with the vehicle key. If the key
is approved, the engine can be
started as normal.
Washer fluid is delivered via t wo
heated jets, ensuring uniform
coverage of the entire windscreen
area.
The rear wiper system is designed
for maximum visibilit y in all
conditions.
Porsche Entry & Drive.
With Porsche Entry & Drive, you
can avoid the inconvenience of
using a conventional key.
To enter the car, simply touch the
door handle and the system auto ­
matically checks the encrypted
access code on the key in your
Sunscreen.
To protect the interior against
direct sunlight, an electrically
operated sunscreen for the rear
side windows is available as an
option. It can also be controlled
from the driver’s seat.
Optional for all new Cayenne
models.
Rain sensor.
The front wiper system has t wo
fixed speeds and an automatic
rain sensor function.
Inconspicuous. Unobtrusive. Indispensable.When the key is removed from the
ignition, the steering column is
automatically locked to provide
additional securit y.
Preparation for vehicle
tracking system.
This preparation enables future
installation of a vehicle tracking
system obtainable from Porsche
Tequipment. The system can
be used to locate a stolen vehicle
in 25 EU countries as well as
Norway, Switzerland and Russia –
irrespective of where you live. The vehicle is not tracked con­
tinually, only when the alarm is
triggered. In the event of vehicle
thef t or manipulation, or if the
loss of the vehicle is reported by
the owner, a silent alarm is auto
­
matically triggered. The package
includes a special wiring loom,
higher capacit y bat tery (depend ­
ing on vehicle specification) and
tilt sensor for the alarm system.
Optional for all new Cayenne
models.
Rain sensor Sunscreen
Comfort and transport | Comfort · 99
98 · Comfort and transport | Comfor t

Optional for all new Cayenne
models.
Comfort lighting package.
Available as an option for all new
Cayenne models, this package
includes dimmable ambient light­
ing in the door panels and roof
console, practical LED reading
lights for the rear passengers,
additional courtesy lights on the exterior mirrors on the driver’s
and front passenger’s side, and a
second 12
­Volt socket in the rear
centre console.
Optional for all new Cayenne
models.
Automatically dimming mirrors.
Another comfort ­oriented feature:
automatically dimming exterior
and interior mirrors.
Standard on the new Cayenne
Turbo. Optional for all other
new Cayenne models.
Cruise control.
Cruise control automatically
regulates the speed of your
vehicle for added driver comfort
on longer journeys. It can be
used at speeds bet ween 30 and
240 km/ h (19 and 149 mph)
and is operated using a but ton
on one of the control stalks. Standard on all new Cayenne
models.
Reversing camera.
The reversing camera (only avail ­
able in conjunction with PCM)
facilitates reverse parking and
manoeuvring and also assists with
hitching a trailer. Help is provided
in the form of a high ­contrast
colour image with dynamic guide ­
lines on the PCM screen, which
show the predicted course of
the vehicle based on the current
position of the steering wheel.
Park Assis t.
This parking aid uses an acoustic
signal and front /rear displays to
alert the driver of any obstacles
at the front or rear of the car. Its
sensors are neatly concealed in
the front and rear aprons. The
acoustic signal is supplemented
by a visual warning in the centre
console display which provides
a graphical representation of the
vehicle’s proximit y to obstacles.
Standard on the new Cayenne
Turbo. Optional for the new
Cayenne, new Cayenne Diesel,
new Cayenne S and new
Cayenne S Hybrid.
Seeing and being seen.
It’s all about having the right technology.
Driver assistance systems.
Reversing camera
Reversing camera display in PCM
Comfor t lighting package
Comfort and transport | Driver assistance systems · 103
102 · Comfort and transport | Driver assistance systems
