PORSCHE CAYNNE 2013 2.G Tequipment Manual

n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 149 mph.4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1, etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use on your Porsche.

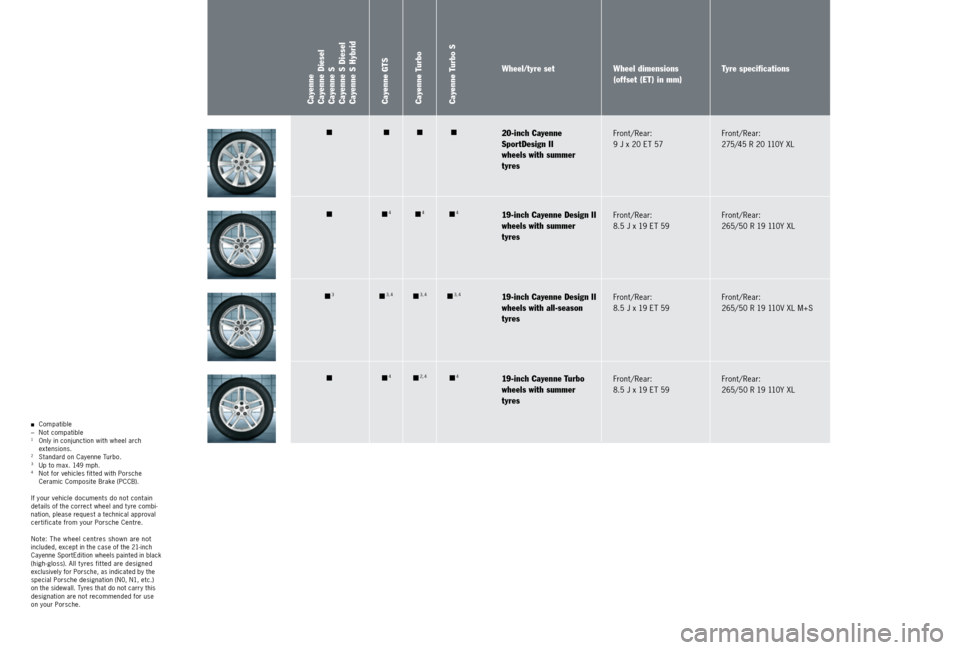

Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Design II
wheels with all-season
tyresFront/Rear:
265/50 R 19 110V XL M+S
n 3
n n 
3, 4n 3, 4n 3, 4
n 2,
4n 4n 4Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Turbo
wheels with summer
tyres Front/Rear:
265/50 R 19 110Y XL
20-inch Cayenne
SportDesign II
wheels with summer
tyres Front/Rear:
9 J x 20 ET 57 Front/Rear:
275/45 R 20 110 Y
XL
19-inch Cayenne Design II
wheels with summer
tyres Front/Rear:
8.5 J x 19 ET 59 Front/Rear:
265/50 R 19 110 Y
XL
n
n
n
n
n 4n 4
n
n 
4
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Diesel
Cayenne S HybridCayenne Turbo
Cayenne Turbo S Cayenne GTS

Note on the use of winter tyres
Summer t yres provide optimum
performance at ambient temper-
atures
above approximately +7 °C.
Below this point, the t yre com -
pound begins to harden and
braking distances are increased.
We therefore recommend that
you fit winter t yres during the
colder months of the year so that
you can drive your Cayenne safe

in the knowledge that it will contin-
ue to meet our high standards for
driving safet y even at low temper -
atures.
All winter t yres approved by
Porsche are identified
by an ‘N’ des -
ignation on the sidewall.
n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 149 mph.4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1, etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use on your Porsche.
n 3n 3n 3n 3

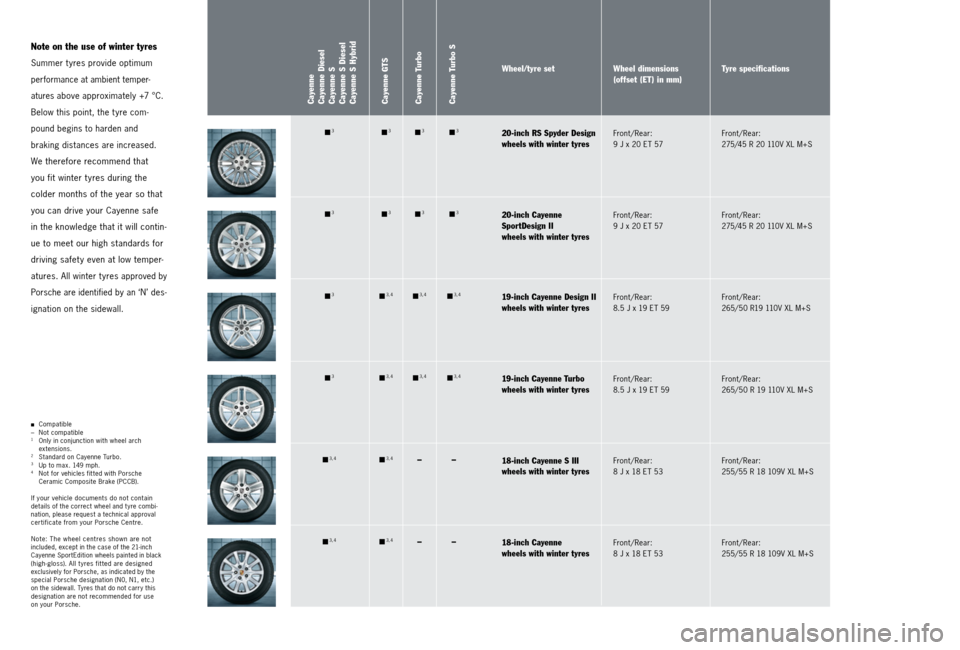

n 3n 3n 3n 3Front/Rear:
9 J x 20 ET 5720-inch Cayenne
SportDesign II
wheels with winter tyresFront/Rear:
275/45 R 20 110 V XL M+S
n 3n 3, 4n 3, 4n 3, 4Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Design II
wheels with winter tyresFront/Rear:
265/50 R19 110V XL M+S
Front/Rear:
9 J x 20 ET 57
20-inch RS Spyder Design

wheels with winter tyresFront/Rear:
275/45 R 20 110V XL M+S
Front/Rear:
8 J x 18 ET 53
Front/Rear:
8 J x 18 ET 53
18-inch Cayenne S III
wheels with winter tyres
18-inch Cayenne
wheels with winter tyresFront/Rear:
255/55 R 18 109V XL M+S
Front/Rear:
255/55 R 18 109V XL M+S
n 
3n 3, 4
n 3, 4n 3, 4
n 3, 4n 3, 4
n 3, 4n 3, 4
–
–
– –
Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Turbo
wheels with winter tyresFront/Rear:
265/50 R 19 110V XL M+S
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Diesel
Cayenne S HybridCayenne Turbo
Cayenne Turbo S Cayenne GTS

Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Not compatible with wheel
spacers.
Wheel centres
Set of wheel centre caps with a
full- colour Porsche Crest. The
perfect finishing touch for any
Cayenne wheel.
Crested valve caps
Set of four silver- coloured valve
caps with embossed Porsche Crest.
For vehicles with TPM (not shown)
and without Tyre Pressure
Monitoring (TPM).
Wheel centre
Crested valve caps for vehicles without TPM Anti-theft wheel protection
Wheel spacers
Tyre typeSize Fuel efficiency
class/rolling
resistance Wet grip
class
External
noise*
class
External
noise
(dB)
Summer
tyres 255/55 R 18
265/50 R 19
275/45 R 20
295/35 R 21 E– C
C–B
E
E– C B
B–A
B–A
B–A
–
–

–

74 –72
73 – 69
73 –72
74 –72
All-season
tyres 255/55 R 18
265/50 R 19
275/45 R 20 E– B
C–B
C–B C
C
C

–
–
–

76 – 69
71–70
76 – 69
Winter
tyres 255/55 R 18
265/50 R 19
275/45 R 20 E– C
C
E– C C–B
E– B
C–B

–

72
73 –72
72–70
For logistics and production reasons, it is not possible to order t yres from
a specific manufacturer.
*
Quiet rolling noise,Moderate rolling noise,Loud rolling noise.
Fuel efficiency class, wet grip class, rolling noise Wheel spacers
Wheel spacers create a wider
track for enhanced stability and
presence on the road. When fit -
ted, your Cayenne will look even
sportier, as the wheels run virtu -
ally flush with the body of the car.
Two versions available: 17 mm for
rear axle and 5 mm for front and
rear axles.
Not compatible with snow chains.
Only available in conjunction with
wheel arch extensions.
Anti-theft wheel protection
Set of four black wheel bolts with
anti-theft protection.
Wheel bolts in black including
anti-theft protection (not shown)
Set of t went y black wheel bolts,
four of which are anti-theft bolts.
Including adapter.
Snow chains

Your Cayenne enables you to fulfil
your dream of driving a Porsche
and to share it with up to four
passengers, including luggage.
Being a Porsche, this is a powerful
vehicle whose excellent dynamics promise pure driving pleasure,

on-road or off-road. Nevertheless,
there is still scope for further
improvement, but only if this is
in keeping with the car’s overall
conceptual harmony. For example, with the sports exhaust system or
the
Porsche Ceramic Composite
Brake (PCCB). The following pages
will tell you more.
Where some can go no further,
others are just getting started.

Porsche Ceramic Composite
Brake (PCCB)
These carbon-fibre-reinforced and
cross-drilled ceramic brake discs
are internally vented and have
a larger diameter than standard
discs. Six-piston aluminium mono-
bloc brake
calipers at the front
and four-
piston units at the rear –
all with a yellow finish – provide
extremely high and consistent
levels of friction. Available for Cayenne GTS and
Cayenne Turbo in conjunction with
20-inch wheels.

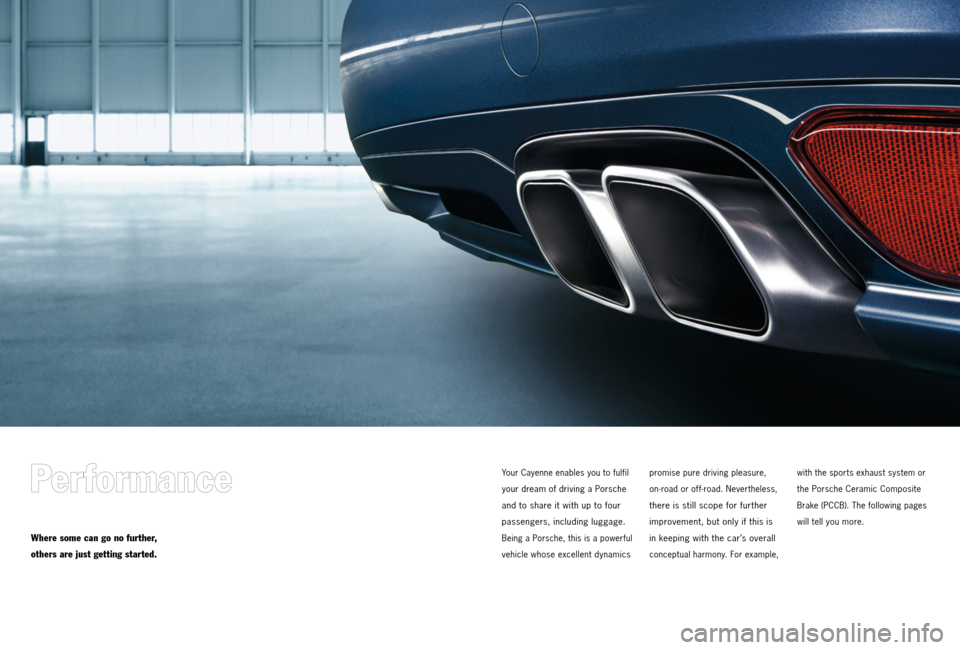

Sports tailpipes
Give the rear of your Cayenne

an even sportier look with these
polished, high-gloss aluminium
tailpipe trims in a distinctive
design. Nano - coated to make
them easier to clean and provide
a striking effect.
Not compatible with the sports
exhaust system.
GTS sports tailpipes in black
Twin dual-tube tailpipes in the
unique black design of the
Cayenne GTS. Lending an even
more powerful look to the rear
of your Porsche.
Only for Cayenne and Cayenne S
in connection with the sports
exhaust system.
Sports exhaust system
Features modified main silencers
and twin dual-tube trims with
Cayenne Turbo design in polished,
high-gloss aluminium with a nano-
coat finish. The sport y sound is
selected using an additional but ton
in the centre console.
Only for Cayenne and Cayenne S.
Spor ts exhaust system Sports tailpipes
Porsche Ceramic Composite Brake (PCCB)
GTS sports tailpipes in black

You’ve already achieved your heart’s desire.
Now for those little extras.
Space for five, including luggage.
The Cayenne offers you plent y of
room for manoeuvre, even in terms
of personalised design. After all,
should every thing not be exactly
the way you pictured it to be?To help you to create the interior
you desire, a selection of high-

quality materials is available. How
about an elegant wood finish?
Whether it be walnut, anthracite
birch, natural olive or Yachting
Mahogany, our range is certain
to appeal to your taste. Brushed aluminium, carbon or
leather will also give your Cayenne
even more character: yours.
The following pages will give you
all the inspiration you need.

Walnut1
A classic, high-quality dark wood
with a unique and appealing grain.
Anthracite birch1
This anthracite-coloured birchwood
has an at tractive wav y grain, an
impressive dual-tone effect and a
silky sheen.
Natural olive1
A high- qualit y ash wood with an
olive grain and a silky mat t sheen,
giving a combination of elegance,
individuality and luxury.
Yachting Mahogany1
Inspired by the construction of
exclusive yachts, mahogany is
a fine dark wood. Light maple in -
serts provide a st ylish contrast.
Brushed aluminium
Brushed aluminium sets clear
accents and gives the interior a
sporty, minimalist appearance.
Carbon
Carbon is a light but highly durable
material which has its origins
in motorsport. Its sport y look is the ideal complement to the car’s
race-bred engineering.
Leather
Leather is a traditional natural
material – a true classic. Items
made of leather are both timeless
and hardwearing.
1
Since wood is a natural product,
there may be variations in colour
and grain.
Carbon
Brushed aluminium interior package
Brushed aluminiumNatural olive
Leather
Walnut
Anthracite birch
Yachting Mahogany

Interior package
Would you like to make your
Cayenne even more individual,
even more refined? Our range of
interior packages enables you to
choose the finish you would like
for the decorative trims on the
dashboard and all doors, the

decorative plate on the centre
console lower section and the front ashtray cover. Packages are
available in walnut, anthracite
birch, natural olive, Yachting

Mahogany, brushed aluminium or
carbon.
Extended trim package
The extended trim package crea -
tes an outstanding effect when
combined with one of our interior packages, but is equally at tractive
on its own. The extended trim

package comprises the Tiptronic S
gear selector and the multifunction
steering wheel rim (not including
airbag module). Available in
walnut, anthracite birch, Yachting
Mahogany or carbon.
Door handles and centre console
grab handles
Includes the front and rear door
handles and the centre console
grab handles. Available in walnut,
anthracite birch, natural olive,
Yachting Mahogany or carbon.
Interior package and extended trim package in anthracite birch Door handles and centre console grab handles in carbon
Door handles and centre

console grab handles in
padded leather (not shown)
The door handles in the front and
rear and the grab handles on the
centre console are all padded
for an excellent non-slip effect.
Decorative seams complete the
classy appearance.

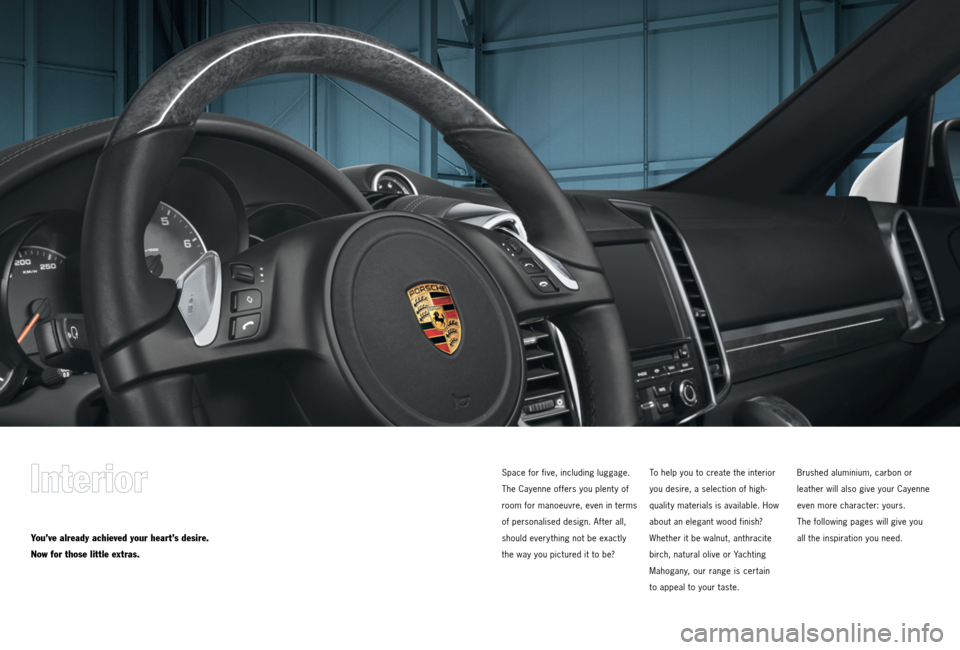

Spor tDesign steering wheel with gearshif t paddles
SportDesign steering wheel with
gearshift paddles
This steering wheel in leather
with gearshift paddles located
behind the right- and left-hand
spokes will appeal to anyone who
wants to make motorsport-st yle
gear changes. The right-hand

paddle shifts up, the left-hand
paddle shifts down, confirming
that comfort and sportiness
needn’t be mutually exclusive.
Tiptronic S gear selector in
aluminium
Tiptronic S gear selector specially
designed in milled aluminium with
inlays in smooth-finish leather in
the interior colour.
Only for vehicles with Tiptronic S.
All-weather floor mats
Four made-to -measure floor mats
in an appealing black design
featuring the Cayenne silhouette
and ‘PORSCHE’ logo. Non-slip

and waterproof with surrounding
raised
edge.
Floor mats with nubuck edging
Precision down to the last detail:
four made-to -measure floor mats
with nubuck edging, ‘PORSCHE’
logo and a waterproof backing.
Floor mat displacement is preven -
ted by a special securing system.
Available in selected interior
colours.
Reversible loadspace mat with
nubuck edging
This reversible mat with nubuck
edging including loading edge
protection shields the lugga
ge
compartment from dirt and
protects the vehicle paintwork
from scratches during loading.
One side is trimmed in velour

in the interior colour, the other
side features a hard-wearing,

waterproof and non-slip rubber
surface.
Not compatible with loadspace
management system.
Tiptronic S gear selector in aluminium
Reversible loadspace mat with nubuck edging Floor mats with nubuck edging
All-weather floor mats

Vehicle key painted
A special kind of door opener –
one that’s really pleasing to the
eye. The painted side sections
lend your vehicle key a touch of
individuality.
Set, consisting of t wo side
sections.
Key pouch in leather
In smooth-finish leather with deco-
rative stitching and embossed
Porsche Crest. Available in selec -ted leather colours. Includes a
tether for the vehicle key.
Sun/privacy screen
Protects against direct sunlight
and at the same time provides
additional privacy. Clips in place
in just a few minutes.
Four-piece set available for the
windows in the rear area and

one-piece for the rear screen.
LED comfort lighting extended
package (not shown)
Includes LED lights for the
interior and exterior: footwell
lighting at the front and rear,
luggage compartment interior
lighting, position lighting on the
luggage compartment lid and
position lighting in the doors

at the front and rear, glove
compartment lighting and also
lighting for sun visors. Note: in conjunction with the
comfort lighting package,

the
mirror periphery lighting in
the exterior mirrors also uses
LED technology.
Vehicle key painted, key pouch in leather Sun/privacy screen
Sun/privacy screen
