PORSCHE CAYNNE DIESEL 2012 2.G Information Manual
Manufacturer: PORSCHE, Model Year: 2012, Model line: CAYENNE DIESEL, Model: PORSCHE CAYENNE DIESEL 2012 2.GPages: 23, PDF Size: 4.88 MB
Page 11 of 23
A t ypical Porsche feature: the five round
instruments form the familiar cluster and
are slightly raised from the dashboard as
a visual unit. The highresolution 4.8inch
TFT colour display shows information
from the onboard computer or, in con
junction with PCM including navigation
module, map data from the navigation
system. It also shows the figures from the
optional adaptive cruise control or gives
various warnings, such as alerts from
Tyre Pressure Monitoring (TPM), also avail
able as an option. The car is ergonomically designed around
the vehicle occupants for optimum
comfort. Frequently used controls are
grouped logically together on the centre
console to enable you to select individual
functions quickly and easily.
The rear seats provide manual fore/aft
adjustment as well as backrest adjust
ment and a 40/20/40 splitfolding facilit y.
This affords more space in the rear
passenger compartment or increases
the storage capacit y up to 1,780 litres.
The interior features a selection of
quality materials available in various
combinations and comes in a choice of
interior colours and finishes, ranging
from sport y to exclusive. There are also
a number of optional interior packages in
a selection of fine woods or in aluminium
or carbon – for a raceinspired look.
Once again, we’ve successfully united
t wo seeming contrasts to bring you max
imum comfort and dynamic performance.
Interior.
Who says you can’t sit comfortably while
enjoying exhilarating performance?
As soon as you open the door of the
new Cayenne S Diesel, the concept is
immediately clear – 100 % sports car,
100 % Porsche.
The rising centre console makes for a
dynamic statement – and it focuses on
what ’s really important: you. The seat
position and sports steering wheel offer
exceptional support and contact – for an
even sportier drive.
The best way to prepare for excellence?
Take a relaxed approach.
Style | 21
Page 12 of 23
Comfort.
Phenomenal sound. Delivered straight
from your ear to your heart.
In addition to 10 loudspeakers and a total
audio output of 100 wat ts, the standard
CDR audio system has a 7inch colour
touchscreen display which enables you to
navigate and select the main menus and
functions with ease and efficiency.
The optional CDR Plus audio system
features a total output of 235 wat ts, a
universal audio interface, digital radio
and a wide range of additional functions.
Also available as an option is Porsche Com
munication Management (PCM) with
its 7 inch high resolution colour touch
screen display and navigation module.
Further options available for PCM include
digital radio and online services. Online
services give you the option of accessing
a variet y of content from the internet via
PCM, including weather information and
Facebook
®.
The Burmester® High End Surround
Sound System offers an even more
exclusive aural experience. The fully
active system has a total output of more
than 1,000 wat ts, 16 loudspeakers and a
16 channel amplifier for concert hall
q ua l i t y.
The Cayenne S Diesel can be fit ted with
a range of optional driver assistance
systems to make the driving experience
even more enjoyable. Adaptive cruise
control with Porsche Active Safe (PAS)
automatically regulates the speed of
your vehicle in line with that of the vehicle
in front. It can be used at speeds of
bet ween 30 and 210 km/ h (18 and
130 mph) for added driver comfort on
longer journeys. PAS visually and audibly
alerts the driver in the event of a sudden
decrease in distance and briefly tugs
on the brakes. The speed limit indicator
informs the driver about speed restric
tions, restrictions on overtaking and
when these no longer apply. The optional Lane Change Assist (LCA)
system monitors the area behind and
to the side of the vehicle. At speeds of
30 km/ h (18 mph) or more, it alerts the
driver to a vehicle in the adjacent lane
via a visual
signal. If the indicators are
activated, LEDs in the exterior mirrors
provide a flashing signal, warning the
driver of a vehicle in the blind spot.
Can’t choose bet ween performance and
comfort? At Porsche, you can have both.
High performance that appeals
to all the senses.
22 | Harmony
Page 13 of 23
Maximum efficiency does
not mean forgoing your
individual style.
24 | Individuality Individuality | 25
Classic Silver Metallic
White Black
Dark Blue Metallic
Jet Black Metallic
Meteor Grey Metallic Umber Metallic
Carmine Red Auburn Metallic
Solid exterior colours.Metallic exterior colours. Metallic exterior colours.
Special exterior colours.
Jet Green Metallic
Colours and personalisation.
For you there is only one direction: up.
Why should you not have the same
aspirations for your Cayenne S Diesel?
On the following pages – and in the
Exclusive Cayenne catalogue – you will
find a selection of highqualit y options
that will help you give your car that
added personal touch: in terms of
comfort, st yle and performance.
You’ll find a range of further accessories
for all scenarios – and all seasons – in
the latest Tequipment Cayenne
catalogue.
Page 14 of 23
1)
Carpet in loadspace area in darker colour. 2)
Colour and grain may var y. 3)
Also available on steering wheel.
Umber/Cream (rooflining:
Umber, carpet1): Cream)
Black/ Titanium Blue (rooflining:
Black, carpet
1): Titanium Blue)
Black
Black
Platinum Grey Platinum Grey
Standard interior colours.
Dashboard/trim/seats. Two-tone combinations:
leather interior.
Dashboard/trim/seats.
Espresso
Natural leather interior.
Espresso/Cognac (rooflining:
Espresso, carpet1): Cognac)
Umber
Luxor Beige Luxor Beige
Two-tone combinations:
natural leather interior.
Dashboard/trim/seats.
Umber/Light Tartufo (rooflining:
Umber, carpet1): Light Tartufo)
Interior packages.
Walnut (wood)2), 3)
Anthracite birch (wood)2), 3)
Natural olive (wood)2)Carbon3)
Brushed aluminium
26 | Individuality Individuality | 27
Standard colours:
leather interior.
Dashboard/trim/seats.
Monochrome black (high gloss)
Yachting Mahogany (wood)2), 3)
Page 15 of 23
OptionI no.Page
Option
I no.Page

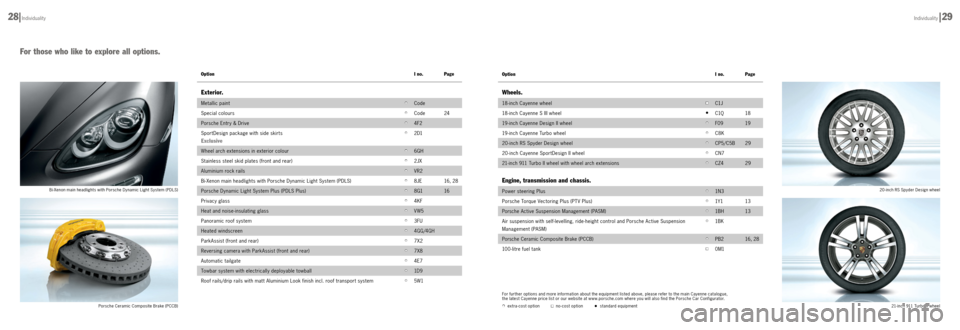

Bi -Xenon main headlights with Porsche Dynamic Light System (PDLS)
Porsche Ceramic Composite Brake (PCCB) 20 - inch RS Spyder Design wheel
21- inch 911 Turbo II wheel
For fur ther options and more information about the equipment listed above, please refer to the main Cayenne catalogue,
the latest Cayenne price list or our website at w w w.porsche.com where you will also find the Porsche Car Configurator.
• extra-cost option■ no-cost option• standard equipment
28 | Individuality Individuality | 29
For those who like to explore all options.
Wheels.
18-inch Cayenne wheel■C1J
18-inch Cayenne S III wheel
• C1Q 18
19 -inch Cayenne Design II wheel
• F09 19
19-inch Cayenne Turbo wheel
• C8K
20 -inch RS Spyder Design wheel
• CP5/C5B 29
20 -inch Cayenne SportDesign II wheel
• CN7
21-inch 911 Turbo II wheel with wheel arch extensions
• CZ4 29
Engine, transmission and chassis.
Power steering Plus•
1N3
Porsche Torque Vectoring Plus (PTV Plus)
• 1Y 1 13
Porsche Active Suspension Management (PASM)
• 1B H 13
Air suspension with self-levelling, ride-height control and Porsche Active Suspension
Management (PASM)
• 1B K
Porsche Ceramic Composite Brake (PCCB)
• PB2 16 , 2 8
100 -litre fuel tank
■0M1
Exterior.
Metallic paint• Code
Special colours
• Code 24
Porsche Entry & Drive
• 4F2
SportDesign package with side skirts
Exclusive
•
2 D1
Wheel arch extensions in exterior colour
• 6GH
Stainless steel skid plates (front and rear)
• 2JX
Aluminium rock rails
• VR2
Bi-Xenon main headlights with Porsche Dynamic Light System (PDLS)
• 8JE 16 , 2 8
Porsche Dynamic Light System Plus (PDLS Plus)
• 8G1 16
Privacy glass
• 4KF
Heat and noise-insulating glass
• VW5
Panoramic roof system
• 3FU
Heated windscreen
•4GG/4GH
Park Assist (front and rear)• 7X2
Reversing camera with Park Assist (front and rear)
• 7X8
Automatic tailgate
• 4E7
Towbar system with electrically deployable towball
•1D9
Roof rails/drip rails with mat t Aluminium Look finish incl. roof transport system•5W1
Page 16 of 23
OptionI no.Page
Option
I no.Page
Speed limit indicator
Four zone climate control
1)
Includes electric adjustment of lumbar suppor t, squab length, side cushions on backrest /squab and steering column as well
as other additional functions.
2)
Colour and grain may var y.
30 | Individuality Individuality | 31
Monochrome black interior package (high gloss)
Brushed aluminium interior package
Interior.
Adaptive cruise control with Porsche Active Safe (PAS)•
8T3 22
Lane Change Assist (LCA)
• 7Y1 22
Speed limit indicator
• 9Q6 22, 30
SportDesign steering wheel with gearshif t paddles
• 1M L 13
Driver memory package
• 3L4
Comfort memory package (14 way)
•
PE5
Adaptive sports seats with comfort memory package (18 way)
1)•
PE6
Seat ventilation (front)
• 4D3
Seat heating (front and rear)
• 4A3/4A4
Auxiliary heating system
• 9M9
4 zone climate control
•
9AH 30
Electric sunscreen for rear side windows
• 3Y8
Comfort lighting package
• PP5/PP6
HomeLink
® (garage door opener)•
VC1
Preparation for Porsche Vehicle Tracking System (PV TS)
• 7G5
Interior: leather.
Leather interior package in standard colours, smooth finish leather•
Code 26
Leather interior package in two tone combination
•
Code 26
Leather interior package in natural leather
• Code 26
Leather interior package in two tone combination natural leather
•
Code 27
Sof t ruf fled leather on seat centres
• N 5 Y/ N7 D/
N7F
Interior packages.
Monochrome black interior package (high gloss)•
5TL 27
Brushed aluminium interior package
• 5TE 2 7, 3 1
Walnut interior package (wood)
2)• 5MG/ PH4 2 7, 3 1
Heated multifunction steering wheel in walnut (wood)
2)•
1XJ
Natural olive interior package (wood)
2)• 5 T F/ P H 5 27
Anthracite birch interior package (wood)
2)• 5MB/ PH6 27
Heated multifunction steering wheel in anthracite birch (wood)
2)• 1XE
Carbon interior package
• 5MH/ PH7 27
Heated multifunction steering wheel in carbon
• 2FX
For fur ther options and more information about the equipment listed above, please refer to the main Cayenne catalogue,
the latest Cayenne price list or our website at w w w.porsche.com where you will also find the Porsche Car Configurator.
• extra cost option■ no cost option• standard equipment
Page 17 of 23
OptionI no.Page
Option
I no.Page
Electronic logbook
Porsche Rear Seat Entertainment
1)
Reduced luggage compar tment volume due to subwoofer beneath loadspace floor. 2) May be incompatible with some copy protected CDs/DVDs.3)
For information on compatibility with the latest iPod® and iPhone® models, please contact your Porsche Centre.4)
For information on compatible mobile phones, please visit www.porsche.com or contact your Porsche Centre.
5)
Mobile phone preparation or telephone module in HFP mode: using a mobile phone inside the vehicle may expose occupants to increased levels of electromagnetic radiation. The use of the telephone module for PCM via Bluetooth® SAP connection
or with inser ted SIM card helps to prevent exposure to this radiation as only the car’s external aerial is used.
6)
Wireless Internet access and your terminal must be initially configured in accordance with the instructions in your operating manual. 7)
Suitable for receiving analogue and digital T V signals (DVB T in MPEG 2 standard) where available.
BOSE
® Surround Sound System1)
Universal audio inter face (AUX, USB, e.g. for iPod®)3) with cover art
32
| Individuality Individuality | 33
Audio and communication: PCM.
Mobile phone preparation (HFP) 4), 5)•
9W5
Telephone module (SAP and HFP)
4), 5)•
9W1
Telephone module (SAP and HFP) with cordless keypad handset
4), 5)• 9ZP
Sport Chrono Package
• QR5
Compass display in instrument cluster
• QR1
Electronic logbook
• 9NY 33
Voice control
• QH1
Wireless Internet access
6)
Exclusive
•
AXZ
Digital radio
• QU0 22
Online services
• UN1 22
T V tuner
7)• QV1
Porsche Rear Seat Entertainment
Exclusive
•
A EC 33
Factory collection.
Factory collection Cayenne•S9Y/SZ8
Audio and communication: CDR audio system.
CDR Plus audio system•PM122
BOSE
® Surround Sound System 1)•
9VL 32
Burmester
® High End Surround Sound System 1)•
9VJ 22
CD autochanger (6 disc)
2)•
7 D7
Universal audio interface (AUX)
• UF1 22, 32
Mobile phone preparation (HFP)
4), 5)•
9W5
Online services
• UN1 22
Porsche Rear Seat Entertainment
Exclusive
•
A EC 33
Audio and communication: PCM.
Porsche Communication Management (PCM) with navigation module 2)•
7T1 22
BOSE
® Surround Sound System 1)•
9VL 32
Burmester
® High End Surround Sound System 1)•
9VJ 22
CD/ DVD autochanger (6 disc)
2)•
7 D7
Universal audio interface (AUX, USB, e.g. for iPod
®) 3) with cover art• UF1 22, 32
For fur ther options and more information about the equipment listed above, please refer to the main Cayenne catalogue,
the latest Cayenne price list or our website at w w w.porsche.com where you will also find the Porsche Car Configurator.
• extra cost option■ no cost option• standard equipment
Page 18 of 23
Summar y.
We’re sure you know how it feels to push
the limits of your own performance every
day. To continually strive to do your best.
However, you also know how to make
sure you enjoy yourself in the process.
At work – and in your everyday life: by
put ting all your efforts into the goals
you believe in.
Performance and commitment are clearly
t wo things that go hand in hand. Our engineers have proven this.
Time and time again.
That ’s how they keep moving forward.
With the next idea, with the next challenge
and, above all, with the next goal.
But that ’s something you already know
about.
The new Cayenne S Diesel.
Page 19 of 23
Technical data: Cayenne S Diesel.
Engine
Cylinders 8
Displacement 4,13 4 c m
3
Max. power (DIN) at rpm 281 kW (382 hp) at 3,750 rpm
Max. torque at rpm 850 Nm at 2,000 –2,750 rpm
Compression ratio 16.4 : 1
Transmission
Layout Porsche Traction Management (PTM):
active allwheel drive with electronically
variable, map controlled multi plate clutch,
automatic brake differential (ABD) and
anti slip regulation (ASR)
Lockable differentials (standard) Electronically controlled multiplate clutch,
variable centre differential
8 speed Tiptronic S Standard
Fuel consumption/emissions/efficiency class2) Cayenne S Diesel ( AT )Cayenne ( M G /AT )Cayenne Diesel ( AT )Cayenne S ( AT )Cayenne S Hybrid ( AT )Cayenne GTS ( AT ) Cayenne Turbo ( AT )
Fuel grade DieselSuper PlusDiesel Super Plus SuperSuper PlusSuper Plus
Urban in l/100 km (mpg) 10.0 (28.2)15.9 (17.8)/13.2 (21.4)8.4 (33.6)14 . 4 (19.6 ) 8.7 (32.5)14.8 (19.1)1 5 . 8 ( 17. 9 )
Extra urban in l/100 km (mpg) 7. 3 ( 3 8 . 7 )8.5 (33.2)/8.0 (35.3)6.5 (43.5)8.2 (34.4) 7.9 (35.8)8.5 (33.2)8.4 (33.6)
Combined in l/100 km (mpg) 8.3 (34.0)11.2 (25.2)/9.9 (28.5)7.2 (39.2)10.5 (26.9) 8.2 (34.4)10.7 (26.4)11.5 (24.6)
CO
2 emission in g / km 218263/236189245 193251270
Emissions standard EU 5EU 5EU 5EU 5 EU 5EU 5EU 5
Efficiency class (Germany)
5)D G/ECE BFF
Efficiency class (Switzerland)
5)F G/GDG EGG
1) The unladen weight (EC) complies with the relevant EC Directives and is valid for standard specification vehicles
only. Some items of optional equipment can increase this weight.
The figure specified above includes 68 kg representing the driver and 7 kg for luggage.
2) The data presented here was recorded using the Euro 5 test procedure (715/2007/ EC, 692/2008/ EC,
566/2011/ EC and ECE R 101) and the NEDC (New European Driving Cycle). The respective figures were not
recorded on individual vehicles and do not constitute par t of the of fer. This data is provided solely for the
purposes of comparison bet ween the respective models. Fuel consumption was recorded on vehicles with
standard specification. Optional equipment may affect fuel consumption and vehicle performance. Fuel consumption
and CO2 emissions are not only determined by a vehicle’s fuel ef ficiency, but also by the driving st yle and other factors irrespective of vehicle specification. All current petrol engines from Porsche are compatible with a fuel ethanol content of up to 10 %. For more information on individual models, please contact your Porsche Centre.3) At DIN unladen weight, ground clearance at axle centre, Cayenne S Diesel with steel spring suspension. 4) At DIN unladen weight, ground clearance at axle centre, Cayenne S Diesel with air suspension. 5) Only applicable in the countries specified.
Chassis
Front a xle Extralarge format double wishbone
suspension, fully independent
Rear axle Multilink suspension, fully independent
Steering Powerassisted, hydraulic
Brakes 6piston monobloc aluminium fixed calipers
at front, 4 piston monobloc aluminium fixed
calipers at rear, discs internally vented
Wheels 8.0 J x 18
Ty r e s 255/55 R 18
Unladen weight
DIN2,195 k g
EC
1)2,270 k g
Permissible gross weight 2,935 kg
Max. payload 74 0 k g
Performance
Top speed252 km/ h (156 mph)
0–100km/h (0–62 mph) 5.7 secs
Overtaking acceleration (automatic transmission)
80 –120 km/ h (49 –74 mph)3.8 secs
Dimensions
Length 4,846 mm
Width (incl. mirrors) 1,939 mm (2,155 mm)
Height 1,705 m m
Wheelbase 2,895 mm
Luggage compartment volume (VDA),
with rear seats folded 670 litres/1,780 litres
Tank capacity/reserve 85 litres/15 litres
Off-road capability
Wading depth 500mm
Approach angle 26.0°, steelspring suspension
Departure angle 24.5°, steelspring suspension
Ramp breakover angle
3)20.5°, steel spring suspension
Max. ground clearance
3)
High Level II4)
High Level I4)
Normal Level4)
Low Level I4)
Low Level II4)
Loading Level4)
215 mm
268 mm
238 mm
210 mm
18 8 mm
178 mm
15 8 mm
MG = manual gearbox, AT = automatic transmission
36 | Technical data Technical data | 37
