PORSCHE CAYNNE S 2005 1.G Service Manual

Controls, Safety, Instruments
41
A- Switches seat heating on
B- Switches seat heating off
C- Temperature control for left seat
D- Temperature control for right seatRear seat heating in vehicles with an
four-zone air conditioning systemSwitching on
fPress button A.
After the seat heating is switched on, the air
conditioning display switches to seat heating
mode for approx. 10 seconds.Controlling the temperature
fMove button C or button D upwards or down-
wards until the desired position is reached.
Switching off
fPress button B.

42
Controls, Safety, Instruments
Safety Belts
Danger!
Always make sure your and your passengers'
safety belts are properly fastened while the
vehicle is in motion.
Failure to follow safety belt warnings may re-
sult in serious personal injury or death.
fFor your and your passengers' protection, use
safety belts at all times while the vehicle is in
motion.
fUse appropriate child restraint systems for all
small children.
Proper wearing of safety belts
fSafety belts must be positioned on the body as
to restrain the upper body and lap from sliding
forward. Improperly positioned safety belts
can cause serious personal injury in case of an
accident.
fThe shoulder belt should always rest on your
upper body. The shoulder belt should never be
worn behind your back or under your arm.
fFor maximum effectiveness, the lap belt
should be worn low across the hips.
fPregnant women should position the belt as
low as possible across the pelvis. Make sure it
is not pressing against the abdomen.
fBelts should not be worn twisted.fDo not wear belts over rigid or breakable ob-
jects in or on your clothing, such as eye glas-
ses, pens, keys, etc. as these may cause inju-
ry.
fSeveral layers of heavy clothing may interfere
with proper positioning of belts.
fBelts must not rub against sharp objects or
damage may occur to the belt.
fTwo occupants should never share the same
belt at the same time.
Care and maintenance
fKeep belt buckles free of any obstruction that
may prevent a secure locking.
fBelts that have been subjected to excessive
stretch forces in an accident must be inspect-
ed or replaced to ensure their continued effec-
tiveness in restraining you.
The same applies to belt tensioner systems
which have been triggered. In addition, the an-
chor points of the belts should be checked.
fIf safety belts do not work properly, see your
authorized Porsche dealer immediately.
fI f t h e b e l t s s h o w d a m a g e t o w e b b i n g , b i n d i n g s ,
buckles or retractors, they should be replaced
to ensure safe operation.
fDo not modify or disassemble the safety belts
in your vehicle.fThe belts must be kept clean or the retractors
may not work properly.
Please observe the chapter “CAR CARE IN-
STRUCTIONS” on Page 265.
fNever bleach or dye safety belts.
fDo not allow safety belts to retract until they
are completely dry after cleaning or this may
cause damage to the belt.

Controls, Safety, Instruments
43
Belt tensionerDepending on the force of a collision, fastened
seat belts are automatically tightened in an acci-
dent.
The belt tensioners are triggered in:
– Front and rear impacts
The belt tensioners are not triggered in:
–Side impacts
– Vehicle overturning
Maintenance note
The belt tensioner system can be triggered only
once; the system must be replaced afterwards.
Work may be performed on the belt tensioner
system only by an authorized Porsche dealer.
Smoke is released when the belt tensioners are
triggered.
This does not indicate a fire in the vehicle.An audio-visual warning system is interconnect-
ed with the driver’s safety belt.
Every time the ignition is turned on, the gong will
sound for about 6 seconds to remind driver and
passenger to buckle up.
In addition, the gong will sound if vehicle speed
exceeds 6 mph (10 km/h.)
The safety belt warning lights in the instrument
panel and on-board computer will go off as soon
as the driver has buckled up.
Safety Belt Warning System

44
Controls, Safety, Instruments
Fastening the safety beltfAssume a comfortable sitting position.
Adjust the backrest of the front seat so that the
belt always rests on your upper body and runs
across the middle of your shoulder.
fGrasp the belt tongue and pull the belt in a
slow, continuous motion across your chest and
lap.
Note on operation
The belt can be blocked if the vehicle is standing
at an angle or if the belt is pulled out using a jerk-
ing movement.fThe belt cannot be pulled out while accelerat-
ing and slowing down, when cornering and
when driving uphill.
fInsert the belt tongue into the appropriate
buckle on the inboard side of the seat, until it
locks securely with an audible click.
fMake sure that belts are not trapped or twist-
ed, and that they are not rubbing on sharp edg-
es.
fThe horizontal section of the belt should al-
ways fit snugly across the pelvis. Therefore, af-
ter fastening the belt, always pull the diagonal
part of the belt upwards.
Pregnant women should position the belt as
low as possible across the pelvis, and ensure
that it is not pressing against the abdomen.
fPull on the diagonal section of the belt now and
again during the journey to ensure that the
horizontal section remains tight.fMake sure that the belts and buckles fit
correctly on the rear seat bench.

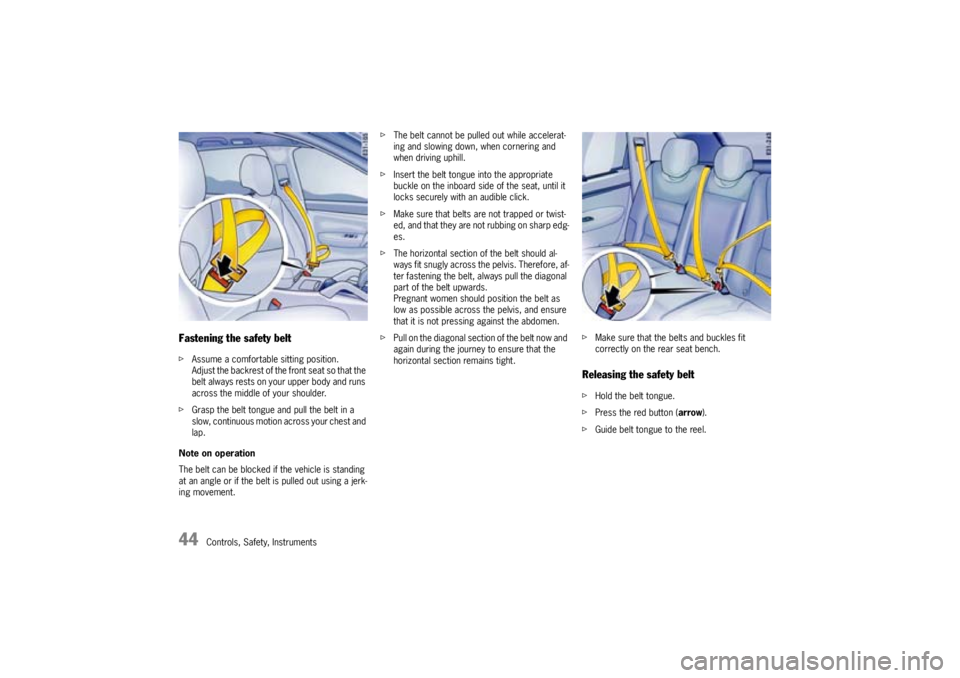

Releasing the safety beltfHold the belt tongue.
fPress the red button (arrow).
fGuide belt tongue to the reel.

Controls, Safety, Instruments
45
Safety belt height adjustmentThe heights of the belt deflectors for the driver’s
seat, passenger’s seat and the outer rear seats
can be adjusted.
Adjust the height of the safety belt so that it runs
across the middle of the shoulder, not against the
neck.

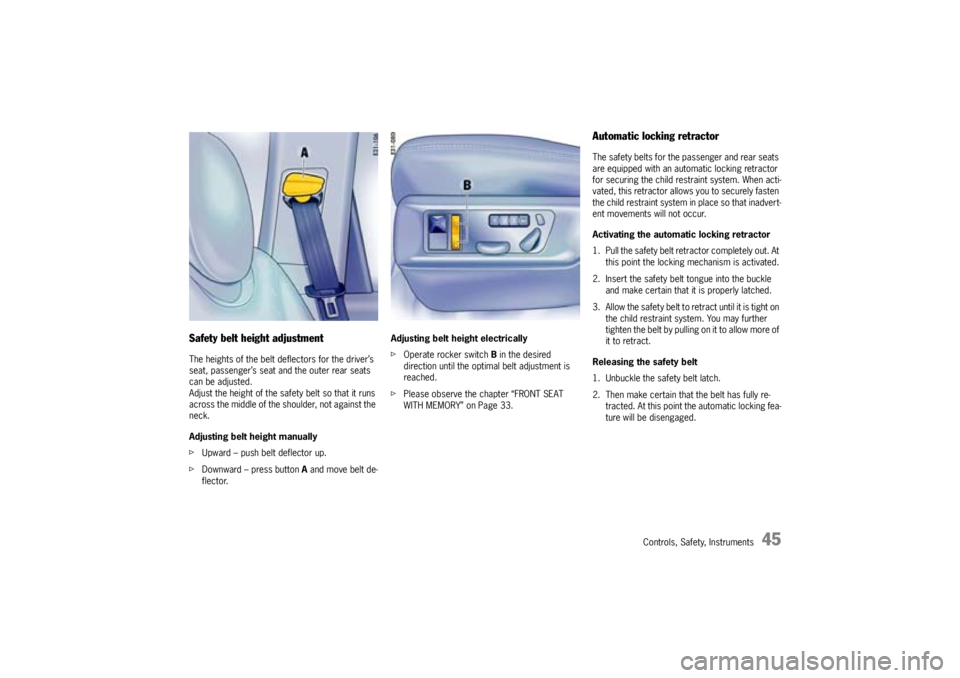

Adjusting belt height manually
fUpward – push belt deflector up.
fDownward – press button Aand move belt de-
flector.Adjusting belt height electrically
fOperate rocker switch B in the desired
direction until the optimal belt adjustment is
reached.
fPlease observe the chapter “FRONT SEAT
WITH MEMORY” on Page 33.
Automatic locking retractorThe safety belts for the passenger and rear seats
are equipped with an automatic locking retractor
for securing the child restraint system. When acti-
vated, this retractor allows you to securely fasten
the child restraint system in place so that inadvert-
ent movements will not occur.
Activating the automatic locking retractor
1. Pull the safety belt retractor completely out. At
this point the locking mechanism is activated.
2. Insert the safety belt tongue into the buckle
and make certain that it is properly latched.
3. Allow the safety belt to retract until it is tight on
the child restraint system. You may further
tighten the belt by pulling on it to allow more of
it to retract.
Releasing the safety belt
1. Unbuckle the safety belt latch.
2. Then make certain that the belt has fully re-
tracted. At this point the automatic locking fea-
ture will be disengaged.

46
Controls, Safety, Instruments
Child Restraint AnchoragesfPlease observe the chapter “AUTOMATIC LO-
CKING RETRACTOR” on Page 45.
If your child restraint seat or seats require the use

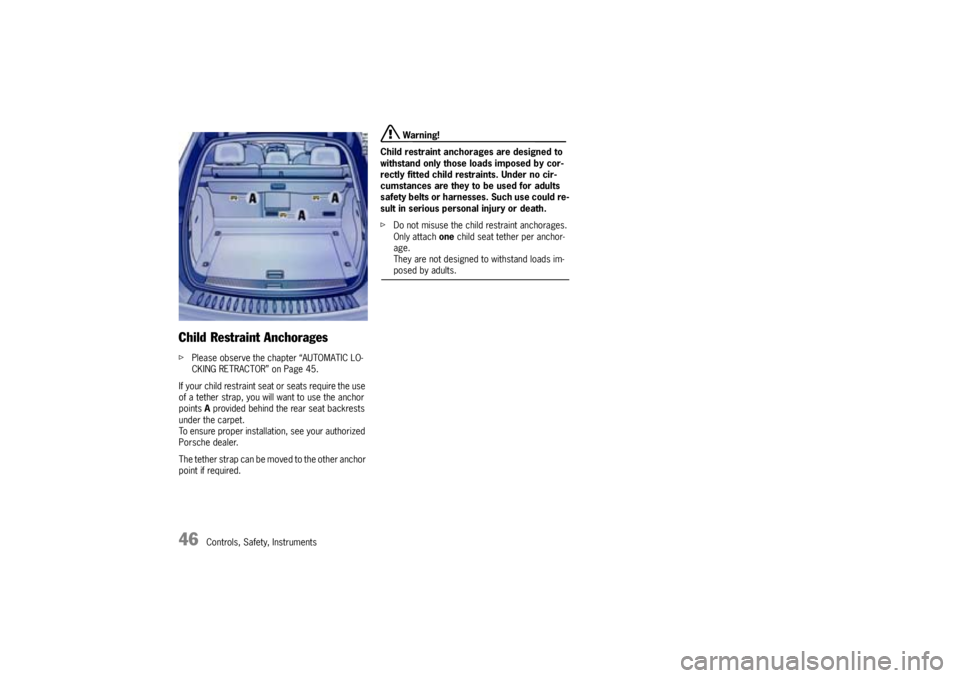

of a tether strap, you will want to use the anchor
pointsA provided behind the rear seat backrests
under the carpet.
To ensure proper installation, see your authorized
Porsche dealer.
The tether strap can be moved to the other anchor
point if required.
Warning!
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adults
safety belts or harnesses. Such use could re-
sult in serious personal injury or death.
fDo not misuse the child restraint anchorages.
Only attach one child seat tether per anchor-
age.
They are not designed to withstand loads im-posed by adults.

Controls, Safety, Instruments
47
Child Restraint SystemsPorsche recommends that all infants and children
be restrained in child restraint systems at all times
while the vehicle is in motion in accordance with
applicable laws.
The use of infant or child restraints is required by
law in all 50 states and the Canadian provinces.
The child restraint system should be one that com-
plies with U.S. Federal/Canadian Motor Vehicle
Safety Standards 213 and should be secured by a
lap belt or lap belt portion of a lap-shoulder belt or
for child seats equipped with the LATCH sytem
(LowerAnchorage and Tether for Children, also
known as ISOFIX) to the LATCH anchorages.
A statement by the seat manufacturer of compli-
ance with this standard can be found on the in-
struction label on the restraint and in the instruc-
tion manual provided with the restraint.
Danger!
Risk of serious personal injury or death to the
child.
fFollow all child restraint instructions and warnings in this manual.
– When using an infant or child restraint system,
be sure to follow all manufacturer's instruc-
tions on installation and use.
– Infants and small children should never be held
on the lap, nor should they share a safety belt
with another occupant while the vehicle is in
motion.
– Children too big for child restraint systems
should use regular safety belts. A shoulder belt
can be used providing it does not cross the
face or the neck of the child.
– For maximum safety and protection, do not
use a child restraint system in the front passen-
ger seat.
Danger!
The use of a child restraint system in the
front passenger seat can result in serious
personal injury or death to the child from an
airbag deployment.
To reduce risk of injury from an inflating air-
bag in an accident, Porsche strongly recom-
mends:
fDo not use a child restraint system in the front passenger seat.
fSeek appropriate advice from your authorized
Porsche dealer about the possible installation
of a Porsche child restraint system.
Rearward facing child restraint system:
fUse only in the rear seat. Must not ever be
used in the front seat.
Forward facing child restraint system:
fUse only in the rear seat. Must not ever be
used in the front seat.

48
Controls, Safety, Instruments Use only child restraint systems with the LATCH
system recommended by Porsche.
These systems have been tested and adjusted to
the interior of your Porsche and the appropriate
child age groups. Other systems have not been
tested and could entail an increased risk of injury.
You can obtain child seats that are
LATCH-compatible at your authorized Porsche
dealer.
fAlways observe the separate installation in-
structions for your child seat.

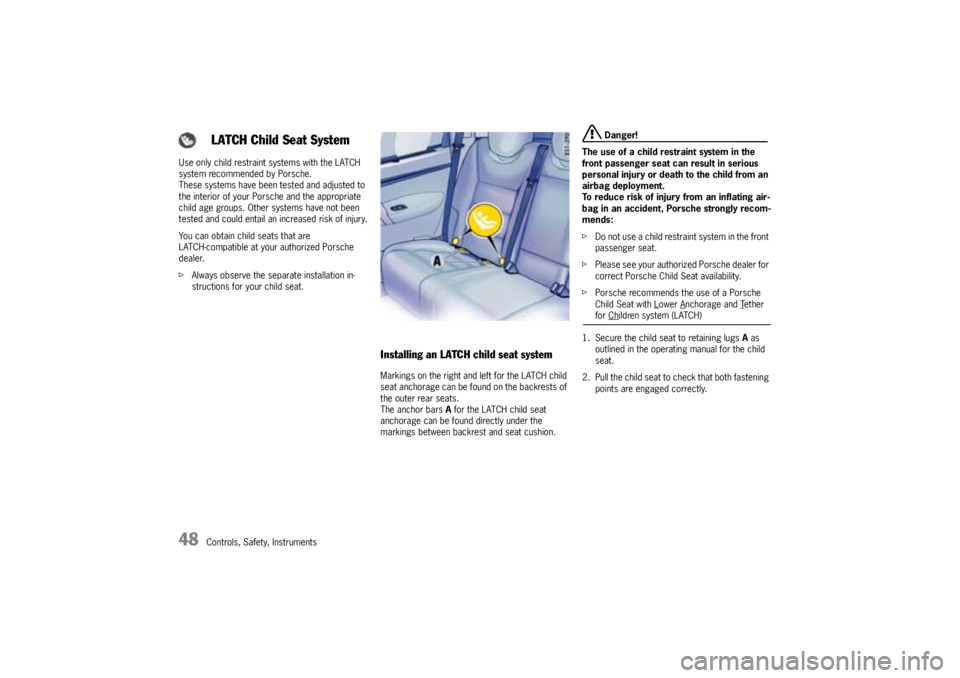

Installing an LATCH child seat systemMarkings on the right and left for the LATCH child
seat anchorage can be found on the backrests of
the outer rear seats.
The anchor bars A for the LATCH child seat
anchorage can be found directly under the
markings between backrest and seat cushion.
Danger!
The use of a child restraint system in the
front passenger seat can result in serious
personal injury or death to the child from an
airbag deployment.
To reduce risk of injury from an inflating air-
bag in an accident, Porsche strongly recom-
mends:
fDo not use a child restraint system in the front
passenger seat.
fPlease see your authorized Porsche dealer for
correct Porsche Child Seat availability.
fPorsche recommends the use of a Porsche
Child Seat with L
ower A
nchorage and T
ether
for Ch
ildren system (LATCH)
1. Secure the child seat to retaining lugs A as
outlined in the operating manual for the child
seat.
2. Pull the child seat to check that both fastening
points are engaged correctly.
LATCH Child Seat System

Controls, Safety, Instruments
49
Airbag SystemsThe Airbags in combination with the safety belts
makes up a safety system which offers the driver
and the passenger the greatest known protection
from injuries in case of accident.
Even if your vehicle is equipped with airbags, the
safety belts must be worn at all times,
because the front airbag system is only actuated
by frontal collisions with an impact of sufficient se-
verity. Below the actuation threshold of the airbag sys-
tem, and during types of collisions which do not
cause the actuation of the system, the safety belts
provide the primary protection to the occupants
when correctly worn.
Therefore, all persons within the vehicle
must wear safety belts at all times (in many
states, state law requires the use of safety belts).
fPlease observe the chapter “SAFETY BELTS”
on Page 42.
Thefront airbags are located under the padded
steering wheel panel on the driver’s side and, on
the passenger's side, in the dashboard.
Theside airbags for the front seats are installed
on the side in the seat backrests.
Thehead airbags are installed above the doors
in the roof area.
FunctionThe front airbags are triggered during a frontal col-
lision of sufficient force.
In the event of a side impact of corresponding
force, the side airbag on the impact side is
triggered.
The inflation process generates the amount of gas
required to fill the airbags at the necessary pres-
sure in fractions of a second.
Airbags protect the face and upper body, while si-
multaneously damping the motion of the driver
and passenger in the impact direction in the event
of a frontal impact or side impact.
Your vehicle is equipped with a crash sensing and
diagnostic module. This module will record the
use of the seat belt restraint system by the driver
and front passenger when the side airbags and
head airbags are inflated.
f f f

50
Controls, Safety, Instruments Danger!
To provide optimal occupant protection, air-
bags must inflate at very high speed. If you
are not wearing your safety belt or are too
close to the airbag when its deployed, inflat-
ing airbags can result in serious personal in-
jury or death.
fMake sure there are no people, animals or ob-
jects between the driver or passenger and the
area into which the airbag inflates.
fSit back as far from the dashboard or steering
wheel as is practical, while still maintaining full
vehicle control.
fDo not lean against the inside of the doors.
fAlways hold the steering wheel by the outer
rim. Never rest your hands on the airbag panel.
fNever transport heavy or sharp objects on or
in front of the passenger seat.
fAlways keep the lid of the door storage com-
partment closed. Objects must not protrude
out of the door storage compartment.
fGive your passenger all of the information in
this chapter.
fNo changes must be made to the wiring or
components of the airbag system.fDo not add any additional coverings or stickers
to the steering wheel or in the area of the pas-
senger airbag and side airbags. Doing so may
adversely affect the functioning of the airbag
system or cause harm to the occupants if the
airbag system should deploy.
fDo not undertake any wiring for electrical ac-
cessory equipment in the vicinity of the airbag
wiring harnesses. Doing so may disable the air-
bag system or inadvertant inflation.
fIf the warning light comes on, the airbag sys-
tem should be repaired immediately by your
authorized Porsche dealer.
fAlways keep feet in the footwell while driving.
Do not put feet on the dashboard or the seat
area.
Note
Airbag components (e.g. steering wheel, door
trim) may be disassembled only by an authorized
Porsche dealer.
When disposing of a used airbag unit, our safety
instructions must be followed. These instructions
can be obtained at any authorized Porsche dealer.Faults are indicated by a warning light on the ta-
chometer and a message on the instrument
panel’s multi-purpose display.
fPlease observe the chapter “WARNING LIGHTS
AND WARNING MESSAGES” on Page 108.
fIn the following cases you should immedi-
ately consult an authorized Porsche
dealer in order to assure the airbag sys-
tem is functioning properly:
– If the warning light does not light up when the
ignition is switched on or
– If the warning light does not go out once the
engine is running or
– If the warning light appears while driving.
Warning lights and warning
messages
