Controls, Safety, Instruments
25
Indication by the emergency flashers and
acoustic soundIf the vehicle doors are unlocked or locked, a re-
sponse is provided by the emergency flashers and
acoustic sound (only when locking):
Unlocking with the remote control
– The hazard warning lights flash once.
Unlocking by pressing the button in the door
handle on vehicles with Porsche Entry &
Drive
– The hazard warning lights do not flash.
Locking
– The hazard warning lights flash twice.
– An acoustic signal will sound twice.
In the multi-purpose display of the instrument pan-
el, you can set the check-back signal when locking
and unlocking the vehicle and save it on the re-
spective remote control.
fPlease observe the chapter “SIGNAL” on
Page 121.
Central locking buttonCentral locking buttons A in the armrests let you
lock and unlock the vehicle electrically.
fPress the button A symbol.
All vehicle doors will be locked.
Each door can be opened by pulling the inner
door handle twice.
fPress the button A symbol.
If activated on the rear doors, only the relevant
door will be unlocked.
Note on operation
If the vehicle was locked with the key or by remote
control, it cannot be unlocked with the central
locking button.
Each door can be opened by pulling the inner door
handle twice.The power windows, the central locking buttons
on the rear doors and the rear control panel for
the air conditioning can be disabled using the safe-
ty button B in the armrest of the driver’s door.
Switching off
fPress safety button B.
The symbol in the safety button lights up.
Switching on
fPress safety button B again.
The symbol in the safety button goes out. Locking
Unlocking
Safety button

26
Controls, Safety, Instruments
Emergency operation of the central
locking systemfLock the vehicle with the key at the door lock.
If there is a defect in the central locking system,
operating the lock barrel in the driver's door will
lock all functioning elements of the central locking
system.
fThe fault should be remedied immediately at
an authorized Porsche dealer.
Note on operation
The alarm system, passenger compartment
monitoring system and inclination sensor are
switched on.
In order to prevent the alarm system from being
triggered, you must switch the ignition on within
15 seconds of opening the door.
Switching off the alarm system if it is
triggered
fUnlock vehicle doors or
fSwitch ignition on.
Automatic door locking and automatic
door unlocking
Warning!
In an emergency situation where you need to
exit the car through an automatically locked
door, remember the following procedure to
open the door.
fUnlock the doors by pressing the central lock-
ing button or
fpull the inside door handle twice to open the door.
In the multi-purpose display of the instrument pan-
el, you have the option of selecting diverse vari-
ants of automatic door locking (AUTO LOCK) and
automatic door unlocking (AUTO UNLOCK).
fPlease observe the chapter “DOOR OPENING”
on Page 119.

Controls, Safety, Instruments
27

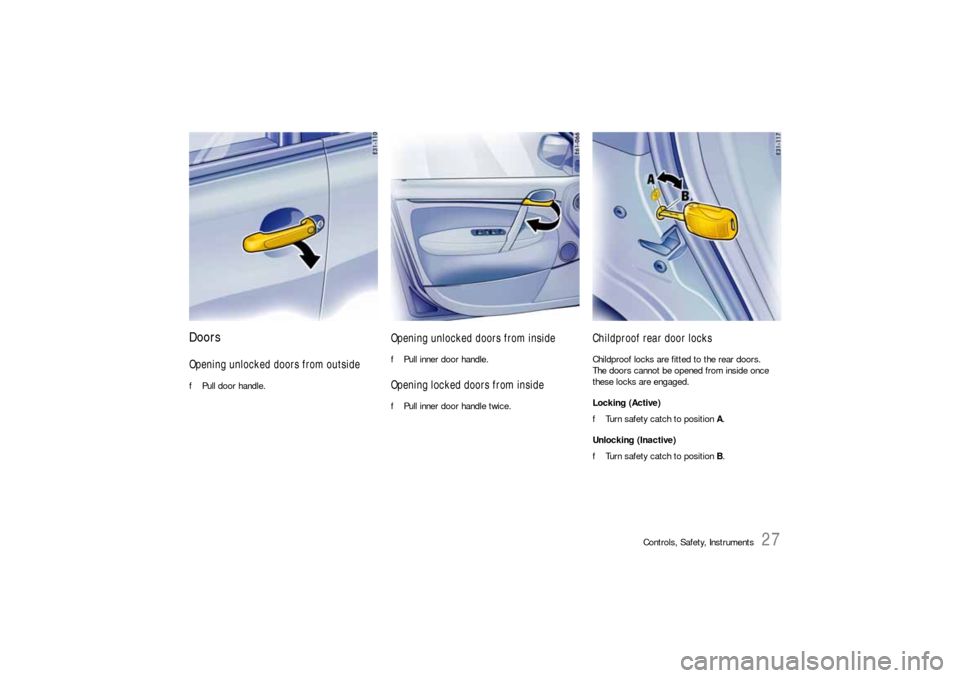

DoorsOpening unlocked doors from outsidefPull door handle.
Opening unlocked doors from insidefPull inner door handle.Opening locked doors from insidefPull inner door handle twice.
Childproof rear door locksChildproof locks are fitted to the rear doors.
The doors cannot be opened from inside once
these locks are engaged.
Locking (Active)
fTurn safety catch to position A.
Unlocking (Inactive)
fTurn safety catch to position B.

28
Controls, Safety, Instruments
Alarm System,
Passenger Compartment
Monitoring, Inclination SensorThis device complies with:
Part 15 of the FCC Rules
RSS-210 of Industry Canada.
Operation of this device is subject to the following
two conditions:
– It may not cause harmful interference, and
– it must accept any interference received in-
cluding interference that may cause undesired
operation.
Note
fThe manufacturer is not responsible for any ra-
dio or TV interference caused by unauthorized
modifications to this equipment.
Such modification could void the user's author-
ity to operate the equipment.
Warning!
Any changes or modifications not expressly ap-
proved by Porsche could void the user’s authority
to operate this equipment.Avoiding false alarmsfAlways close the sliding/lifting roof or the
Panorama roof system, and all door windows.
fDo not leave a mobile phone switched on in the
glasses case of the roof console.
fAlways turn off the alarm system before you at-
tach a trailer. The inclination sensor could trig-
ger the alarm unintentionally.Switching off the alarm system if it is
triggeredfUnlock vehicle doors or
fSwitch ignition on.
The following alarm contacts are
monitored– Doors
– Engine compartment lid
–Rear lid
–Rear window
– Passenger compartment
– Vehicle inclination
fIf one of these alarm contacts is interrupted,
the alarm horn sounds for approx. 30 seconds
and the emergency flashers flash.
After 5 seconds of interruption the alarm is
triggered again. This cycle is repeated ten
times. USA: KR5KESSY
Canada: CAN 267 104 139

Controls, Safety, Instruments
29
Switching onfLock the vehicle.
The alarm system, passenger compartment
monitoring system and inclination sensor are
switched on.
fPlease observe the chapter “CENTRAL LO-
CKING SYSTEM” on Page 24.Switching offfUnlock the vehicle.
The alarm system, passenger compartment
monitoring system and inclination sensor are
switched off automatically.
Note on operation
If you unlock the vehicle with the key at the door
lock, you must switch the ignition on (ignition lock
position 1) within 15 seconds of opening the door
in order to prevent the alarm system from being
triggered.
Temporarily deactivating passenger
compartment monitoring system and
inclination sensorIf people or animals are remaining in the locked ve-
hicle or the vehicle is being transported on a pas-
senger train or ship, for example, the passenger
compartment monitoring system and inclination
sensor must be deactivated.
When locked again, the passenger compartment
monitoring and inclination sensor are activated
again. The rocker switch to switch off the inclination sen-
sor and the passenger compartment monitoring
system is located next to the driver's seat under
the seat belt height adjustment.
Note on operation
You can also temporarily deactivate the passen-
ger compartment monitoring system and inclina-
tion sensor separately on the multi-purpose dis-
play in the instrument panel:
fPlease observe the chapter “ALARM” on
Page 118.
f f f

30
Controls, Safety, Instruments
A, D - Switch for reading lights
B- Button for dimming the comfort lighting
C- Switch for interior light1. Apply the parking brake.
2. Switch on interior lighting by moving switch C
to the left.
3. Remove ignition key.
On vehicles with Porsche Entry & Drive:
Switch off the ignition.
4. Open the driver‘s door.
The symbol on the top half of the rocker switch
flashes.5. Press the flashing top half of rocker switch un-
til the upper symbol lights permanently.
6. Lock the vehicle.
Emergency flasher flashes twice and an acous-
tic signal will sound twice.
The vehicle doors, the rear lid and the rear window
are locked but the doors can be opened from the
inside by pulling the inner door handle twice.
fInform any persons remaining in the vehicle
that the alarm system will be triggered if the
door is opened.
Note on operation
If the ignition is switched on after pressing the
rocker switch, the passenger compartment moni-
toring system is activated again. The symbols on
the rocker switch will flash.1. Apply the parking brake.
2. Switch on interior lighting by moving switch C
to the left.
3. Remove ignition key.
On vehicles with Porsche Entry & Drive:
Switch off the ignition.
4. Open the driver‘s door.
The symbol on the top half of the rocker switch
flashes.
5. Press the bottom half of rocker switch until the
lower symbol lights permanently.
6. Lock the vehicle.
Emergency flasher flashes twice and an acous-
tic signal will sound twice.
The vehicle doors, the rear lid and the rear window
are locked but the doors can be opened from the
inside by pulling the inner door handle twice.
fInform any persons remaining in the vehicle
that the alarm system will be triggered if the
door is opened.
Note on operation
If the ignition is switched on after pressing the
rocker switch, the inclination sensor is activated
again. The symbols on the rocker switch will flash. Deactivating passenger compart-
ment monitoring
Deactivating inclination sensor

Controls, Safety, Instruments
31
Deactivating passenger compartment
monitoring system and inclination sensor
1. Apply the parking brake.
2. Switch on interior lighting by moving switch C
to the left.
3. Remove ignition key.
On vehicles with Porsche Entry & Drive:
Switch off the ignition.
4. Open the driver‘s door.
The symbol on the top half of the rocker switch
flashes.
5. Press the bottom half of rocker switch until the
bottom symbol lights permanently.
6. Press the flashing top half of rocker switch un-
til the upper symbol lights permanently.
7. Lock the vehicle.
Emergency flasher flashes twice and an acous-
tic signal will sound twice.
The vehicle doors, the rear lid and the rear window
are locked but the doors can be opened from the
inside by pulling the inner door handle twice.
fInform any persons remaining in the vehicle
that the alarm system will be triggered if the
door is opened.Note on operation
If the ignition is switched on after pressing the
rocker switch, the passenger compartment moni-
toring system and the inclination sensor are acti-
vadet again. The symbols on the rocker switch will
flash.Activating the alarm system, the passenger
compartment monitoring system and
inclination sensor
fUnlock the vehicle and lock it again.
Fault indication
If the monitoring system and the inclination sensor
could not be deactivated the symbols on the rock-
er switch will flash (e.g. the rocker switch is
pressed with the ignition on).
For deactivating the passenger compartment
monitoring and inclination sensor:
fSwitch on interior lighting.
fSwitch off ignition.
fPress the rocker switch.
fLock the vehicle.

32
Controls, Safety, Instruments
A- Light-emitting diode for alarm systemFunction indicationThe locking condition of the vehicle is indicated by
a rapid flashing of the light-emitting diodes A in the
front doors.
The light-emitting diodes go out when the vehicle
is unlocked.The passenger compartment monitoring and
inclination sensor are switched on
– The light-emitting diodes flash for 2 seconds,
rapidly, then slowly.
The passenger compartment monitoring and
inclination sensor are switched off
– The light-emitting diodes flash for 2 seconds,
rapidly, then slowly.
The passenger compartment monitoring and
inclination sensor are switched off in the
multi-purpose display in the instrument panel
– The light-emitting diodes flash rapidly for
2 seconds, go out for 28 seconds and then
flash slowly.
Faults of the central locking system and the
alarm system
– The light-emitting diodes flash rapidly for
2 seconds, shine for 28 seconds and then
flash slowly.

34
Controls, Safety, Instruments
Power windows in passenger’s door and rear doorsNote on operation
Rocker switches A and B in the driver’s door have
a two-stage function:
– If the switch in question is pressed or pulled to
the first level, the front window is opened or
closed manually.
– If the switch is completely pressed or pulled to
the second level, the front window is opened or
closed automatically (one-touch operation).One-touch operation for front windows
fPull or press rocker switch to its final position
in the driver’s door.
Window moves to its final position.
Press or pull again to stop the window in the
desired position.
Note on operation
If a door window is blocked during closing, it will
stop and open again by several inches.
However, this is not the case if:
– The rocker switch is pressed again within
10 seconds of the window being blocked and
– The windows are closed using the car key in
the door lock (comfort function).
The windows close with their full closing force.
Warning!
Danger of injury. If the rocker switch is
pressed again within 10 seconds of the
window being blocked, the window will close
with its full closing force.
fTa k e c a r e t o e n s u r e t h a t n o b o d y c a n b e i n j u re d when the windows close.
The one-touch operation is disabled for
10 seconds after blockage of the door window.
Comfort function for vehicles without
Porsche Entry & DriveOpening and closing windows
Warning!
Danger of injury. The window will close with
its full closing force.
fTake care to ensure that nobody can be injured when the windows close.
fHold the car key in the door lock in the unlock-
ing or locking position until the windows have
reached the desired position.
If you unlock the vehicle with the key at the door
lock, only the driver’s door is unlocked. In order to
prevent the alarm system from being triggered,
you must switch the ignition on within 15 seconds
of opening the door.

Controls, Safety, Instruments
35
Comfort function for vehicles with
Porsche Entry & Drive
Warning!
Danger of injury. The window will close with
its full closing force.
fTake care to ensure that nobody can be injured when the windows close.
Opening and closing windows
fHold the car key in the door lock in the unlock-
ing or locking position until the windows have
reached the desired position.
If you unlock the vehicle with the key at the door
lock, only the driver’s door is unlocked. In order to
prevent the alarm system from being triggered,
you must switch the ignition on within 15 seconds
of opening the door.
Closing windows
fHold the button in the door handle when lock-
ing the vehicle until the windows and the Pano-
rama roof system have reached the desired
position.
Note on operation
The comfort function remains available for approx.
30 seconds after the vehicle has been locked.
Storing final position of the door windowsThe end positions of the door windows are lost
when the battery is disconnected and reconnect-
ed. The one-touch operation of the windows is dis-
abled.
Perform these procedures for all windows:
1. Close window completely once by pulling rock-
er switch.
2. Open window completely again by pressing
rocker switch.The power windows, the central locking buttons
on the rear doors and the rear control panel for
the air conditioning can be disabled using the safe-
ty button C in the armrest of the driver’s door.
Switching off
fPress safety button C.
The symbol in the safety button lights up.
Switching on
fPress safety button C again.
The symbol in the safety button goes out.
Safety button
