Controls, Safety, Instruments
41
Rear SeatsThe rear seats are divided and can be folded
forward individually to make the loadspace bigger.
Caution!
Risk of damage to seat cushions, backrest,
and seat belt if only the backrest is folded
forward.
fAlways fold seat cushions and backrest forward.
Folding rear seats forwardIf the luggage safety net is installed, first set up
the left seat cushion in a vertical position and fold
the left rear seat backrest forward.On vehicles with automatically controlled
four-zone air conditioning:
fPress the safety button in the driver's door
armrest before folding the rear seats forward.
The rear control panel for the air conditioning
ceases to function.
This prevents unintentional adjustment of the
air conditioning.
The symbol in the switch lights up.
1. Remove the headrests of the backrest to be
folded forward.
Therefore:
Please observe the chapter “EXAMPLE: DRI-
VER’S SEAT” on Page 40.
2. Move front seats forward.
3. Pull seat cushion up at loop A.
4. Pull seat cushion forward (arrow B).
f f f
Safety button

Controls, Safety, Instruments
43
8. Insert headrest B into the receiver in the seat
cushion (arrow).
Positioning rear seats1. Remove the headrests from the seat cushion.
2. Make sure that the safety belts are not
trapped.
Raise the backrest until it locks with an audible
click.
The red “verification flag” A must be lowered
completely.3. Fold seat cushion forward.
4. Push seat cushion under the backrest.
5. Press seat cushion downward at the front.
Make sure that the buckles are accessible.
6. Insert the headrests into the backrest.
Therefore:
Please observe the chapter “EXAMPLE: DRI-
VER’S SEAT” on Page 40.

Controls, Safety, Instruments
195
Storage trays in the armrest between the
front seatsTwo storages trays are located in the armrest.
Opening the top tray
fPress button A and lift the cover.Opening the lower tray
fPress button B and lift top tray with the cover
closed.
Storage tray in the rear armrestOne storage tray is located in the armrest.
Opening the storage tray in the armrest
1. Fold down the armrest completely.
2. Press button C and lift the cover.

206
Controls, Safety, Instruments
Luggage Safety NetThe safety net can hold back only lightweight
items during braking, direction changes or in an
accident.
fPlease observe the chapter “LOADING INFOR-
MATION” on Page 213.
Warning!
Danger of injury. During braking, direction
changes or in an accident, an unsecured
load can slip and endanger the occupants.
fAlways secure the passenger compartment
with the luggage safety net.
fAlways fasten the load at the tie-down rings.
fThe load must never project over the top edge
of the seat backrest.
fIf the safety net was heavily stressed or dam-
aged during braking or an accident, etc., have
the luggage safety net and its bracket checked by an authorized Porsche dealer.
Permitted usesA-Option 1
B-Option 2
fPlease observe the chapter “FOLDING REAR
SEATS FORWARD” on Page 41.
Securing interior with luggage safety netPulling out luggage safety net
fOpen covers of the luggage safety net
brackets.
fPull the luggage safety net out and engage the
fastening hooks on the left and right sides into
the rings on the ceiling.
The luggage safety net fastening hooks can be
pulled out at the sides.
fMake sure that the luggage safety net fasten-
ing hooks are properly engaged in the rings.

Controls, Safety, Instruments
207

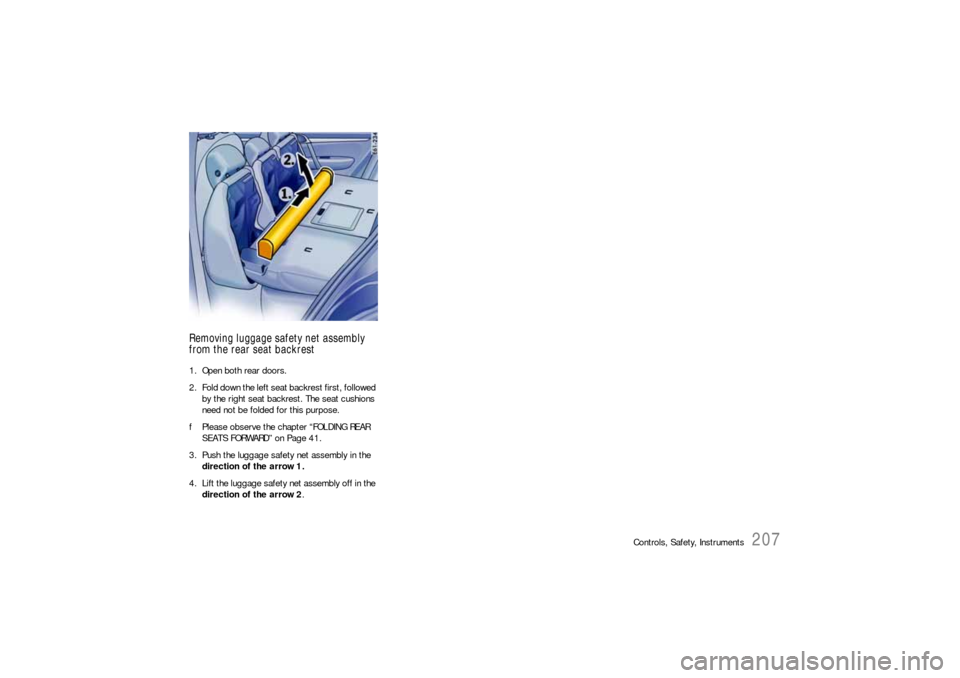

Removing luggage safety net assembly
from the rear seat backrest1. Open both rear doors.
2. Fold down the left seat backrest first, followed
by the right seat backrest. The seat cushions
need not be folded for this purpose.
fPlease observe the chapter “FOLDING REAR
SEATS FORWARD” on Page 41.
3. Push the luggage safety net assembly in the
direction of the arrow 1.
4. Lift the luggage safety net assembly off in the
direction of the arrow 2.

Practical Tips, Minor Repairs
313
CompressorOn vehicles without level-control systems, there is
an additional compressor with pressure tester
under the loadspace floor.
fPlease observe the chapter “INFLATING TIRES
ON VEHICLES WITHOUT AIR SUSPENSION” on
Page 327.
On vehicles with level control, you can use the
compressor of the level-control system to fill the
tires.
The filler hose required for this purpose can be
found under the left rear seat.
fPlease observe the chapter “FOLDING REAR
SEATS FORWARD” on Page 41.
Wheel BoltsfAlways clean the wheel bolts before installing.
Maintenance note
fWheel bolts must not be greased.
fReplace damaged wheel bolts.
Only use the original Porsche wheel bolts spe-
cially designed for this vehicle type.Tightening torque
Tightening torque of the wheel bolts 118 ftlb.
(160 Nm).

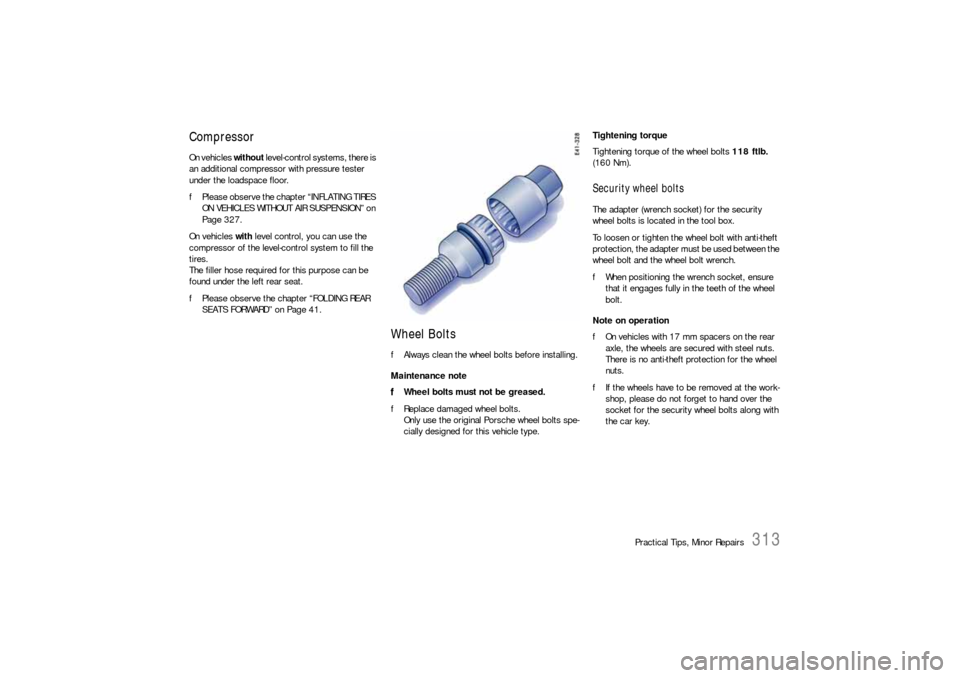

Security wheel boltsThe adapter (wrench socket) for the security
wheel bolts is located in the tool box.
To loosen or tighten the wheel bolt with anti-theft
protection, the adapter must be used between the
wheel bolt and the wheel bolt wrench.
fWhen positioning the wrench socket, ensure
that it engages fully in the teeth of the wheel
bolt.
Note on operation
fOn vehicles with 17 mm spacers on the rear
axle, the wheels are secured with steel nuts.
There is no anti-theft protection for the wheel
nuts.
fIf the wheels have to be removed at the work-
shop, please do not forget to hand over the
socket for the security wheel bolts along with
the car key.
