Shifting Gear, Traction Systems
239
Driving downhill
Danger!
There is a danger of serious personal injury
or death and risk of damage if the vehicle
should overturn.
fDo not drive over embankments or slopes at
steep diagonal angles.
fDrive downhill slowly, with the wheels pointing
straight ahead.
fIf the vehicle starts to tilt, immediately steer in
the direction of the tilt (line of slope).
fWhen driving downhill, never let the vehicle roll
when in idle.
fUse engine braking effect.
If the engine braking effect is not adequate, gently apply the foot brake.Note on operation
fActivate Low Range. The off-road ABS is
switched on automatically.
Tips on driving
The same general principle as for uphill driving ap-
plies to downhill driving.
fDo not perform manual gear changes when
driving, and try to avoid stopping.
fAvoid high engine speeds (max. 2,500 rpm).
A special circuit in the off-road ABS permits con-
trolled brief lock-up of the front wheels so that they
can dig into the loose surface more effectively.
Locked wheels slip and can no longer be steered.
fWhen driving down steep hills on unpaved sur-
faces, brake carefully so that vehicle does not
start to slide.

Shifting Gear, Traction Systems
241
Tips on driving
fAvoid high engine speeds (max. 2,500 rpm).
fDo not perform manual gear changes when
driving, and try to avoid stopping.
Moving off in the water can be difficult due to
the high resistance and the loose surface in-
volved.
fStart the water crossing at a shallow place at
walking speed.
fAfter checking the body of water, take the
shortest path through it.
fNever drive into the water at high speed. The
resulting “bow wave” could damage the engine
and its accessories.
fAdjust your driving style to the unfamiliar sur-
roundings.
fCross the body of water slowly and at a con-
stant speed.
fNever turn around when crossing a body of wa-
ter.
fIf it is not possible to cross the body of water,
the car must be backed out of it in reverse
gear.
The servo pump and alternator can fail if the car is
driven through water for an extended period.
fIf the servo pump fails, substantially more
force will have to be exerted in order to steer. Maintenance note
The car requires a special check after the water
crossing.
fRemove mud from the tire tread.
fBriefly apply the brakes in order to dry them af-
ter driving through the water.
ObstaclesfPlease observe the chapter “GROUND CLEA-
RANCE” on Page 375.
Note on operation
fActivate Low Range and engage differential
locks if necessary.
Tips on driving
fJust before reaching the obstacle, ease off the
accelerator slightly and use the car's momen-
tum to cross the obstacle. This will prevent the
car from jumping over the hump and landing on
the following downward slope at an excessive
speed.
fAvoid high engine speeds (max. 2,500 rpm).

Maintenance, Car Care
265
Fuel EconomyFuel economy will vary depending on where,
when and how you drive, optional equipment
installed, and the general condition of your
car.
A car tuned to specifications and correctly
maintained, will help you to achieve optimal
fuel economy.
fHave your vehicle tuned to specifications. Air
cleaner should be dirt free to allow proper en-
gine “breathing“.
Battery should be fully charged.
Wheels should be properly aligned.
Tires should be inflated at correct pressure.
fAlways monitor your fuel consumption.
fDrive smoothly, avoid abrupt changes in speed
as much as possible.
fAvoid jack rabbit starts and sudden stops.
fDo not drive longer than necessary in the lower
gears. Shifting into a higher gear early without
lugging the engine will help save fuel.
fProlonged “warm up“ idling wastes gas. Start
the vehicle just before you are ready to drive.
Accelerate slowly and smoothly.fSwitch off the engine if stationary for longer
periods.
fAny additional weight carried in the vehicle re-
duces fuel economy. Always keep cargo to a
minimum and remove all unnecessary items.
fOrganize your trips to take in several errands
in one trip.
fAll electrical accessories contribute to in-
creased fuel consumption.
fOnly switch on the air conditioning when neces-
sary.
fDo not drive with the Roof Transport System
mounted unless you need it.
The EPA estimated m.p.g. is to be used for
comparison purposes, actual mileage may
be different from the estimated m.p.g., de-
pending on your driving speed, weather con-
ditions and trip length. Your actual highway
mileage will probably be less than the esti-
mated m.p.g.
fPlease observe all local and national speed lim-
its.
Operating Your Porsche in other
CountriesGovernment regulations in the United States and
Canada require that automobiles meet specific
emission regulations and safety standards. There-
fore, cars built for the U.S. and Canada differ from
vehicles sold in other countries.
If you plan to take your Porsche outside the conti-
nental limits of the United States or Canada, there
is the possibility that
– unleaded fuel may not be available;
– unleaded fuel may have a considerably lower
octane rating. Excessive engine knock and se-
rious damage to both engine and catalytic con-
verters could result;
– service may be inadequate due to lack of prop-
er service facilities, tools or diagnostic equip-
ment;
– replacement parts may not be available or very
difficult to get.
Porsche cannot be responsible for the me-
chanical damage that could result because
of inadequate fuel, service or parts availabil-
ity.
If you purchased your Porsche abroad and want to
bring it back home, be sure to find out about ship-
ping and forwarding requirements, as well as cur-
rent import and customs regulations.

304
Practical Tips, Minor Repairs
Flat Tire1. Stop the vehicle as far away from the driving
lane as possible.
The car must be parked on a firm and flat
surface offering adequate grip.
2. Switch on the emergency flashers.
3. Fully apply the parking brake.
4. Move the selector lever to position P.
5. Straighten the front wheels.
6. Withdraw the ignition key to lock the steering
and prevent the engine from being started.
7. Have any passengers leave the vehicle.
8. Set up a warning triangle at a suitable
distance.

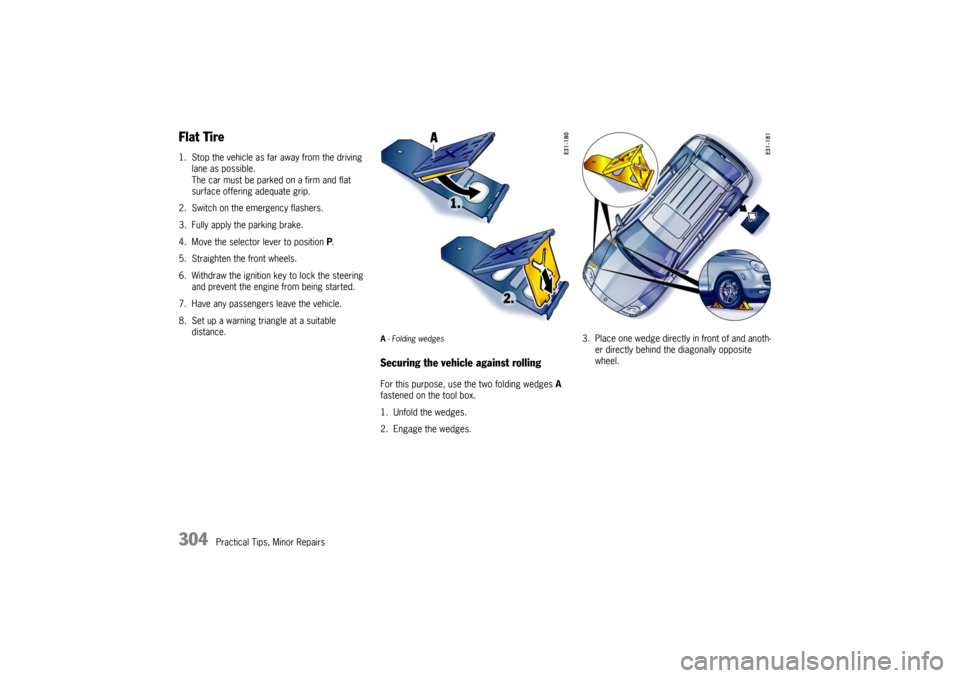

A-Folding wedgesSecuring the vehicle against rollingFor this purpose, use the two folding wedges A
fastened on the tool box.
1. Unfold the wedges.
2. Engage the wedges.3. Place one wedge directly in front of and anoth-
er directly behind the diagonally opposite
wheel.

Practical Tips, Minor Repairs
333
Winter operationDuring the winter months, battery capacity tends
to decrease as temperatures drop. Additionally,
more power is consumed while starting, and the
headlights, heater, rear window defogger, etc.,
are used more frequently.
Let your Porsche dealer test the battery's capaci-
ty before winter sets in.Vehicle storageIf the car stands for long periods in the garage or
workshop, the doors and lids should be closed.
fRemove the ignition key and, if necessary, dis-
connect the battery.
Notes on operation
fWhen the battery is disconnected, the alarm
system ceases to function.
If the vehicle was locked before the battery
was disconnected, the alarm will be triggered
when the battery is reconnected.
To deactivate the alarm system:
fLock the vehicle and unlock it again.Maintenance note
Even if you put your vehicle out of operation, the
battery still discharges.
The battery will discharge more quickly if your ve-
hicle is not driven on a daily basis over a distance
of several miles. The more often you drive your ve-
hicle, and the longer the distance driven on each
trip, the more opportunity the vehicle‘s charging
system will have to recharge the batteries.
fTo preserve its efficiency, charge the battery
about every 6 weeks.
fCheck the battery acid level and top off with
distilled water if necessary.
fStore a battery that has been removed in a
dark, cool place, but not subject to freezing.
Putting vehicle into operationAfter the battery is connected or charged, the
PSM warning light lights up on the instrument pan-
el and a message appears on the multi-purpose
display of the instrument panel to indicate a fault.
This fault can be remedied with a few simple
steps:
1. Start the engine.
To do this, turn the ignition key or the control
unit (on vehicles that have Porsche Entry &
Drive) to ignition lock position 2 twice.2. Perform a few steering movements and drive
a short distance in a straight line until the PSM
warning light goes out and the message is
erased from the memory of the multi-purpose
display of the instrument panel.
3. If the warnings does not go out, then:
Drive carefully to the nearest authorized
Porsche dealer.
Have the fault remedied by an authorized
Porsche dealer.
4. After the warnings disappear:
Stop the vehicle in a suitable place.
5. Perform adaptation of the power windows:
Please observe the chapter “STORING FINAL
POSITION OF THE DOOR WINDOWS” on
Page 35.
6. On vehicles with tire pressure monitoring:
Please observe the chapter “TIRE PRESSURE
MONITORING LEARNING PROCESS” on
Page 102.

Practical Tips, Minor Repairs
345
Charging the batteryYour authorized Porsche dealer will be pleased to
advise you about a suitable charger.
1. Always observe the instructions of the charger
manufacturer.
2. When charging the battery, ensure adequate
ventilation.
3. Check the acid level of a low-maintenance bat-
tery.
4. Connect charger to the jump starting points.
Only plug into the mains and switch the charg-
er on when it has been correctly connected up.
5. After charging, disconnect the charger.
6. Check the acid level of a low-maintenance bat-
tery.
After charging the battery After the battery is connected or the completely
discharged battery is charged, the PSM warning
light lights up on the instrument panel and a mes-
sage appears on the multi-purpose display of the
instrument panel to indicate a fault.
This fault can be remedied with a few simple
steps:
1. Start the engine.
To do this, turn the ignition key or the control
unit (on vehicles that have Porsche Entry &
Drive) to ignition lock position 2 twice.
2. Perform a few steering movements to the left
and to the right when vehicle is standing and
drive a short distance in a straight line until the
PSM warning light goes out and the message
is erased from the memory of the multi-pur-
pose display of the instrument panel.
3. If the warnings does not go out, then:
Drive carefully to the nearest authorized
Porsche dealer.
Have the fault remedied by an authorized
Porsche dealer.
4. After the warnings disappear:
Stop the vehicle in a suitable place.
5. Perform adaptation of the power windows:
Please observe the chapter “STORING FINAL
POSITION OF THE DOOR WINDOWS” on
Page 35.6. On vehicles with tire pressure monitoring:
Please observe the chapter “TIRE PRESSURE
MONITORING LEARNING PROCESS” on
Page 102.

380
Index Door-surrounding lighting............................. 162
Drinks holder ..................................... 188
, 192
Closing rear........................................ 193
Opening front ..................................... 192
opening rear ....................................... 193
Removing insert front .......................... 192
Driving
Load .................................................. 209
Off road ............................................. 236
Sand .................................................. 243
Trailer ................................................ 211
Winter ................................................ 220
Driving downhill .......................................... 239
Driving light assistant
Light switch ........................................ 130
Driving light assistant, automatic.................. 131
Driving performance ................................... 373
Driving program
Low Range indicator light .................... 223
Off road .................. 217
, 219
, 222
, 223
Reduced ............................................ 220
Road ................................ 216
, 218
, 223
Driving programme
Off road ............................................. 226
Road .................................................. 226
Driving systems for off-road driving .............. 237
Driving with a trailer .................. 176
, 210
, 372
Drop-center rim .......................................... 298
DVD Player ................................................. 193
EEasy Entry function ....................................... 39
ECON mode ...................................... 146
, 151
Button ....................................... 143, 147Electrical system ........................................ 322
Emergency flasher ...................................... 134
Emergency operation
Central Locking..................................... 26
Sliding/lifting roof................................ 165
Emergency starting ..................................... 343
Emergency unlocking
Filler flap ............................................ 267
Selector lever ..................................... 221
Spare wheel bracket ........................... 321
Emission control................................. 5
, 8, 88
Check engine warning light .................... 88
Emission Control System ............................. 271
Engine
Boost pressure ..................................... 87
Cooling system ..................................... 85
Data................................................... 366
Idling .................................................. 215
Starting and stopping ............................ 72
Engine compartment
Cleaning ............................................. 277
Lid ..................................................... 199
Engine drag torque control .......................... 231
Engine Oil
Performance class.............................. 255
Viscosity............................................. 255
Engine oil ................................................... 251
Change .............................................. 254
Level .................................................. 252
Recommendation ................................ 254
Temperature gauge............................... 84
Topping up ......................................... 253
Engine oil level............................................ 252
Checking ............................................ 252Warning ..............................................252
Engine residual heat ...........................146
, 152
Entry aid.......................................................39
Switching on and off ..............................39
Exhaust gas
Monitoring ..............................................5
Exit aid .........................................................39
Switching on and off ..............................39
FFabric linings ..............................................281
Filler flap ....................................................267
Filling pressure............................................100
Plate ..................................................365
Reducing ...................................316
, 318
Tables ................................................370
Warning light .......80
, 82, 102
, 112
, 124
Warning message................................108
Fire extinguisher..........................................187
Floor mats ..................................................280
Fluids and fuels ...........................................371
Fog lights ...................................................130
Folding wedges...........................................304
Footbrake .....................................................75
Warning light .........................................76
Footwell light ..............................................162
Fresh-air intake ...........................................141
Front seat with memory ..........................37, 38
Front seats ..........................................36
, 188
Adjusting the seats................................36
Seat position.........................................36
Front windscreen wiper ................................136
Fuel ....................................................86, 266
Economy ............................................265

Index
385
Automatic.................................. 216
, 217
Manual ...................................... 218, 219
Selector lever ............................................. 214
Selector lever lock ...................................... 221
Selector lever position ................................ 215
Display ...................................... 214, 215
Service indicator......................................... 126
Shifting
Down ................................................. 218
On the steering wheel.......................... 216
Up ..................................................... 218
Shifting up.................................................. 219
Shock absorber adjustment ......................... 227
Shock absorbers ........................................ 227
Side lights .................................................. 130
Side marker light ........................................ 162
Side member panel ..................................... 309
Side vents ......................................... 145, 151
Ski bag ...................................................... 203
Sliding roof................................................. 163
Closing............................................... 164
Lifting ................................................ 164
Opening completely............................. 164
Opening to comfort setting .................. 164
Readiness for operation....................... 163
Sliding/lifting roof ....................................... 163
Closing............................................... 164
Comfort function ................................. 164
Lifting ................................................ 164
Opening completely............................. 164
Opening to comfort setting .................. 164
Readiness for operation....................... 163
Snow chains ...................................... 296, 369
Snow tires .................................................. 295Socket .......................................................322
Spacers .....................................................302
Spare parts ................................................364
Spare wheel ...........105
, 313
, 319
, 339
, 368
Warning light.......................................124
Spare wheel bracket .................194
, 320
, 321
Locking ................................................22
Opening ...............................................22
Unlocking .............................................20
Special low level .........................................244
Special terrain level.....................................244
Speed code letter .......................................297
Speed limit ........................................104, 297
Speedometer................................................84
Cayenne Turbo...............................80, 82
SportDesign package......................................7
Stability Management System .............230
, 232
Indicator light ......................................126
Off road..............................................231
Warning light.........................80
, 82, 126
Stability management system.......................227
Starting ......................................................214
Starting and stopping....................................72
Steam-jet units ............................................174
Steering lock ................................................70
Steering wheel ..............................................62
Adjusting ..............................................63
Heating ................................................62
Multi-functional steering wheel ................64
Shifting...............................................217
Steering wheel buttons..................................64
Lighting ................................................65
Stopping ....................................................219
Storage...............................................16, 188Storage compartment ................................ 188
At the sides in the luggage compartment ...
191
Storage tray
Armrest, front .................................... 190
Armrest, rear ..................................... 190
Stowing luggage ........................................ 209
Subwoofer
Installing ............................................ 340
Removing .......................................... 340
Summer tires ............................................. 368
Sun blind ................................................... 159
Sun visors ................................................. 158
Switching passenger airbag on/off
Warning light ...................................... 123
TTachometer ................................... 80
, 82, 84
Tail light ............................................ 355
, 356
Tank opening ............................................. 267
Telephone .................................................. 185
Telephone menu ........................................... 93
Temperature
Sensor ..................................... 143, 147
Setting ..................................... 144, 149
Temporary change-down ............................. 216
Terrain level ............................................... 244
Te s t s t a n d s
Measurement ..................................... 235
Theft protection ........................................... 16
Through-load bag ....................................... 203
Securing load..................................... 204
Through-load facility................................... 203
Tie-down
