Macan design20 | Life, intensifiedMacan design Life, intensified | 21
Three-dimensional LED taillight
Macan Turbo with sideblade in carbonMacan Turbo with 21- inch 911 Turbo Design wheels Front design of the Macan
Turbo with overarching bonnet
At the rear, the classic Porsche sports
car design reveals itself: slender at the
top, widening into broad shoulders above
the rear wheels – a homage to the 911.
The st yling of the rear hatch gives the
rear end a particularly harmonious look.
For convenience, the rear hatch on all
Macan models is equipped with an
automatic powerlift function. The narrow
LED taillights have three-dimensional
proportions, which gives them an
extraordinary appearance of depth – and
captures your at tention. The overall
effect is to make the Macan look low,
wide and thus intimate with the road –
like any genuine Porsche. After all, a
muscle-toned body is meant to be
admired from the rear as well as the
front.
Of course, our engineers took great care
to ensure that the interior of the Macan is
just as intense with sports car
sensations.

Macan design22 | Life, intensified
True beauty is more than just skin deep.

Interior design.
As a creator of sports cars, we know
that driver and car must form a single
entit y. As such, you do not simply sit in
the Macan – the ergonomic architecture
integrates you into the vehicle. The three-
dimensional arrangement of the controls
lends the interior a cockpit-st yle layout.
In t ypical Macan fashion, the sport y front
seats convey a sense of height above the
road without any loss of intimacy with it.
The essentials are seen at a glance.
The instrument panel has a three-tube
design. Three tubes – just like in a
classic sports car. Also in view is the centrally positioned rev counter. To the
right is the 4.8-inch colour screen, which,
among other things, displays information
from the on-board computer.

Thanks to the ascending centre console
– a t ypical feature of a sports car – you
don’t have very far to reach from the
steering wheel to the PDK gear selector
and most important vehicle functions.
The ignition lock, as ever, is on the left
– typically Porsche.

Macan design24 | Life, intensifiedMacan design Life, intensified | 25

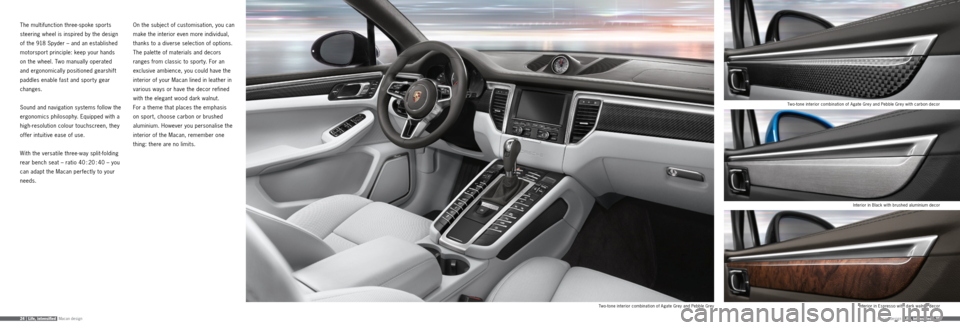

Interior in Espresso with dark walnut decorTwo-tone interior combination of Agate Grey and Pebble Grey
Two-tone interior combination of Agate Grey and Pebble Grey with carbon decor
Interior in Black with brushed aluminium decor
The multifunction three-spoke sports
steering wheel is inspired by the design
of the 918 Spyder – and an established
motorsport principle: keep your hands
on the wheel. Two manually operated
and ergonomically positioned gearshift
paddles enable fast and sport y gear
changes.

Sound and navigation systems follow the
ergonomics philosophy. Equipped with a
high-resolution colour touchscreen, they
offer intuitive ease of use.
With the versatile three-way split-folding
rear bench seat – ratio 40 : 20 : 40 – you
can adapt the Macan perfectly to your
needs. On the subject of customisation, you can
make the interior even more individual,
thanks to a diverse selection of options.
The palet te of materials and decors
ranges from classic to sport y. For an
exclusive ambience, you could have the
interior of your Macan lined in leather in
various ways or have the decor refined
with the elegant wood dark walnut.

For a theme that places the emphasis
on sport, choose carbon or brushed
aluminium. However you personalise the
interior of the Macan, remember one
thing: there are no limits.

Macan principle26 | Life, intensifiedMacan principle Life, intensified | 27
Where it comes from, valuable seconds count.
Where it wants to go, valuable moments matter.

Macan principle.
Our home is the racetrack. It ’s where we
fight for every tenth of a second and
every gramme in weight. The knowledge
that we gain is streamed into our series
production models.
We’ve known since 1948 that nobody
wins on horsepower alone, whether it’s
on the racetrack or in everyday life. Our
main development objective is to create
sports cars that stir emotions. By that
we mean the driving feel that only a
genuine Porsche can provide. With
considerable agility and dynamics, but
always with responsibilit y in mind. We
achieve these goals with highly efficient
engines, outstanding driving features and
the relentless will to push boundaries –
upwards. We want something to happen – on the
tarmac certainly, but first and foremost
just beneath the skin. That ’s why every
member of the Macan family was
developed to fulfil one principle in
particular: to bring the urban way of life
to the fast lane and to provide a high
level of sporty performance to everyday
driving. Job done.
Let ’s begin at the heart. Whether it ’s the
six-cylinder turbo diesel or the twin-turbo
six-cylinder, all engines are characterised
not only by their impressive performance
and high efficiency but, above all, by

the typical resonance of their sound.
The power of the Macan models is
transmit ted to the road by active all-
Acoustic test chamber in the Porsche Development Centre, WeissachFor fuel consumption, CO2 emissions and efficiency class, please refer to pages 126–127. wheel drive. This system sets standards
for driving dynamics and stability. Mixed
t yres are fit ted as standard – as seen on
the 911 – to deliver even greater traction
and agility.

Macan principle28 | Life, intensified
For fuel consumption, CO2 emissions and efficiency class, please refer to pages 126–127.
Fitted as standard, 7-speed Porsche
Doppelkupplung (PDK) lets you experience
motorspor t-st yle gear changes, which
take place in milliseconds and with no
interruption in the flow of power. The
system also features a coasting mode,
which reduces fuel consumption and
emissions where the driving situation
allows. To this end, the auto start /stop
function, intelligent thermal management
and many more efficiency-enhancing
measures make a decisive contribution.
The steel spring suspension, fit ted as
standard, helps to provide the driving
precision and performance t ypical of any
Porsche. As an option (standard in the
Macan Turbo), it can be upgraded to
include optional Porsche Active
Suspension Management (PASM). At the
push of a but ton, the shock absorbers
respond even more precisely to the
current driving st yle. An air suspension is
available for even greater dynamic
performance and a high level of ride
comfort. With this suspension, the Macan
sits 15 mm lower. The three-position
ride-height adjustment capability enables you to adapt it optimally to the driving
situation.
Optional Porsche Torque Vectoring Plus
(PT V Plus) lets you feel the Macan
principle in every corner – and in a
particularly intense way. Operating in
conjunction with an electronically
controlled rear differential lock, the
system works by varying the torque
distribution to the rear wheels and
thereby significantly further improves
handling and steering precision. It also
increases the agilit y of the car when it
attacks the corner.
Naturally, active safet y also follows the
Macan principle – and, in doing so, fulfils
the requirements of a sports car.
Integrated as standard, Porsche Stability
Management (PSM) helps to ensure
stabilit y at the limits of sport y
performance. Typically Porsche, the
brakes set standards for deceleration.
Optional driver assistance systems
relieve your workload so that you can
have more fun. Adaptive cruise control including Porsche Active Safe (PAS)
regulates the speed of your vehicle in
line with the speed of the vehicle in
front. Lane Change Assist monitors your
blind spots, while Lane Keeping Assist
monitors your car’s distance to divider
line markings on the road.
Intensive living can also be measured in
bits and by tes, with Porsche Car
Connect for instance. Available as an
option, our comprehensive packages of
remote and PV TS (Porsche Vehicle
Tracking System) services provide you
with all the important information about
your Macan – not only when you’re
behind the wheel. Other digital
functionalities of the Macan include the
abilit y to log into social net works or
search for a Point of Interest and then
select it directly as your navigation
destination. Being highly net worked –
that, too, can be the principle of a
s p o r t s c a r.
So you see: for us, staying true to one’s
principles is essential. The principle of
power above all.

Macan Turbo30 | Life, intensified
Power package as standard.

Macan Turbo.
Must intensit y really have any limits? In
the areas of design, performance and
exclusivit y, we have at the very least
redefined them.

The distinctly muscular front apron, with
the side airblades of the conspicuously
large cooling air intakes, is found
nowhere else but on the Macan Turbo.
It ’s a visual promise of thrilling
performance. Bi-Xenon headlights with
dynamic cornering lights provide
optimum illumination of the road – and
therefore a high level of safet y. These
are supplemented by the extraordinary
four-spot LED day time running lights.
The Macan Turbo also stands out thanks
to its front spoiler lip, the design of
which is based on that of the 918 Spyder.
The direction indicators and position lights have been integrated in such a way
that they appear to hover inside the side
air intakes. Below them are the LEDs of
the fog lights. The sideblades are painted
in the exterior colour of the body.
SportDesign sideskirts underline the
powerful profile. Another t ypical feature
of the Turbo is the ‘Macan turbo’ logo on
the rear hatch.
Impressively, the 3.6-litre t win-turbo V6
engine delivers an enormous power
output of 294 kW (400 hp). The sprint
from 0 to 100 km/ h is completed in a
mere 4.8 seconds. Top speed is
266 km/ h. Those aren’t simply bare
numbers, but record figures for
performance in this segment. Not to
mention the very high degree of
efficiency.
19-inch Macan
Turbo wheels are fit ted
as standard. Behind these are the red
brake calipers of the large- diameter
brakes. The steel spring suspension is
equipped, as standard, with Porsche
Active Suspension Management (PASM),
which enhances both sport y
performance and ride comfort.
As standard, the Macan Turbo is
trimmed with the leather package, which
emphasises the exquisite qualit y of the
interior. Another highlight is Porsche
Communication Management (PCM)
with navigation module and a large
touchscreen. It comes as standard, just
like the BOSE
® Surround Sound System.
Offering a total output of 545 wat ts and
with 14 loudspeakers including active
subwoofer, it delivers a special listening
experience.
The Macan Turbo. Performance in its
most intense form.
For fuel consumption, CO
2 emissions and efficiency class, please refer to pages 126–127.

Macan Turbo32 | Life, intensifiedMacan Turbo Life, intensified | 33
Drive concept.
3.6-litre t win-turbo V6 engine
294 kW (400 hp) at 6,000 rpm
Maximum torque:
550 Nm at 1,350 –4,500 rpm
Acceleration from
0 to 100 km/ h: 4.8 secs
Top speed: 266 km/ h
Direct fuel injection (DFI)
VarioCam Plus
Auto start/stop function
Highlights of the standard
specification.
Sideblades painted in exterior colour
19-inch Macan Turbo wheels
Two twin tailpipes outside left and right
with design specific to Macan Turbo
Bi-Xenon main headlights including
Porsche Dynamic Light System (PDLS)
LED fog lights
Automatic rear hatch
Electrically folding exterior mirrors
Steel spring suspension including
Porsche Active Suspension
Management (PASM)
Porsche Doppelkupplung (PDK)
Multifunction sports steering wheel
with gearshif t paddles
SPORT button
Porsche Communication Management
(PCM)
BOSE® Surround Sound System
Two-zone automatic climate control
Adaptive Sports seats with comfort
memory package (18-way)
Leather package
Roof lining in Alcantara
Brushed aluminium interior package
Selection of personalisation options.
Wheels up to 21-inch
Porsche Dynamic Light System Plus
(PDLS +
)
Panoramic roof system
Privacy glazing
Air suspension including Porsche
Active Suspension Management (PASM)
Porsche Torque Vectoring Plus
(PTV Plus)
Porsche Ceramic Composite Brake (PCCB)
Sport Chrono Package
Power steering Plus
Burmester® High-End Surround
Sound System
Leather interior
Seat ventilation (front)
Adaptive cruise control including
Porsche Active Safe (PAS)
Surround View
For more on personalisation, please refer
to page 106 onwards.
Macan Turbo engine plaque
Macan Turbo: 550 Nm at 1,350 – 4,500 rpm, 294 kW (400 hp) at 6,000 rpm
3.6-litre twin-turbo V6 engine
For fuel consumption, CO2 emissions and efficiency class, please refer to pages 126–127.
Output (kW)
330 650
Torque (Nm)
300600
270 550
240 500
210 450
180 400
150 350
120 300
90 250
60 200
30 150
0 100
1000 2000300040005000600070008000
Speed (rpm)
550 Nm
294 kW (400 hp)

Macan S34 | Life, intensified
Pace car for the senses.

Macan S.
The ‘S’ principle has long been a tradition
as far as Porsche cars are concerned.
It represents an especially sport y inter -
pretation of a particular idea. It ’s a
promise of spine-tingling thrills and spills
– and omits any thing superfluous to the
spirit of sporty driving.
High performance, on the other hand,
is something that the Macan S would
never do without. Its 3.0-litre twin-turbo
V6 engine generates 250 kW (340 hp)
and helps it to sprint from 0 to 100 km/ h
in only 5.4 seconds. Top speed is
254 km/ h. Figures to raise the hairs on
the neck of any sports car enthusiast. The Macan S is equipped with 18-inch
Macan S wheels. Its brake calipers are
silver-coloured. This high-performance
athlete is also recognisable by the
‘Macan S’ logo on the rear hatch – and
on the door sill guards in aluminium.
Inside, the sport y theme is epitomised by
the rev counter with silver- coloured dial
face. The CDR Plus audio system
integrated as standard features a high-
resolution 7-inch colour touchscreen
offering intuitive ease of use.
The sport y spirit can be intensified even
further with a range of options such as
the Sport Chrono Package. It includes the SPORT PLUS but ton, one press of
which tunes the engine for an even
sharper response. The chassis and
transmission also adapt their se-tup to
SPORT PLUS mode. The package
additionally comprises a stopwatch and
the Launch Control function for the
fastest possible acceleration from a
standing start, e.g. on a racetrack.
Another option is Porsche
Communication Management (PCM). In
this model, it is supplemented by a
performance display showing lap times
and other essential driving stats.
The Macan S. For an unadulterated
encounter with intensity.
For fuel consumption, CO
2 emissions and efficiency class, please refer to pages 126–127.

Macan S36 | Life, intensifiedMacan S Life, intensified | 37
Highlights of the standard
specification.
Sideblades in Lava Black
18-inch Macan S wheels
Two twin tailpipes outside left and
right with design specific to Macan S
Automatic rear hatch
Electrically folding exterior mirrors
Tinted thermally insulated glass all
round with grey top-tint on windscreen
Porsche Doppelkupplung (PDK)
Multifunction sports steering wheel
with gearshif t paddles
SPORT button
CDR Plus audio system
Rain sensor
Two-zone automatic climate control
Comfort seats with seat centres in
Alcantara
Electric seat adjustment (8-way),
driver’s side
Piano Black interior package
Selection of personalisation options.
Wheels up to 21-inch
Sideblades in carbon
Bi-Xenon main headlights including
Porsche Dynamic Light System (PDLS)
Privacy glazing
Air suspension including Porsche
Active Suspension Management (PASM)
Porsche Torque Vectoring Plus
(PTV Plus)
Porsche Ceramic Composite Brake (PCCB)
Sport Chrono Package
Power steering Plus
Porsche Communication Management
(PCM)
BOSE® Surround Sound System
Adaptive Sports seats with comfort
memory package (18-way)
For more on personalisation, please refer
to page 106 onwards.
Macan S engine plaque
Macan S: 460 Nm at 1,450 –5,000 rpm, 250 kW (340 hp) at 5,500 – 6,500 rpm
3.0-litre twin-turbo V6 engine
Drive concept.
3.0 -litre t win-turbo V6 engine
250 kW (340 hp) at
5,500 – 6,500 rpm
Maximum torque:
460 Nm at 1,450 –5,000 rpm
Acceleration from
0 to 100 km/ h: 5.4 secs
Top speed: 254 km/ h
Direct fuel injection (DFI)
VarioCam Plus
Auto start/stop function
For fuel consumption, CO2 emissions and efficiency class, please refer to pages 126–127.
Output (kW)
330 650
Torque (Nm)
300600
270 550
240 500
210 450
180 400
150 350
120 300
90 250
60 200
30 150
0 100
1000 2000300040005000600070008000
Speed (rpm)
460 Nm
250 kW (340 hp)

Macan S Diesel38 | Life, intensified
The new allure of a long-distance relationship.

Macan S Diesel.
Whoever actually said that intense
moments had to be so fleeting?
The Macan S Diesel provides a lasting
endorphin rush on long journeys.
On principle, we build every Porsche to
be as efficient as possible. This is
particularly true in the case of the
Macan S Diesel. The engine is a 3.0 -litre
V6 turbo diesel capable of delivering
190 kW (258 hp). Maximum torque is a
beefy 580 Nm. 0 to 100 km/ h takes
6.3 seconds. Impressive for a diesel.
Impressive for a sports car: relatively low
fuel consumption and emissions for such
power. That ’s partly down to the SCR system
(selective catalytic reduction). In
conjunction with a diesel particulate

filter, it provides an environmentally
friendly exhaust gas recirculation
solution.
The Macan S Diesel is identifiable by the
exterior ‘diesel’ logos on the front left
and right – and by the 18-inch Macan S
wheels and silver- coloured brake
calipers.
Interior features, including two-zone
automatic climate control, as well as the
high degree of storage flexibilit y are the ideal prerequisites for long drives. With
options such as an electrically extending
towbar system or roof rails, you can
ensure that the Macan S Diesel is even
better prepared.
The Macan S Diesel. Heart-pounding fun
that lasts the distance.
For fuel consumption, CO
2 emissions and efficiency class, please refer to pages 126–127.
