296
Minor Repairs
Electrical SystemIn order to avoid damage and faults in electrical or
electronic systems, electrical accessories should
be installed at a qualified specialist workshop. We
recommend that you have an authorized Porsche
dealer to do this work, as they have the trained
workshop personnel and the necessary parts and
tools for this type of work.
fUse only accessories approved by Porsche.
Warning!
Risk of short circuit and fire, resulting in
serious personal injury or death.
Replacing fuses or relays with the engine
running or the ignition on could cause
electrical shock.
f Disconnect the negative terminal on
the battery during all work on the
electrical system.
f Please see the chapter “BATTERY” on page 303.
RelaysRelays should be checked or changed only at an
authorised workshop.

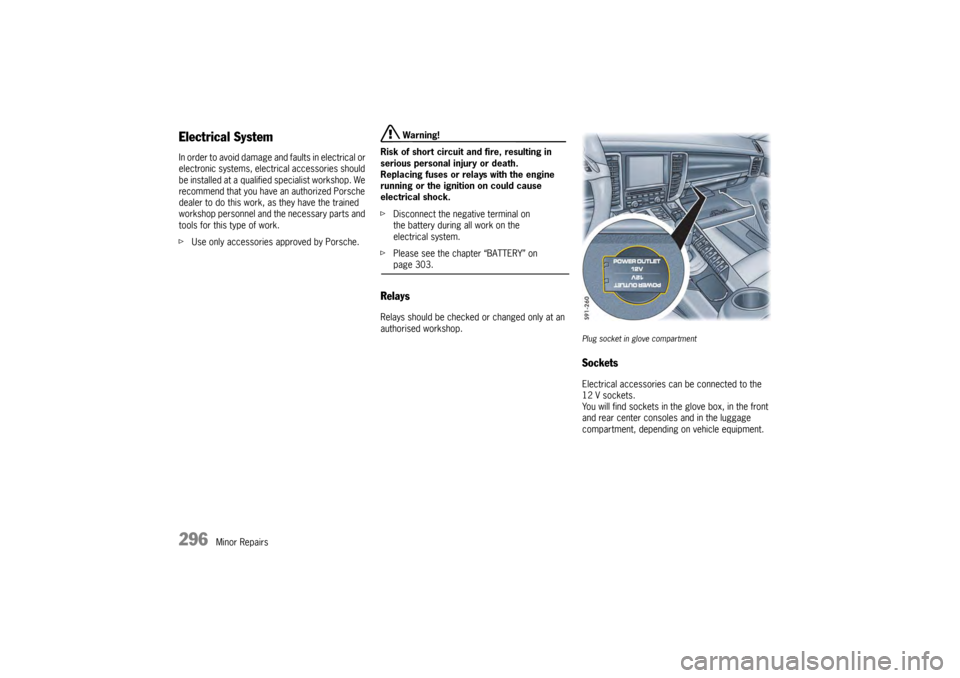

Plug socket in glove compartmentSocketsElectrical accessories can be connected to the
12 V sockets.
You will find sockets in the glove box, in the front
and rear center consoles and in the luggage
compartment, depending on vehicle equipment.

298
Minor Repairs
Changing fusesIn order to prevent damage to the electrical
system due to short circuits and overloads,
the individual circuits are protected by fuses.
One fuse box is located in the luggage
compartment. Two additional fuse boxes are
located in the outer en ds of the dashboard.
1. Switch off the load with the defective fuse.
2. Open the fuse box cover.
3. Remove the corresponding fuse from its slot using the plastic gripper D in order to check it.
A blown fuse can be iden tified by the melted
metal strip.
4. Replace only with fuses of the same rating. We recommend that you use genuine Porsche
fuses for replacement.
Note
f If a fuse blows repeatedly:
Please contact a qualif ied specialist workshop.
We recommend that you have an authorized
Porsche dealer to do this work as they have
trained workshop personnel and the necessary
parts and tools.
A - Fuse carrier
B - Fuse carrier

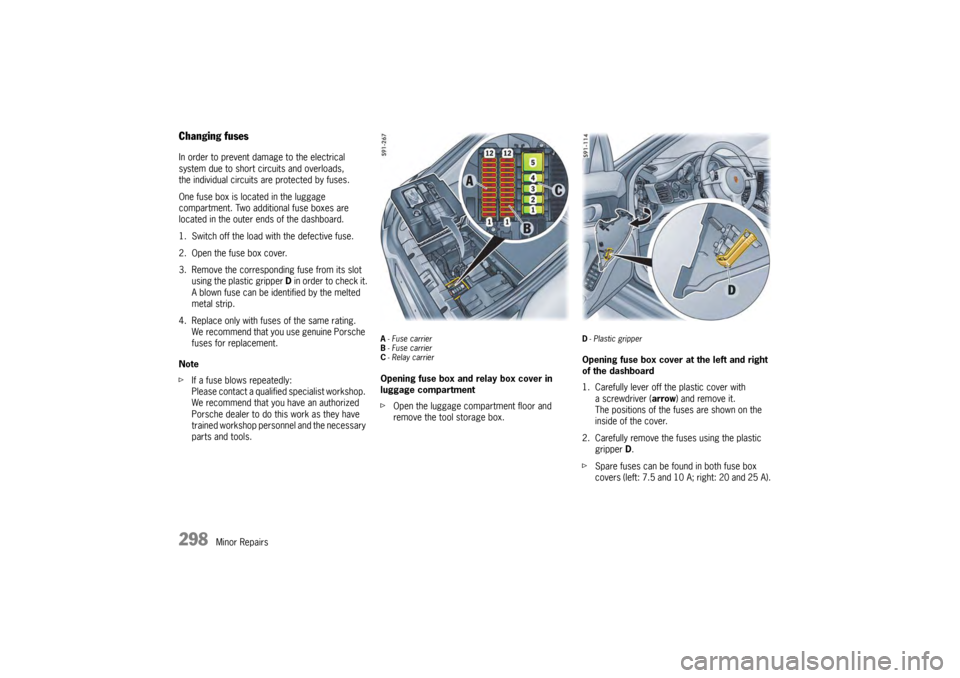

C - Relay carrierOpening fuse box and relay box cover in
luggage compartment
f Open the luggage compartment floor and
remove the tool storage box.
D- Plastic gripperOpening fuse box cover at the left and right
of the dashboard
1. Carefully lever off the plastic cover with
a screwdriver (arrow ) and remove it.
The positions of the fuses are shown on the
inside of the cover.
2. Carefully remove the fuses using the plastic gripper D.
f Spare fuses can be found in both fuse box
covers (left: 7.5 and 10 A; right: 20 and 25 A).

Minor Repairs
299
Fuse box in left side of dashboardNo.Designation A
1 Steering column switch 7.5
2 Instrument cluster 7.5
3PCM 3.1 10
4 Additional instrument 5
5 Air conditioning, front + rear 10
6 Rearview camera 5
7 LHD, electric parking brake button 5
8 LHD, central locking for rear left
door
RHD, central locking for left doors 10
9 LHD, steering column adjustment 15
10 LHD, PDK control unit 25
11 Power windows, rear left 25
12 Power windows, front left 25
13 ParkAssist 5
14 Xenon headlight, left 15
15 Interior mirror,
LHD, diagnostic socket 5
16 LHD, PDK control unit,
clutch sensor
RHD, air conditioning, sun sensor 5
17 Not used
18 Not used
19 Not used
20 LHD, ignition lock control unit, light
switch 5
21LHD, central locking for front
left door
RHD, mobile phone charger 10
5
22 Steering column lock 5
23 Left-hand drive vehicles only:
Turn signal, rear right
Marker light, front left
Low beam headlight, right
High beam headlight, right
Side turn signals, front
Cornering light, front left
Ignition lock
Two-tone horns
PSM
Starter relay
Emergency flasher switch LED
Ignition lock lighting
Turn signal, front left/right
Footwell lights
Ignition lock anti-removal lock
Power steering control valves 30
No.
Designation A
24Left-hand drive vehicles only:
Turn signal, rear left
Marker light, front right
Low beam headlight, left
High beam headlight, left
Cornering light, front right
Engine compartment lid light
Shutter elements, right/left
Active brake ventilation
open/closed
Heatable washer jets
Engine compartment lid
Headlight beam adjustment 30
25 Left-hand drive vehicles only:
Steering column lock
Filler flap closed/open
Windshield washer pump,
front/rear 15
26 LHD, headlight cleaning system 30
27 Ignition coils 15
28 Not used
29 Oil level sensor, camshaft sensor 7.5
30 Oxygen sensors behind catalytic
converter 7.5
31 Electric control valves for engine 15
32 Engine control unit 20
33 Fan activation,
tank leakage detection 10
34 Valves for engine 10
35 Oxygen sensors ahead of catalytic
converter 10
No.
Designation A

300
Minor Repairs
Fuse box in right side of dashboard
36 Not used
37 Not used
38Front cigarette lighter,
luggage compartment socket 20
39 Seat adjustment, front left
without memory 30
40 RHD, center console sockets,
glove box 20
41 PSM control unit 10
42 Interior light in roof console 7.5
43 Not used
44 Not used
45 Not used
46 Not used
47 Slide/tilt roof 30
48 Windshield wipers 30
49 Engine control unit 5
50 Not used
51 Seat adjustment, front left
with memory 30
52 Seat adjustment, rear left 20
53 Circulating pump 10
54 Rain sensor 5
55 Not used
56 Not used
57 Air-conditioning system fan 40
No.
Designation A
No.Designation A
1 Tire Pressure Monitoring control unit 5
2 Not used
3 Seat heating, front 30
4 Seat heating, rear 30
5 Seat adjustment, rear right 20
6 Not used
7 Not used
8 Seat adjustment, front right
with memory 30
9 RHD, electric parking brake button 5
10 LHD, handset, mobile phone charger
RHD, steering column adjustment 5
15
11 RHD, PDK control unit 25
12 LHD, telephone 5
13 Not used
14 Xenon headlight, right 15
15 Not used
16 RHD, diagnostic socket 5
17 PSM control unit 5
18 LHD, air conditioning, sun sensor
RHD, PDK control unit,
clutch sensor 5
19 Garage door opener 5
20 Air bag control unit 7.5
21 Advanced air bag, occupant sensing 5
22 Steering column switch 5
23 Adaptive cruise control (ACC) 5
24 Seat ventilation, front seats 7.5
25 Seat ventilation, rear seats 7.5
26 Not used
27Front center console socket,
Rear cigarette lighter 20
28 Seat adjustment, front right
without memory 30
29 LHD, rear center console socket,
socket in glove box,
socket in large rear center console 20
30 Not used
31 Coolbox 15
32 Rear Seat Entertainment 7.5
33 Right-hand drive vehicles only:
Turn signal, rear right
Marker light, front left
Low beam headlight, right
High beam headlight, right
Side turn signals, front
Cornering light, front left
Ignition lock
Two-tone horns
PSM
Starter relay
Emergency flasher switch LED
Ignition lock lighting
Turn signal, front left/right
Footwell lights
Ignition lock anti-removal lock
Power steering control valves 30
No.
Designation A

Minor Repairs
301
Fuse and relay carriers
in the luggage compartment
34Right-hand drive vehicles only:
Turn signal, rear left
Marker light, front right
Low beam headlight, left
High beam headlight, left
Cornering light, front right
Engine compartment lid light
Shutter elements, right/left
Active brake ventilation
open/closed
Heatable washer jets
Engine compartment lid
Headlight beam adjustment 30
35 Right-hand drive vehicles only:
Steering column lock
Filler flap closed/open
Windshield washer pump,
front/rear 15
36 RHD, headlight cleaning system 30
37 Not used
38 Not used
39 PSM control unit 25
40 LHD, central locking for front/rear
right door 10
41 Power windows, front right 25
42 Power windows, rear right 25
43 Alarm horn 5
44 Vehicle Tracking System VTS 5
45 Not used
46 Not used
No.
Designation A
47 Fuel pump control unit 25
48 Horn (two-tone horns) 15
49 Diagnostic socket 5
50 RHD, ignition lock, light switch 5
51 RHD, central locking for front right
door 10
52 RHD, steering column lock 5
53 Not used
54 Not used
55 Not used
56 Not used
57 PSM pump control unit 40
No.
Designation A
No. Fuse carrier A A
1Not used
2 Spoiler flap (Turbo) 10
3 Audio amplifier (Burmester
®)
Audio amplifier (ASK Sound, Bose) 30
25
4 Start/Stop control unit 30
5 Start/Stop control unit 30
6 Differential lock 10
7 Differential lock 30
8 Subwoofer (Bose, Burmester®)30
9 Powerlift tailgate 25
10 PASM control unit 25
11 Luggage compartment lights 5
12 PDCC control unit 10

302
Minor RepairsLHD = Left-hand drive vehicles
RHD = Right-hand drive vehicles
Note
f
Use the plastic gripper D when replacing the
fuses. This can be found in the fuse box cover
on the dashboard.
f Spare fuses can be found in both fuse box
covers on the dashboard (left: 7.5 and 10 A;
right: 20 and 25 A).
No. Fuse carrier B
A
1 Daytime driving lights, right
Tail light, right
Reversing light, right
Rear fog light, left
Brake light, right
Raised brake light
Sun blind
Electric steering column lock
Rear wiper
Heated rear window
Interior surveillance/inclination
sensor
PA S M
Engine control unit
Safety/curb lights, front doors
Interior light/reading light, front
Interior light, rear
Orientation light
Licence plate light
Engine speed hall senders 1+3
Interior light 15
2 Daytime driving lights, left
Tail light, left
Reversing light, left
Rear fog light, right
Brake light, left
Safety/curb lights, rear doors
Exhaust flap control
Filler flap closed
Extend/retract spoiler 15
3
Tailgate closing mechanism
Filler flap open
Retract/extend rear spoiler
Sun blind 30
4 Alarm horn 15
5 Gateway control unit 5
6 Heated rear window 20
7 PASM control unit 5
8 Gateway control unit 5
9 Electric parking brake 5
10 Differential lock 10
11 PDCC control unit 10
12 Rear wiper 15
No. Fuse carrier B
A
No.Relay carrier C
1 Heated rear window
2 Not used
3 Spoiler flap (Turbo)
4 Spoiler flap (Turbo)
5 PASM/LF compressor

338
Index
Performance tests on roller-type test stands................. 253
Performance, Technical data ........................................ 324
Person buttons (memory) ... ............................................ 41
Petrol Fuel can .......... .................................................. 267
Fuel gauge ..................... ................................... 111
Fuel reserve warning .......................................... 112
Octane rating ................. ................................... 265
Portable fuel containers ......................................... 3
Quality ................ ...................................... ........ 265
Refuelling ....................... ................................... 265
Tank capacity ................. ................................... 329
Plastic components, care in structions ........................... 274
Porsche Active Suspension Management (PASM) Air suspension and level control .......................... 209
Functional description . ....................................... 208
Overview ............. ...................................... ........ 201
Warning message on the mult i-function display ..... 208
Porsche Ceramic Composite Brake (PCCB) General information..... ........................................... 3
Porsche Communication Manage ment (PCM) ................. 191
Porsche Doppelkupplung (P DK) .................................... 193
Driving in winter .......... ....................................... 199
Faults ....................................................... ........ 194
Kickdown ............ ...................................... ........ 197
Launch Control ............... ................................... 196
Reduced driving program ................................... 199
Selector-lever position. ....................................... 193
Shifting gears on the stee ring wheel.................... 196
Sport mode ......... ...................................... ........ 195
Porsche Dynamic Chassis Control (PDCC) Functional description . ....................................... 211
Overview ............. ...................................... ........ 201
Warning message on the mult i-function display ..... 211
Porsche Entry & Drive
Inclination sensor ........ .......................................
249
Interior surveillance ..... ....................................... 249
Locking the vehicle ..... ......................................... 24
Unlocking the vehicle .. ......................................... 23
Porsche Stability Management (PSM) Functional description . ....................................... 202
Multi-function light in th e tachometer ................... 205
Overview ............. ...................................... ........ 201
Switching off .................. ................................... 204
Switching on .................. ................................... 205Porsche Traction Management (PTM)
Functional description.... ..................................... 202
Power steering Checking and adding hydrau lic fluid ..................... 260
Power windows
Adjusting after connecting battery ......................... 88
Malfunctions ................. ....................................... 88
Opening/closing windows wi th rocker switch .......... 86
Overview of driver’s door control panel .................. 86
Overview of passenger’s d oor control panel ........... 86
Powerlift tailgate Closing.............. ...................................... ............ 28
Opening ............ ...................................... ............ 27
Safety notes .. ...................................... ................ 27
Pressure Tires (bar/psi) ............... ..................................... 326
Protection against towi ng (inclination sensor)
Switching off with Porsche Entry & Drive .............. 248
Switching off with remote control ........................ 247
PSM (Porsche Stab ility Management)
Functional description.... ..................................... 202
Multi-function light in th e tachometer.................... 205
Overview .............. ............................................. 201
Switching off .................... ................................. 204
Switching on ...... ................................................ 205
Warning light on the multi-f unction display ............ 305
PTM (Porsche Traction Management) Functional description.... ..................................... 202
Pulling out/parking Func
tional description, Pa rkAssist ....................... 239
Sensors for ParkAssist .. ..................................... 239
Push-starting ....... ........................................................ 321RRadar sensor for adaptive cruise control ...... ................. 274
Radiator fan Installation position........ ..................................... 258
Safety notes .. .................................................... 258
Radio Tips ..................... ............................................. 189
Radio remote control ......................................... ............ 19
Rain sensor Adjusting ........................................................... 103
Switching on ...... ................................................ 102 Reading lights, front
Switching on/off .............. .................................... 98
Switching on/off automatica lly.............................. 99
Rear fog light Switching on ................... .................................... 92
Rear roll-up blind ............... ............................................ 66
Rear seats............. .......................................... ............. 38
Folding forward ............... .................................. 226
Rear spoiler, operating prin ciple ................................... 214
Rear window Optical distortion ......... ........................................ 84
Rear window wiper Switching on intermittent operation ..................... 104
Window wiping ................ .................................. 104
Rear-axle load ........ .......................................... ........... 236
Rearview camera .................. ...................................... 241
Reduced driving program, PDK ..................... ............... 199
Refrigerated box in the rear of the vehicle, opening ....... 226
Refuelling .............. .......................................... ........... 267
Relays Replacing ....................... .................................. 296
Remote control ................. ............................................ 19
Changing battery ............. .................................. 307
Locking vehicle door ....... .................................... 24
Unlocking vehicle door . ........................................ 23
Removing/installing luggage compartment cover .......... 229
Replacement keys................. ........................................ 19
REST button Air-conditioning system ........................................

71
Restraint systems for children Installing with LATCH sy stem ................................ 56
LATCH restraint system ... .................................... 56
Prescribed installation direction (depending on
age of child)................ ........................................ 53
Retractable rear spoiler Extending and retracting .................................... 215
Operating principle ...... ...................................... 214
Roll stabilisation Porsche Dynamic Chassis Control (PDCC) ........... 211
Roll-up blind ...................... ............................................ 65
Roll-up sunblind For rear window, lowe red automatically when
reversing ................................ ............................ 66
Raising/lowering for rear side windows ................. 65
Raising/lowering for rear window .......................... 66
Roof load .............. .......................................... ........... 328
