PORSCHE PANAMERA 2010 1.G Information Manual

· 154 ·· 155 ·· 156 ·

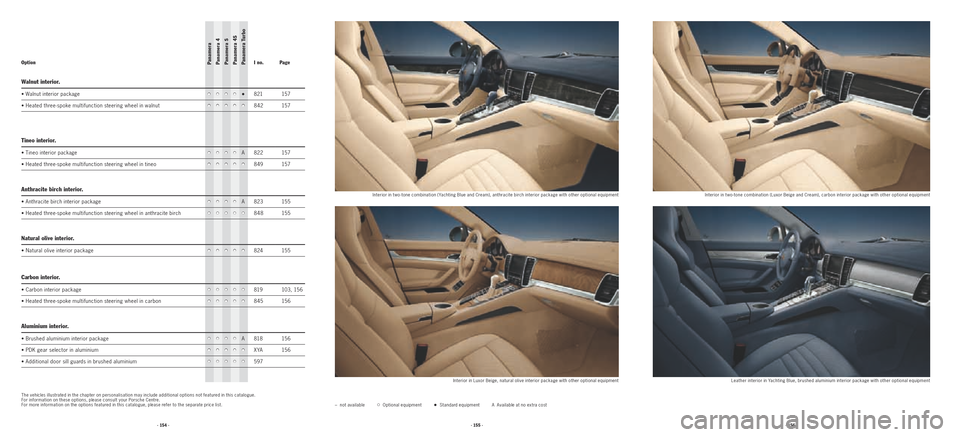

Walnut interior.
• Walnut interior package•••••821 157
•
Heated three -spoke multifunction steering wheel in walnut
•••••842 157
Tineo interior.
• Tineo interior package••••A822 157
•
Heated three-spoke multifunction steering wheel in tineo
•••••849 157
Anthracite birch interior.
• Anthracite birch interior package ••••A823 155
• Heated three-spoke multifunction steering wheel in anthracite birch
•••••848 155
Natural olive interior.
• Natural olive interior package•••••824155
Carbon interior.
• Carbon interior package•••••81910 3 , 15 6
•
Heated three-spoke multifunction steering wheel in carbon
•••••845 15 6
Aluminium interior.
• Brushed aluminium interior package••••A818 15 6
• PDK gear selector in aluminium
•••••X YA 15 6
• Additional door sill guards in brushed aluminium
•••••597
Panamera
Panamera 4
Panamera S
Panamera 4S
Panamera TurboI no. Page
Option
– not available Optional equipment• Standard equipment A Available at no extra cost
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list. Interior in Luxor Beige, natural olive interior package with other optional equipment
Leather interior in Yachting Blue, brushed aluminium interior package with other optional equipment
Interior in t wo -tone combination (Yachting Blue and Cream), anthracite birch interior package with other optional equipment
Interior in t wo -tone combination (Luxor Beige and Cream), carbon interior package with other optional equipment

· 157 ·· 158 ·· 159 ·
– not available Optional equipment• Standard equipment A Available at no extra cost– not available Optional equipment• Standard equipment A Available at no extra cost
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list.
Panamera
Panamera 4
Panamera S
Panamera 4S
Panamera TurboI no.
Page
Option

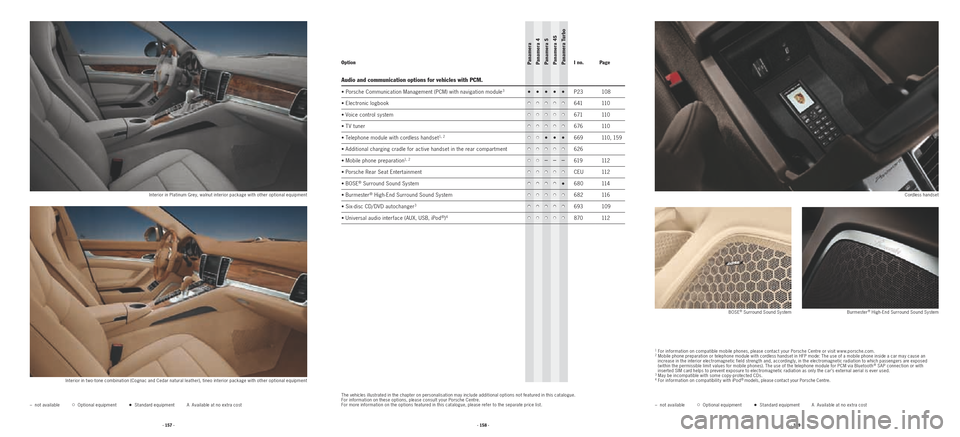

Audio and communication options for vehicles with PCM.
•
Porsche Communication Management (PCM) with navigation module3• • • • •P23 10 8
•
Electronic logbook
•••••6 41 110
• Voice control system
•••••671 110
• T V tuner
•••••676 110
•
Telephone module with cordless handset
1, 2•• • • •669 110 , 1 5 9
• Additional charging cradle for active handset in the rear compartment
•••••626
•
Mobile phone preparation
1, 2•• – – –619
112
• Porsche Rear Seat Entertainment
•••••CEU 112
• B O S E
® Surround Sound System•••• •680 114
•
Burmester
® High-End Surround Sound System•••••682 116
•
Six- disc CD/ DVD autochanger
3•••••693 10 9
• Universal audio interface (AUX, USB, iPod
®)4•••••870 112
1 For information on compatible mobile phones, please contact your Porsche Centre or visit w w w.porsche.com.2 Mobile phone preparation or telephone module with cordless handset in HFP mode: The use of a mobile phone inside a car may cause an
increase in the interior electromagnetic field strength and, accordingly, in the electromagnetic radiation to which passengers are exposed
(within the permissible limit values for mobile phones). The use of the telephone module for PCM via Bluetooth
® SAP connection or with
inserted SIM card helps to prevent exposure to electromagnetic radiation as only the car’s external aerial is ever used.
3 May be incompatible with some copy- protected CDs.4 For information on compatibilit y with iPod® models, please contact your Porsche Centre.Interior in t wo -tone combination (Cognac and Cedar natural leather), tineo interior package with other optional equipment Cordless handset
Interior in Platinum Grey, walnut interior package with other optional equipment
BOSE
® Surround Sound SystemBurmester® High - End Surround Sound System

· 160 ·· 161 ·

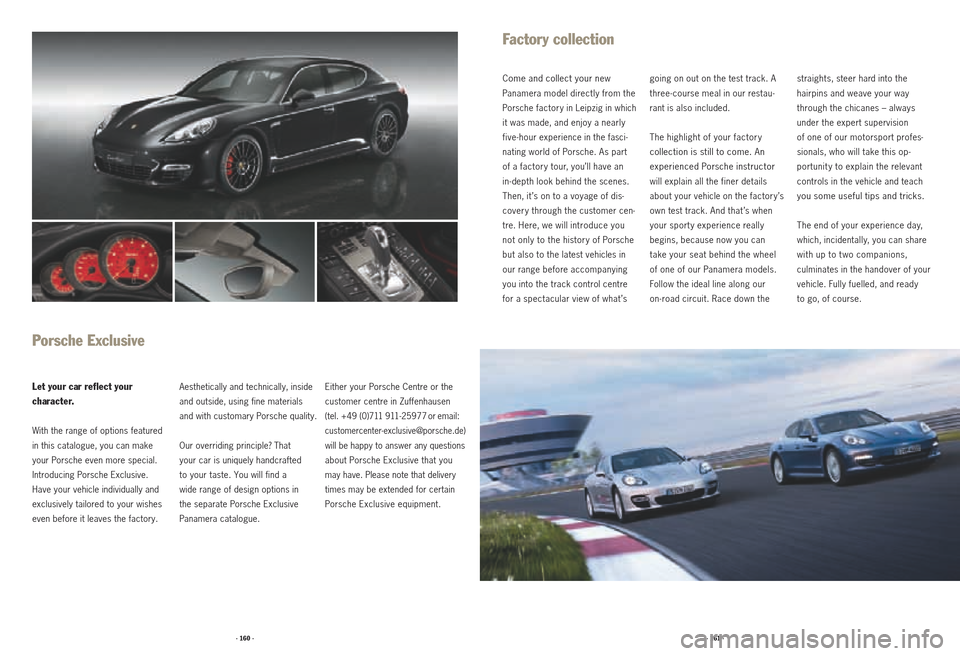

Porsche Exclusive
Let your car reflect your
c h ar a c t e r.
With the range of options featured
in this catalogue, you can make
your Pors che even more special.
In troducing Pors che Exclusive.
Have your vehicle individually and
exclus ively tailor ed to your wishes
even befor e it leaves the factory. A
estheti cally and t echnically, inside
and outside, using fine materials
and with cus tomary Porsche quality.
Our overriding principl e? That
your car is uniquely handcr afted
to your taste. You will find a
wid e range of design options in
the separat e Porsche Exclusive
P anamer a catalogue. Either your Pors
che Centre or the
cus tomer centre in Zuffenhausen
(tel. +49 (0)711 911-25977 or email:
[email protected])
will be happy to answer any questions
about Pors che Exclusive that you
may have. Please note that delivery
times may be ext ended for cer tain
Porsche Exclus ive equipment.
Come and collect your new
Panamera model directly from the
Porsche factory in Leipzig in which
it was made, and enjoy a nearly
five-hour
experience in the fasci-
nating world
of Porsche. As part
of a factory tour, you’ll have an
in - depth look behind the scenes.
Then, it ’s on to a voyage of dis -
covery through the customer cen -
tre. Here, we will introduce you
not only to the history of Porsche
but also to the latest vehicles in
our range before accompanying
you into the track control centre
for a spectacular view of what ’s going on out on the test track. A
three-course meal in our restau
-
rant is also included.
The highlight of your factor y collection is still to come. An
experienced Porsche instructor
will explain all the finer details
about your vehicle on the factory’s
own test track. And that ’s when
your sport y experience really
begins, because now you can
take your seat behind the wheel
of one of our Panamera models.
Follow the ideal line along our
on-road circuit. Race down the straights, steer hard into the
hairpins and weave your way
through the chicanes – always
under the expert supervision
of one of our motorsport profes
-
sionals, who will take this op -
portunit y to explain the relevant
controls in the vehicle and teach you some useful tips and tricks.
The end of your experience day,
which, incidentally, you can share
with up to t wo companions,
culminates in the handover of your
vehicle. Fully fuelled, and ready
to go, of course.
Factory collection

· 162 ·· 163 ·

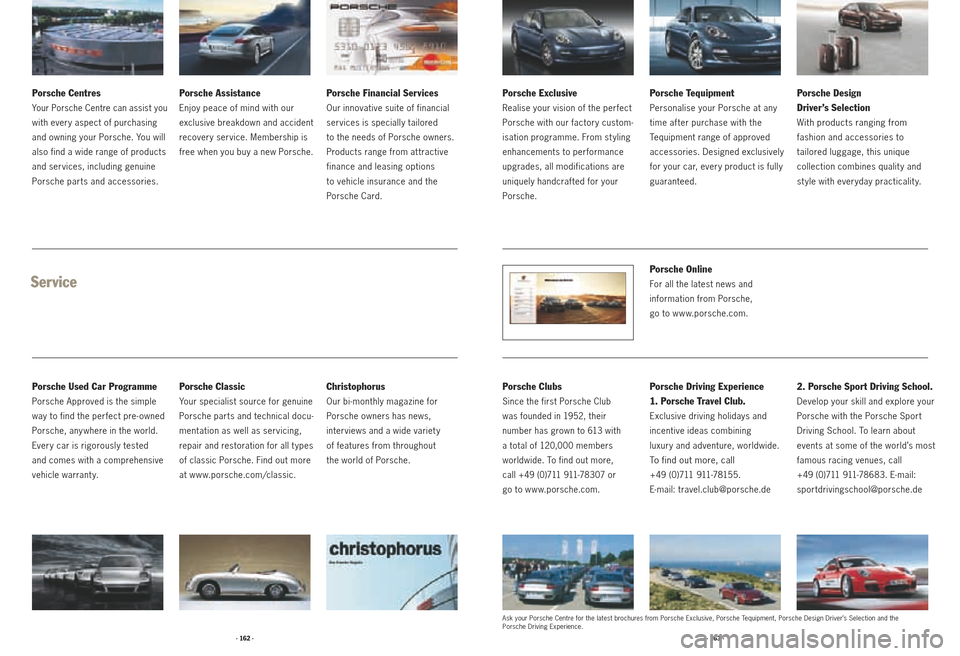

Service
Porsche Used Car Programme
Porsche Approved is the simple
way to find the perfect pre- owned
Porsche, any where in the world.
Ever y car is rigorously tested
and comes with a comprehensive
vehicle warrant y.
Porsche Financial Services
Our innovative suite of financial
services is specially tailored
to the needs of Porsche owners.
Products range from at tractive
finance and leasing options
to vehicle insurance and the
Porsche Card.
Porsche Classic
Your specialist source for genuine
Porsche parts and technical docu-
mentation as well as ser vicing,
repair and restoration for all t ypes
of classic Porsche. Find out more
at w w w.porsche.com/classic.
Christophorus
Our bi-monthly magazine for
Porsche owners has news,
interviews and a wide variet y
of features from throughout
the world of Porsche.
Porsche Centres
Your Porsche Centre can assist you
with every aspect of purchasing
and owning your Porsche. You will
also find a wide range of products
and services, including genuine
Porsche parts and accessories.
Porsche Assistance
Enjoy peace of mind with our
exclusive breakdown and accident
recovery service. Membership is
free when you buy a new Porsche.
Porsche Exclusive
Realise your vision of the perfect
Porsche with our factory custom-
isation programme. From st yling
enhancements to performance
upgrades, all modifications are
uniquely handcraf ted for your
Porsche.
Porsche Tequipment
Personalise your Porsche at any
time after purchase with the
Tequipment range of approved
accessories. Designed exclusively
for your car, every product is fully
guaranteed.
Porsche Design
Driver’s Selection
With products ranging from
fashion and accessories to
tailored luggage, this unique
collection combines qualit y and
st yle with everyday practicalit y.
Porsche Driving Experience
1. Porsche Travel Club.
Exclusive driving holidays and
incentive ideas combining
luxury and adventure, worldwide.
To find out more, call
+49 (0)711 911-78155.
E-mail: [email protected]
2. Porsche Sport Driving School.
Develop your skill and explore your
Porsche with the Porsche Sport
Driving School. To learn about
events at some of the world’s most
famous racing venues, call
+49 (0)711 911-78683. E-mail:
[email protected]
Porsche Clubs
Since the first Porsche Club
was founded in 1952, their
number has grown to 613 with
a total of 120,000 members
worldwide. To find out more,
call +49 (0)711 911-78307 or
go to w w w.porsche.com.
Porsche Online
For all the latest news and
information from Porsche,
go to w w w.porsche.com.
Ask your Porsche Centre for the latest brochures from Porsche Exclusive, Porsche Tequipment, Porsche Design Driver’s Selection and the
Porsche Driving Experience.

· 164 ·· 165 ·

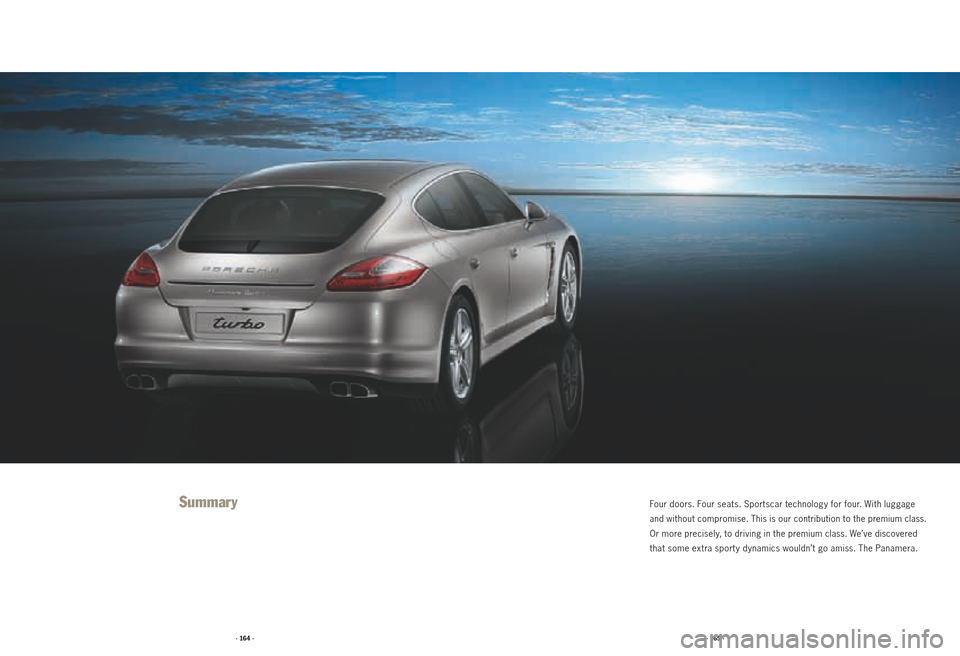

Summar yFour doors. Four seats. Sportscar technology for four. With luggage
and without compromise. This is our contribution to the premium class.
Or more precisely, to driving in the premium class. We’ve discovered
that some extra sport y dynamics wouldn’t go amiss. The Panamera.

· 166 ·· 167 ·
Panamera Panamera 4 Panamera SPanamera 4SPanamera Turbo
Engine
C y linders 66 888
Displacement 3,605 cm
33,605 cm34,806 cm34,806 cm34,806 cm3
Max. power (DIN)
at rpm220 kW (300 hp)
6,200220 kW (300 hp)
6,200 294 kW (400 hp)
6,500294 kW (400 hp)
6,500368 kW (500 hp)
6,000
Max. torque
at rpm 400 Nm
3,750400 Nm
3,750 500 Nm
3,500–5,000500 Nm
3,500–5,000700 Nm
2,250–4,500
Compression ratio 12.5 : 1 12.5 : 1 12.5 : 1 12.5 : 1 10.5 : 1
Transmission
Layout Rear-wheel driveAll-wheel drive Rear-wheel driveAll-wheel driveAll-wheel drive
Manual gearbox (6-speed) Standard– Standard––
PDK (7-speed) OptionalStandard OptionalStandardStandard
Chassis
Front axleFully independent large -format double
wishbone suspensionFully independent large -format double
wishbone suspension Fully independent large -format double
wishbone suspensionFully independent large -format double
wishbone suspensionFully independent large -format double
wishbone suspension
Rear axle Fully independent multi-link
suspension Fully independent multi-link

suspension Fully independent multi-link

suspension Fully independent multi-link

suspension Fully independent multi-link

suspension
Steering Power-assisted (hydraulic)Power-assisted (hydraulic) Power-assisted (hydraulic)Power-assisted (hydraulic)Power-assisted (hydraulic)
Brakes
Six- piston aluminium monobloc
fixed brake calipers at front,
four- piston aluminium monobloc
brakes at rear, internally vented
d iscs, A BS Six- piston aluminium monobloc
fixed brake calipers at front,

four- piston aluminium monobloc
brakes at rear, internally vented
d iscs, A BS Six- piston aluminium monobloc
fixed brake calipers at front,

four- piston aluminium monobloc
brakes at rear, internally vented
d iscs, A BS Six- piston aluminium monobloc
fixed brake calipers at front,

four- piston aluminium monobloc
brakes at rear, internally vented
d iscs, A BS Six- piston aluminium monobloc
fixed brake calipers at front,

four- piston aluminium monobloc
brakes at rear, internally vented
d iscs, A BS
Wheels
Front: 8 J x 18 ET 59
Rear: 9 J x 18 ET 53Front: 8 J x 18 ET 59
Rear: 9 J x 18 ET 53 Front: 8 J x 18 ET 59
Rear: 9 J x 18 ET 53Front: 8 J x 18 ET 59
Rear: 9 J x 18 ET 53Front: 9 J x 19 ET 60
Rear: 10 J x 19 ET 61
Tyres
Front: 245/50 ZR 18
Rear: 275/45 ZR 18Front: 245/50 ZR 18
Rear: 275/45 ZR 18 Front: 245/50 ZR 18
Rear: 275/45 ZR 18Front: 245/50 ZR 18
Rear: 275/45 ZR 18Front: 255/45 ZR 19
Rear: 285/40 ZR 19
WeightsManual/PDK
PDK Manual/PDKPDKPDK
Unladen weight (DIN) 1,73 0 k g / 1,76 0 k g1,820 k g 1,770 k g / 1,8 0 0 k g1,8 6 0 k g1,970 k g
Unladen weight (EC)
11,8 05 k g / 1,8 35 k g 1,895 k g 1,8 45 k g / 1,875 k g1,935 k g2,045 kg
Permissible gross weight 2,335 kg /2,365 kg2,400 kg 2,375 kg /2,405 kg2,440 kg2,500 kg
Max. payload 605 kg/605 kg580 kg 605 kg/605 kg580 kg530 kg
Technical data
Some items of equipment featured on or in the vehicles in this catalogue are available as extra - cost options only.
All information regarding construction, features, design, per formance, dimensions, weights, fuel consumption and running costs was correct to
the best of our knowledge at the time of going to print. Subject to change without notice.1 Weight is calculated in accordance with the relevant EC Directives and is valid for vehicles with standard specification only.
Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.
Technical data

· 168 ·· 169 ·
Panamera Panamera 4 Panamera SPanamera 4SPanamera Turbo
Performance
Manual/PDK PDK Manual/PDKPDKPDK
Top speed 261 km/ h (162 mph)/
259 km/ h (161 mph) 257 km/ h (160 mph)
285 km/ h (177 mph)/
283 km/ h (176 mph) 282 km/ h (175 mph)
303 km/ h (188 mph)
0 –100 km/ h (0 - 62 mph) 6.8 secs/6.3 secs6.1 s e c s 5.6 secs/5.4 secs5.0 secs4.2 secs
0 –100 km/ h (0 - 62 mph) with
Sport Chrono Package 6.8 secs/6.1 secs
5.9 secs 5.6 secs/5.2 secs4.8 secs4.0 secs
Flexibility (80–120 km)
(50 –75 mph) in 5th gear 8.4 secs/–
– 7. 0 s e c s / –––
In -gear acceleration
(80 –120 km/ h) (50 –75 mph) –/4.3 s e c s
4.4 secs –/3.2 secs3.3 secs2.7 s e c s
Fuel consumption/emissions1Manual/PDKPDK Manual/PDKPDKPDK
Urban in l/100 km 16.4 (16.1
2)/12.7 (12.5 2)12.8 (12.7 2) 18.8 (18.5 2)/ 15.5 (15. 2 2)16.0 (15.7 2) 17.0 (16.7 2)
Urban in mpg 17.2 (17.5
2)/22.2 (22.6 2) 22.1 (22.2 2) 15.0 (15.3 2)/18.2 (18.6 2)17. 7 ( 1 8 . 0 2) 16.6 (16.9 2)
Extra urban in l/100 km 7. 8 ( 7. 6
2)/6.9 (6.8 2) 7.2 (6.9 2) 8.9 (8.7 2) / 7. 6 ( 7. 5 2)7. 9 ( 7. 7 2) 8.4 (8.2 2)
Extra urban in mpg 36.2 (37.2
2)/40.9 (41.5 2)39.2 (40.9 2) 31.7 (32.5 2) / 3 7. 2 ( 3 7. 7 2)35.8 (36.7 2) 33.6 (34.4 2)
Combined in l/100 km 11. 3 ( 11. 1
2)/ 9.3 (9.12)9.6 (9.4 2) 12 . 5 (12 . 3 2) / 10.5 (10. 3 2)10. 8 (10.6 2) 11. 5 ( 11. 3 2)
Combined in mpg 25.0 (25.4
2)/30.4 (31.0 2)29.4 (30.1 2) 22.6 (23.0 2)/26.9 (27.4 2)26.2 (26.6 2) 24.6 (25.0 2)
CO
2 emissions g/km 265 (260 2)/218 (213 2)225 (220 2) 293 (288 2)/247 (242 2)254 (249 2) 270 (265 2)
Dimensions
Length 4,970 mm4,970 mm 4,970 mm4,970 mm4,970 mm
Width (including exterior mirrors) 1,931 mm (2,114 mm)1,931 mm (2,114 mm) 1,931 mm (2.114 mm)1,931 mm (2,114 mm)1,931 mm (2.114 mm)
Height 1,418 mm1,418 mm 1,418 mm1,418 mm1,418 mm
Wheelbase 2,920 mm2,920 mm 2,920 mm2,920 mm2,920 mm
Luggage compartment volume 445 litres445 litres 445 litres445 litres432 litres
with rear seats folded down 1, 26 3 l i t res 1, 26 3 l i t res 1, 26 3 l i t res1, 26 3 l i t res1, 25 0 l i t res
Fuel capacity/reserve 80 litres/15 litres80 litres/15 litres 80 litres/15 litres100 litres/15 litres100 litres/15 litres
1 The latest Porsche models are designed to operate on fuels with an ethanol content of up to 10 %.
Data determined for standard specification and in the NEDC (New European Driving Cycle) in accordance with the Euro 5 (715/2007/ EC and
692/2008/ EC) measurement method. The figures do not refer to an individual vehicle nor do they constitute part of the of fer. They are
intended solely as a means of comparing dif ferent t ypes of vehicle. You can obtain further information about individual vehicles from your
Porsche Cent re.
2 In conjunction with 19 - inch all -season t yres (low- rolling resistance version). Some items of equipment featured on or in the vehicles in this catalogue are available as extra - cost options only.
All information regarding construction, features, design, per formance, dimensions, weights, fuel consumption and running costs was correct
to the best of our knowledge at the time of going to print. Subject to change without notice.
Technical data

· 170 ·· 171 ·
Te r m Pa g e
A
Active bonnet system 89
Adaptive air suspension 68
Adaptive cruise control 122
Airbags 90
All-wheel drive 60
Anti-theft protection 125
Audio systems 108, 158
Auto start /stop function 50
A xle concept 64
B
BOSE® Surround
Sound System 114
Brakes 84
Burmester
® High - End
Surround Sound System 116
C
CD/ DVD autochanger 108, 109
Ceramic brake 86
Chassis 62
Child seats 104, 106
Climate control 118
C ol o u rs 132
Cruise control 122
D
Direct fuel injection (DFI) 51
E
Electronic engine
management 42
Emission control 93
Engineered safet y design 88
Engines 42
Environment 92
Exhaust system 53
Exhaust turbocharging 52
Exterior 22, 138
F
Factory collection 161
Fuel system 96
G
GPS navigation system 110
H
Headlight cleaning system 81
Headlights 80
Height adjustment 68
HomeLink
® (programmable
garage door opener) 120
I
Interior 26, 100, 133
Interior lighting 102
Interior packages 140, 152
L
Launch Control 76
Levelling system 68
Light-alloy construction 89
Lighting concept 80
Lights 80
Loading options 127
Luggage compartment 126
M
Manual gearbox 54
MP3 109, 112
Multifunction
steering wheel 58, 100
N
Navigation 110
O
Oil supply 42
On-board computer 104
P
Pa rk A ssist 120
Parking brake, electric 85
Pay l o a d 127
Personalisation 141
Porsche Active Suspension
Management (PASM) 66Porsche Ceramic Composite
Brake (PCCB)
86
Porsche Communication
Management (PCM) 108
Porsche Doppelkupplung
(PDK) 55
Porsche Dynamic Chassis
Control (PDCC) 70
Porsche Dynamic Light
System (PDLS) 83
Porsche Entry & Drive 124
Porsche Rear
Seat Entertainment 112
Porsche Side Impact
Protection System (POSIP) 90
Porsche Stabilit y
Management (PSM) 72
Porsche Torque
Vectoring Plus (PT V Plus) 70
Porsche Traction
Management (PTM) 60
Power output 44, 47, 48
Privacy glazing 103
R
Radio 108
Rain sensor 120
Rear lid 131Recycling
94
Reversing camera 121
Roll-up sunblind 103, 129
Roof transport systems 131
S
Safety 80
S e a t s 10 4
S e rv ici ng 97
Servotronic 64
Slide/tilt sunroof 123
SPORT but ton 50, 74
Sport Chrono Packages 74
Sports exhaust system 53, 145
Steering 64
T
Technical data 166
Thermally insulated glass 119
Touchscreen 108
Towbar system 131
Tra n s m i ssi o n 5 4
T V tuner 110
Tyre Pressure
Monitoring (TPM) 65
U
Universal audio interface 112
V
V6 engines 44
V8 engines 47
VarioCam Plus 52
Voice control system 110
W
Water-repellent
side windows 119
Wheels
6

5, 146
IndexIndex

· 172 ·· 173 ·
The models featured in this publi-
cation are approved for road use in
Germany. Some items of equipment
are available as extra- cost options
only. The availabilit y of models and
options may vary from market to
market due to local restrictions and
regulations. For information on
standard and optional equipment,
please consult your Porsche Centre.
All information regarding construc-
tion, features, design, per formance,
dimensions, weight, fuel consump -
tion and running costs was correct
to the best of our knowledge at
the time of going to print. Porsche
reserves the right to alter specifica -
tions and other product information
without prior notice. Colours may
dif fer from those illustrated. Errors
and omissions excepted.
© Dr. Ing. h.c. F. Porsche AG, 2010
All text, illustrations and other
information in this publication
are subject to the copyright of
Dr. Ing. h.c. F. Porsche AG.
Any reproduction, duplication
or other use is prohibited without
the prior writ ten consent of
Dr. Ing. h.c. F. Porsche AG. Dr. Ing. h.c. F. Porsche AG supports
the use of paper from sustainable
forests. The paper for this brochure
is certified in accordance with

the strict regulations of the PEFC
(Programme for the Endorsement
of Forest Certification).
Porsche, the Porsche Crest,
911, Panamera, Spyder, PCCB,
PCM, PDK, PSM and Tequipment
are registered trademarks of
Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG
Porscheplatz 1
70435 Stut tgart
Germany
www.porsche.com
Edition: 03/10
Printed in Germany
W S L P11010 0 0125 G B / U K
