Concept | Panamera and Panamera 4
On the new Panamera 4, drive
force is transmit ted to the road
by the active all-wheel drive of
Porsche Traction Management
(PTM, p. 60) and by the 7-speed
Porsche Doppelkupplung (PDK)
with Auto start /stop function, both
of which are fit ted as standard.
The steel spring suspension is
standard on both models, of fering
a high level of comfort despite
its sport y setup. Porsche Active
Suspension Management (PASM,
p. 66) or adaptive air suspension
with PASM are available on
request.
Also standard is Porsche Stabilit y
Management (PSM, p. 72), which
maintains stabilit y even at the
limits of dynamic driving perform -
ance, delivering bet ter traction
and increased safet y.
And yet the gross weight of these
models is as low as 1,730 kg. Driv-
ing pleasure is simply inevitable.
The figures speak for themselves:
the new Panamera accelerates
from 0 to 62 mph (100 km/ h) in
6.8 seconds, with a top speed
of 162 mph (261 km/ h). With the
optional Porsche Doppelkupplung
(PDK), these figures are an even
more impressive 6.3 seconds
and 161 mph (259 km/ h). The
Panamera 4 completes the 0 to
62 mph (100 km/ h) sprint in
just 6.1 seconds and has a top
speed of 159 mph (257 km/ h). Both models are equipped with

Bi-Xenon headlights as standard.
The interior offers plent y of
comfort and lots of space. The
t wo individual seats in the rear
compartment fold separately
or jointly, increasing luggage
capacit y to 1,263 litres. Auto -
matic climate control is standard.
Three interior colours are avail -
able for the partial leather interior.
The seat surfaces, inner backrest
sur faces and side bolsters,
door handles, door armrests and
armrest section of the centre
console are finished in embossed
leather, while the gear lever or
selector and steering wheel rim
are in smooth -finish leather.
The three-spoke sports steering
wheel, black dial faces and inte -
rior trims in high -gloss black add
to the interior’s visual appeal.
P o r s c h e C o m m u n i c a t i o n Manage-
ment (PCM, p. 108) with naviga -
tion module is fit ted as standard.
The BOSE® Surround Sound
System (p. 114) or the Burmester®
High-End Surround Sound System
(p. 116) are available as options.
The new Panamera and Panamera 4
models offer the best of both
worlds: performance and practi -
calit y. They are comfortable, luxu -
rious, fit for long journeys, and
every bit a Porsche.
Interior of the Panamera in Luxor Beige
Panamera 4 with 19 - inch Panamera Design wheels, Panamera with 20 - inch 911 Turbo II wheels

· 36 ·· 37 ·

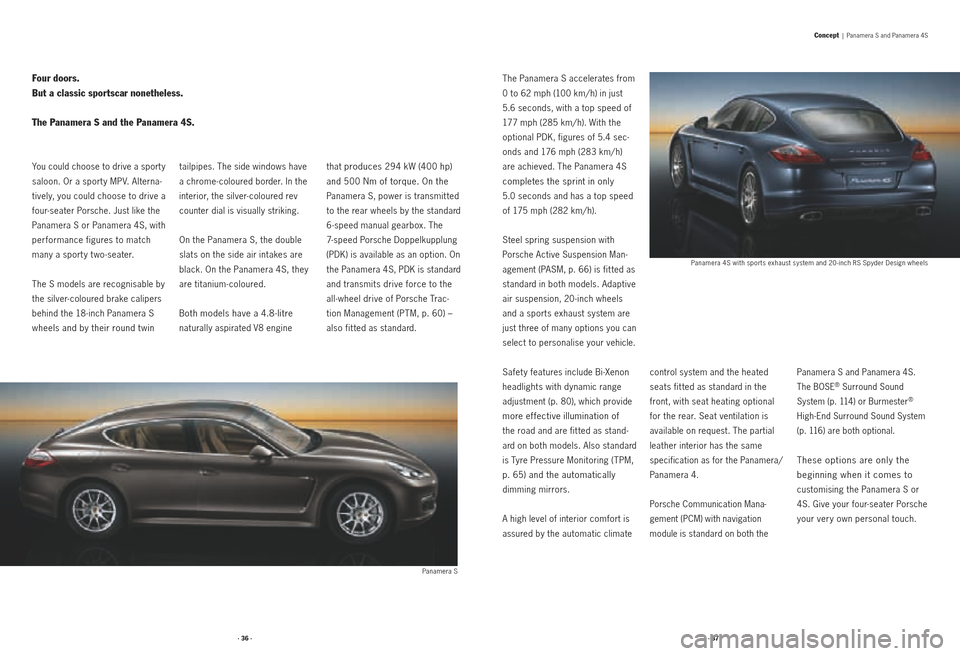

You could choose to drive a sport y
saloon. Or a sport y MPV. Alterna -
tively, you could choose to drive a
four-seater Porsche. Just like the
Panamera S or Panamera 4S, with
per formance figures to match
many a sport y t wo -seater.
The S models are recognisable by
the silver- coloured brake calipers
behind the 18-inch Panamera S
wheels and by their round t win
Four doors.
But a classic sportscar nonetheless.
The Panamera S and the Panamera 4S.
tailpipes. The side windows have
a chrome- coloured border. In the
interior, the silver- coloured rev
counter dial is visually striking.
On the Panamera S, the double
slats on the side air intakes are
black. On the Panamera 4S, they
are titanium-coloured.
Both models have a 4.8-litre
naturally aspirated V8 engine that
produces 294 kW (400 hp)

and 500 Nm of torque. On the
Panamera S, power is transmit ted
to the rear wheels by the standard
6 -speed manual gearbox. The
7-speed Porsche Doppelkupplung
(PDK) is available as an option. On
the Panamera 4S, PDK is standard
and transmits drive force to the
all-wheel drive of Porsche Trac-
tion Management (PTM, p. 60) –
also fit ted as standard. The Panamera S accelerates from
0 to 62 mph (100 km/ h) in just
5.6 seconds, with a top speed of
177 mph (285 km/ h). With the
optional PDK, figures of 5.4
sec
-
onds and 176 mph (283 km/ h)
are
achieved. The Panamera 4S
completes the sprint in only
5.0 seconds and has a top speed
of 175 mph (282 km/ h).
Steel spring suspension with
Porsche Active Suspension Man -
agement
(PASM, p. 66) is fit ted as
standard in both models. Adaptive
air suspension, 20 -inch wheels
and a sports exhaust system are
just three of many options you can
select to personalise your vehicle.
Safet y features include Bi-Xenon
headlights with dynamic range
adjustment (p. 80), which provide
more effective illumination of
the road and are fit ted as stand -
ard on both models. Also standard
is Tyre Pressure Monitoring (TPM,
p. 65) and the automatically
dimming mirrors.
A high level of interior comfort is
assured by the automatic climate control system and the heated
seats fit ted as standard in the
front, with seat heating optional
for the rear. Seat ventilation is
available on request. The partial
leather interior has the same
specification as for the Panamera/
Panamera 4.
Porsche Communication Mana -
gement (PCM) with navi gation
module is standard on both the Panamera S and Panamera 4S.
The BOSE
® Surround Sound

System (p. 114) or Burmester
®
High-End Surround Sound System
(p. 116) are both optional.
These options are only the
be ginning when it comes to

customising the Panamera S or
4S. Give your four-seater Porsche
your ver y own personal touch.
Panamera S Panamera 4S with sports exhaust system and 20 - inch RS Spyder Design wheels
Concept
| Panamera S and Panamera 4S

· 50 ·· 51 ·
SPORT button.
All Panamera models are
equipped with the SPORT but ton
as standard. This feature enables
the driver to vary the engine
characteristics and, in vehicles
with PASM, the suspension setup.
In vehicles with Porsche Doppel-
kupplung (PDK), the SPORT
but ton can be used to select a
sportier gearshif t strategy. For
more information, please refer
to page 74.
Auto start/stop function (only
in conjunction with Porsche
Doppelkupplung, PDK).
Silence: the t ypical stationary
noise. If, for example, you stop at
traf fic lights with your foot on
the brake pedal, the Auto start /
stop function will automatically
stop the engine. This fuel -saving
system restarts the engine as
soon as you release the brakes.
A key advantage is that there is
no need for you to change your
driving habits. You can simply
carry on as normal. All audio and
communication systems remain
switched on and the climate
control continues to maintain your
selected temperature, despite the
engine being switched of f. The
engine restarts if more power or
extra cooling output is required.
The Auto start /stop function
can be activated and deactivated
using a separate but ton. The
function may remain inactive under
particular circumstances, e.g.
very high outside temperatures,
on extreme uphill gradients, or if
bat tery charge is low.
The starter has been modified to
meet the increased requirements
demanded by this function and the bat tery is continuously moni
-
tored for the level of charge and
condition. The bat tery and starter
are consumable components and
are subject to an increased rate
of wear in the event of frequent
engine stopping.
Fuel economy is further improved
by electrical system recuperation,
whereby the bat tery is charged
predominantly under braking.
Under acceleration, on the other
hand, the alternator’s charging
current is reduced so that the
engine does not need to work as
hard to charge the bat tery.
Performance | Engines
With millisecond precision, DFI
injects fuel at up to 120 bar di rect -
l y
into the combustion chamber
by means of electromagnetically
actuated injection valves.
The spray and cone angles have
been optimised for torque, power
output, fuel consumption and
emissions by enabling a homoge -
neous distribution of the air/fuel
mixture, and, therefore, ef fective combustion. At up to 3,500 rpm,
the engine operates with dual
injection for faster heating of the
cataly tic converters af ter a cold
start and for greater torque in the
upper load range.
DFI improves the internal cooling
of the combustion chamber by
having the mixture prepared
direct
ly in the cylinder. This allows
for a higher compression ratio, which helps to deliver more out
-
put at the same time as enhanced
engine ef ficiency. Injection is
regulated by the electronic engine
management system and emis-
sions are monitored by the stereo
Lambda sensors, thus helping to
protect the environment.
A sense of relaxation is felt especially
after a period of intense pressure.
Direct fuel injection (DFI).

· 92 ·· 93 ·

concerned, we are already among
those manufacturers achieving
the lowest CO2 em issio ns. T h is
has been achieved through the
new ef ficient engine technology
(e.g. by DFI and VarioCam Plus),
light weight construction, optimum
aerodynamics and low rolling
resistance. This high level of environmental
responsibilit y is clearly demon
-
strated by our approach to envi -
ronmental management at the
Porsche Development Centre in
Weissach. Here, all technological
developments are carried out
with environmental protection in
mind. The goal is pure perform -
ance – but not at the expense of
the environment. A goal achieved
by the Panamera.
Fuel economy and emission
control.
Vehicles manufactured by Porsche
demonstrate that even high-
performance sportscars can
achieve moderate fuel consump -
tion and
exhaust emission values
in their
respective categor y.
The balance is exemplary: the
Panamera, Panamera 4 and
Panamera Turbo comply with the
Euro 5 emission standard in
Europe and the LEV regulations in
the USA, the Panamera S and
Panamera 4S meet the require -
ments of EU 5 and ULEV.
This is achieved through the use
of fuel- ef ficient technologies such
as direct fuel injection (DFI, p. 51)
and VarioCam Plus (p. 52).
Efficient emission control is
achieved by a t wo -stage cascade-
t ype cataly tic converter, which
comprises t wo monoliths arranged
in series. These specially coated
substrates contain ultra-fine honey -
comb
channels in which pollutants
are converted as exhaust gas
passes through.
The stereo Lambda control circuitr y
controls and monitors each cylin -
der bank separately. For each
exhaust tract, oxygen sensors
regulate the composition of the
exhaust gas, while another Lambda
s
ensor on each cylinder bank
monitors pollutant conversion in
the respective cataly tic converter.**
Environmental protection.
In an era of intensif ying debate
about global climate change and
CO
2 emissions, every automotive manufacturer is asking what it has
to of fer in terms of environmental
protection. Our answer has long
been the same: maximum effi
-
ciency. Porsche has been reducing the
CO
2 emissions of its vehicles
by an average of around 1.7 %*
every year for the past 15 years.
As far as engine output is
As a Panamera driver, you are responsible for four people.
We are responsible for everyone else.
Porsche and the environment.
Balance | Environment
* The stated reduction in fuel consumption
has been calculated from the NEDC (New
European Drive Cycle) fuel consumption
figures for the respective model years
of the vehicles and in relation to the
applicable European legislation.
** Not in markets with leaded fuel.

· 118 ·· 119 ·
Personality | Comfort
Climate control.
Climate control, with zonal regula -
tion in the front compartment, is
standard in all models. Tempera -
ture and airflow volume, speed
and direction can therefore be set
individually for the driver and front
passenger seat positions. An
active carbon filter traps particles,
pollen and odours and an auto -
matic air- recirculation function permanently monitors air qualit y,
reduces humidit y and switches
from fresh to recirculated air
when required. Even the glove
compartment is actively cooled
when necessary. With the ignition
switched of f, it is also possible
to use the residual heat of the
engine to heat the passenger
compartment for up to 20 min
-
utes. Four-zone climate control is avail
-
able for all models on request.
With this option, the driver has
access to separate controls for
both seat positions in the rear.
A control panel on the rear centre
console also enables the rear
passengers to select their own
climate control set tings for their
respective seat position, inde -
pendently of the set tings in the
front compartment.
Thermally and noise insulated
glass.
All Panamera models are equipped
as standard with tinted heat- insu -
lated glass and a grey top -tint
on the windscreen. Available as
an option is a thermally and noise
insulated glass for all round more
ef ficient reflection of infrared
radiation. Enjoy an even more pleasant climate and peace

and quiet in the passenger com -
partment.
Water-repellent side windows.
The front side windows of the
Panamera model range have been
treated with a water- repellent
coating so that not only water but also dirt runs away more easily,
thereby providing optimum visibil
-
it y even in poor weather. (Note:
surface finish requires occasional
renewal depending on vehicle
usage.)
You don’t need us to reiterate the correlation
between comfort and convenience.
Additional comfort and convenience features go hand in hand.
Four-zone climate control Air vent in rear
Air vents in centre console Four-zone climate control in rear compartment

· 150 ·· 151 ·
– not available Optional equipment• Standard equipment A Available at no extra cost
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list. 8 -way power seats (rear) with seat ventilation and comfort headrests, large rear centre console
Interior.
•

Side airbags in the rear compartment •••• •565 90
•
Heated seats (front)
• • • • –342
10 6
• Heated seats (front and rear)
•••• •343 10 6
•
Seat ventilation (front)
•••••5 41 10 6
• Seat ventilation (front and rear)
•••••542 10 6
• ISOFIX child seat mounting points on front passenger seat
•••••899 10 4
•
Removable luggage compartment cover
•••••869 129
• Ski bag
•••••213 127
• Floor mats
• • • • •810
• Four-zone climate control
•••••576 11 8 , 1 5 0
• Auxiliary heating
1•••••8 51
• Fire extinguisher
•••••509
•
Large rear centre console
•• •••838 10 2, 15 0
•
Cooling compartment in the rear
•••••CZK
• Electric roll-up sunblind for behind rear compartment
•••••862 12 8
• Electric roll-up sunblind for rear side windows
•••••861
• Two fold- out cupholders above glove compartment A A A A A58510 0
Four-zone climate control
Panamera
Panamera 4
Panamera S
Panamera 4S
Panamera TurboI no.Page
Option
1 Available from 09/2010 at the earliest.

· 170 ·· 171 ·
Te r m Pa g e
A
Active bonnet system 89
Adaptive air suspension 68
Adaptive cruise control 122
Airbags 90
All-wheel drive 60
Anti-theft protection 125
Audio systems 108, 158
Auto start /stop function 50
A xle concept 64
B
BOSE® Surround
Sound System 114
Brakes 84
Burmester
® High - End
Surround Sound System 116
C
CD/ DVD autochanger 108, 109
Ceramic brake 86
Chassis 62
Child seats 104, 106
Climate control 118
C ol o u rs 132
Cruise control 122
D
Direct fuel injection (DFI) 51
E
Electronic engine
management 42
Emission control 93
Engineered safet y design 88
Engines 42
Environment 92
Exhaust system 53
Exhaust turbocharging 52
Exterior 22, 138
F
Factory collection 161
Fuel system 96
G
GPS navigation system 110
H
Headlight cleaning system 81
Headlights 80
Height adjustment 68
HomeLink
® (programmable
garage door opener) 120
I
Interior 26, 100, 133
Interior lighting 102
Interior packages 140, 152
L
Launch Control 76
Levelling system 68
Light-alloy construction 89
Lighting concept 80
Lights 80
Loading options 127
Luggage compartment 126
M
Manual gearbox 54
MP3 109, 112
Multifunction
steering wheel 58, 100
N
Navigation 110
O
Oil supply 42
On-board computer 104
P
Pa rk A ssist 120
Parking brake, electric 85
Pay l o a d 127
Personalisation 141
Porsche Active Suspension
Management (PASM) 66Porsche Ceramic Composite
Brake (PCCB)
86
Porsche Communication
Management (PCM) 108
Porsche Doppelkupplung
(PDK) 55
Porsche Dynamic Chassis
Control (PDCC) 70
Porsche Dynamic Light
System (PDLS) 83
Porsche Entry & Drive 124
Porsche Rear
Seat Entertainment 112
Porsche Side Impact
Protection System (POSIP) 90
Porsche Stabilit y
Management (PSM) 72
Porsche Torque
Vectoring Plus (PT V Plus) 70
Porsche Traction
Management (PTM) 60
Power output 44, 47, 48
Privacy glazing 103
R
Radio 108
Rain sensor 120
Rear lid 131Recycling
94
Reversing camera 121
Roll-up sunblind 103, 129
Roof transport systems 131
S
Safety 80
S e a t s 10 4
S e rv ici ng 97
Servotronic 64
Slide/tilt sunroof 123
SPORT but ton 50, 74
Sport Chrono Packages 74
Sports exhaust system 53, 145
Steering 64
T
Technical data 166
Thermally insulated glass 119
Touchscreen 108
Towbar system 131
Tra n s m i ssi o n 5 4
T V tuner 110
Tyre Pressure
Monitoring (TPM) 65
U
Universal audio interface 112
V
V6 engines 44
V8 engines 47
VarioCam Plus 52
Voice control system 110
W
Water-repellent
side windows 119
Wheels
6

5, 146
IndexIndex
