CD player Ram 1500 2009 User Guide

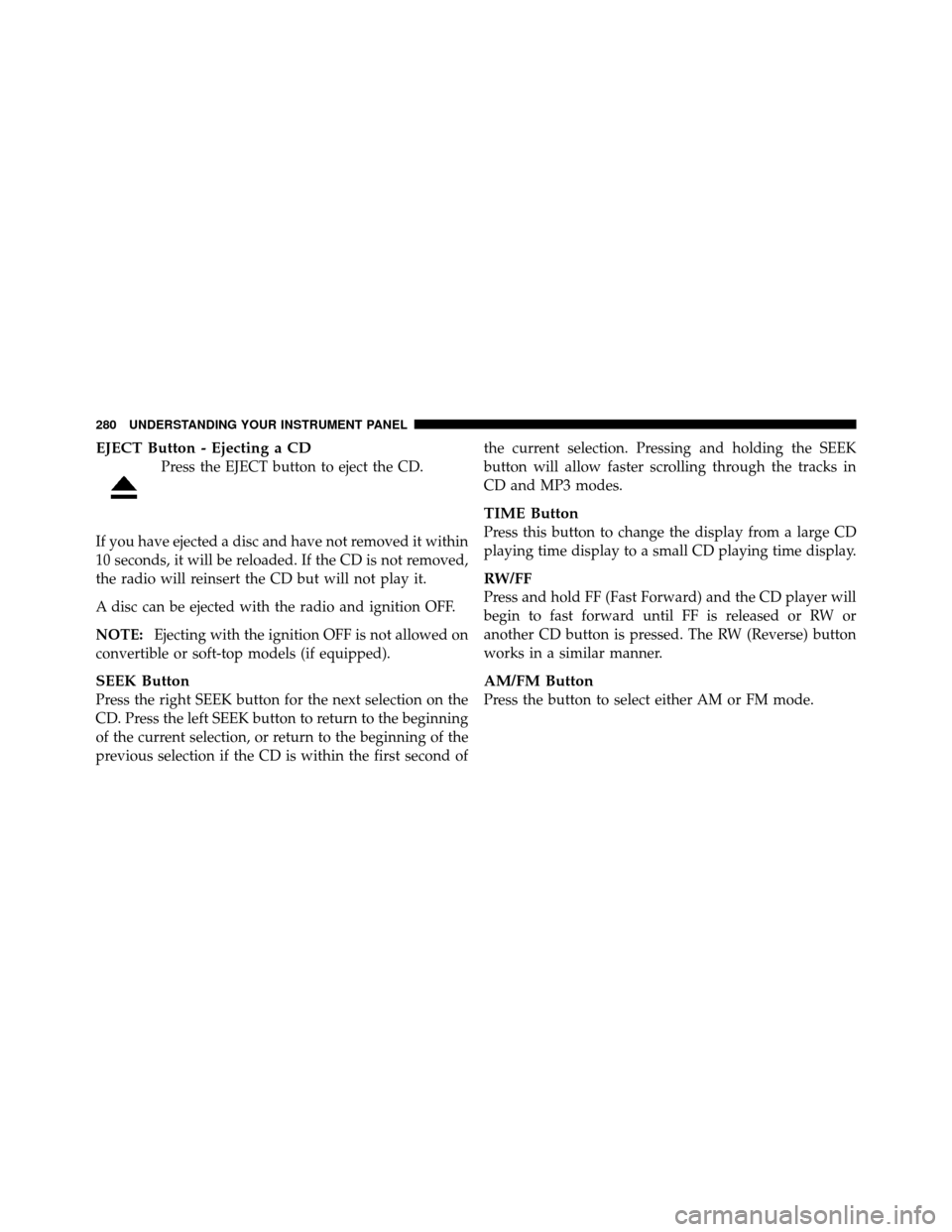

EJECT Button - Ejecting a CD
Press the EJECT button to eject the CD.
If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.
A disc can be ejected with the radio and ignition OFF.
NOTE: Ejecting with the ignition OFF is not allowed on
convertible or soft-top models (if equipped).
SEEK Button
Press the right SEEK button for the next selection on the
CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of the current selection. Pressing and holding the SEEK
button will allow faster scrolling through the tracks in
CD and MP3 modes.
TIME Button
Press this button to change the display from a large CD
playing time display to a small CD playing time display.
RW/FF
Press and hold FF (Fast Forward) and the CD player will
begin to fast forward until FF is released or RW or
another CD button is pressed. The RW (Reverse) button
works in a similar manner.
AM/FM Button
Press the button to select either AM or FM mode.
280 UNDERSTANDING YOUR INSTRUMENT PANEL

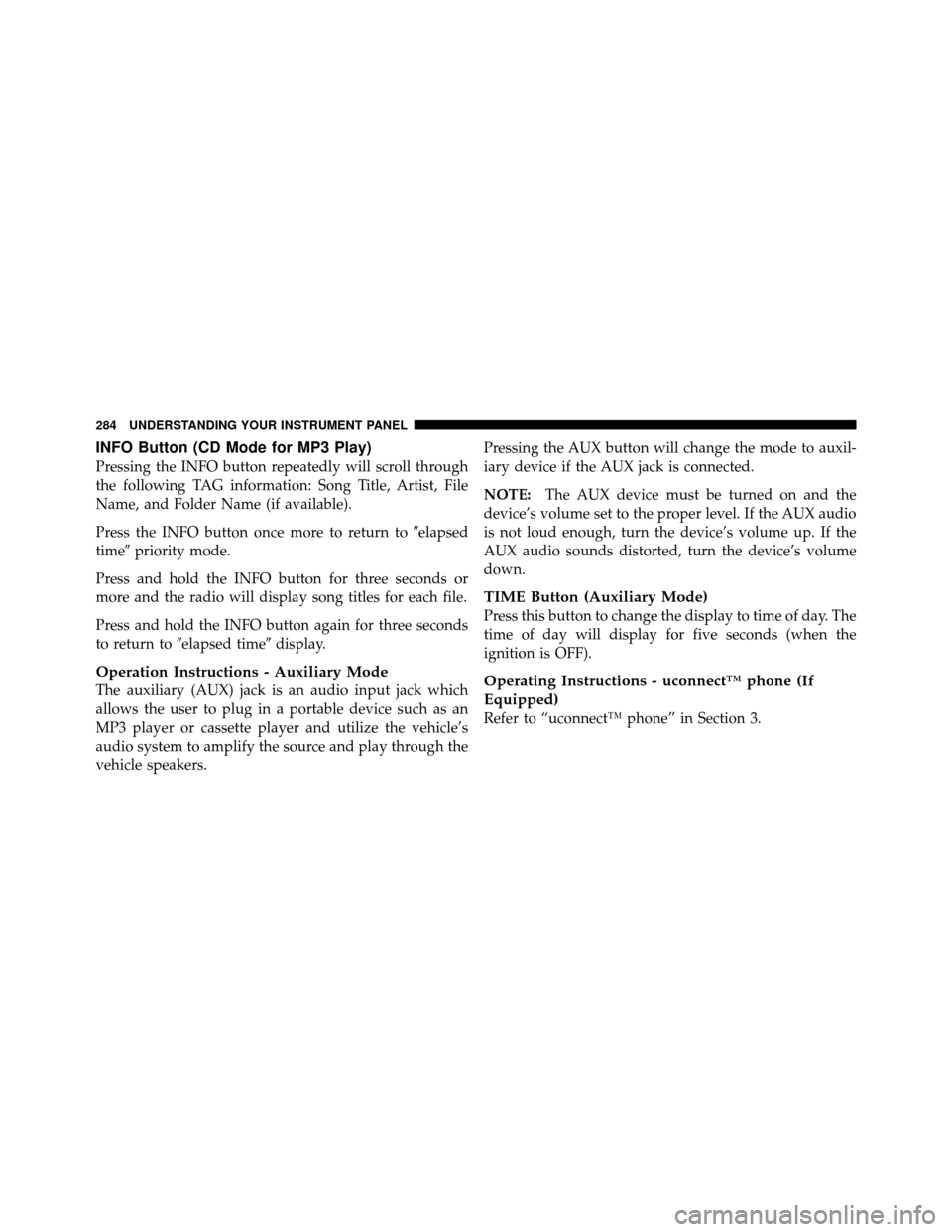

INFO Button (CD Mode for MP3 Play)
Pressing the INFO button repeatedly will scroll through
the following TAG information: Song Title, Artist, File
Name, and Folder Name (if available).
Press the INFO button once more to return toelapsed
time priority mode.
Press and hold the INFO button for three seconds or
more and the radio will display song titles for each file.
Press and hold the INFO button again for three seconds
to return to elapsed time display.
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack which
allows the user to plug in a portable device such as an
MP3 player or cassette player and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers. Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.
NOTE:
The AUX device must be turned on and the
device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down.
TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when the
ignition is OFF).
Operating Instructions - uconnect™ phone (If
Equipped)
Refer to “uconnect™ phone” in Section 3.
284 UNDERSTANDING YOUR INSTRUMENT PANEL

VIDEO ENTERTAINMENT SYSTEM (VES)™ — IF
EQUIPPEDThe optional Video Entertainment System (VES)™ con-
sists of a DVD player and LCD (liquid crystal display)
screen, a battery-powered remote control, and two head-
sets. The system is located in the headliner behind the
front row seat. Refer to your VES™ User’s Manual for
detailed operating instructions.
Video Entertainment System (VES)™
290 UNDERSTANDING YOUR INSTRUMENT PANEL

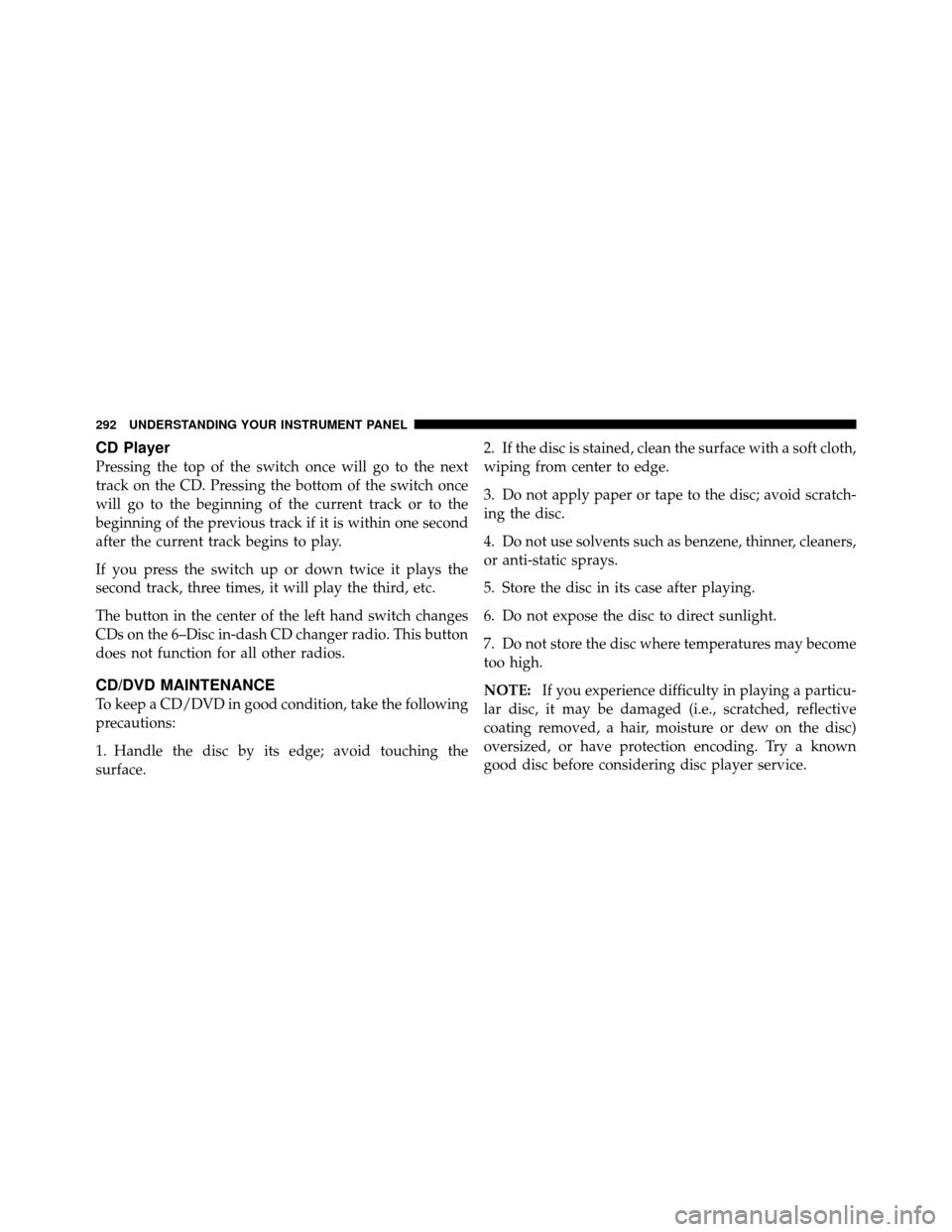

CD Player
Pressing the top of the switch once will go to the next
track on the CD. Pressing the bottom of the switch once
will go to the beginning of the current track or to the
beginning of the previous track if it is within one second
after the current track begins to play.
If you press the switch up or down twice it plays the
second track, three times, it will play the third, etc.
The button in the center of the left hand switch changes
CDs on the 6–Disc in-dash CD changer radio. This button
does not function for all other radios.
CD/DVD MAINTENANCE
To keep a CD/DVD in good condition, take the following
precautions:
1. Handle the disc by its edge; avoid touching the
surface.2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.
3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.
4. Do not use solvents such as benzene, thinner, cleaners,
or anti-static sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.
NOTE:
If you experience difficulty in playing a particu-
lar disc, it may be damaged (i.e., scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.
292 UNDERSTANDING YOUR INSTRUMENT PANEL

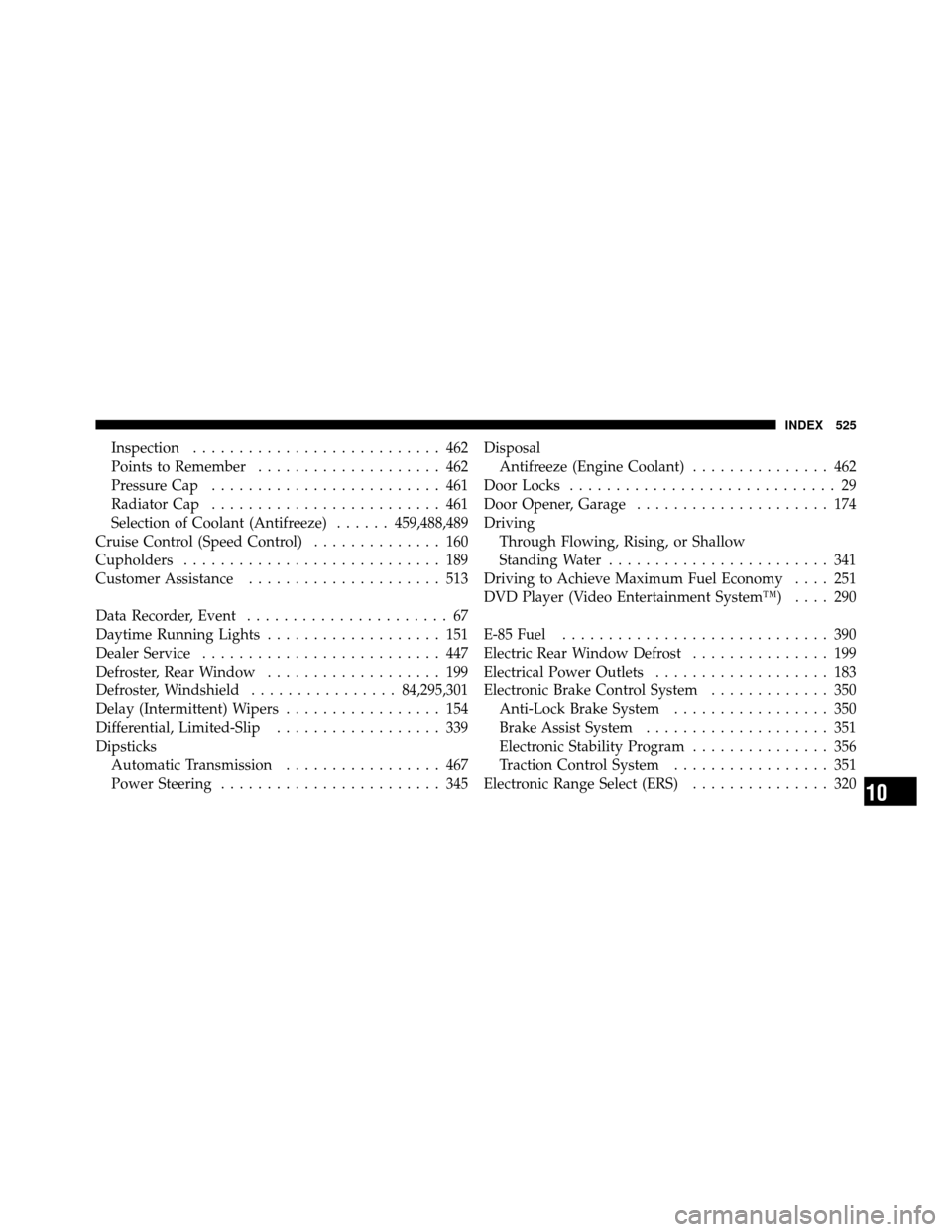

Inspection........................... 462
Points to Remember .................... 462
Pressure Cap ......................... 461
Radiator Cap ......................... 461
Selection of Coolant (Antifreeze) ......459,488,489
Cruise Control (Speed Control) .............. 160
Cupholders ............................ 189
Customer Assistance ..................... 513
Data Recorder, Event ...................... 67
Daytime Running Lights ................... 151
Dealer Service .......................... 447
Defroster, Rear Window ................... 199
Defroster, Windshield ................84,295,301
Delay (Intermittent) Wipers ................. 154
Differential, Limited-Slip .................. 339
Dipsticks Automatic Transmission ................. 467
Power Steering ........................ 345 Disposal
Antifreeze (Engine Coolant) ............... 462
Door Locks ............................. 29
Door Opener, Garage ..................... 174
Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 341
Driving to Achieve Maximum Fuel Economy .... 251
DVD Player (Video Entertainment System™) .... 290
E-85 Fuel ............................. 390
Electric Rear Window Defrost ............... 199
Electrical Power Outlets ................... 183
Electronic Brake Control System ............. 350
Anti-Lock Brake System ................. 350
Brake Assist System .................... 351
Electronic Stability Program ............... 356
Traction Control System ................. 351
Electronic Range Select (ERS) ............... 320
10
INDEX 525
