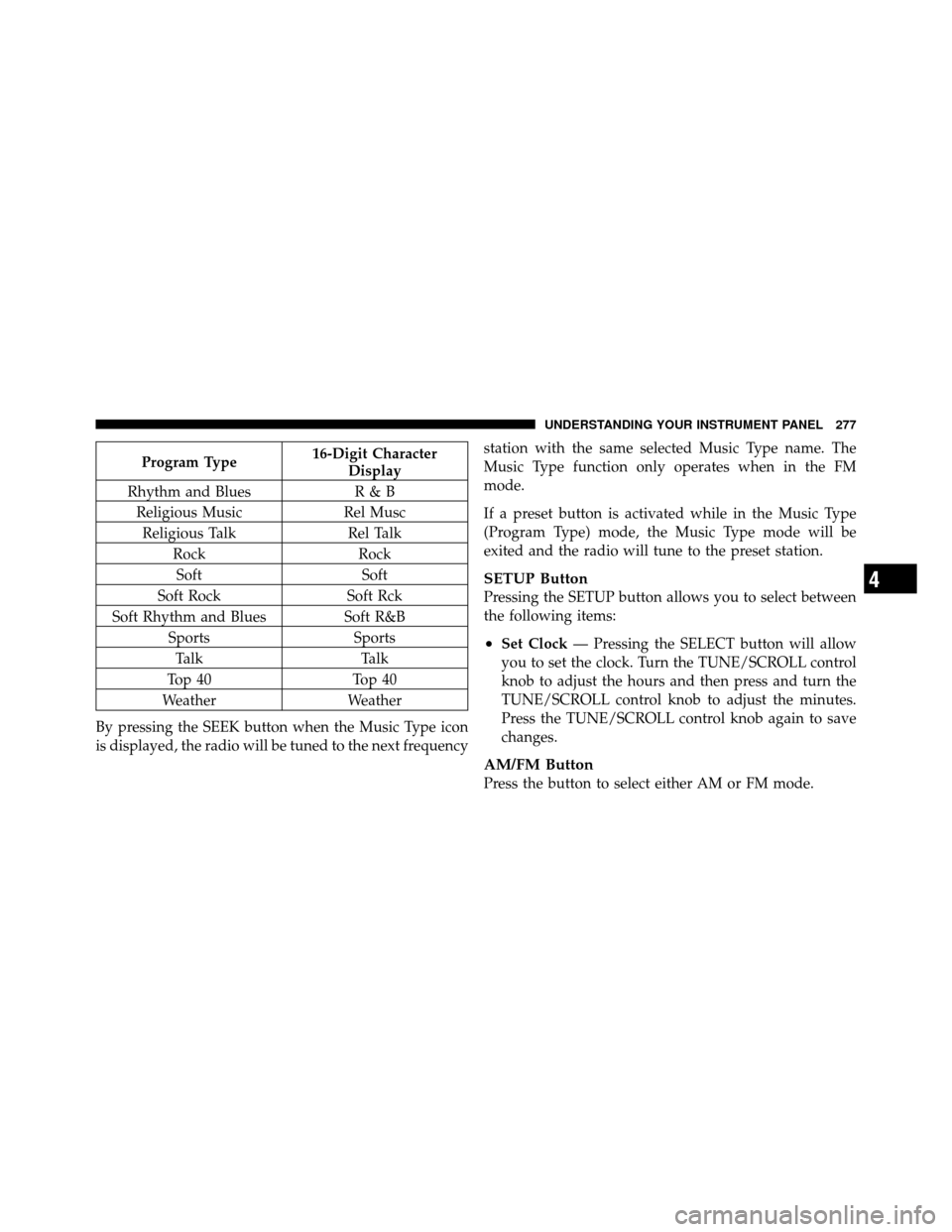

set clock Ram 1500 2009 User Guide

Program Type16-Digit Character
Display
Rhythm and Blues R & B
Religious Music Rel Musc
Religious Talk Rel Talk
Rock Rock
Soft Soft
Soft Rock Soft Rck
Soft Rhythm and Blues Soft R&B
Sports Sports
Talk Talk
Top 40 Top 40
Weather Weather
By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.
SETUP Button
Pressing the SETUP button allows you to select between
the following items:
•Set Clock
— Pressing the SELECT button will allow
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
AM/FM Button
Press the button to select either AM or FM mode.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 277

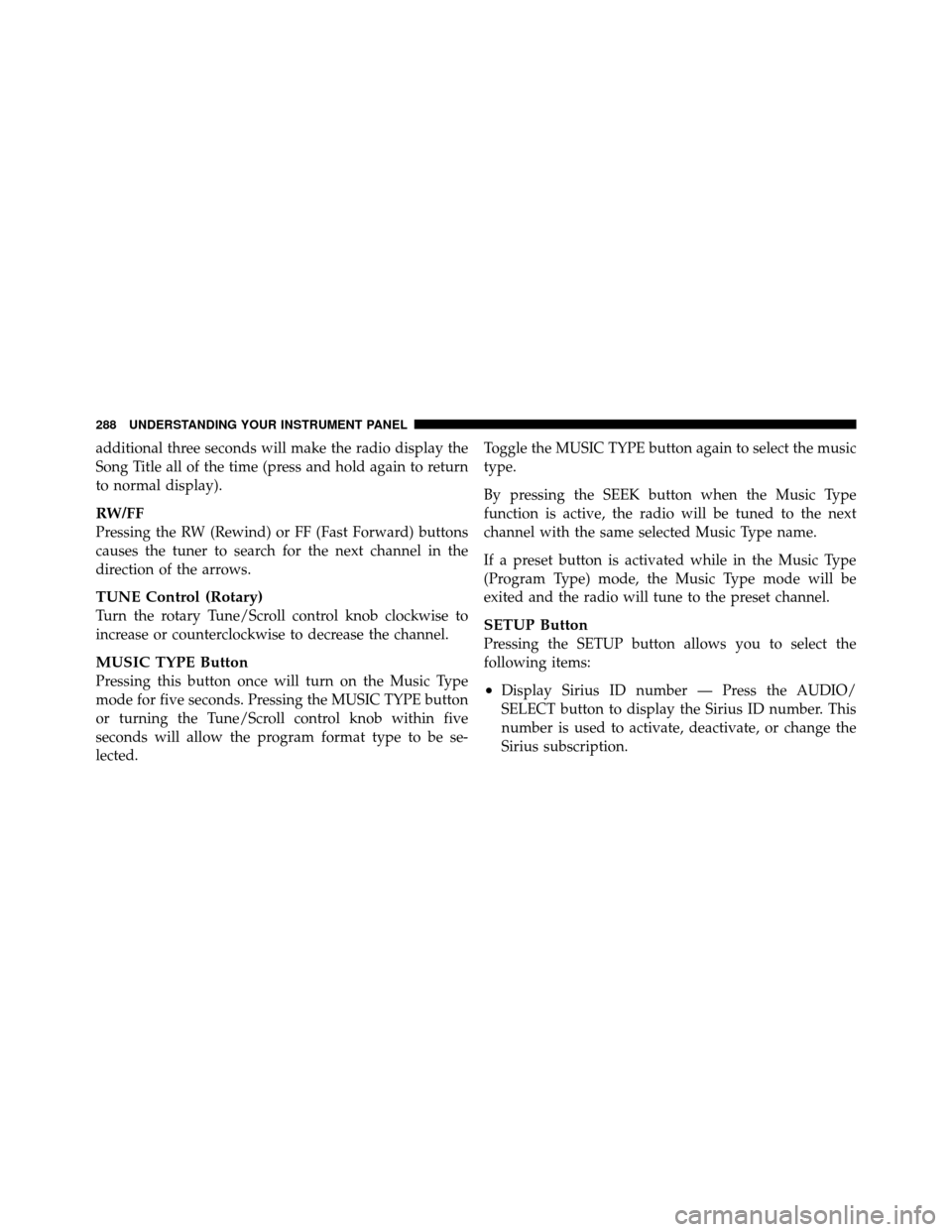

additional three seconds will make the radio display the
Song Title all of the time (press and hold again to return
to normal display).
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next channel in the
direction of the arrows.
TUNE Control (Rotary)
Turn the rotary Tune/Scroll control knob clockwise to
increase or counterclockwise to decrease the channel.
MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the Tune/Scroll control knob within five
seconds will allow the program format type to be se-
lected.Toggle the MUSIC TYPE button again to select the music
type.
By pressing the SEEK button when the Music Type
function is active, the radio will be tuned to the next
channel with the same selected Music Type name.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset channel.
SETUP Button
Pressing the SETUP button allows you to select the
following items:
•Display Sirius ID number — Press the AUDIO/
SELECT button to display the Sirius ID number. This
number is used to activate, deactivate, or change the
Sirius subscription.
288 UNDERSTANDING YOUR INSTRUMENT PANEL

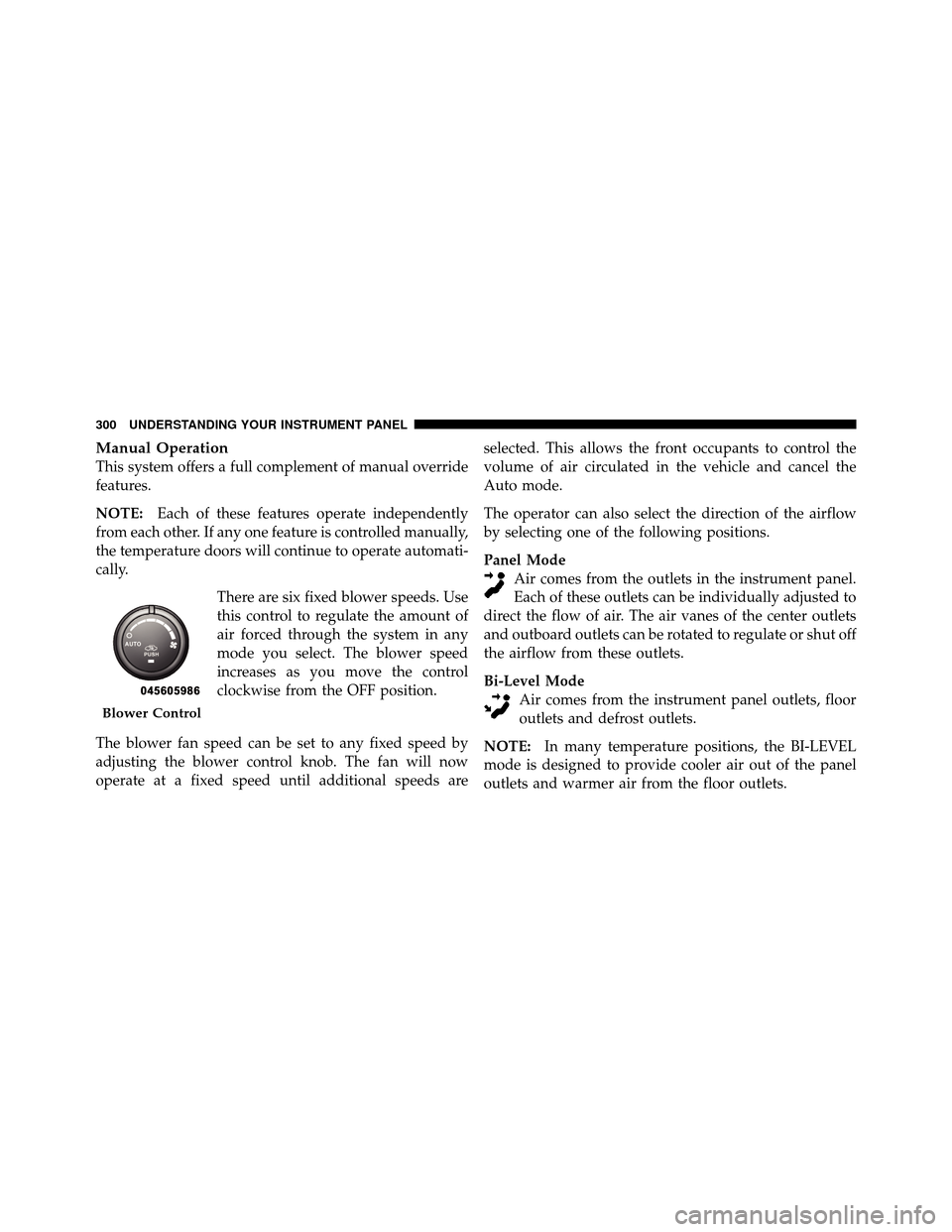

Manual Operation
This system offers a full complement of manual override
features.
NOTE:Each of these features operate independently
from each other. If any one feature is controlled manually,
the temperature doors will continue to operate automati-
cally.
There are six fixed blower speeds. Use
this control to regulate the amount of
air forced through the system in any
mode you select. The blower speed
increases as you move the control
clockwise from the OFF position.
The blower fan speed can be set to any fixed speed by
adjusting the blower control knob. The fan will now
operate at a fixed speed until additional speeds are selected. This allows the front occupants to control the
volume of air circulated in the vehicle and cancel the
Auto mode.
The operator can also select the direction of the airflow
by selecting one of the following positions.
Panel Mode
Air comes from the outlets in the instrument panel.
Each of these outlets can be individually adjusted to
direct the flow of air. The air vanes of the center outlets
and outboard outlets can be rotated to regulate or shut off
the airflow from these outlets.
Bi-Level Mode Air comes from the instrument panel outlets, floor
outlets and defrost outlets.
NOTE: In many temperature positions, the BI-LEVEL
mode is designed to provide cooler air out of the panel
outlets and warmer air from the floor outlets.
Blower Control
300 UNDERSTANDING YOUR INSTRUMENT PANEL

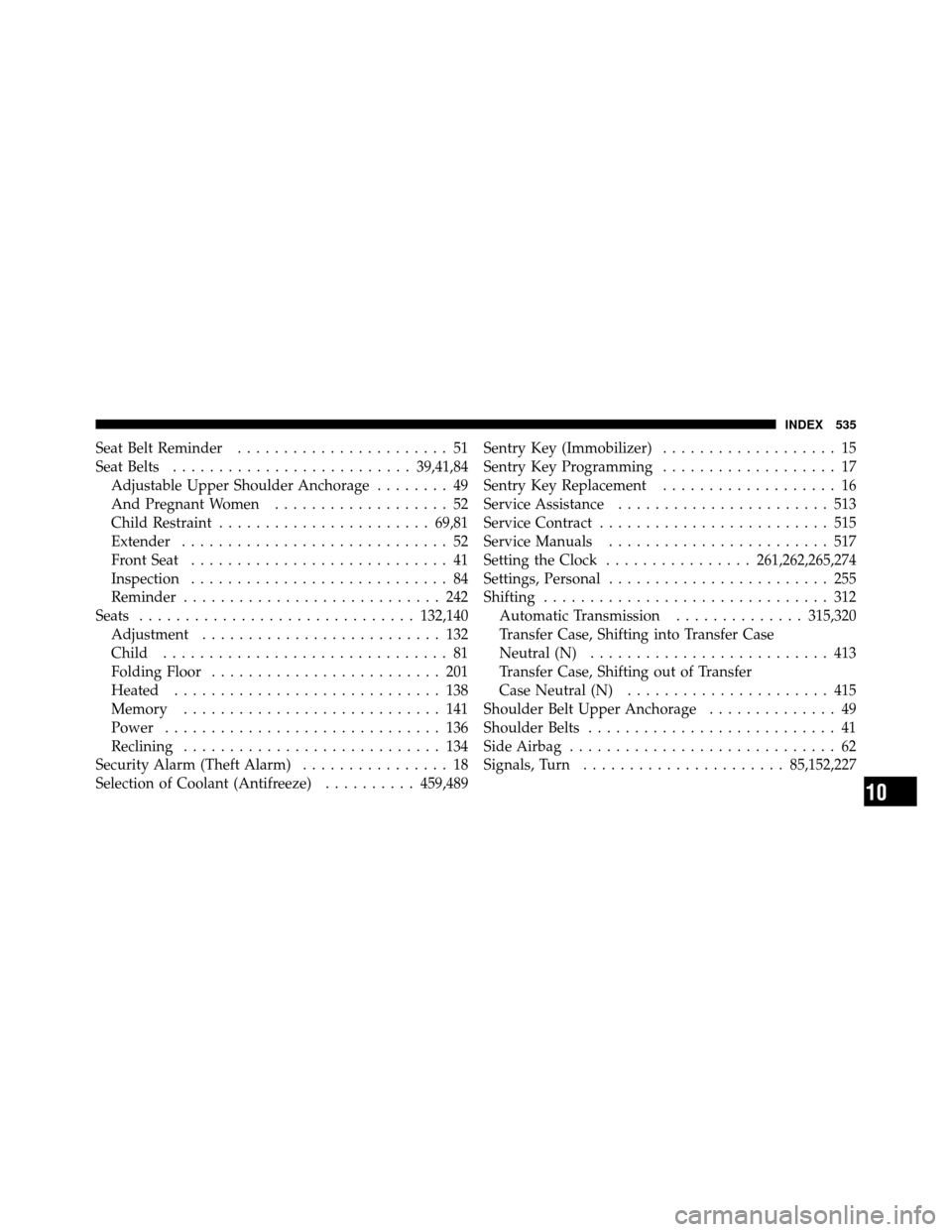

Seat Belt Reminder....................... 51
Seat Belts .......................... 39,41,84
Adjustable Upper Shoulder Anchorage ........ 49
And Pregnant Women ................... 52
Child Restraint ....................... 69,81
Extender ............................. 52
Front Seat ............................ 41
Inspection ............................ 84
Reminder ............................ 242
Seats .............................. 132,140
Adjustment .......................... 132
Child ............................... 81
Folding Floor ......................... 201
Heated ............................. 138
Memory ............................ 141
Power .............................. 136
Reclining ............................ 134
Security Alarm (Theft Alarm) ................ 18
Selection of Coolant (Antifreeze) ..........459,489Sentry Key (Immobilizer)
................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 513
Service Contract ......................... 515
Service Manuals ........................ 517
Setting the Clock ................ 261,262,265,274
Settings, Personal ........................ 255
Shifting ............................... 312
Automatic Transmission ..............315,320
Transfer Case, Shifting into Transfer Case
Neutral (N) .......................... 413
Transfer Case, Shifting out of Transfer
Case Neutral (N) ...................... 415
Shoulder Belt Upper Anchorage .............. 49
Shoulder Belts ........................... 41
Side Airbag ............................. 62
Signals, Turn ...................... 85,152,227
10
INDEX 535
