Ram 1500 2009 Owner's Manual

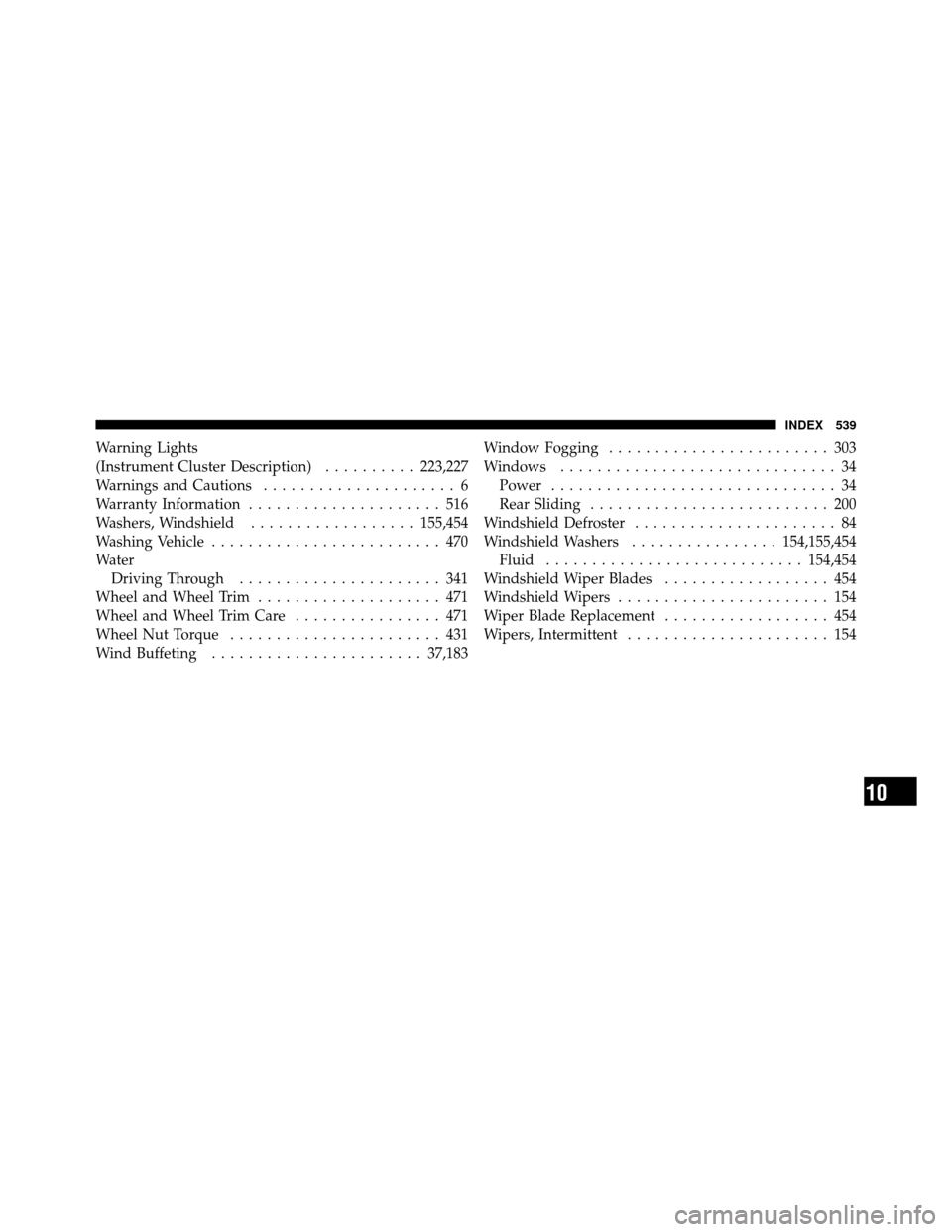

Warning Lights
(Instrument Cluster Description)..........223,227
Warnings and Cautions ..................... 6
Warranty Information ..................... 516
Washers, Windshield .................. 155,454
Washing Vehicle ......................... 470
Water Driving Through ...................... 341
Wheel and Wheel Trim .................... 471
Wheel and Wheel Trim Care ................ 471
Wheel Nut Torque ....................... 431
Wind Buffeting ....................... 37,183Window Fogging
........................ 303
Windows .............................. 34
Power ............................... 34
Rear Sliding .......................... 200
Windshield Defroster ...................... 84
Windshield Washers ................ 154,155,454
Fluid ............................ 154,454
Windshield Wiper Blades .................. 454
Windshield Wipers ....................... 154
Wiper Blade Replacement .................. 454
Wipers, Intermittent ...................... 154
10
INDEX 539

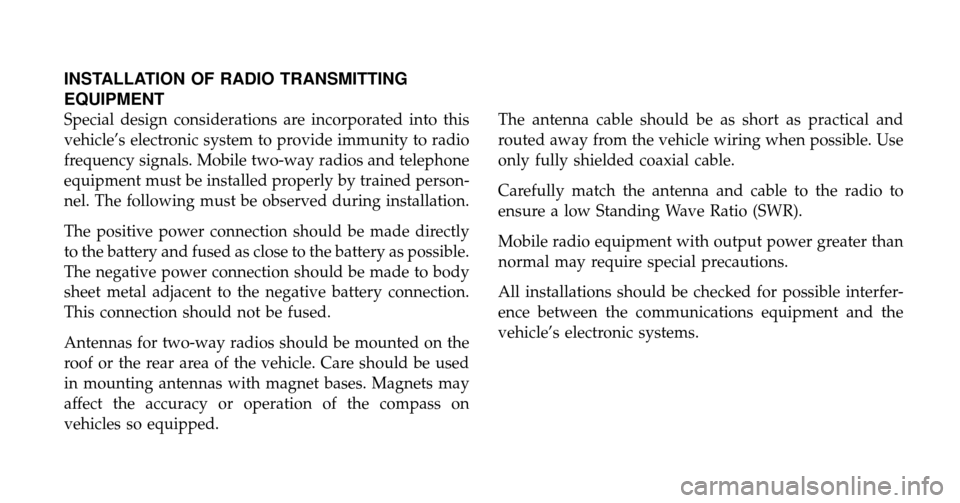

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.

2009
RAM
TRUCK
RAM TRUCK
Chrysler LLC
81-326-0931-R2Fourth EditionPrinted in U.S.A.
OWNER’S MANUAL
2009
