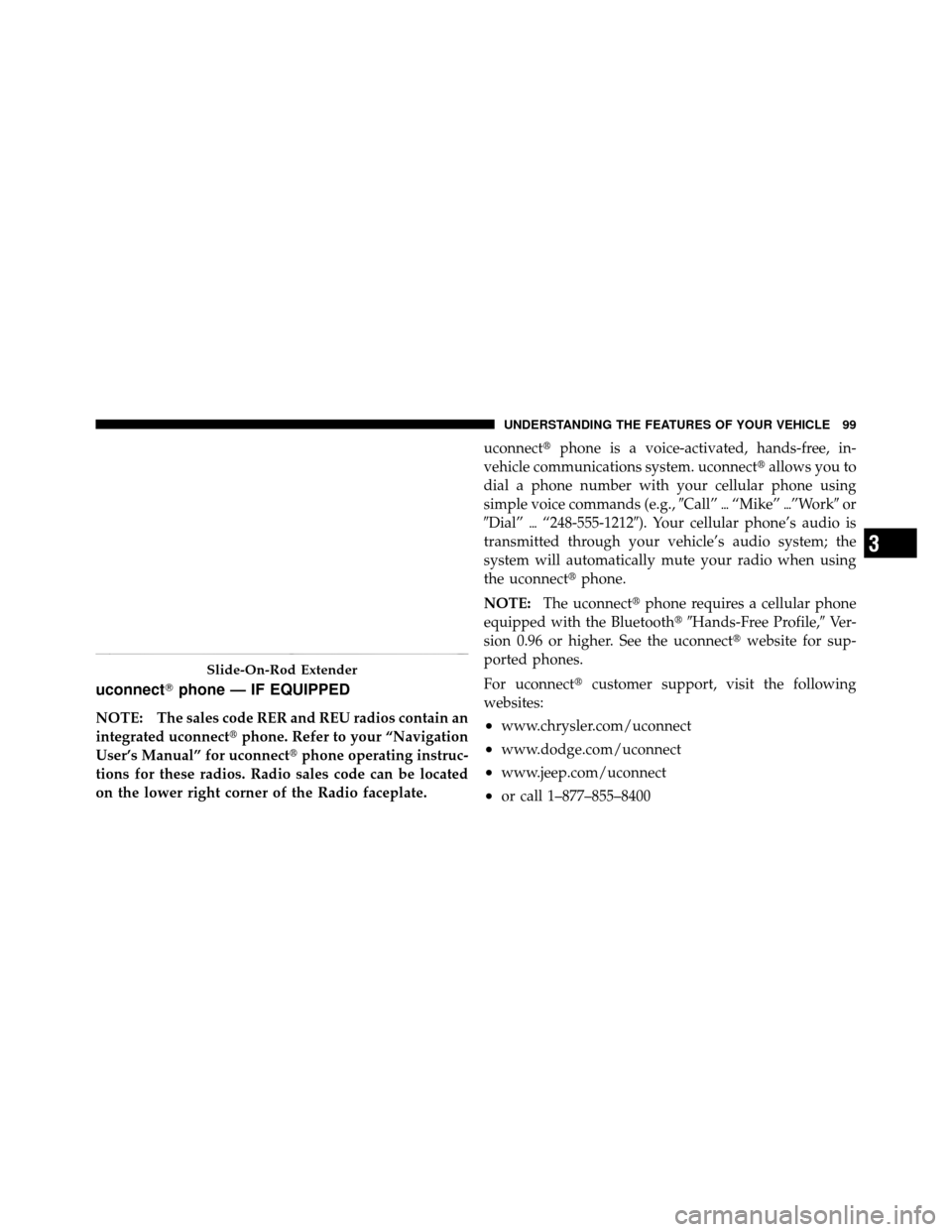

Page 101 of 543
uconnectphone — IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated uconnect phone. Refer to your “Navigation
User’s Manual” for uconnect phone operating instruc-
tions for these radios. Radio sales code can be located
on the lower right corner of the Radio faceplate. uconnect
phone is a voice-activated, hands-free, in-
vehicle communications system. uconnect allows you to
dial a phone number with your cellular phone using
simple voice commands (e.g., Call”“Mike” ”Work or
Dial” “248-555-1212). Your cellular phone’s audio is
transmitted through your vehicle’s audio system; the
system will automatically mute your radio when using
the uconnect phone.
NOTE: The uconnect phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the uconnect website for sup-
ported phones.
For uconnect customer support, visit the following
websites:•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
Slide-On-Rod Extender
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
Page 172 of 543
Turning the Rear Camera On or Off — With
Navigation Radio
1. Press themenuhard key.
2. Select system setup soft key.
3. Press the “camera setup” soft key.
4. Enable or disable the rear camera feature by selecting
enable rear camera in reverse soft key.
5. Press the “save” soft key.
6. When the vehicle is shifted into REVERSE, an image of
the rear of the vehicle will appear with a caution note to
check entire surroundings displayed across the top of
the screen. After five seconds this note will disappear.
7. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the navigation or audio screen
appears again.
Turning the Rear Camera On or Off — Without
Navigation Radio
1. Press the menuhard key.
2. Select system setup soft key.
3. Enable or disable the rear camera feature by selecting
enable rear camera in reverse soft key.
4. When the vehicle is shifted into REVERSE, an image of
the rear of the vehicle will appear with a caution note to
check entire surroundings displayed across the top of
the screen. After five seconds this note will disappear.
5. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the audio screen appears
again.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 258 of 543
Use the UP or DOWN button to display one of the
following choices.
Select Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the UP or DOWN button while in this display and scroll
through the language choices. Press the SELECT button
to select English, Spanish (Español), French (Français),
Italian (Italiano), German (Deutsch), and Dutch (Neder-
lands). Then, as you continue, the information will dis-
play in the selected language.
Nav–Turn By Turn
When this feature is selected, the navigation system
utilizes voice commands, guiding through the drive
route, mile by mile, turn-by-turn until the final destina-
tion is reached. To make your selection, press and release
the SELECT button until a check-mark appears next tothe feature showing the system has been activated or the
check-mark is removed, showing the system has been
deactivated.
Auto Lock Doors
When this feature is selected, all doors will lock auto-
matically when the vehicle reaches a speed of 15 mph
(24 km/h). To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated, or the
check-mark is removed showing the system has been
deactivated.
Auto Unlock Doors
When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the PARK
or NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the SELECT button
until a check-mark appears next to the feature showing
the system has been activated, or the check-mark is
removed showing the system has been deactivated.
256 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 262 of 543
and release the SELECT button until a check-mark ap-
pears next to the feature showing the system has been
activated or the check-mark is removed, showing the
system has been deactivated.
NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Easy Entry/Exit Seat” under “Driver
Memory Seat” in Section 3 of this manual for more
information.
Tilt Mirror In Reverse
When this feature is selected and the shift lever is placed
in reverse gear, the side mirrors tilt downward to allow
the driver to see into the previous blind spot and avoid
objects in close proximity to the rear of the vehicle. To
make your selection, press and release the SELECT
button until a check-mark appears next to the feature showing the system has been activated or the check-mark
is removed, showing the system has been deactivated.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
In warm weather, the driver vented seat feature will
automatically turn on when the remote start is activated.
These features will stay on through the duration of
remote start or until the key is turned to RUN. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed,
showing the system has been deactivated.
Display Units of Measure In
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
260 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 264 of 543
The REN and RER radios contain a CD/DVD player, USB
port, and a 30-gigabyte hard drive (HDD). Sirius Satellite
Radio is optional. The 6.5 in (16.5 cm) touch screen allows
for easy menu selection.
The RER radio also contains a Global Positioning System
(GPS)-based Navigation system.
Refer to your uconnecttunes (REN) or (RER) user’s
manual for detailed operating instructions.
Operating Instructions — Voice Recognition
System (VR) — If Equipped
For the radio, refer to “Voice Recognition System (VR)” in
Section 3.
Operating Instructions — uconnect phone — If
Equipped
Refer to “uconnect phone” in Section 3.
Clock Setting Procedure
uconnectgps — RER only
The GPS receiver used in this system is synchronized to
the time data being transmitted by the GPS satellite. The
satellite clock is Greenwich Mean Time (GMT). This is the
worldwide standard for time. This makes the system’s
clock very accurate once the appropriate time zone and
daylight savings information is set.
To Manually Set the Clock — RER/REN
1. Turn on the radio.
2. Touch the screen where the time is displayed.
3. Touch the screen where “User Clock” is displayed. The
clock setting menu will appear on the screen.
262 UNDERSTANDING YOUR INSTRUMENT PANEL

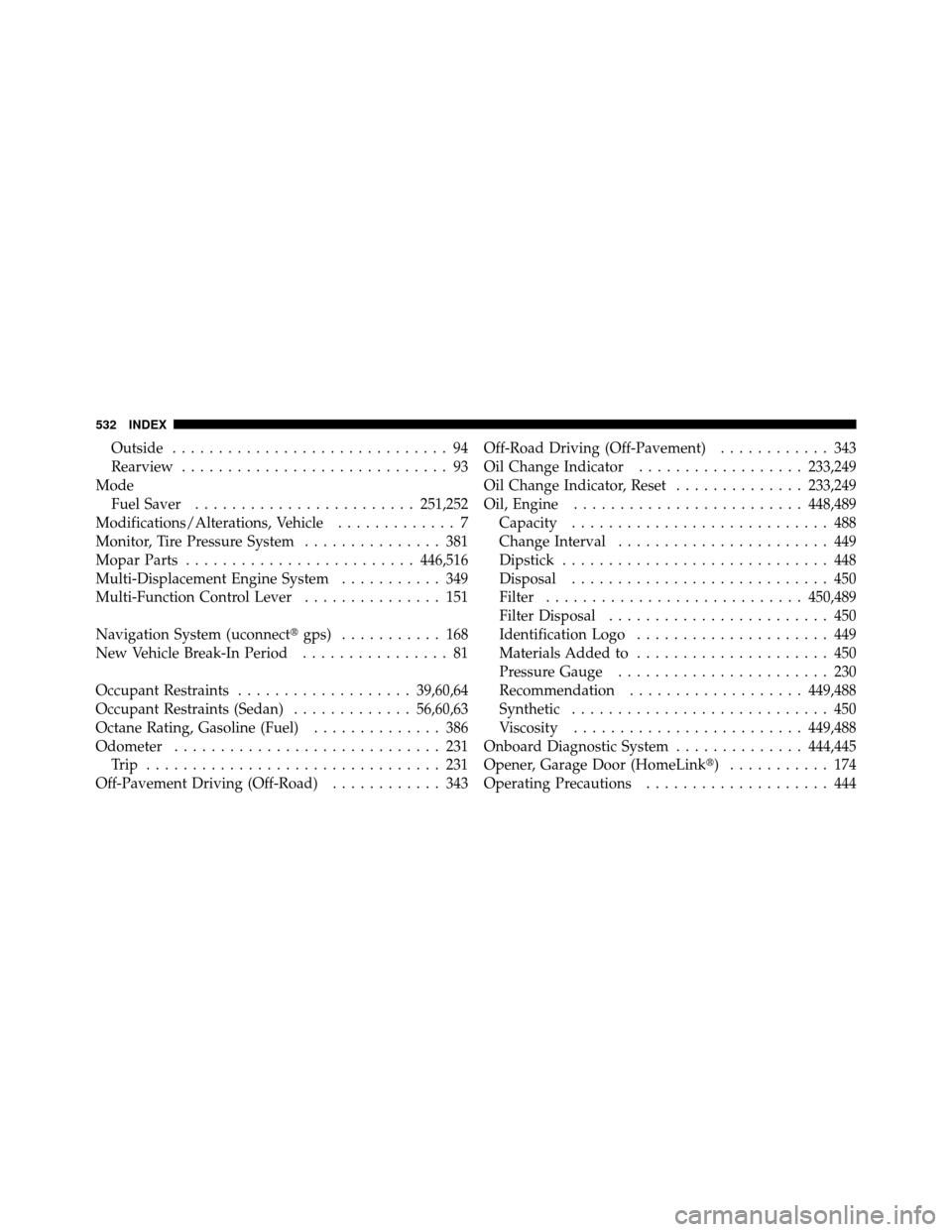

Page 534 of 543
Outside.............................. 94
Rearview ............................. 93
Mode Fuel Saver ........................ 251,252
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 381
Mopar Parts ......................... 446,516
Multi-Displacement Engine System ........... 349
Multi-Function Control Lever ............... 151
Navigation System (uconnect gps)........... 168
New Vehicle Break-In Period ................ 81
Occupant Restraints ................... 39,60,64
Occupant Restraints (Sedan) .............56,60,63
Octane Rating, Gasoline (Fuel) .............. 386
Odometer ............................. 231
Trip ................................ 231
Off-Pavement Driving (Off-Road) ............ 343Off-Road Driving (Off-Pavement)
............ 343
Oil Change Indicator .................. 233,249
Oil Change Indicator, Reset ..............233,249
Oil, Engine ......................... 448,489
Capacity ............................ 488
Change Interval ....................... 449
Dipstick ............................. 448
Disposal ............................ 450
Filter ............................ 450,489
Filter Disposal ........................ 450
Identification Logo ..................... 449
Materials Added to ..................... 450
Pressure Gauge ....................... 230
Recommendation ................... 449,488
Synthetic ............................ 450
Viscosity ......................... 449,488
Onboard Diagnostic System ..............444,445
Opener, Garage Door (HomeLink) ........... 174
Operating Precautions .................... 444
532 INDEX
