Page 171 of 636

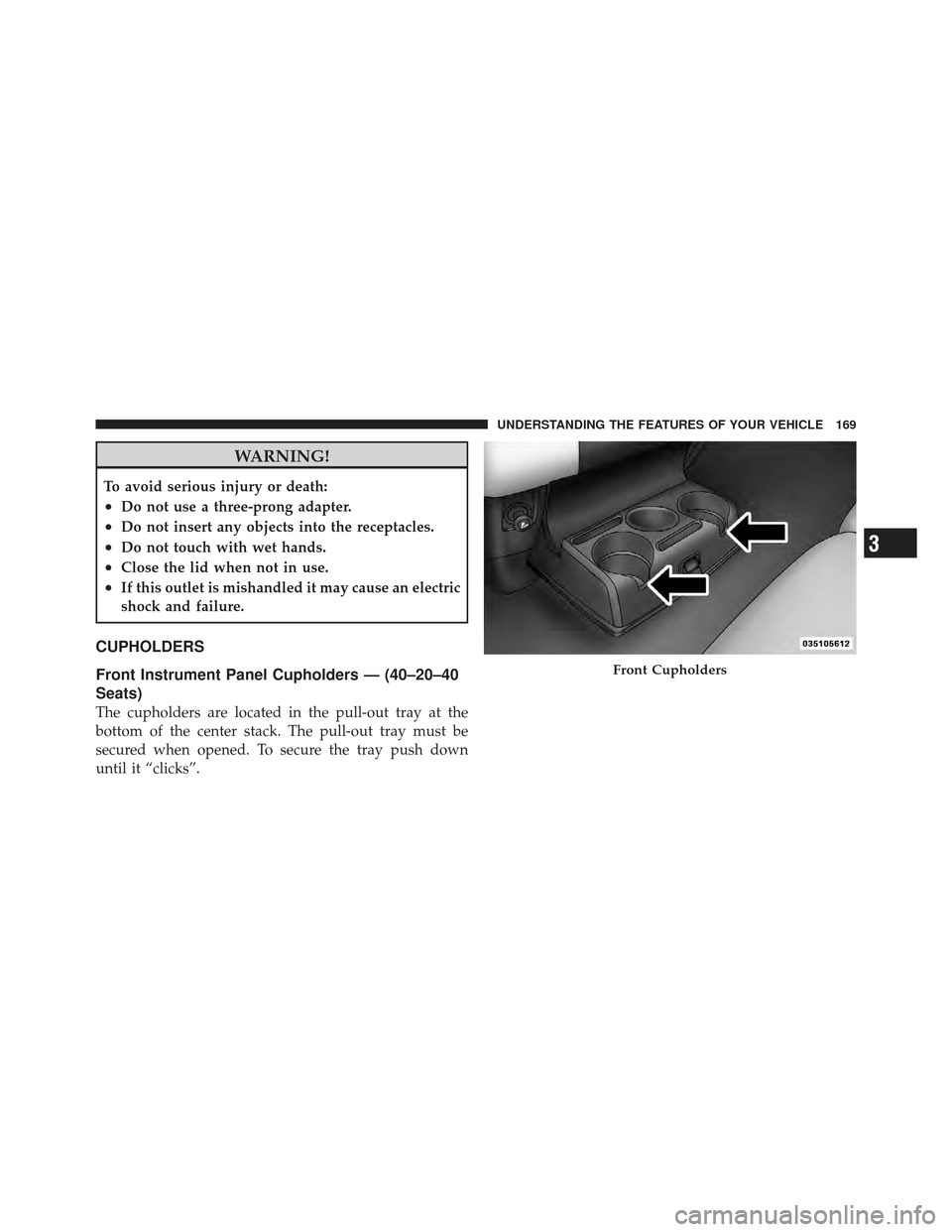

WARNING!
To avoid serious injury or death:
•Do not use a three-prong adapter.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled it may cause an electric
shock and failure.
CUPHOLDERS
Front Instrument Panel Cupholders — (40–20–40
Seats)
The cupholders are located in the pull-out tray at the
bottom of the center stack. The pull-out tray must be
secured when opened. To secure the tray push down
until it “clicks”.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
Page 172 of 636

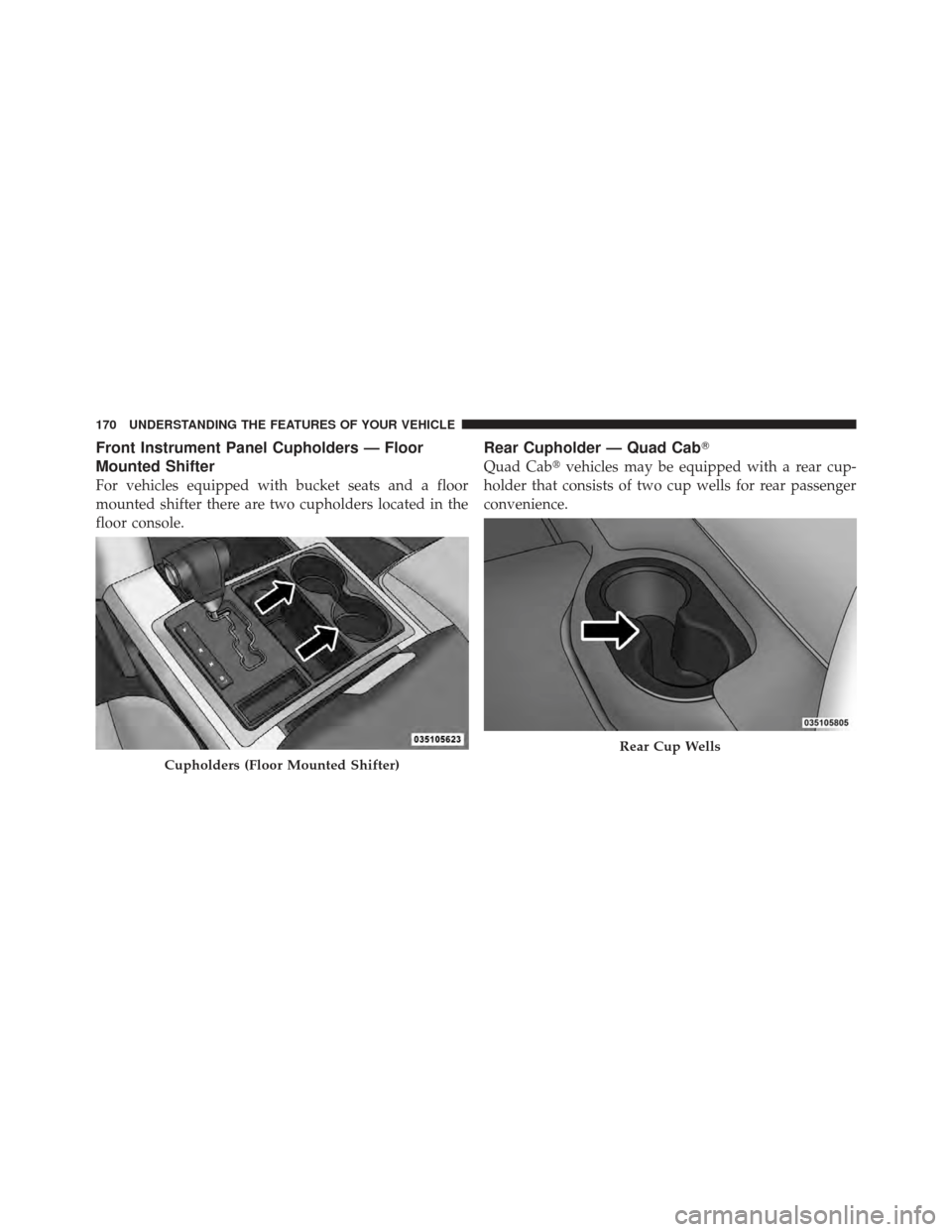

Front Instrument Panel Cupholders — Floor
Mounted Shifter
For vehicles equipped with bucket seats and a floor
mounted shifter there are two cupholders located in the
floor console.
Rear Cupholder — Quad Cab
Quad Cabvehicles may be equipped with a rear cup-
holder that consists of two cup wells for rear passenger
convenience.
Cupholders (Floor Mounted Shifter)
Rear Cup Wells
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 173 of 636

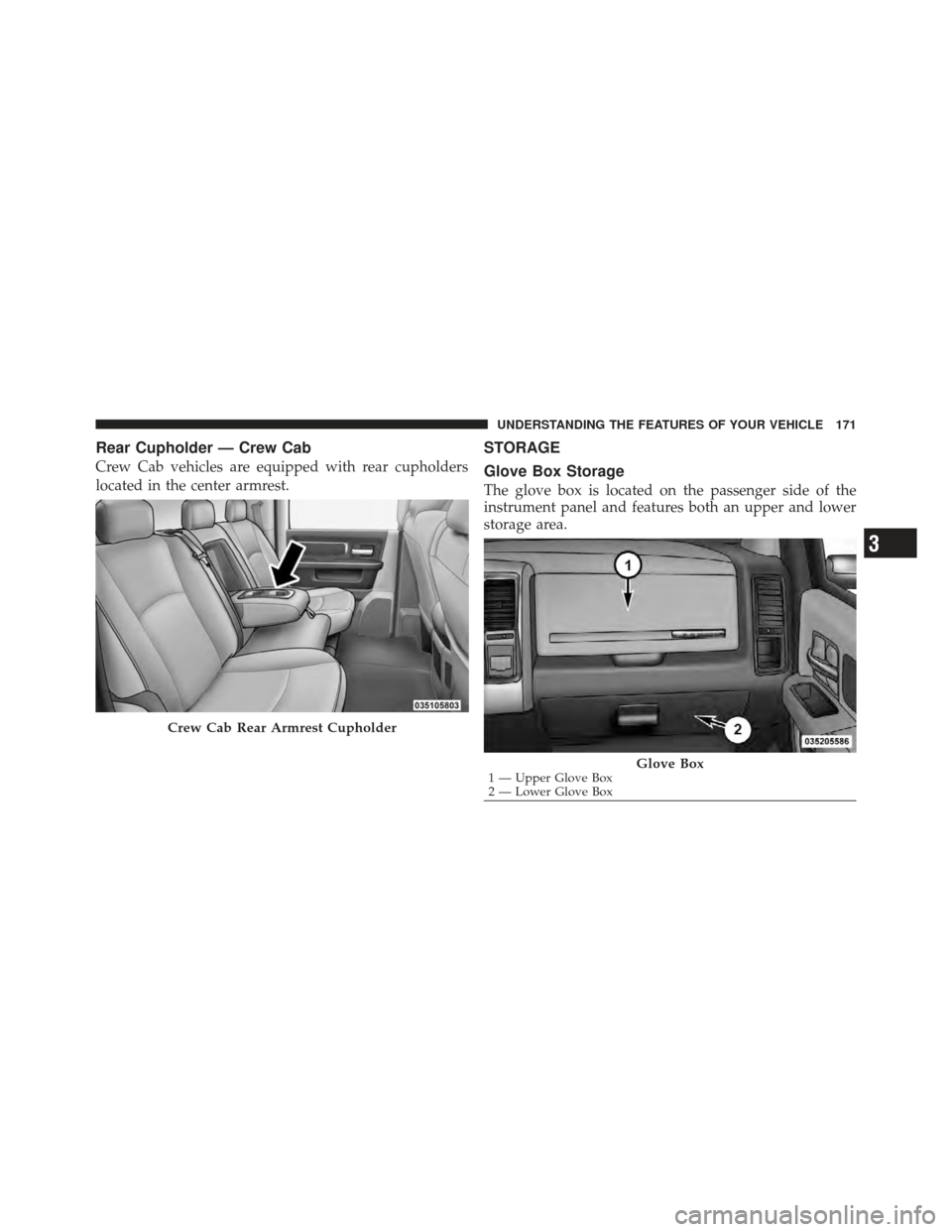

Rear Cupholder — Crew Cab
Crew Cab vehicles are equipped with rear cupholders
located in the center armrest.
STORAGE
Glove Box Storage
The glove box is located on the passenger side of the
instrument panel and features both an upper and lower
storage area.
Crew Cab Rear Armrest Cupholder
Glove Box1 — Upper Glove Box
2 — Lower Glove Box
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171
Page 174 of 636

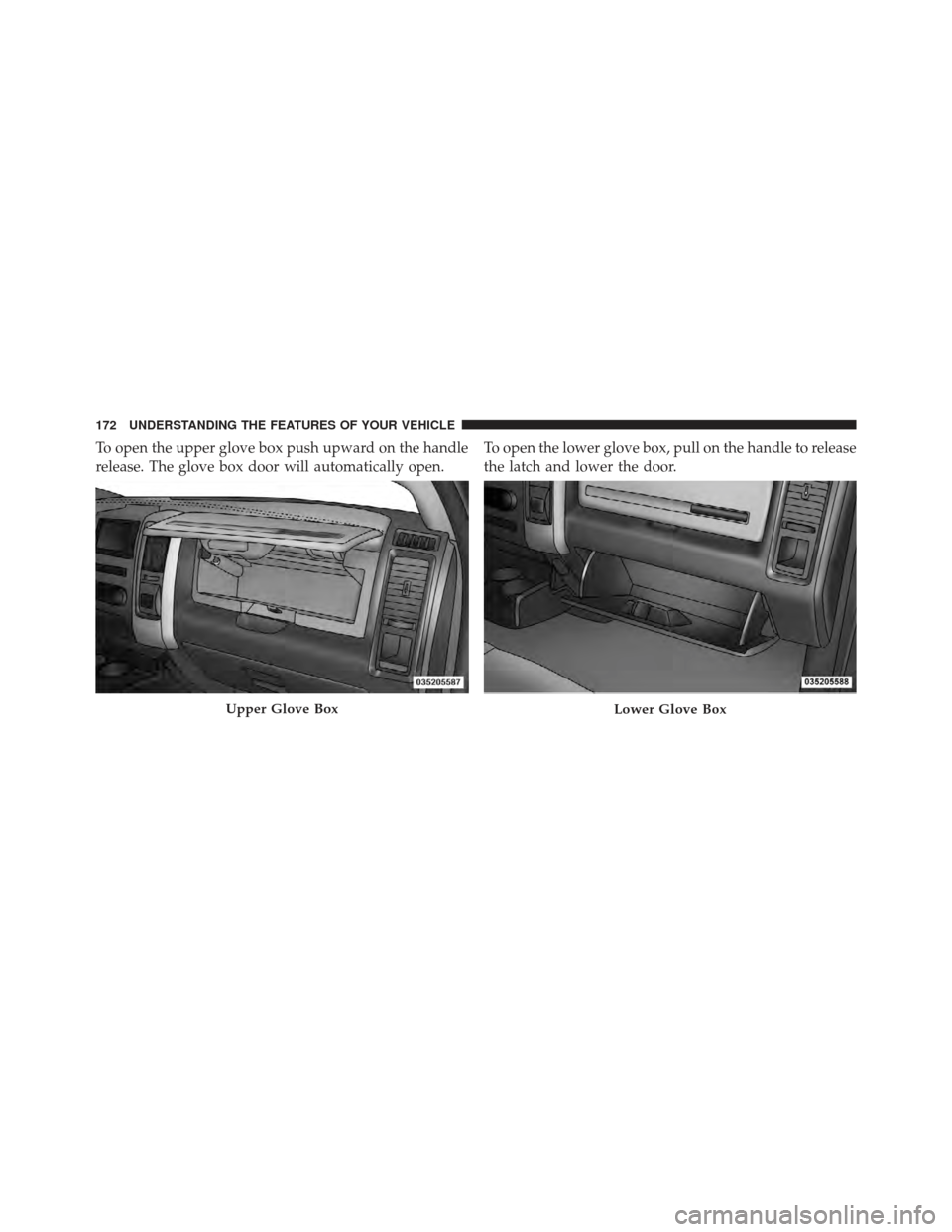

To open the upper glove box push upward on the handle
release. The glove box door will automatically open.To open the lower glove box, pull on the handle to release
the latch and lower the door.
Upper Glove BoxLower Glove Box
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 175 of 636

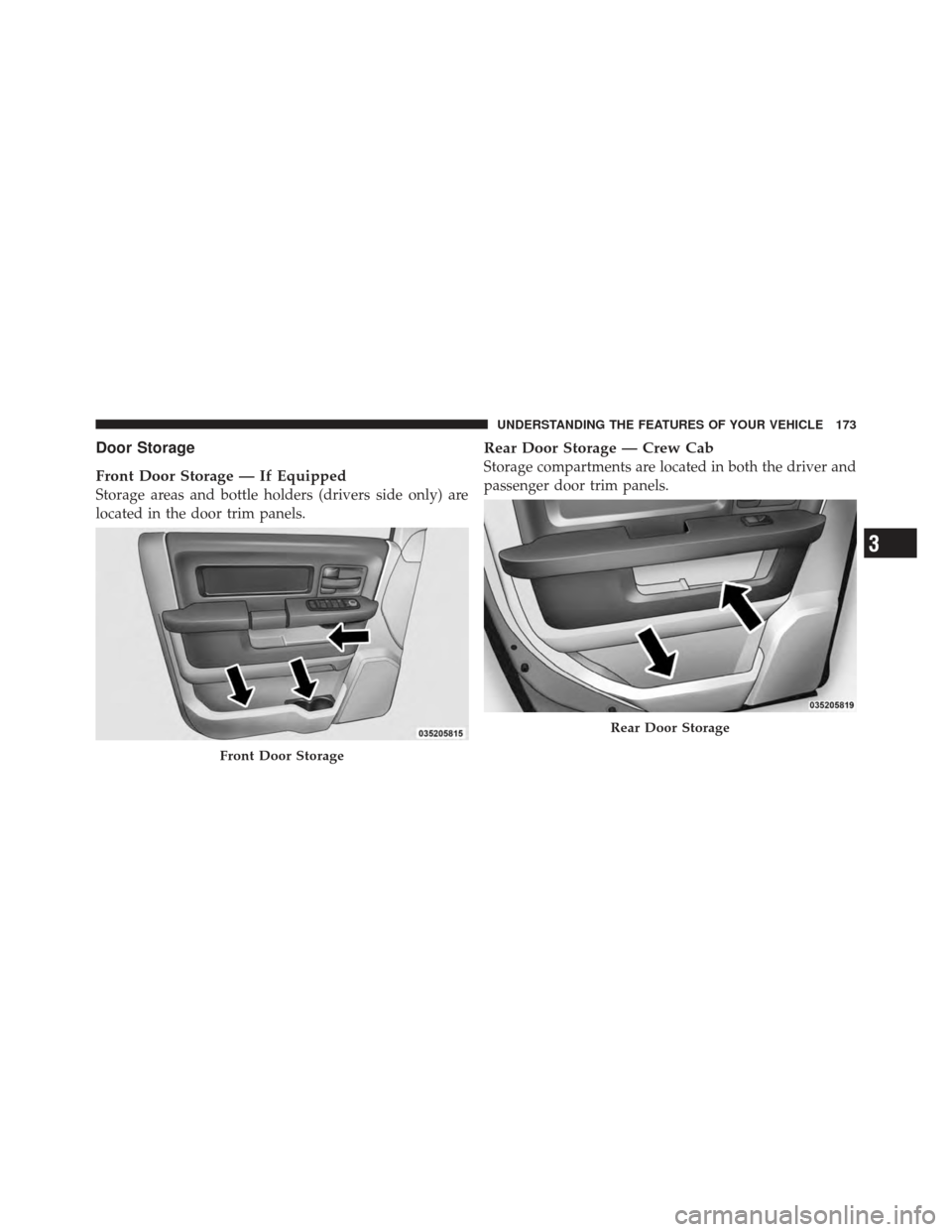

Door Storage
Front Door Storage — If Equipped
Storage areas and bottle holders (drivers side only) are
located in the door trim panels.
Rear Door Storage — Crew Cab
Storage compartments are located in both the driver and
passenger door trim panels.
Front Door Storage
Rear Door Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173
Page 176 of 636

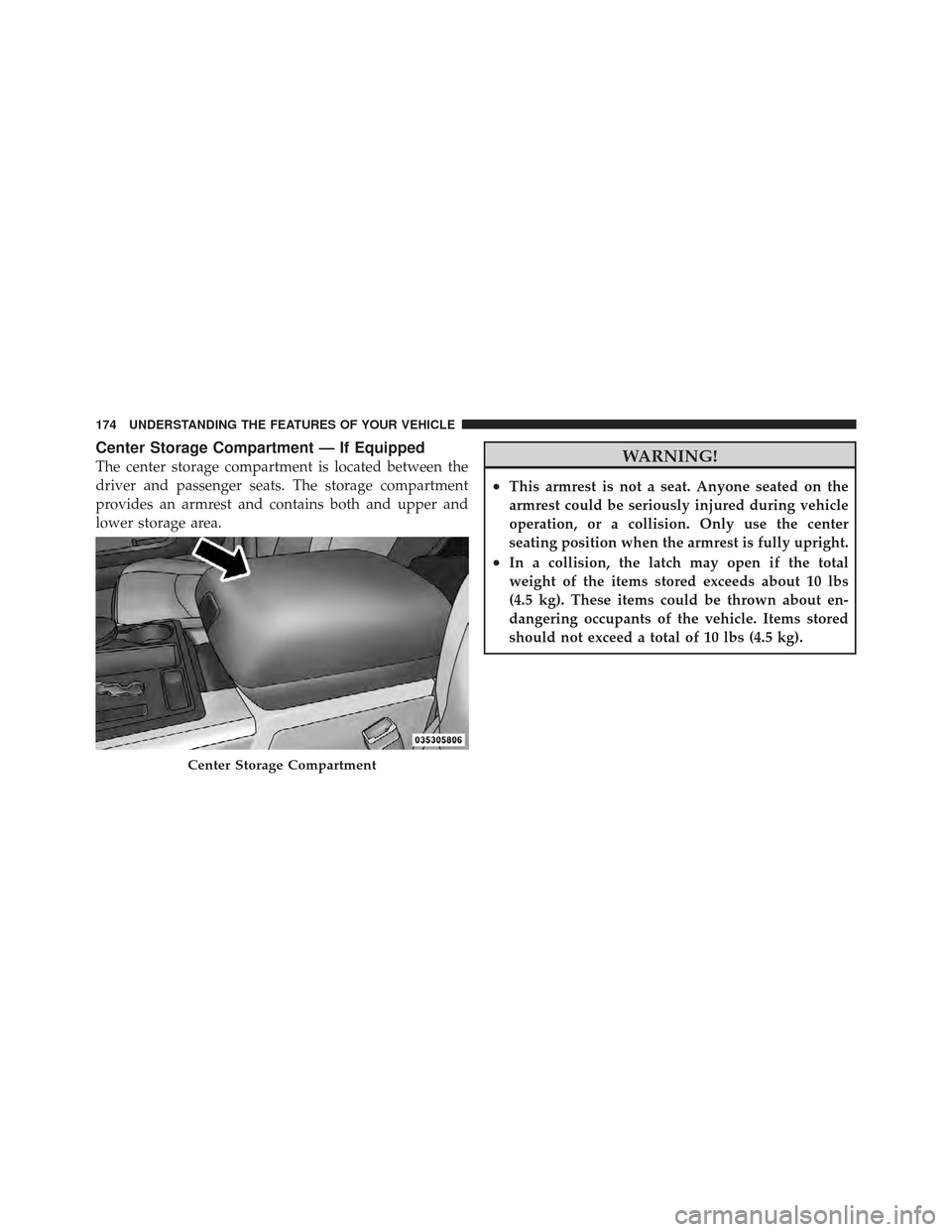

Center Storage Compartment — If Equipped
The center storage compartment is located between the
driver and passenger seats. The storage compartment
provides an armrest and contains both and upper and
lower storage area.WARNING!
•This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or a collision. Only use the center
seating position when the armrest is fully upright.
•In a collision, the latch may open if the total
weight of the items stored exceeds about 10 lbs
(4.5 kg). These items could be thrown about en-
dangering occupants of the vehicle. Items stored
should not exceed a total of 10 lbs (4.5 kg).
Center Storage Compartment
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 177 of 636

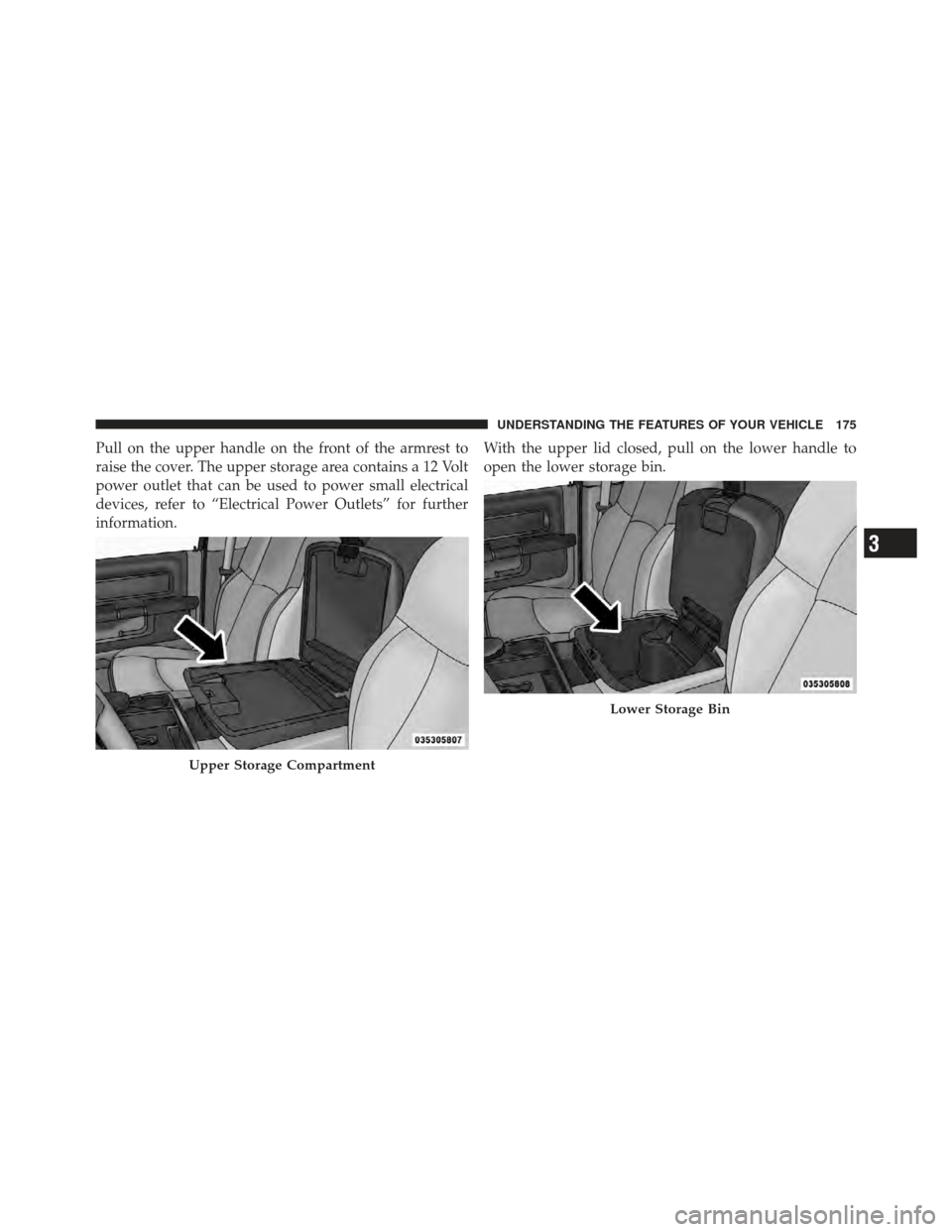

Pull on the upper handle on the front of the armrest to
raise the cover. The upper storage area contains a 12 Volt
power outlet that can be used to power small electrical
devices, refer to “Electrical Power Outlets” for further
information.With the upper lid closed, pull on the lower handle to
open the lower storage bin.
Upper Storage Compartment
Lower Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
Page 178 of 636
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
Second Row In-Floor Storage Bin — If Equipped
In-floor storage bins are located in front of the second
row seats and can be used for extra storage. The storage
bins have removable liners that can be easily removed for
cleaning.To open in-floor storage bin, lift upward on the handle of
the latch and open the lid.
In-Floor Storage Bin And Latch
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 179 of 636
NOTE:The front seat may have to be moved forward to
fully open the lid.Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Opened Storage Bin
Drivers Side Seatback Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
Page 180 of 636

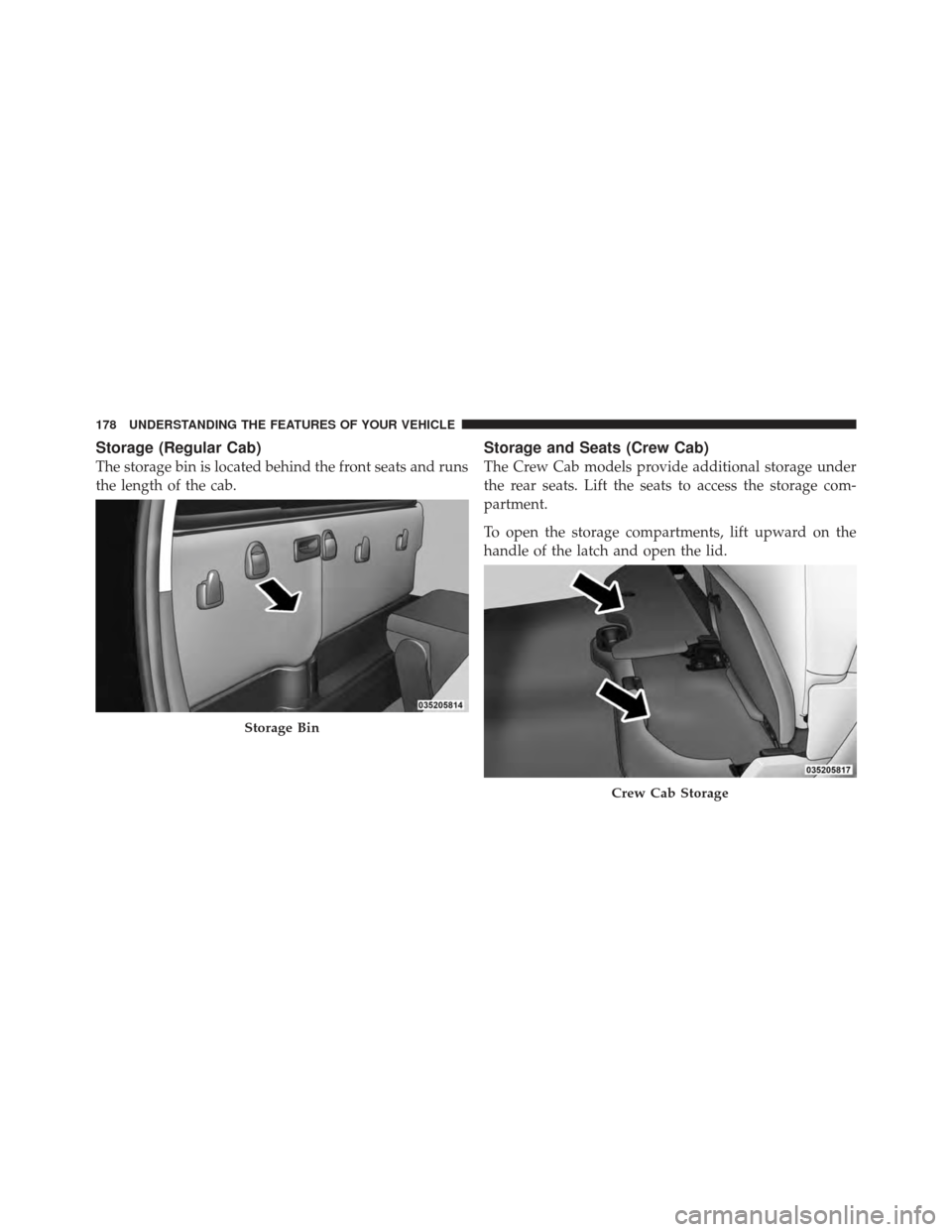

Storage (Regular Cab)
The storage bin is located behind the front seats and runs
the length of the cab.
Storage and Seats (Crew Cab)
The Crew Cab models provide additional storage under
the rear seats. Lift the seats to access the storage com-
partment.
To open the storage compartments, lift upward on the
handle of the latch and open the lid.
Storage Bin
Crew Cab Storage
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
