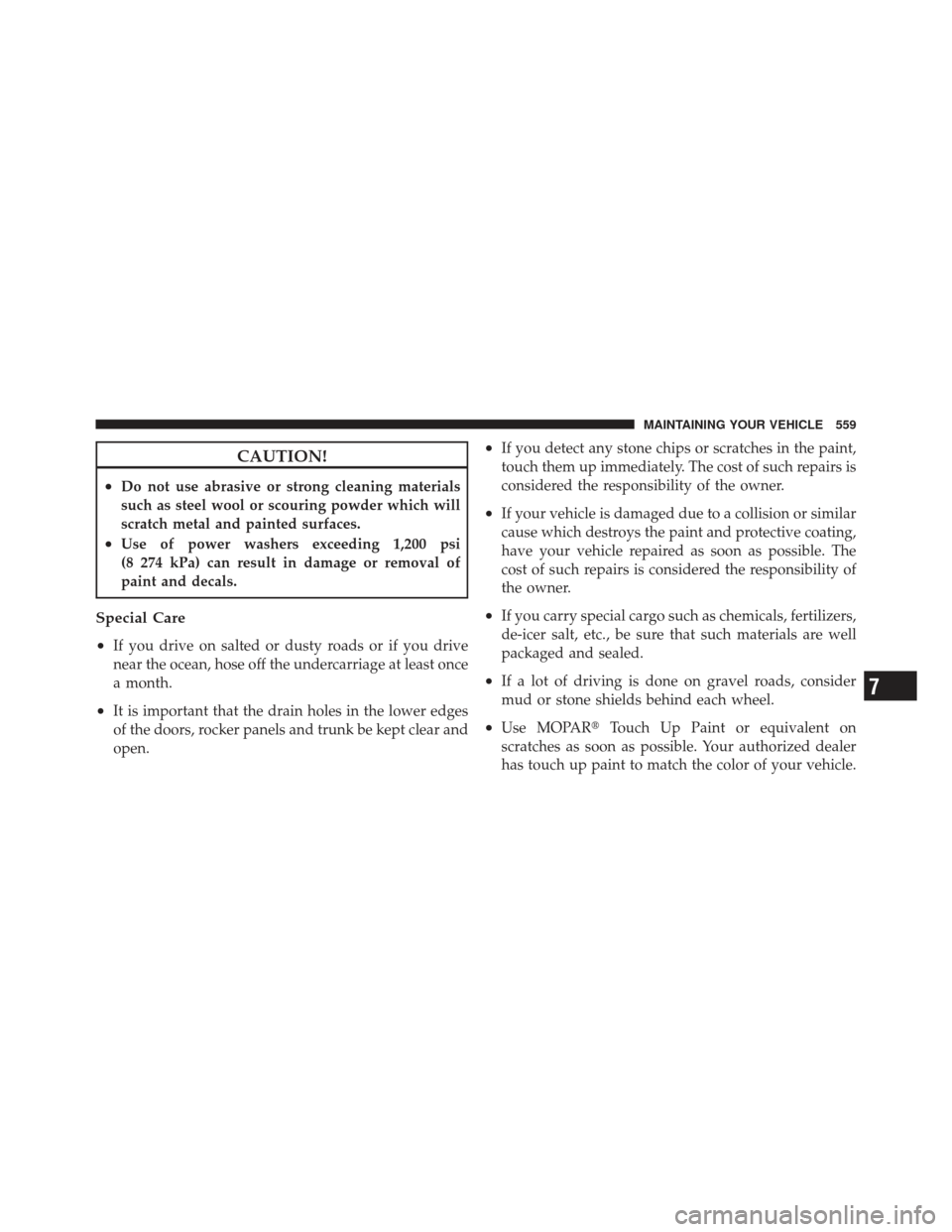

CAUTION!
•Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder which will
scratch metal and painted surfaces.
•Use of power washers exceeding 1,200 psi
(8 274 kPa) can result in damage or removal of
paint and decals.
Special Care
•
If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
•It is important that the drain holes in the lower edges
of the doors, rocker panels and trunk be kept clear and
open.
•If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•If your vehicle is damaged due to a collision or similar
cause which destroys the paint and protective coating,
have your vehicle repaired as soon as possible. The
cost of such repairs is considered the responsibility of
the owner.
•If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
•If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•Use MOPARTouch Up Paint or equivalent on
scratches as soon as possible. Your authorized dealer
has touch up paint to match the color of your vehicle.
7
MAINTAINING YOUR VEHICLE 559

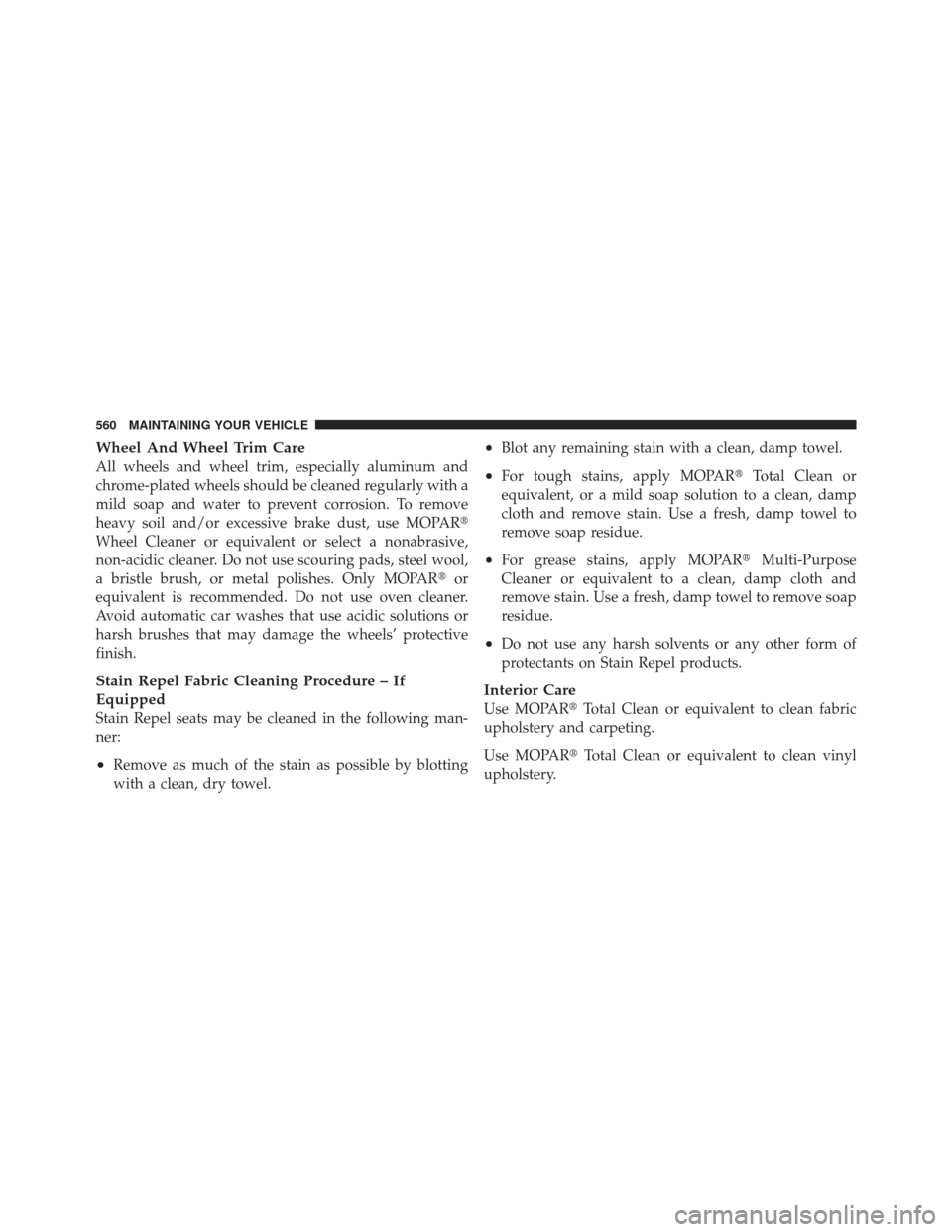

Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use MOPAR
Wheel Cleaner or equivalent or select a nonabrasive,
non-acidic cleaner. Do not use scouring pads, steel wool,
a bristle brush, or metal polishes. Only MOPAR or
equivalent is recommended. Do not use oven cleaner.
Avoid automatic car washes that use acidic solutions or
harsh brushes that may damage the wheels’ protective
finish.
Stain Repel Fabric Cleaning Procedure – If
Equipped
Stain Repel seats may be cleaned in the following man-
ner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MOPAR Total Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove stain. Use a fresh, damp towel to
remove soap residue.
•For grease stains, apply MOPAR Multi-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove stain. Use a fresh, damp towel to remove soap
residue.
•Do not use any harsh solvents or any other form of
protectants on Stain Repel products.
Interior Care
Use MOPAR Total Clean or equivalent to clean fabric
upholstery and carpeting.
Use MOPAR Total Clean or equivalent to clean vinyl
upholstery.
560 MAINTAINING YOUR VEHICLE

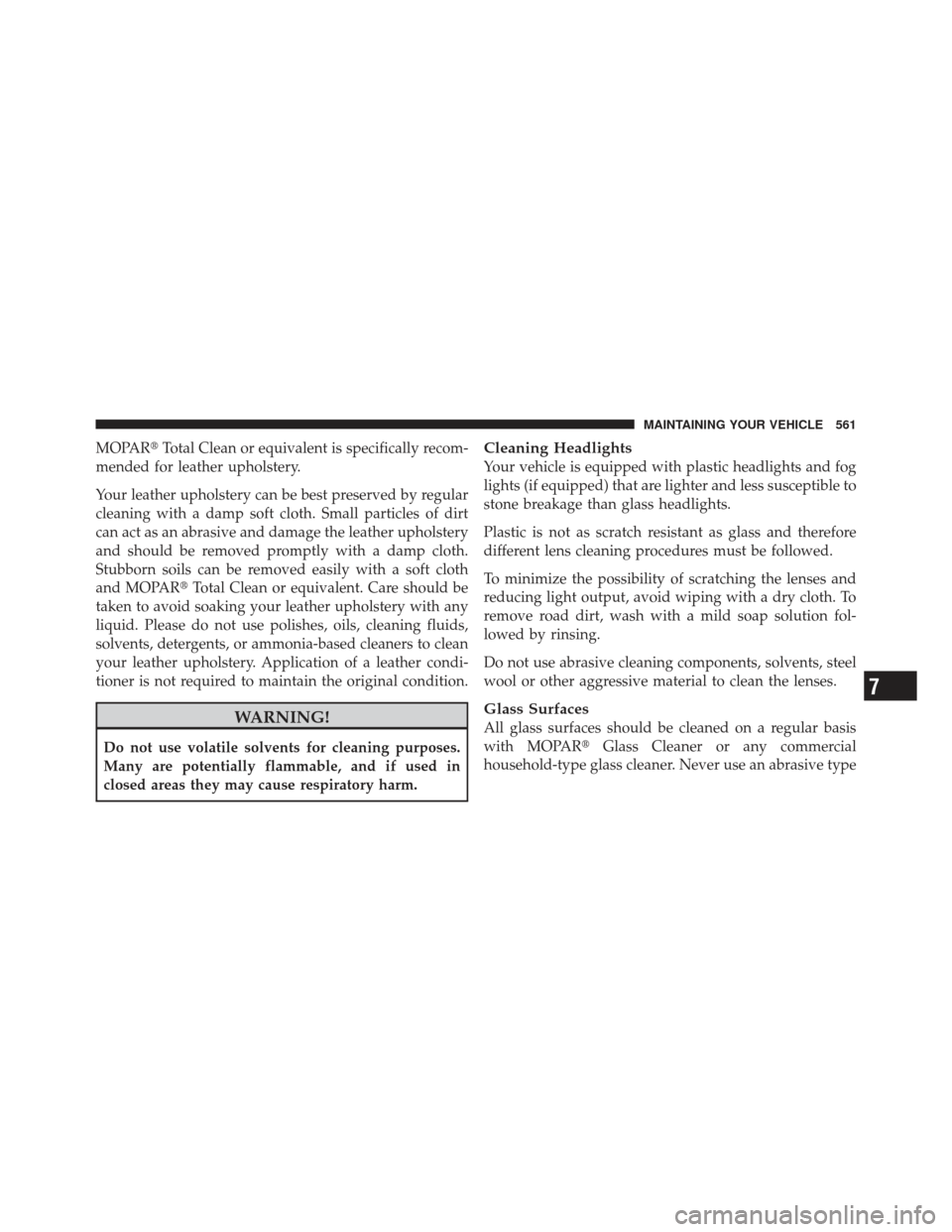

MOPARTotal Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR Total Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights (if equipped) that are lighter and less susceptible to
stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
7
MAINTAINING YOUR VEHICLE 561

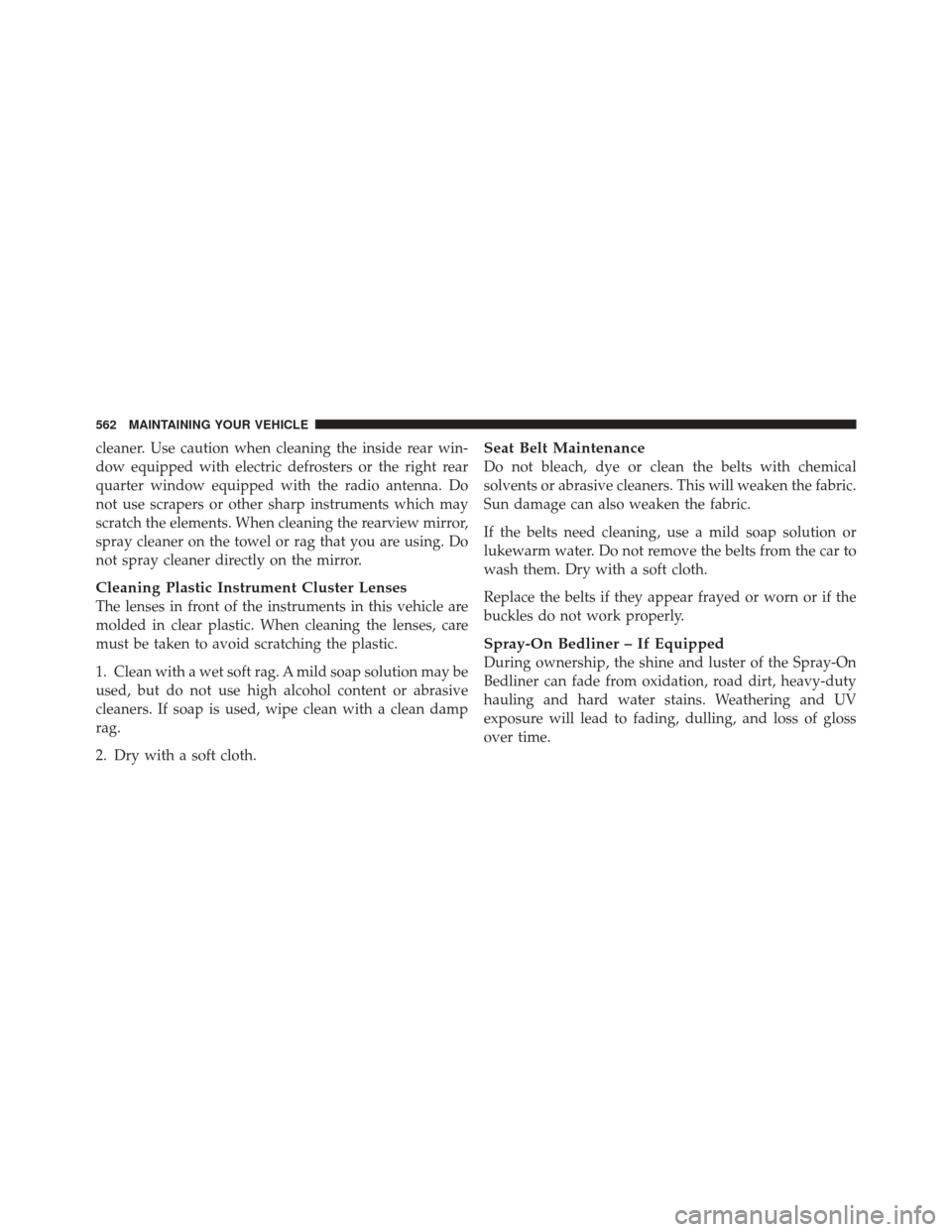

cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Spray-On Bedliner – If Equipped
During ownership, the shine and luster of the Spray-On
Bedliner can fade from oxidation, road dirt, heavy-duty
hauling and hard water stains. Weathering and UV
exposure will lead to fading, dulling, and loss of gloss
over time.
562 MAINTAINING YOUR VEHICLE

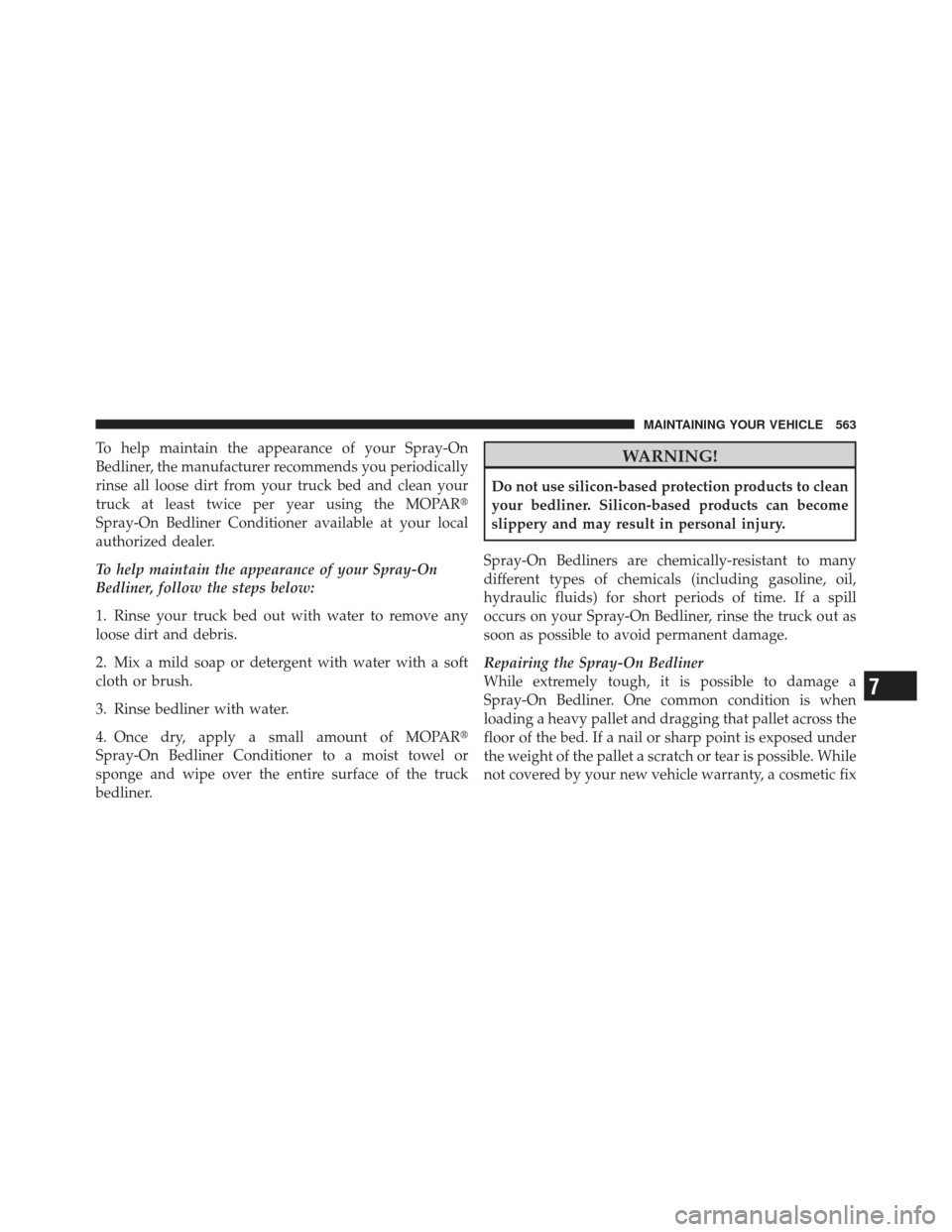

To help maintain the appearance of your Spray-On
Bedliner, the manufacturer recommends you periodically
rinse all loose dirt from your truck bed and clean your
truck at least twice per year using the MOPAR
Spray-On Bedliner Conditioner available at your local
authorized dealer.
To help maintain the appearance of your Spray-On
Bedliner, follow the steps below:
1. Rinse your truck bed out with water to remove any
loose dirt and debris.
2. Mix a mild soap or detergent with water with a soft
cloth or brush.
3. Rinse bedliner with water.
4. Once dry, apply a small amount of MOPAR
Spray-On Bedliner Conditioner to a moist towel or
sponge and wipe over the entire surface of the truck
bedliner.WARNING!
Do not use silicon-based protection products to clean
your bedliner. Silicon-based products can become
slippery and may result in personal injury.
Spray-On Bedliners are chemically-resistant to many
different types of chemicals (including gasoline, oil,
hydraulic fluids) for short periods of time. If a spill
occurs on your Spray-On Bedliner, rinse the truck out as
soon as possible to avoid permanent damage.
Repairing the Spray-On Bedliner
While extremely tough, it is possible to damage a
Spray-On Bedliner. One common condition is when
loading a heavy pallet and dragging that pallet across the
floor of the bed. If a nail or sharp point is exposed under
the weight of the pallet a scratch or tear is possible. While
not covered by your new vehicle warranty, a cosmetic fix
7
MAINTAINING YOUR VEHICLE 563

to cover the metal exposed by the scratch is required. To
repair a tear or gouge, follow the directions provided in
the MOPARQuick Repair Kit.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. This center con-
tains cartridge fuses and mini fuses. A description of each
fuse and component may be stamped on the inside cover,
otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Cavity Cartridge
FuseMini
Fuse Description
J01 40 Amp Green Trailer Tow
J02 30 Amp Pink Electric Brake
Totally Integrated Power Module
564 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description

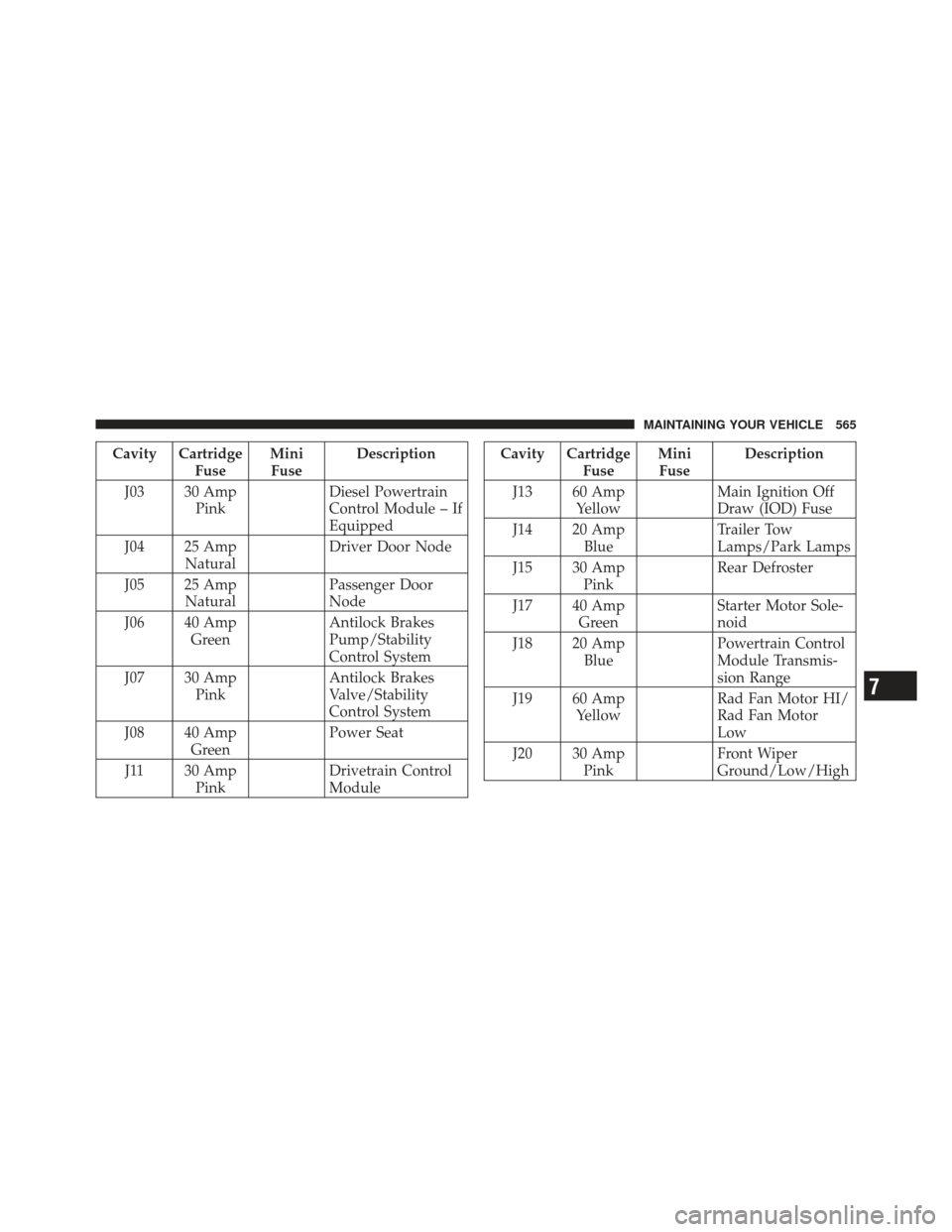

J03 30 Amp Pink Diesel Powertrain
Control Module – If
Equipped
J04 25 Amp Natural Driver Door Node
J05 25 Amp Natural Passenger Door
Node
J06 40 Amp Green Antilock Brakes
Pump/Stability
Control System
J07 30 Amp Pink Antilock Brakes
Valve/Stability
Control System
J08 40 Amp Green Power Seat
J11 30 Amp Pink Drivetrain Control
ModuleCavity Cartridge
FuseMini
Fuse Description
J13 60 Amp Yellow Main Ignition Off
Draw (IOD) Fuse
J14 20 Amp Blue Trailer Tow
Lamps/Park Lamps
J15 30 Amp Pink Rear Defroster
J17 40 Amp Green Starter Motor Sole-
noid
J18 20 Amp Blue Powertrain Control
Module Transmis-
sion Range
J19 60 Amp Yellow Rad Fan Motor HI/
Rad Fan Motor
Low
J20 30 Amp Pink Front Wiper
Ground/Low/High
7
MAINTAINING YOUR VEHICLE 565

Cavity CartridgeFuseMini
Fuse Description

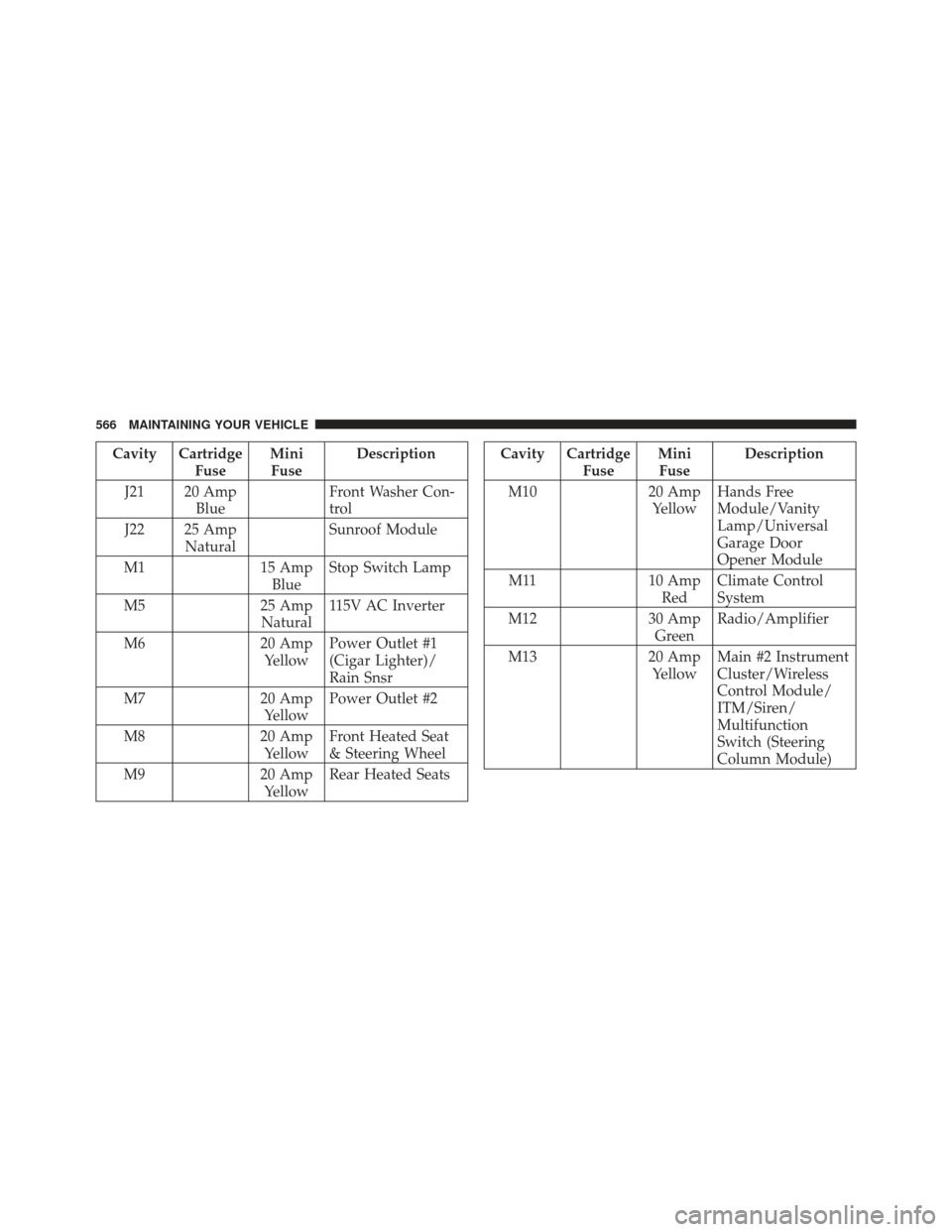

J21 20 Amp Blue Front Washer Con-
trol
J22 25 Amp Natural Sunroof Module
M1 15 Amp
Blue Stop Switch Lamp
M5 25 Amp
Natural 115V AC Inverter
M6 20 Amp
Yellow Power Outlet #1
(Cigar Lighter)/
Rain Snsr
M7 20 Amp
Yellow Power Outlet #2
M8 20 Amp
Yellow Front Heated Seat
& Steering Wheel
M9 20 Amp
Yellow Rear Heated SeatsCavity Cartridge
FuseMini
Fuse Description
M10 20 Amp
Yellow Hands Free
Module/Vanity
Lamp/Universal
Garage Door
Opener Module
M11 10 Amp
Red Climate Control
System
M12 30 Amp
Green Radio/Amplifier
M13 20 Amp
Yellow Main #2 Instrument
Cluster/Wireless
Control Module/
ITM/Siren/
Multifunction
Switch (Steering
Column Module)
566 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
M14 20 Amp
Yellow Back Up Camera
(Domestic Only)
M15 20 Amp
Yellow Power Seat
Module(s)/Audio
Telematics/Daytime
Running Lights
Relay/Instrument
Cluster/Transfer
Case Module
M16 10 Amp
Red Airbag Module
M19 25 Amp
Natural Automatic Shut-
down 1 and 2
M20 15 Amp
Blue Instrument Cluster
Interior Lighting
/Sw Steering
Wheel/Sw BankCavity Cartridge
FuseMini
Fuse Description
M21 20 Amp
Yellow Automatic Shut-
down 3
M22 10 Amp
Red Horns (Low/High)
– Right
M23 10 Amp
Red Horns (Low/High)
– Left
M25 20 Amp
Yellow Fuel Pump Motor/
Diesel Lift Pump –
If Equipped
M26 10 Amp
Red Spare
M27 10 Amp
Red Ignition Switch
M28 15 Amp
Blue Powertrain Control
Module
M29 10 Amp
Red Tire Pressure Moni-
tor
7
MAINTAINING YOUR VEHICLE 567

Cavity CartridgeFuseMini
Fuse Description
M30 15 Amp
Blue J1962 Diag Connec-
tor
M32 10 Amp
Red Airbag Module
M33 10 Amp
Red Powertrain Control
Module
M34 10 Amp
Red Park Assist
Module/Climate
Control System
Module/IR Sensor/
Compass Module
M35 15 Amp
Blue Left Front & Rear
Parklamps
M36 20 Amp
Yellow Power OutletCavity Cartridge
FuseMini
Fuse Description
M37 10 Amp
Red Antilock Brakes/
Stability Control
System Module/
Stoplamp Switch
M38 25 Amp
Natural All Door Lock
&Unlock
CAUTION!
•When installing the totally integrated power mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the totally
integrated power module and possibly result in a
electrical system failure.
(Continued)
568 MAINTAINING YOUR VEHICLE
