engine Ram 1500 2014 Owner's Manual

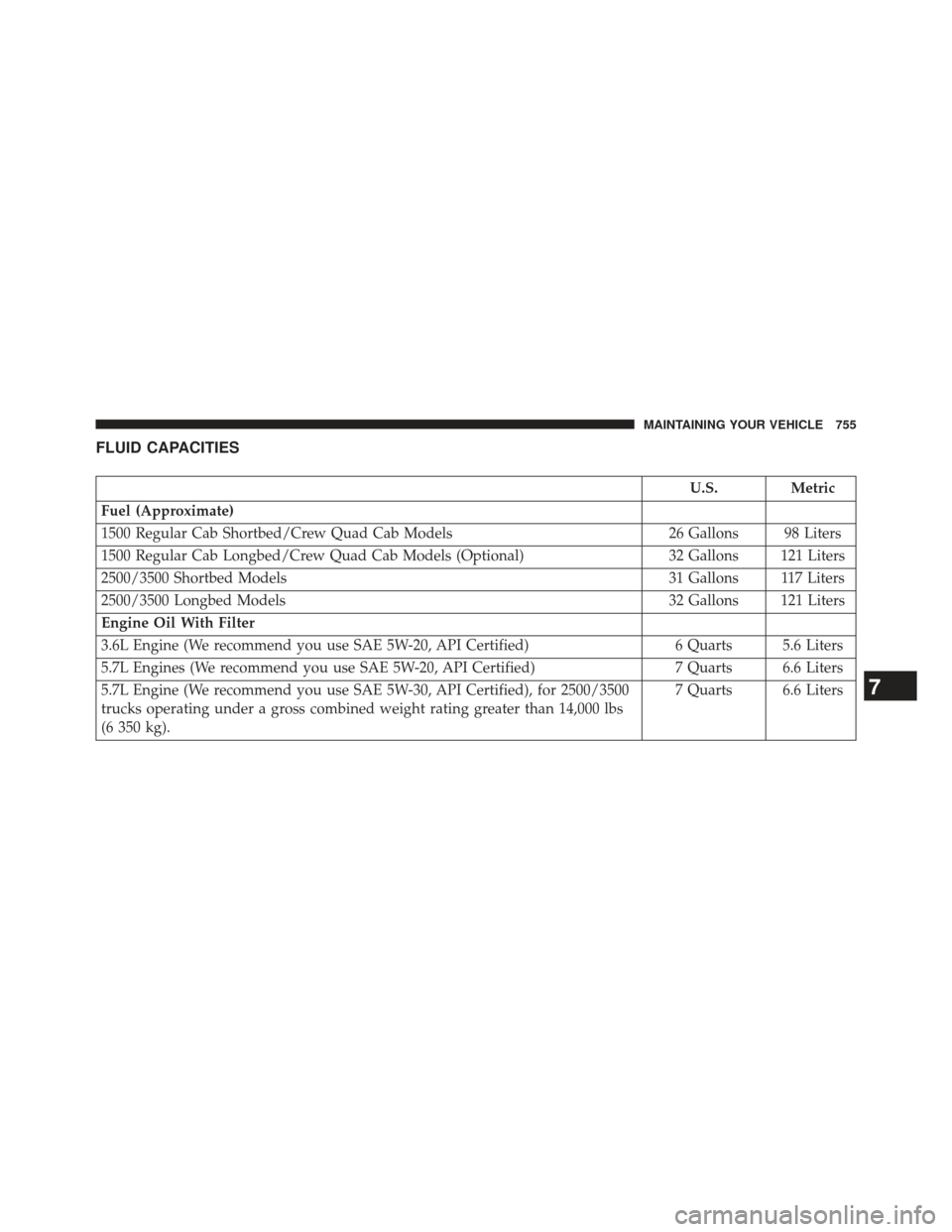

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models 26 Gallons 98 Liters
1500 Regular Cab Longbed/Crew Quad Cab Models (Optional) 32 Gallons 121 Liters
2500/3500 Shortbed Models 31 Gallons 117 Liters
2500/3500 Longbed Models 32 Gallons 121 Liters
Engine Oil With Filter
3.6L Engine (We recommend you use SAE 5W-20, API Certified) 6 Quarts 5.6 Liters
5.7L Engines (We recommend you use SAE 5W-20, API Certified) 7 Quarts 6.6 Liters
5.7L Engine (We recommend you use SAE 5W-30, API Certified), for 2500/3500
trucks operating under a gross combined weight rating greater than 14,000 lbs
(6 350 kg). 7 Quarts 6.6 Liters
7
MAINTAINING YOUR VEHICLE 755

U.S. Metric

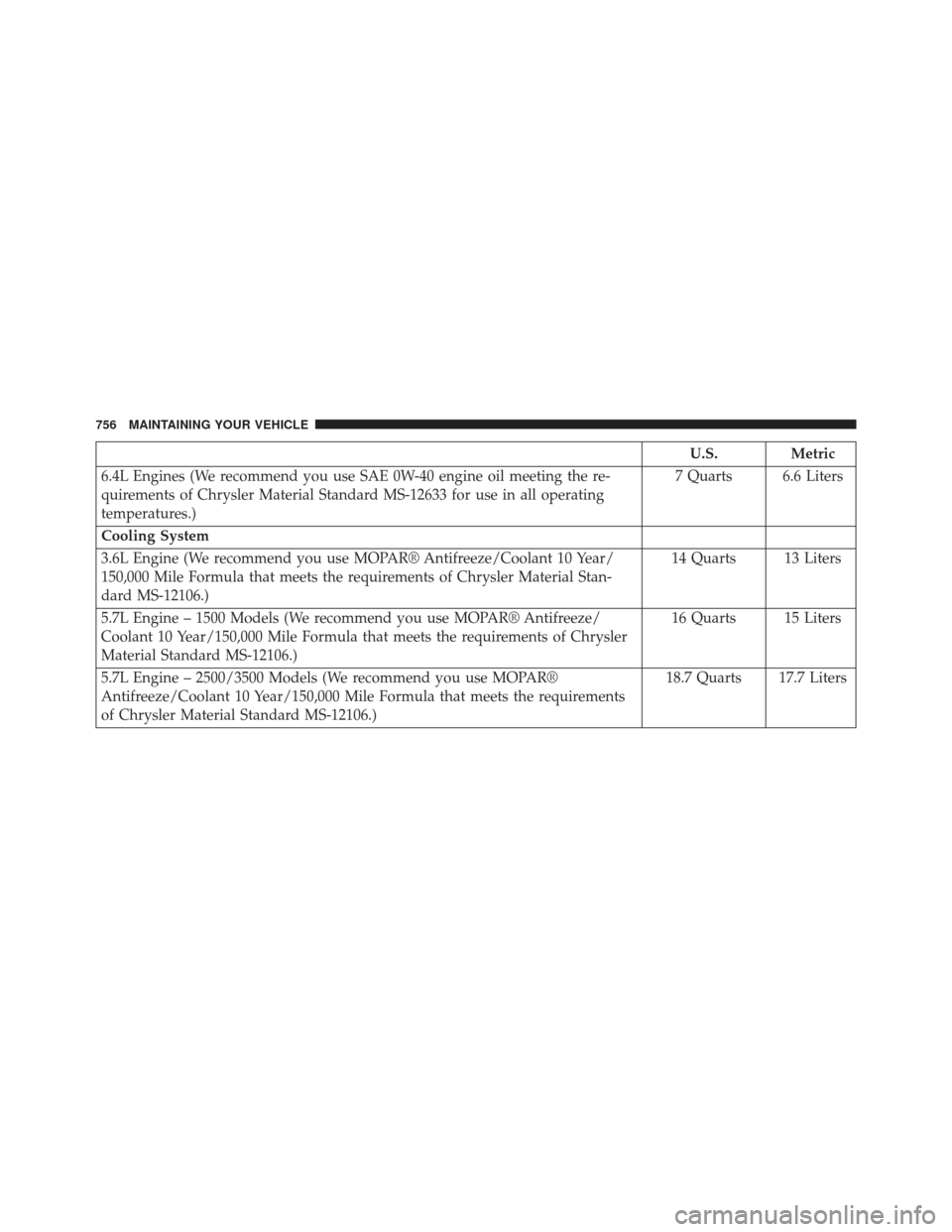

6.4L Engines (We recommend you use SAE 0W-40 engine oil meeting the re-
quirements of Chrysler Material Standard MS-12633 for use in all operating
temperatures.) 7 Quarts 6.6 Liters
Cooling System
3.6L Engine (We recommend you use MOPAR® Antifreeze/Coolant 10 Year/
150,000 Mile Formula that meets the requirements of Chrysler Material Stan-
dard MS-12106.) 14 Quarts 13 Liters
5.7L Engine – 1500 Models (We recommend you use MOPAR® Antifreeze/
Coolant 10 Year/150,000 Mile Formula that meets the requirements of Chrysler
Material Standard MS-12106.) 16 Quarts 15 Liters
5.7L Engine – 2500/3500 Models (We recommend you use MOPAR®
Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the requirements
of Chrysler Material Standard MS-12106.) 18.7 Quarts 17.7 Liters
756 MAINTAINING YOUR VEHICLE

U.S. Metric

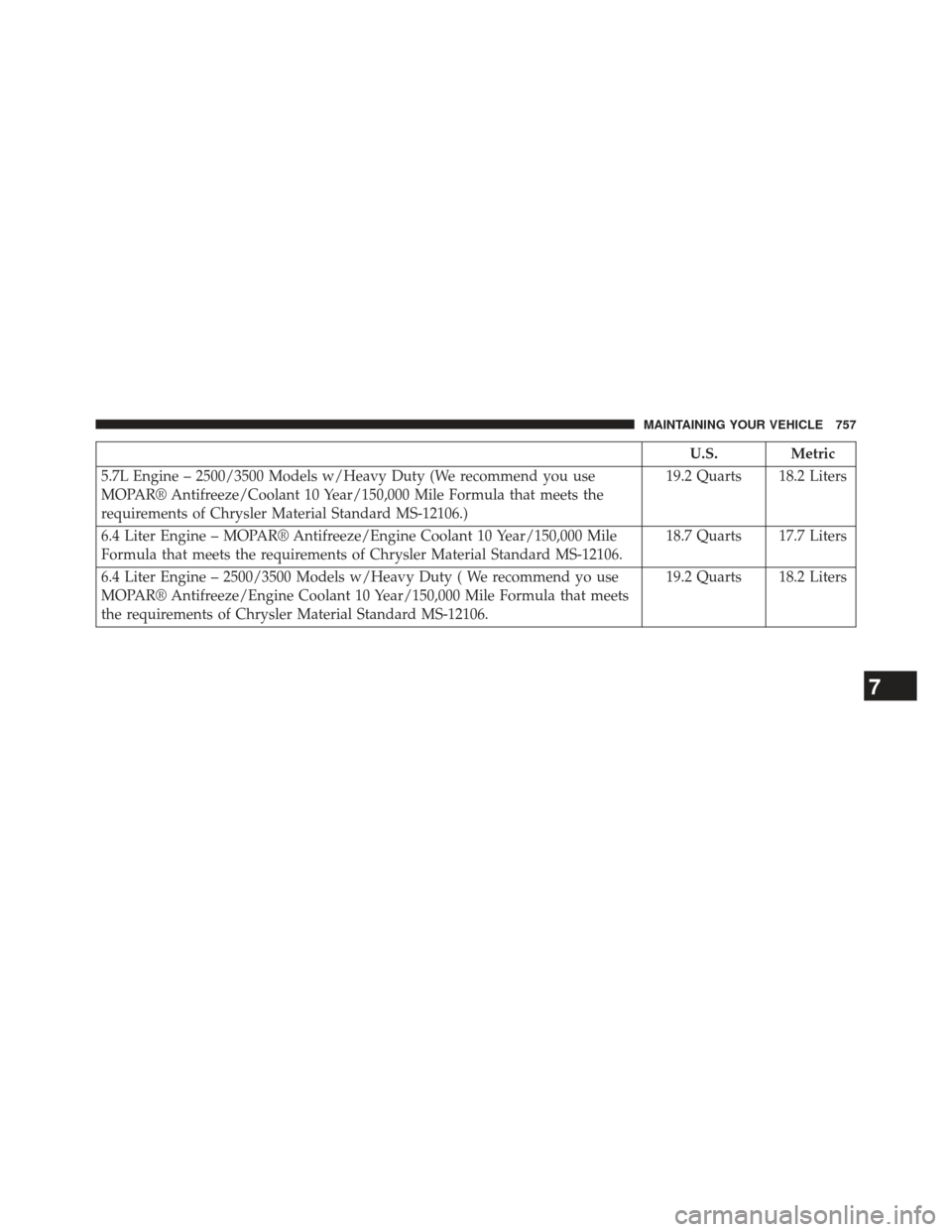

5.7L Engine – 2500/3500 Models w/Heavy Duty (We recommend you use
MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the
requirements of Chrysler Material Standard MS-12106.) 19.2 Quarts 18.2 Liters
6.4 Liter Engine – MOPAR® Antifreeze/Engine Coolant 10 Year/150,000 Mile
Formula that meets the requirements of Chrysler Material Standard MS-12106. 18.7 Quarts 17.7 Liters
6.4 Liter Engine – 2500/3500 Models w/Heavy Duty ( We recommend yo use
MOPAR® Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula that meets
the requirements of Chrysler Material Standard MS-12106. 19.2 Quarts 18.2 Liters
7
MAINTAINING YOUR VEHICLE 757

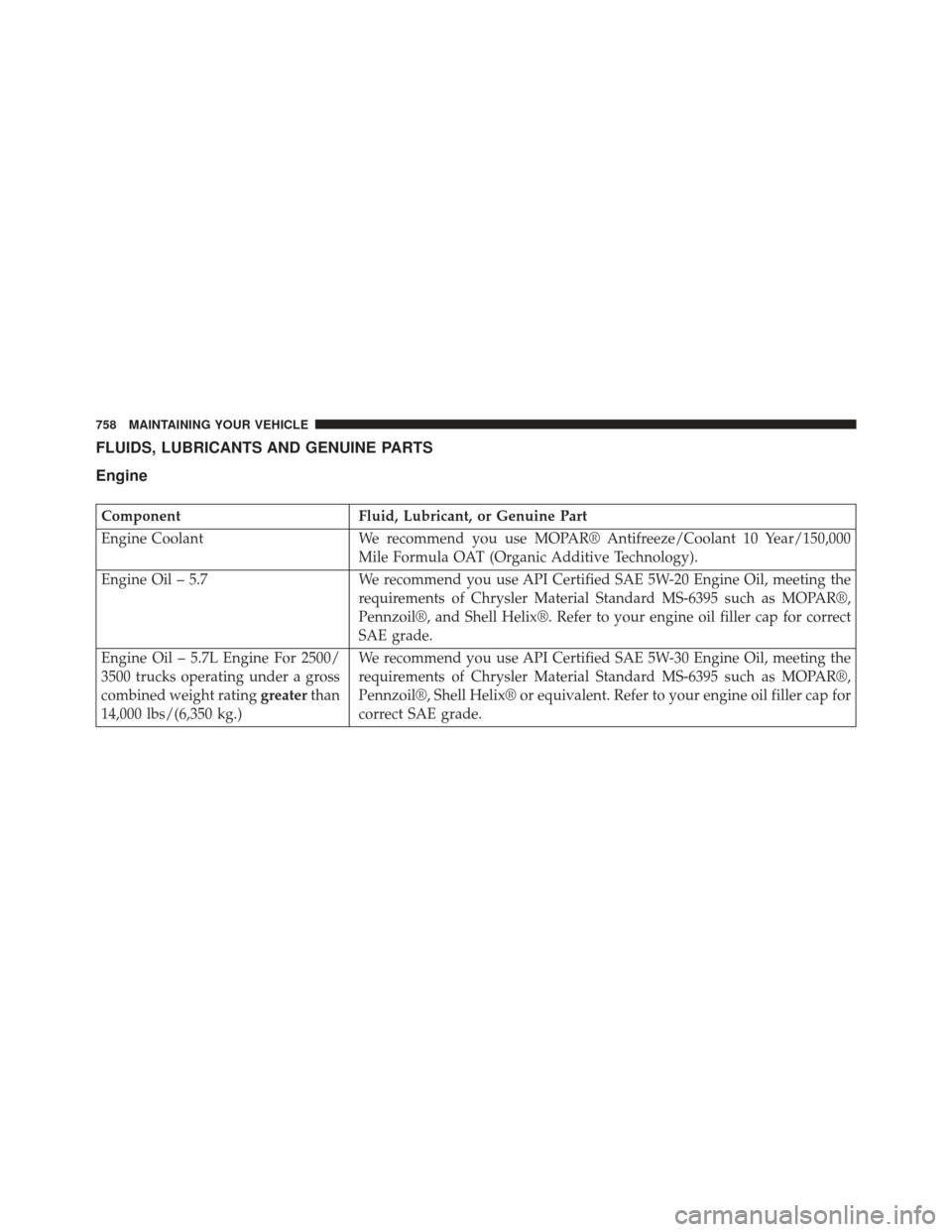

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000
Mile Formula OAT (Organic Additive Technology).
Engine Oil – 5.7 We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the
requirements of Chrysler Material Standard MS-6395 such as MOPAR®,
Pennzoil®, and Shell Helix®. Refer to your engine oil filler cap for correct
SAE grade.
Engine Oil – 5.7L Engine For 2500/
3500 trucks operating under a gross
combined weight rating greaterthan
14,000 lbs/(6,350 kg.) We recommend you use API Certified SAE 5W-30 Engine Oil, meeting the
requirements of Chrysler Material Standard MS-6395 such as MOPAR®,
Pennzoil®, Shell Helix® or equivalent. Refer to your engine oil filler cap for
correct SAE grade.
758 MAINTAINING YOUR VEHICLE

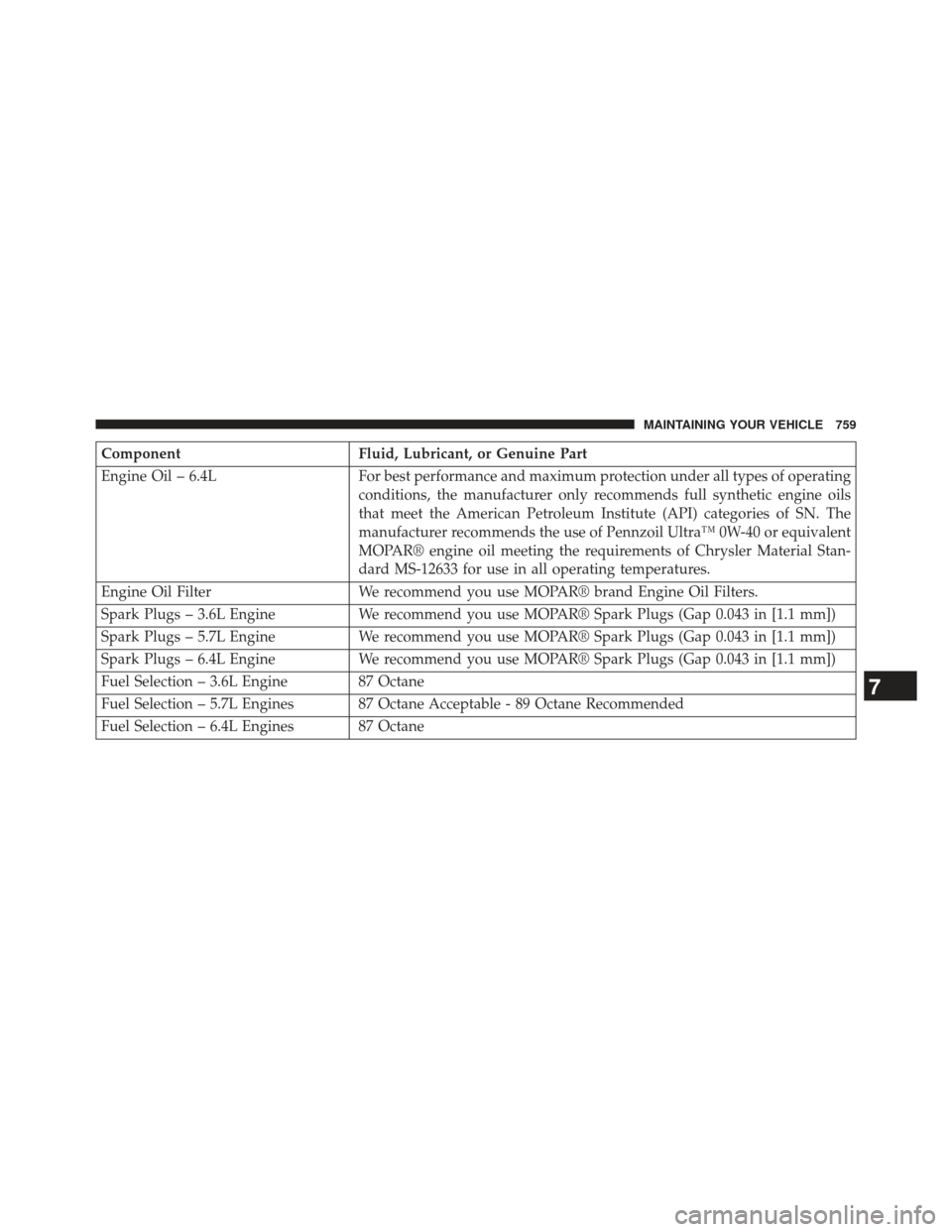

ComponentFluid, Lubricant, or Genuine Part
Engine Oil – 6.4L For best performance and maximum protection under all types of operating
conditions, the manufacturer only recommends full synthetic engine oils
that meet the American Petroleum Institute (API) categories of SN. The
manufacturer recommends the use of Pennzoil Ultra™ 0W-40 or equivalent
MOPAR® engine oil meeting the requirements of Chrysler Material Stan-
dard MS-12633 for use in all operating temperatures.
Engine Oil Filter We recommend you use MOPAR® brand Engine Oil Filters.
Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm])
Spark Plugs – 5.7L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm])
Spark Plugs – 6.4L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm])
Fuel Selection – 3.6L Engine 87 Octane
Fuel Selection – 5.7L Engines 87 Octane Acceptable - 89 Octane Recommended
Fuel Selection – 6.4L Engines 87 Octane
7
MAINTAINING YOUR VEHICLE 759

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission – Eight-Speed Automatic Use only MOPAR® ZF 8&9 Speed ATF™ Automatic Transmission Fluid, or equivalent. Failure to use the
correct fluid may affect the function or performance of
your transmission.
Automatic Transmission – Six-Speed Automatic with
Gasoline Engine (For Diesel Engine see Diesel Supple-
ment) We recommend you use only ATF+4® Automatic Trans-
mission Fluid. Failure to use ATF+4® fluid may affect
the function or performance of your transmission. We
recommend MOPAR® ATF+4® fluid.
Transfer Case We recommend you use MOPAR® BW44–44 Transfer
Case Fluid.
Front Axle – 1500 Four-Wheel Drive Models We recommend you use MOPAR® GL-5 Synthetic Axle
Lubricant SAE 75W-85.
760 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.
NOTE:
•
1500 Models Only
• Under no circumstances should oil change intervals
exceed 10,000 miles (16,000 km) or twelve months on
1500 trucks, whichever comes first.
8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S764 MAINTENANCE SCHEDULES

•2500 – 3500 Models
• Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or twelve months on
2500 – 3500 trucks, whichever comes first.
• Severe Duty All Models
• Change Engine Oil at 4000 miles (6,500 km) if the
vehicle is operated in a dusty and off road environ-
ment. This type of vehicle use is considered Severe
Duty Once A Month Or Before A Long Trip:
•
Check engine oil level
• Check windshield washer fluid level
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns
on.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering (2500/3500 Models
Only) and automatic transmission (six-speed only) as
needed
• Check function of all interior and exterior lights
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 765

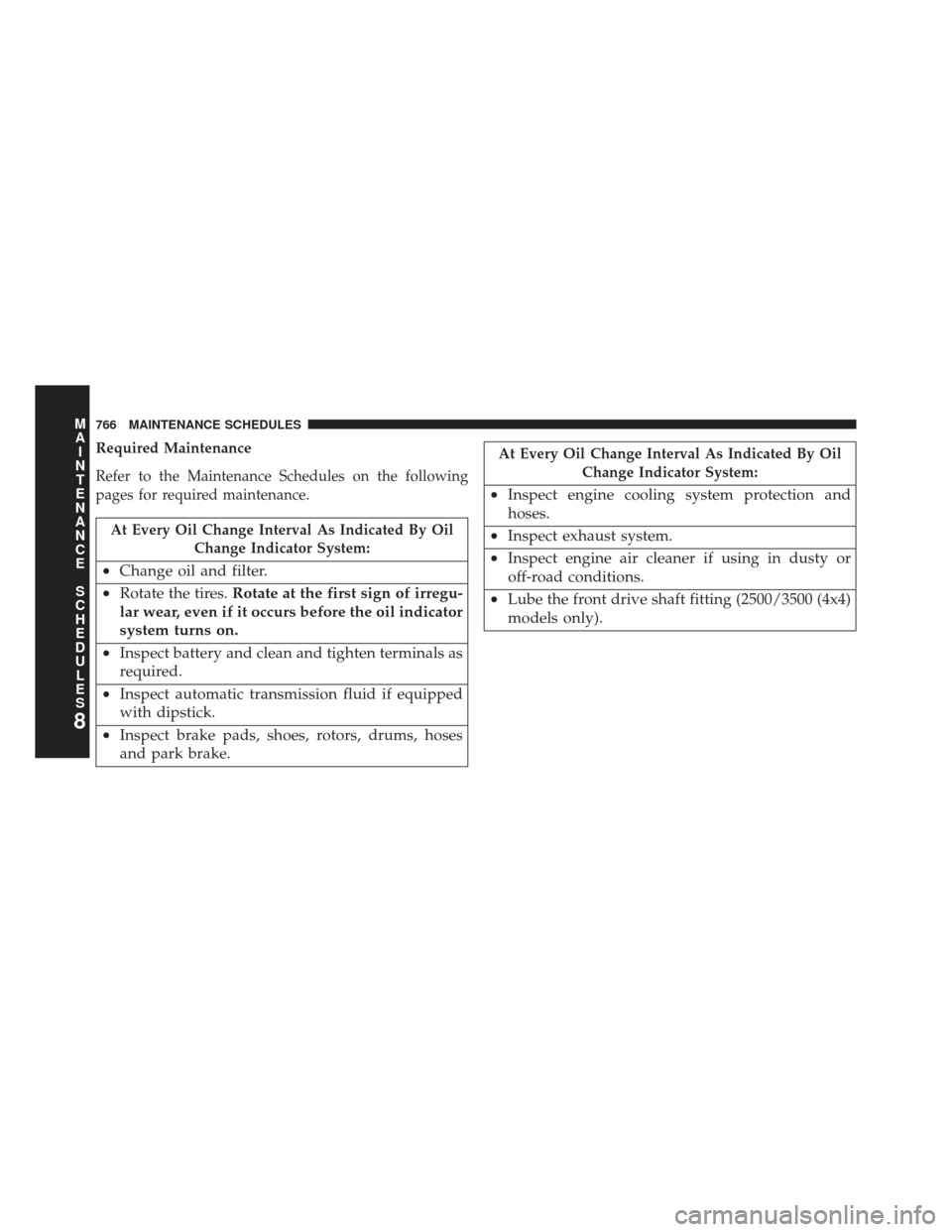

Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By OilChange Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
• Lube the front drive shaft fitting (2500/3500 (4x4)
models only).
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S766 MAINTENANCE SCHEDULES

Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Inspect the brake linings, replace
as necessary. XXX X X X X
Adjust parking brake as neces-
sary. XXX X X X X
Inspect transfer case fluid. X X X
Additional Maintenance
Replace engine air filter. X X X X X
Replace spark plugs
(3.6L engine).** X
Replace spark plugs
(5.7L engine).** X
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S768 MAINTENANCE SCHEDULES
