seat memory Ram 1500 2014 Owner's Manual

▫Passenger ’s Power Seat — If Equipped ......149
▫ Power Lumbar — If Equipped ............150
▫ Heated Seats — If Equipped ..............150
▫ Ventilated Seats — If Equipped ............153
▫ Manual Seat Adjuster — If Equipped ........154
▫ 40-20-40 Front Bench Seat — If Equipped . . . .156
▫ Mega Cab® Rear Seat Features ............156
▫ Head Restraints ...................... .160
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .162
▫ Programming The Memory Feature .........163
▫ Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory .................164
▫ Memory Position Recall .................165 ▫
Easy Entry/Exit Seat ...................166
 TO OPEN AND CLOSE THE HOOD .........168
 LIGHTS ............................ .169
▫ Headlights ......................... .170
▫ Automatic Headlights — If Equipped .......170
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ..............171
▫ Daytime Running Lights
(DRL) — If Equipped ..................172
▫ Headlight Delay ..................... .172
▫ Automatic High Beam Headlamp Control — If
Equipped .......................... .173
▫ Parking Lights And Panel Lights ...........174
▫ Fog Lights — If Equipped ...............174
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•The rear center head restraint (Crew Cab and Quad
Cab) has only one adjustment position that is used to
aid in the routing of a tether. Refer to “Occupant
Restraints” in “Things to Know Before Starting Your
Vehicle” for further information. •
The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see your autho-
rized dealer.
DRIVER MEMORY SEAT — IF EQUIPPED
This feature allows the driver to store up to two different
memory profiles for easy recall through a memory
switch. Each memory profile contains desired position
settings for the driver seat, side mirrors, adjustable
pedals (if equipped) and a set of desired radio station
presets. Your Remote Keyless Entry (RKE) transmitter
can also be programmed to recall the same positions
when the UNLOCK button is pressed.
NOTE: Your vehicle is equipped with two RKE trans-
mitters. One RKE transmitter can be linked to memory
position 1 and the other transmitter can be linked to
memory position 2.
Adjustment Button
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The memory seat buttons are located on the outboard
side of the drivers seat cushion.Programming The Memory Feature
NOTE:To create a new memory profile, perform the
following:
Vehicles Equipped With Keyless Enter-N-Go
1. Without pressing the brake pedal, push the ENGINE START/STOP button and cycle the ignition to the
ON/RUN position (do not start the engine).
2. Adjust all memory profile settings to desired prefer- ences (seat, side mirrors, adjustable pedals and radio
station presets).
3. Press and release the S (Set) button on the memory switch.
4. Within five seconds, press and release either of the memory buttons (1) or (2). The Electronic Vehicle
Information Center (EVIC) will display which
memory position has been set.
Memory Seat Buttons
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

Vehicles Not Equipped With Keyless Enter-N-Go
1. Insert the ignition Key Fob, and turn the ignitionswitch to the ON/RUN position.
2. Adjust all memory profile settings to desired prefer- ences (seat, side mirrors, adjustable pedals [if
equipped], power tilt and telescopic steering column
[if equipped], and radio station presets).
3. Press and release the S (Set) button on the memory switch.
4. Within five seconds, press and release either of the memory buttons (1) or (2). The Electronic Vehicle
Information Center (EVIC) will display which
memory position has been set.
NOTE: Memory profiles can be set without the vehicle
in PARK, but the vehicle must be in PARK to recall a
memory profile.Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory
Your RKE transmitters can be programmed to recall one
of two pre-programmed memory profiles by pressing the
UNLOCK button on the RKE transmitter.
NOTE: Before programming your RKE transmitters to
memory and If your vehicle is equipped with a touch-
screen, you must select the “Memory To FOB” feature
through the Uconnect® system. Refer to “Uconnect®
Settings ” in “Understanding Your Instrument Panel” for
further information.
If your vehicle is not equipped with a touchscreen, you
must select the “Key Fob Linked To Memory” feature
through the Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information Center
(EVIC)” in “Understanding Your Instrument Panel” for
further information.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Driver Two Memory Position Recall
•To recall the memory setting for driver two using the
memory switch, press MEMORY button number 2 on
the memory switch.
• To recall the memory settings for driver two using the
RKE transmitter, press the UNLOCK button on the
RKE transmitter linked to memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons during a recall (S, 1, or 2). When a
recall is cancelled, the driver’s seat, and the pedals stop
moving. A delay of one second will occur before another
recall can be selected.Easy Entry/Exit Seat
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle.
The distance the driver seat moves depends on where
you have the driver seat positioned when you remove the
Key Fob from the ignition (or change the ignition to OFF,
for vehicles equipped with Keyless Enter-N-Go™).
• When you remove the Key Fob from the ignition (or
change the ignition to OFF, for vehicles equipped with
Keyless Enter-N-Go™), the driver seat will move
about 2.4 in (60 mm) rearward if the driver seat
position is greater than or equal to 2.7 in (67.7 mm)
forward of the rear stop. The seat will return to its
previously set position when you place the ignition
into the ACC or RUN position.
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•When you remove the Key Fob from the ignition (or
change the ignition to OFF, for vehicles equipped with
Keyless Enter-N-Go™), the driver seat will move to a
position 0.3 in (7.7 mm) forward of the rear stop if the
driver seat position is between 0.9 in and 2.7 in (22.7
mm and 67.7 mm) forward of the rear stop. The seat
will return to its previously set position when you
place the ignition to the ACC or RUN position.
• The Easy Entry/Easy Exit feature is disabled when the
driver seat position is less than 0.9 in (22.7 mm)
forward of the rear stop. At this position, there is no
benefit to the driver by moving the seat for Easy Exit
or Easy Entry. Each stored memory setting will have an associated Easy
Entry and Easy Exit position.
NOTE:
The Easy Entry/Exit feature is not enabled when
the vehicle is delivered from the factory. The Easy
Entry/Exit feature is enabled (or later disabled) through
the programmable features in the Uconnect® system.
Refer to “Uconnect® Settings/Customer Programmable
Features” in “Understanding Your Instrument Panel” for
further information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

•The pedals can be adjusted with the ignition OFF.
• The pedals cannotbe adjusted when the vehicle is in
REVERSE or when the Electronic Speed Control Sys-
tem is on. The following messages will be displayed on
vehicles equipped with the Electronic Vehicle Informa-
tion System (EVIC) if the pedals are attempted to be adjusted when the system is locked out (“Adjustable
Pedal Disabled — Cruise Control Engaged” or “Ad-
justable Pedal Disabled — Vehicle In Reverse”.
NOTE:
• Always adjust the pedals to a position that allows full
pedal travel.
• Further small adjustments may be necessary to find
the best possible seat/pedal position.
• For vehicles equipped with Driver Memory Seat, you
can use your Remote Keyless Entry (RKE) transmitter
or the memory switch on the driver ’s door trim panel
to return the adjustable pedals to pre-programmed
positions. Refer to “Driver Memory Seat” in “Under-
standing The Features Of Your Vehicle” for further
information.
Adjustable Pedals Switch
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

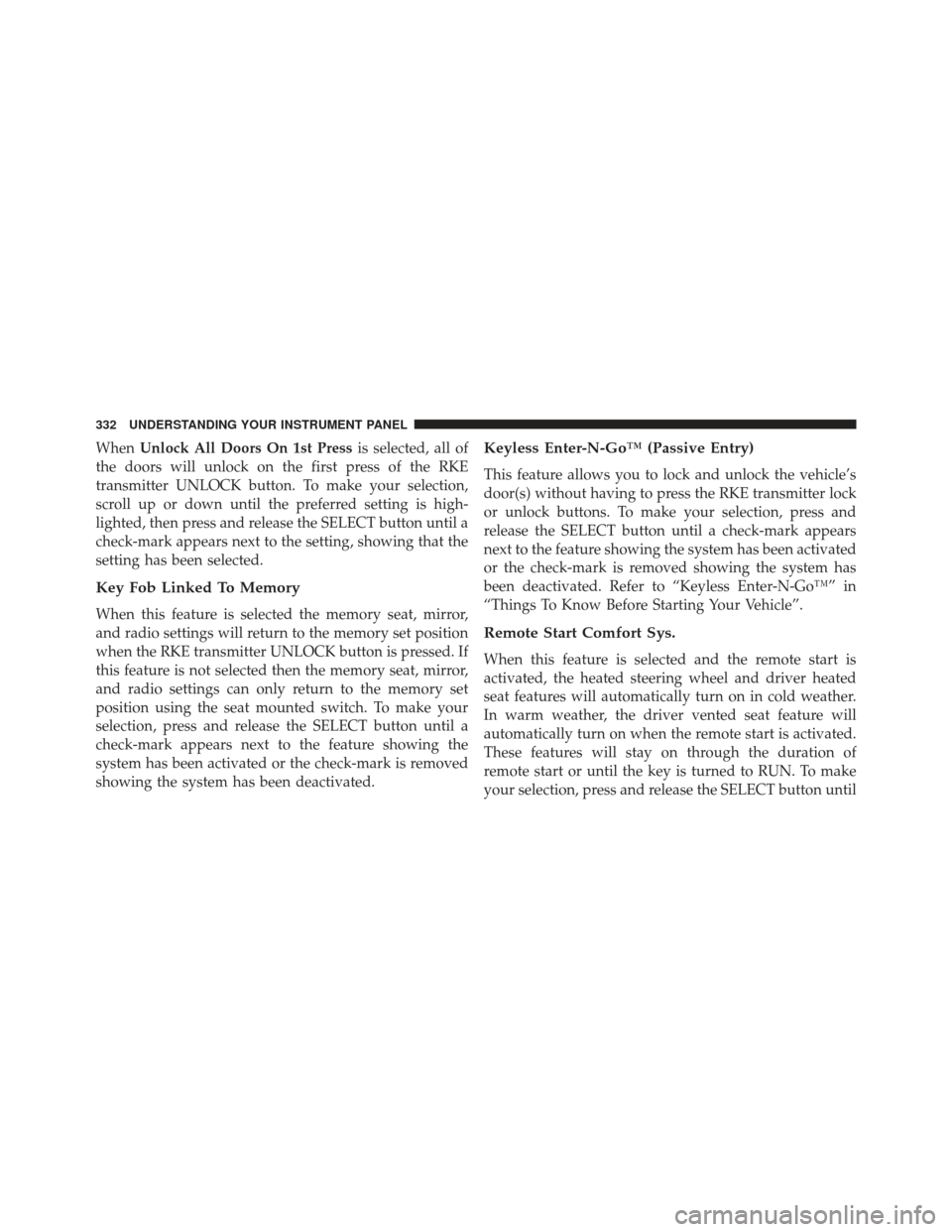

WhenUnlock All Doors On 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
scroll up or down until the preferred setting is high-
lighted, then press and release the SELECT button until a
check-mark appears next to the setting, showing that the
setting has been selected.
Key Fob Linked To Memory
When this feature is selected the memory seat, mirror,
and radio settings will return to the memory set position
when the RKE transmitter UNLOCK button is pressed. If
this feature is not selected then the memory seat, mirror,
and radio settings can only return to the memory set
position using the seat mounted switch. To make your
selection, press and release the SELECT button until a
check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Keyless Enter-N-Go™ (Passive Entry)
This feature allows you to lock and unlock the vehicle’s
door(s) without having to press the RKE transmitter lock
or unlock buttons. To make your selection, press and
release the SELECT button until a check-mark appears
next to the feature showing the system has been activated
or the check-mark is removed showing the system has
been deactivated. Refer to “Keyless Enter-N-Go™” in
“Things To Know Before Starting Your Vehicle”.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
In warm weather, the driver vented seat feature will
automatically turn on when the remote start is activated.
These features will stay on through the duration of
remote start or until the key is turned to RUN. To make
your selection, press and release the SELECT button until
332 UNDERSTANDING YOUR INSTRUMENT PANEL

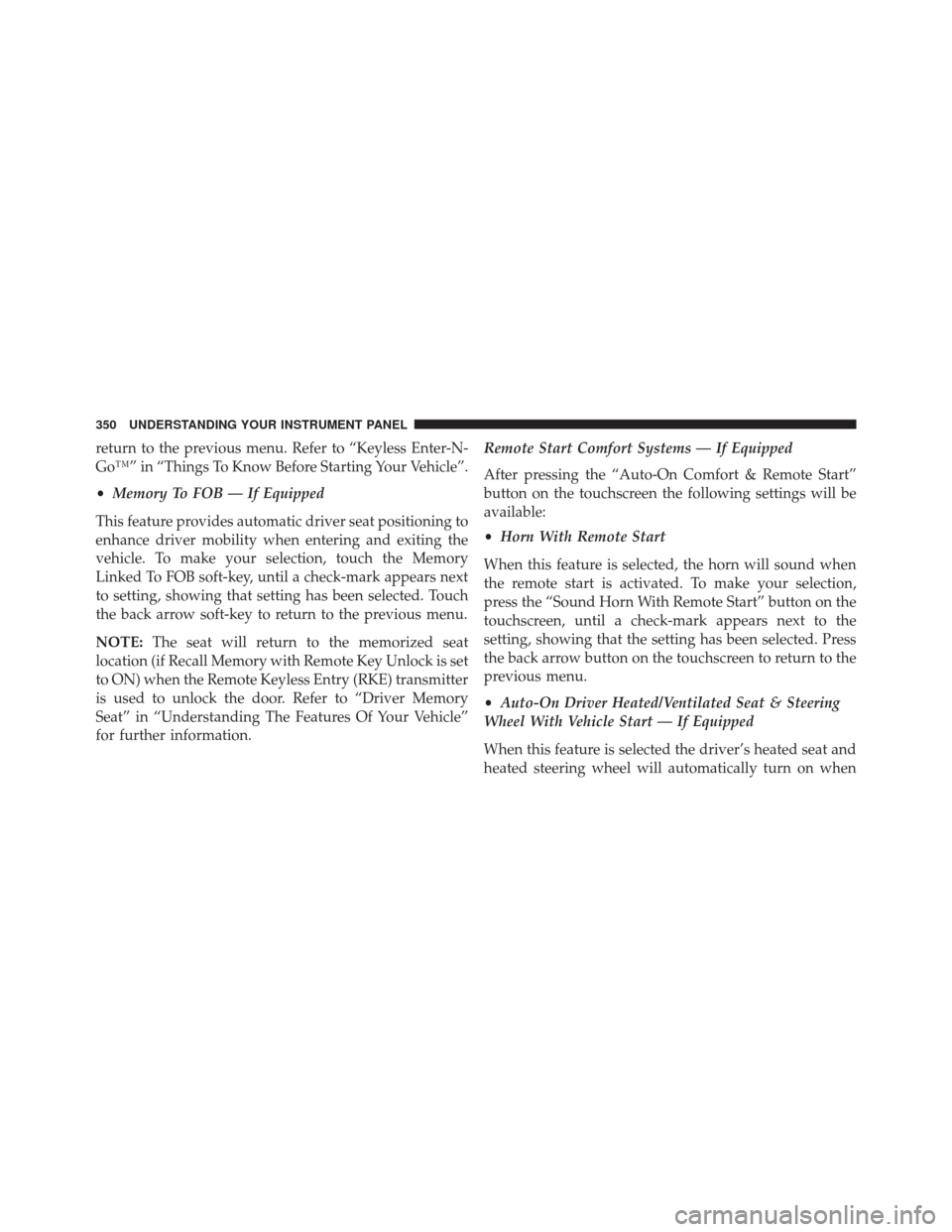

return to the previous menu. Refer to “Keyless Enter-N-
Go™” in “Things To Know Before Starting Your Vehicle”.
•Memory To FOB — If Equipped
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, touch the Memory
Linked To FOB soft-key, until a check-mark appears next
to setting, showing that setting has been selected. Touch
the back arrow soft-key to return to the previous menu.
NOTE: The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the Remote Keyless Entry (RKE) transmitter
is used to unlock the door. Refer to “Driver Memory
Seat” in “Understanding The Features Of Your Vehicle”
for further information. Remote Start Comfort Systems — If Equipped
After pressing the “Auto-On Comfort & Remote Start”
button on the touchscreen the following settings will be
available:
•
Horn With Remote Start
When this feature is selected, the horn will sound when
the remote start is activated. To make your selection,
press the “Sound Horn With Remote Start” button on the
touchscreen, until a check-mark appears next to the
setting, showing that the setting has been selected. Press
the back arrow button on the touchscreen to return to the
previous menu.
• Auto-On Driver Heated/Ventilated Seat & Steering
Wheel With Vehicle Start — If Equipped
When this feature is selected the driver’s heated seat and
heated steering wheel will automatically turn on when
350 UNDERSTANDING YOUR INSTRUMENT PANEL

Manual TransmissionFluid Level Check ...................... .720
Lubricant Selection ..................... .760
Memory Seat ........................... .162
Methanol .............................. .578
Mirrors ............................... .132
Electric Powered ....................... .142
Heated .............................. .144
Memory ............................. .162
Outside ............................. .139
Rearview ............................ .132
Trailer Towing ........................ .146
Modifications/Alterations, Vehicle ...............7
Monitor, Tire Pressure System ................567
Mopar Parts ............................ .695
MTBE/ETBE ........................... .578
Multi-Function Control Lever .................179
Navigation System (Uconnect® gps) ............210New Vehicle Break-In Period
.................119
Occupant Restraints ........................50
Occupant Restraints (Sedan) ..................72
Octane Rating, Gasoline (Fuel) ................577
Off-Pavement Driving (Off-Road) ..............474
Off-Road Driving (Off-Pavement) ..............474
Oil, Engine ............................. .697
Capacity ............................ .755
Change Interval ....................... .698
Dipstick ............................. .697
Disposal ............................. .700
Filter ............................... .700
Filter Disposal ........................ .700
Identification Logo ..................... .698
Recommendation ...................... .698
Synthetic ............................ .700
Viscosity ............................ .699
Oil Filter, Selection ....................... .700
794 INDEX
