Ram 1500 2015 Owner's Manual

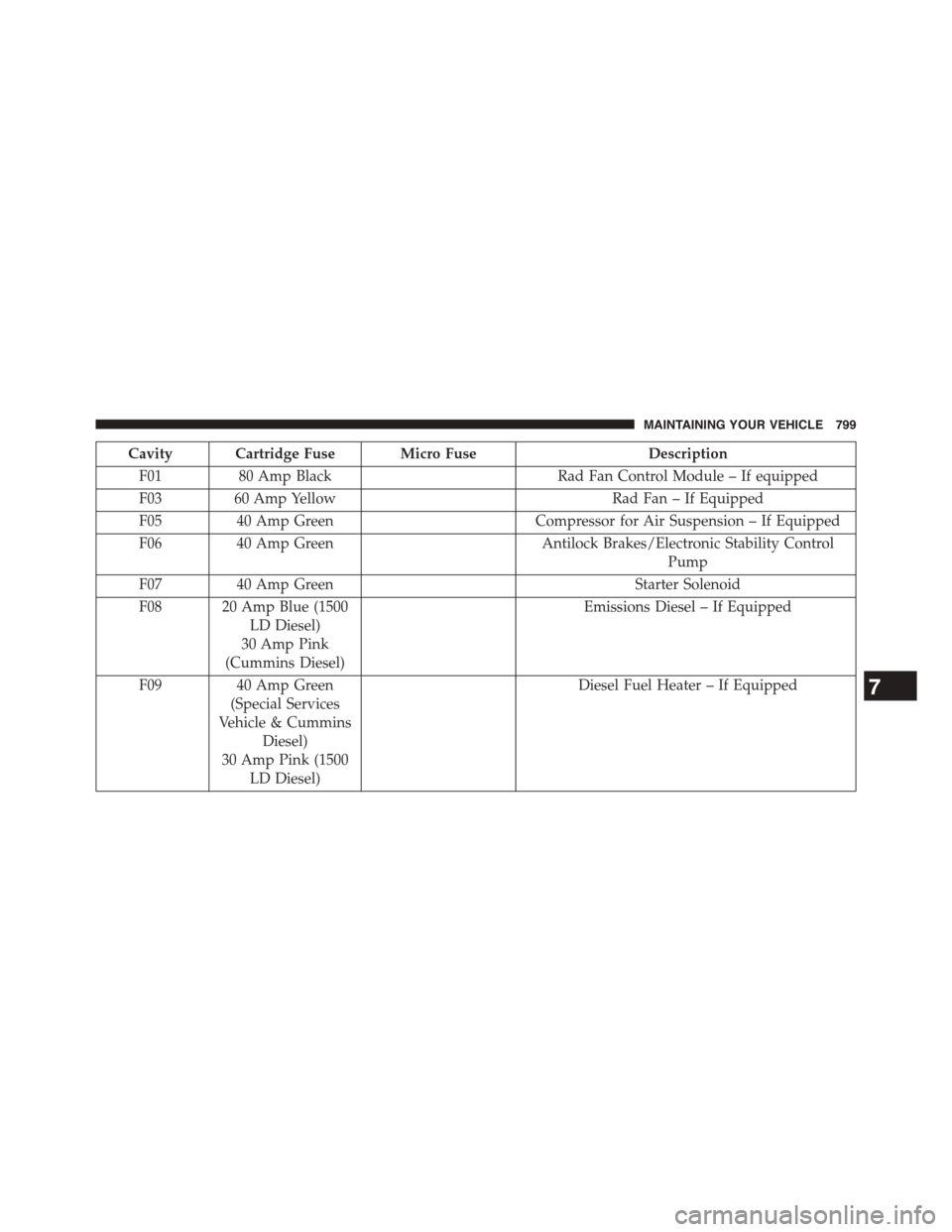

Cavity Cartridge Fuse Micro FuseDescription
F0180 Amp BlackRad Fan Control Module – If equipped
F03 60 Amp YellowRad Fan – If Equipped
F0540 Amp GreenCompressor for Air Suspension – If Equipped
F0640 Amp GreenAntilock Brakes/Electronic Stability Control
Pump
F0740 Amp GreenStarter Solenoid
F08 20 Amp Blue (1500
LD Diesel)
30 Amp Pink
(Cummins Diesel)
Emissions Diesel – If Equipped
F0940 Amp Green
(Special Services
Vehicle & Cummins
Diesel)
30 Amp Pink (1500
LD Diesel)
Diesel Fuel Heater – If Equipped7
MAINTAINING YOUR VEHICLE 799

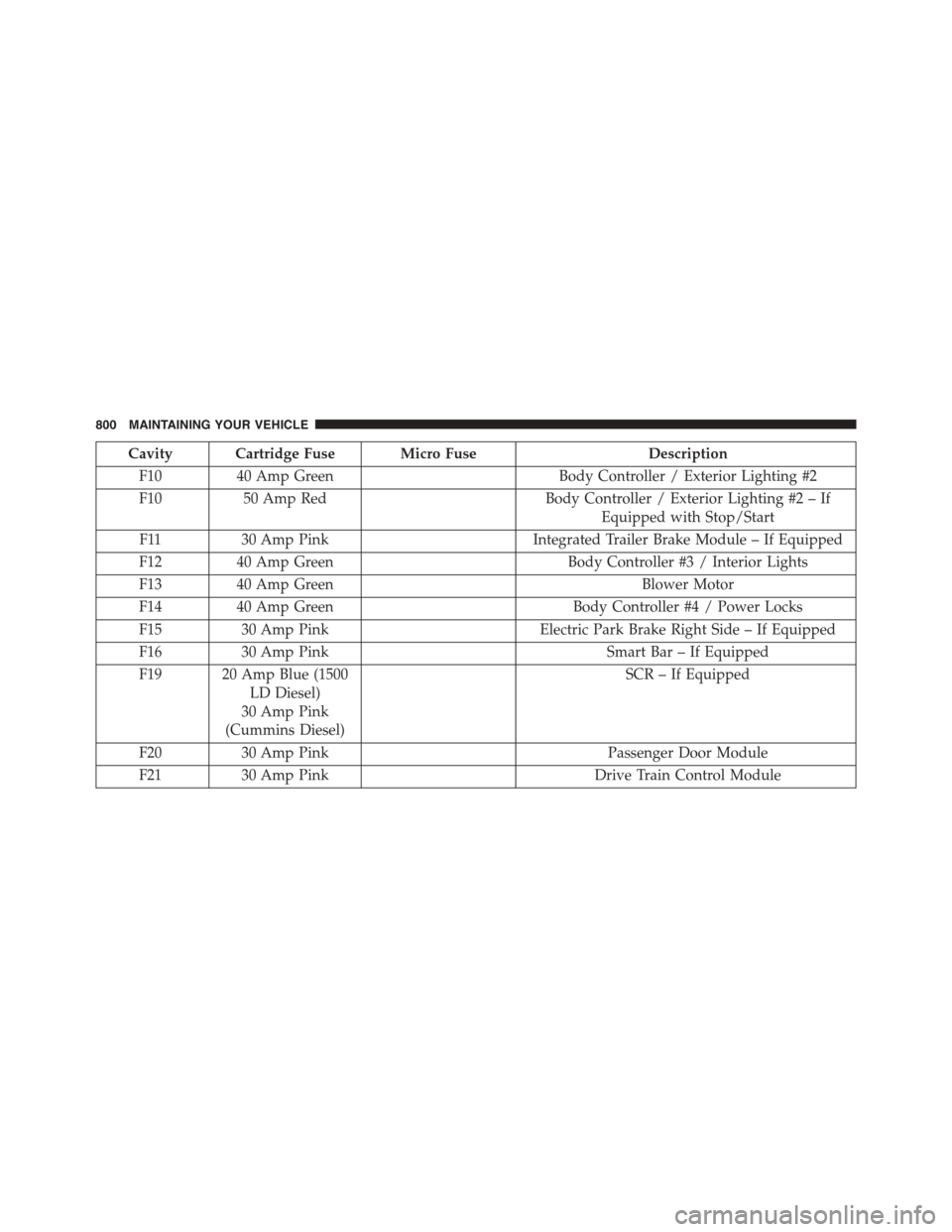

Cavity Cartridge Fuse Micro FuseDescription
F1040 Amp GreenBody Controller / Exterior Lighting #2
F1050 Amp RedBody Controller / Exterior Lighting #2 – If
Equipped with Stop/Start
F1130 Amp PinkIntegrated Trailer Brake Module – If Equipped
F1240 Amp GreenBody Controller #3 / Interior Lights
F1340 Amp GreenBlower Motor
F1440 Amp GreenBody Controller #4 / Power Locks
F1530 Amp PinkElectric Park Brake Right Side – If Equipped
F1630 Amp PinkSmart Bar – If Equipped
F19 20 Amp Blue (1500
LD Diesel)
30 Amp Pink
(Cummins Diesel)
SCR – If Equipped
F2030 Amp PinkPassenger Door Module
F2130 Amp PinkDrive Train Control Module
800 MAINTAINING YOUR VEHICLE

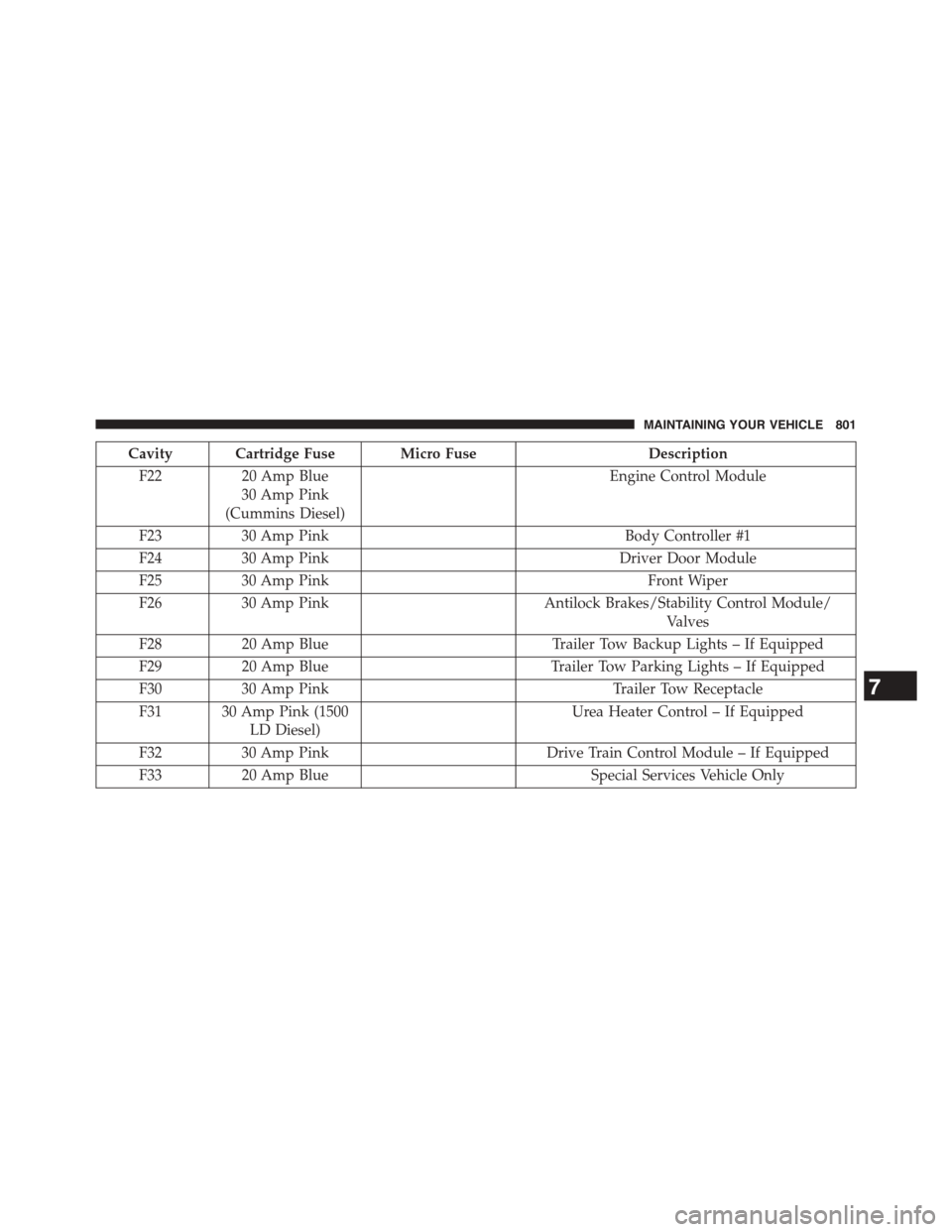

Cavity Cartridge Fuse Micro FuseDescription
F2220 Amp Blue
30 Amp Pink
(Cummins Diesel)
Engine Control Module
F2330 Amp PinkBody Controller #1
F2430 Amp PinkDriver Door Module
F2530 Amp PinkFront Wiper
F2630 Amp PinkAntilock Brakes/Stability Control Module/
Valves
F2820 Amp BlueTrailer Tow Backup Lights – If Equipped
F2920 Amp BlueTrailer Tow Parking Lights – If Equipped
F3030 Amp PinkTrailer Tow Receptacle
F31 30 Amp Pink (1500
LD Diesel)
Urea Heater Control – If Equipped
F3230 Amp PinkDrive Train Control Module – If Equipped
F3320 Amp BlueSpecial Services Vehicle Only
7
MAINTAINING YOUR VEHICLE 801

Cavity Cartridge Fuse Micro FuseDescription
F3430 Amp PinkVehicle System Interface Module #2 – If
Equipped
F3530 Amp PinkSunroof – If Equipped
F3630 Amp PinkRear Defroster– If Equipped
F3730 Amp PinkCummins Diesel Fuel Heater #2 If Equipped
F3830 Amp PinkPower Inverter 115V AC– If Equipped
F3930 Amp PinkVehicle System Interface Module #1– If
Equipped
F4110 Amp RedActive Grill Shutter
F4220 Amp YellowHorn
F4410 Amp RedDiagnostic Port
F4610 Amp RedTire Pressure Monitor
F4910 Amp RedInstrument Panel Cluster
F5020 Amp Yellow Air Suspension Control Module – If Equipped
F5110 Amp Red Ignition Node Module / Keyless Ignition
802 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Micro FuseDescription
F525 Amp TanBattery Sensor
F5320 Amp YellowTrailer Tow – Left Turn/Stop Lights
F5420 Amp YellowAdjustable Pedals
F5615 Amp Blue Additional Diesel Content – If Equipped
F5720 Amp YellowTransmission
F5820 Amp YellowSpare Fuse
F5910 Amp RedSCR Relay – If Equipped
F6015 Amp BlueUnderhood Lamp
F6110 Amp Red (1500
LD Diesel & Cum-
mins Diesel)
PM Sensor – If Equipped
F6210 Amp RedAir Conditioning Clutch
F6320 Amp Yellow Ignition Coils (Gas), Urea Heater (Cummins
Diesel)
F6425 Amp ClearFuel Injectors / Powertrain
7
MAINTAINING YOUR VEHICLE 803

Cavity Cartridge Fuse Micro FuseDescription
F6510 Amp RedUSB interface
F6610 Amp Red Sunroof / Passenger Window Switches / Rain
Sensor
F6710 Amp Red CD / DVD / Bluetooth Hands-free Module – If
Equipped
F6915 Amp Blue Mod SCR 12V (Cummins Diesel) – If Equipped
F7030 Amp GreenFuel Pump Motor
F7125 Amp ClearAmplifier
F7210 Amp Red Voltage Stabilizer Modules – If Equipped
F7320 Amp Yellow Fuel Transfer Pump (HD Only) – If Equipped
F7420 Amp Yellow
(Gas Engine & 1500
LD Diesel)
10 Amp Red (Cum-
mins Diesel Engine)
Brake Vacuum Pump Gas/Diesel – If Equipped
F7510 Amp RedCoolant Temperature Valve Actuator
804 MAINTAINING YOUR VEHICLE

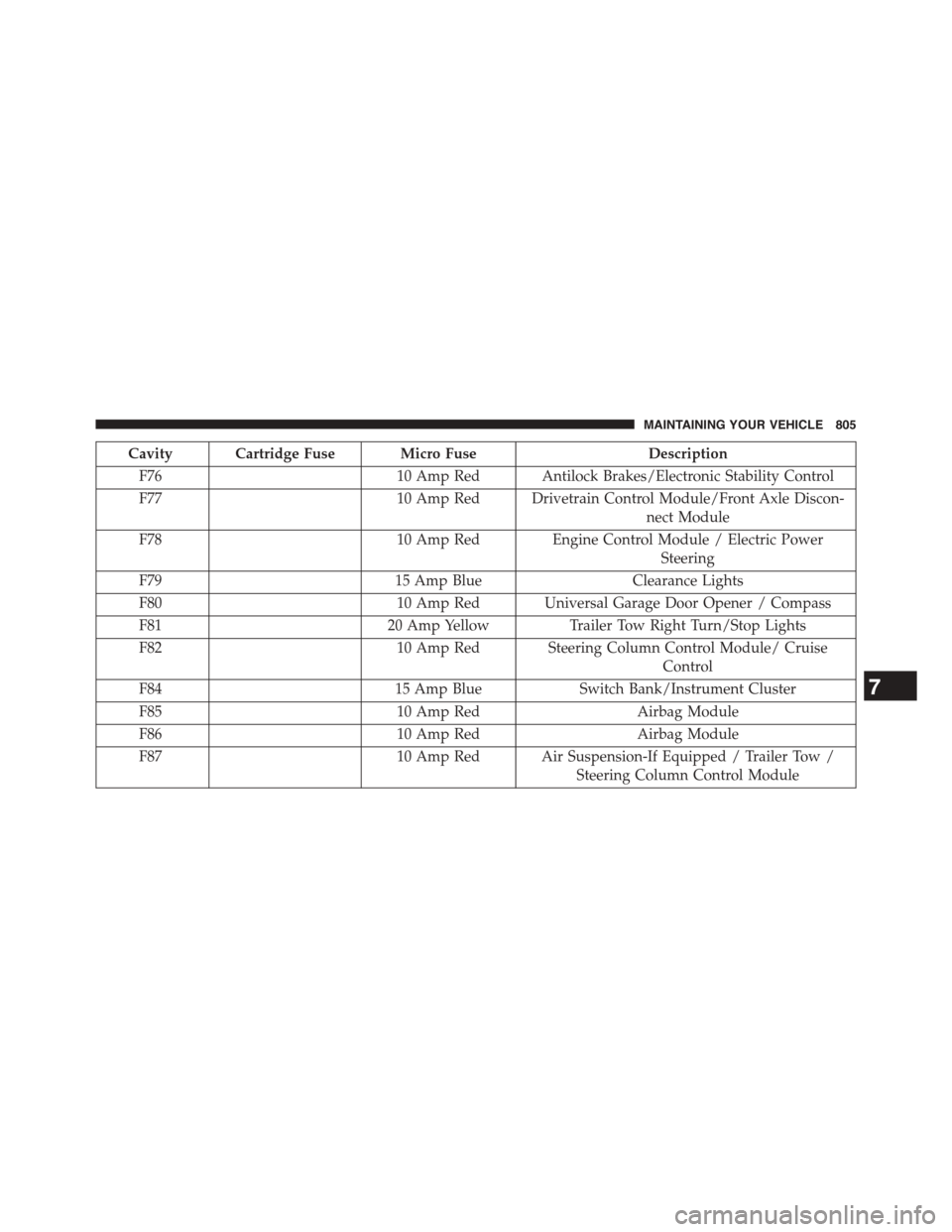

Cavity Cartridge Fuse Micro FuseDescription
F7610 Amp Red Antilock Brakes/Electronic Stability Control
F7710 Amp Red Drivetrain Control Module/Front Axle Discon-
nect Module
F7810 Amp Red Engine Control Module / Electric Power
Steering
F7915 Amp BlueClearance Lights
F8010 Amp Red Universal Garage Door Opener / Compass
F8120 Amp YellowTrailer Tow Right Turn/Stop Lights
F8210 Amp Red Steering Column Control Module/ Cruise
Control
F8415 Amp BlueSwitch Bank/Instrument Cluster
F8510 Amp RedAirbag Module
F8610 Amp RedAirbag Module
F8710 Amp Red Air Suspension-If Equipped / Trailer Tow /
Steering Column Control Module
7
MAINTAINING YOUR VEHICLE 805

Cavity Cartridge Fuse Micro FuseDescription
F8815 Amp BlueInstrument Panel Cluster
F90/F9120 Amp Yellow Power Outlet (Rear seats) Customer Selectable
F9320 Amp YellowCigar Lighter
F9410 Amp RedShifter / Transfer Case Module
F9510 Amp RedRear Camera / Park Assist
F9610 Amp RedRear Seat Heater Switch
F9725 Amp Clear Rear Heated Seats & Heated Steering Wheel – If
Equipped
F9825 Amp ClearFront Heated Seats – If Equipped
F9910 Amp RedClimate Control
F10010 Amp RedUpfitters – If Equipped
F10115 Amp Blue Electrochromatic Mirror / Smart High Beams –
If Equipped
F10420 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
806 MAINTAINING YOUR VEHICLE

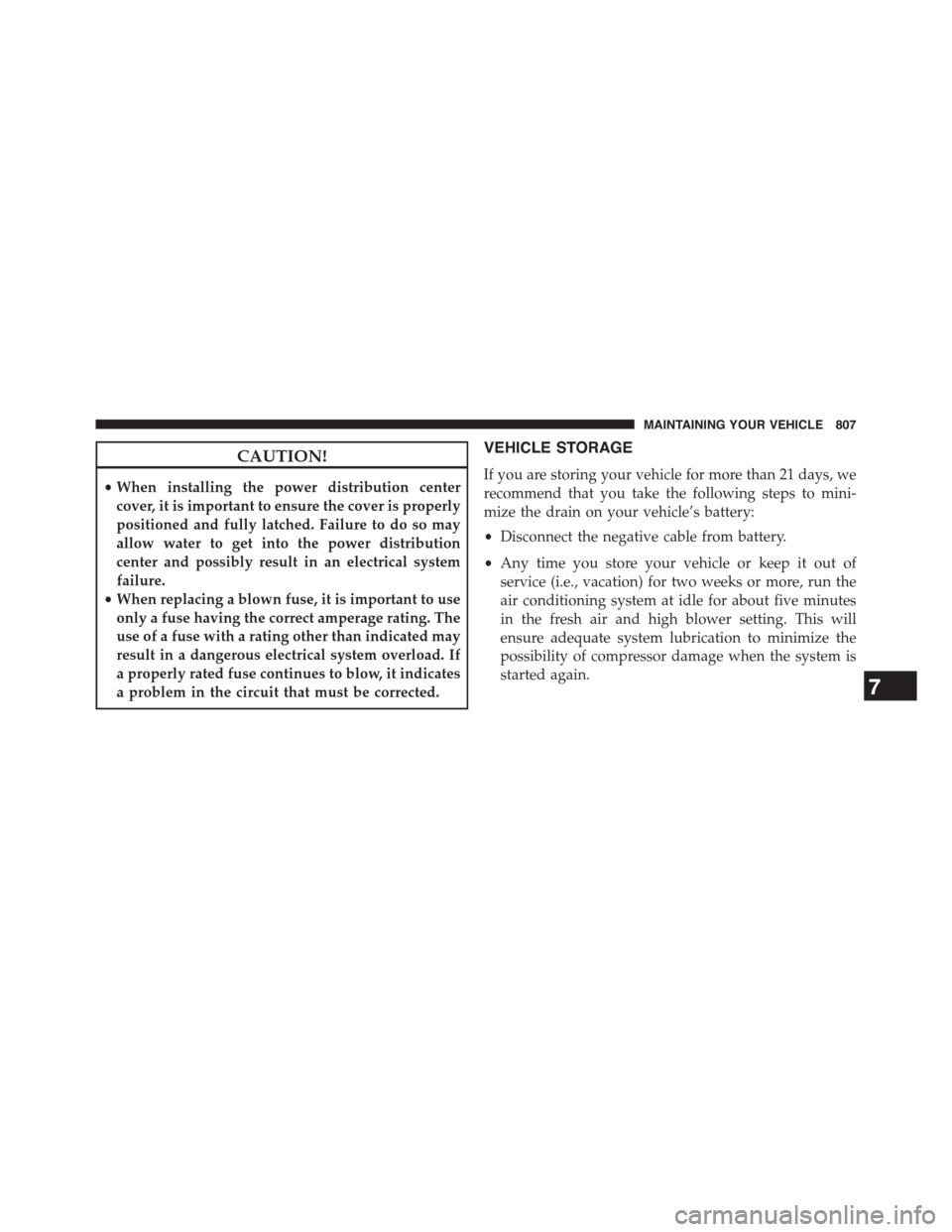

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the negative cable from battery.
•Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.7
MAINTAINING YOUR VEHICLE 807

REPLACEMENT BULBS
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
Interior Bulbs
Bulb Number
Overhead Console
Lamps
TS 212–9
Dome Lamp 7679
For lighted switches, see your authorized dealer for
replacement instructions.
Exterior Bulbs
Bulb Number
Base Quad Headlamp –
Low Beam
H11LL
Base Quad Headlamp –
High Beam
9005LL
Front Turn Signal Lamp
(Base Quad Headlamp)
3157NA
Premium Bi Halogen
Projector Headlamp -
Low Beam
HIR2LL
Premium Bi Halogen
Projector Headlamp -
High Beam
9005LL
Front Turn Signal Lamp
(Premium Headlamp)
LED (Serviced at
Authorized Dealer)
