The key symbol indicates that this outlet can supply
power when the key is in the ON/RUN or ACC posi-
tions.
All accessories connected to the outlet(s) should be
removed or turned off when the vehicle is not in use to
protect the battery against discharge.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Power Outlet Fuse Locations
1—F104Fuse20AYellowPowerOutletConsoleBin2 — F90–F91 Fuse 20 A Yellow Power Outlet Rear Center Console3—F93Fuse20AYellowCigarLighterInstrumentPanel
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231

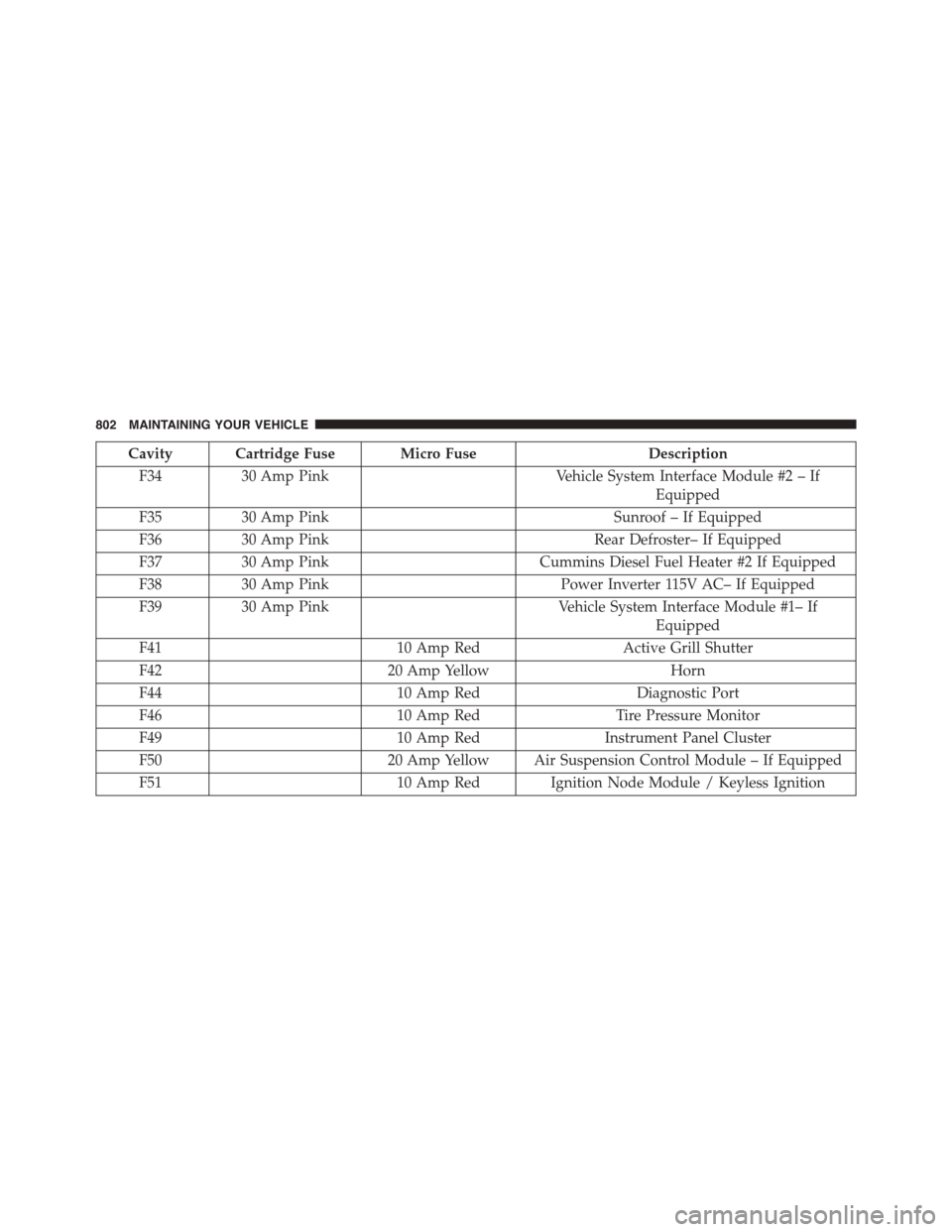

Cavity Cartridge Fuse Micro FuseDescription
F3430 Amp PinkVehicle System Interface Module #2 – If
Equipped
F3530 Amp PinkSunroof – If Equipped
F3630 Amp PinkRear Defroster– If Equipped
F3730 Amp PinkCummins Diesel Fuel Heater #2 If Equipped
F3830 Amp PinkPower Inverter 115V AC– If Equipped
F3930 Amp PinkVehicle System Interface Module #1– If
Equipped
F4110 Amp RedActive Grill Shutter
F4220 Amp YellowHorn
F4410 Amp RedDiagnostic Port
F4610 Amp RedTire Pressure Monitor
F4910 Amp RedInstrument Panel Cluster
F5020 Amp Yellow Air Suspension Control Module – If Equipped
F5110 Amp Red Ignition Node Module / Keyless Ignition
802 MAINTAINING YOUR VEHICLE

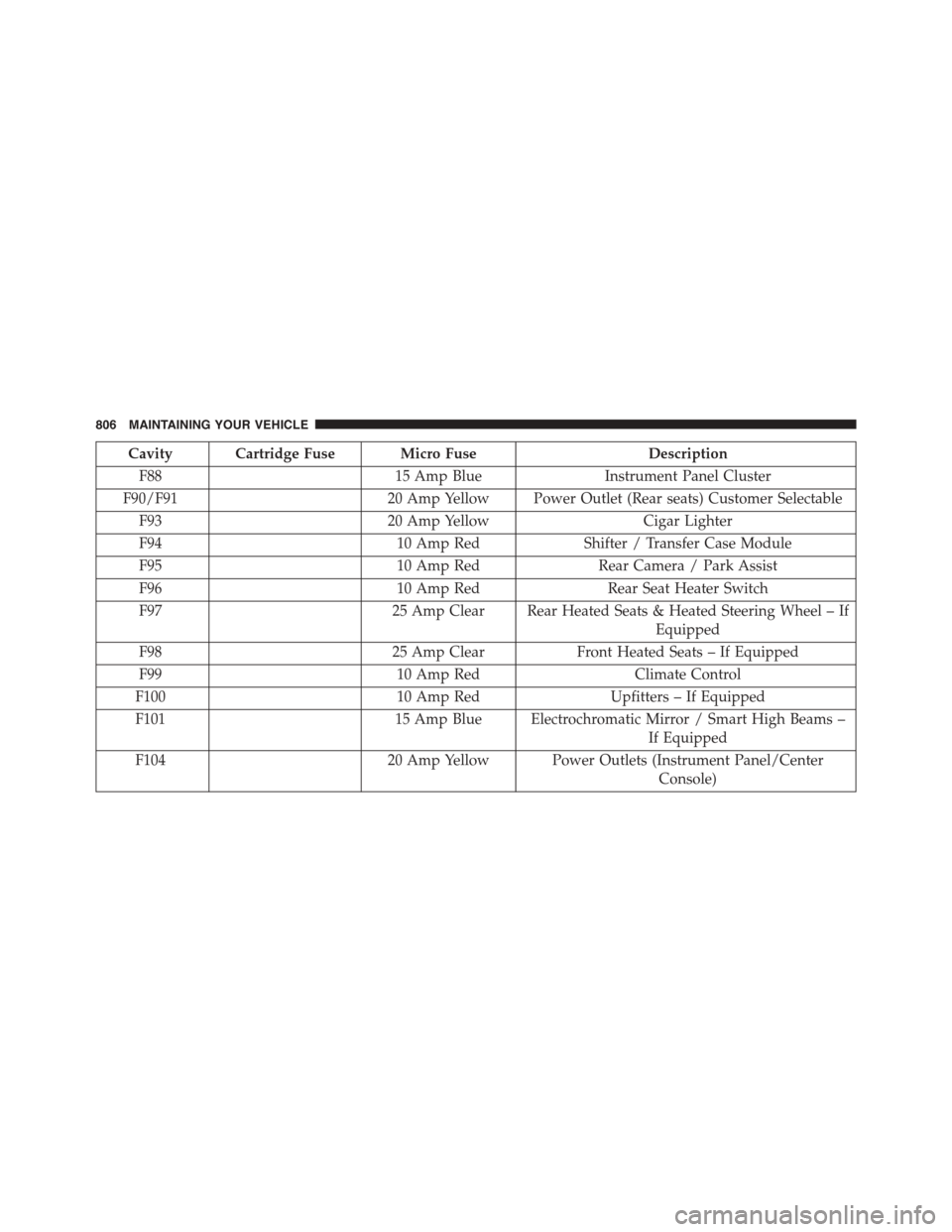

Cavity Cartridge Fuse Micro FuseDescription
F8815 Amp BlueInstrument Panel Cluster
F90/F9120 Amp Yellow Power Outlet (Rear seats) Customer Selectable
F9320 Amp YellowCigar Lighter
F9410 Amp RedShifter / Transfer Case Module
F9510 Amp RedRear Camera / Park Assist
F9610 Amp RedRear Seat Heater Switch
F9725 Amp Clear Rear Heated Seats & Heated Steering Wheel – If
Equipped
F9825 Amp ClearFront Heated Seats – If Equipped
F9910 Amp RedClimate Control
F10010 Amp RedUpfitters – If Equipped
F10115 Amp Blue Electrochromatic Mirror / Smart High Beams –
If Equipped
F10420 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
806 MAINTAINING YOUR VEHICLE
