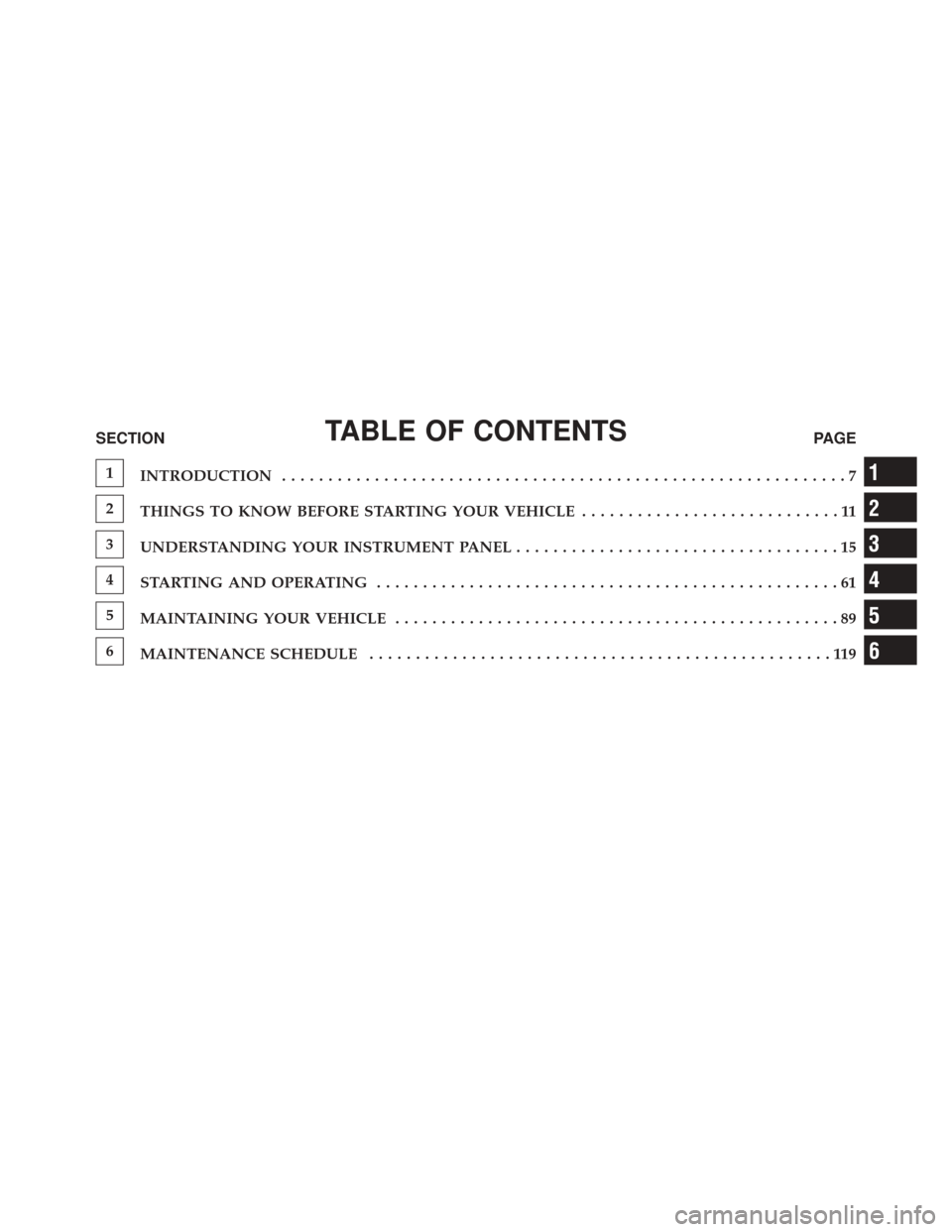

TABLE OF CONTENTSSECTIONPAGE
1
INTRODUCTION .............................................................7
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ............................11
3
UNDERSTANDING YOUR INSTRUMENT PANEL ...................................15
4
STARTING AND OPERATING ..................................................61
5
MAINTAINING YOUR VEHICLE ................................................89
6
MAINTENANCE SCHEDULE ..................................................119
1
2
3
4
5
6

REMOTE STARTING SYSTEM
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m).
NOTE:
• The vehicle must be equipped with an automatic
transmission to be equipped with Remote Start.
• Obstructions between the vehicle and the RKE trans-
mitter may reduce this range.
• The Remote Start system will wait for the “Wait To
Start” amber telltale to extinguish before cranking the
engine. This allows time for the engine pre-heat cycle
to pre-heat the cylinder air, and is normal in cold weather. Refer to “Electronic Vehicle Information Dis-
play (EVIC)” in “Understanding Your Instrument
Panel” for further information on the “Wait To Start”
amber telltale and the pre-heat cycle.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•
Shift lever in PARK
• Doors closed
• Hood closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pressed)
• Battery at an acceptable charge level
• RKE PANIC button not pressed
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER — BASE (EVIC) .....16
 INSTRUMENT CLUSTER — PREMIUM (DID) . . .19
 WARNING AND INDICATOR LIGHTS ........22
▫ Yellow Telltale Indicator Lights .............23
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) ...............................25
▫ Electronic Vehicle Information Center (EVIC)
Displays — 3.5” Display .................26
▫ Diesel Particulate Filter (DPF) Messages ......32
▫ Diesel Exhaust Fluid (DEF) Warning Messages . .34 ▫
Diesel Exhaust Fluid (DEF) Fault Warning
Messages ............................35
▫ EVIC/DID Displays .....................37
▫ Oil Life Reset .........................38
▫
Vehicle Information (Customer Information
Features) .............................39
DRIVER INFORMATION DISPLAY (DID) ......41
▫ Vehicle Information (Customer Information
Features) ............................42
▫ Oil Life Reset .........................44
▫ Driver Information Display (DID) —
7” Display ...........................45
3

INSTRUMENT CLUSTER — BASE (EVIC)
Base EVIC Instrument Cluster — If Equipped
16 UNDERSTANDING YOUR INSTRUMENT PANEL

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Electronic Vehicle Information Center (EVIC) Display •When the appropriate conditions exist, this display
shows the Electronic Vehicle Information Center
(EVIC) messages. Refer to “Electronic Vehicle Infor-
mation Center” in “Understanding Your Instrument
Panel” for further information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel filler door is located. 5. DEF Gauge
•The DEF Gauge displays the actual level of Diesel
Exhaust Fluid in the DEF tank. Diesel Exhaust Fluid
(DEF) is required to maintain normal vehicle opera-
tion and emissions compliance. If something is
wrong with the gauge, a DEF Warning Message or
Malfunction Indicator Light (MIL) will be displayed.
More information is available in the Electronic Ve-
hicle Information (EVIC) or Driver Information Dis-
play (DID) section under the heading of Diesel
Exhaust Fluid (DEF) Warning Messages.
NOTE:
• The gauge may take up to five seconds to update after
adding a gallon or more of Diesel Exhaust Fluid (DEF)
to the DEF tank. If you have a fault related to the DEF
system, the gauge may not update to the new level. See
your authorized dealer for service.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 17

•The DEF gauge may also not immediately update after
a refill if the temperature of the DEF fluid is below 12F
(-11C). The DEF line heater will possibly warm up the
DEF fluid and allow the gauge to update after a period
of run time. Under very cold conditions, it is possible
that the gauge may not reflect the new fill level for
several drives. •
Outside temperature can affect DEF consumption. In
cold conditions, 12° F (-11° C) and below, the DEF
gauge needle can stay on a fixed position and may not
move for extended periods of time. This is a normal
function of the system.
18 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — PREMIUM (DID)
Premium DID Instrument Cluster — If Equipped
3
UNDERSTANDING YOUR INSTRUMENT PANEL 19

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Engine Coolant Temperature •This gauge shows the engine coolant temperature.
The gauge pointer will likely show higher tempera-
tures when driving in hot weather, up mountain
grades, or in heavy stop and go traffic. If the red
Warning Light turns on while driving, safely bring
the vehicle to a stop, and turn off the engine. DO
NOT operate the vehicle until the cause is corrected.CAUTION!
Driving with a hot engine cooling system could damage
your vehicle. If the temperature gauge reads “H” pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into
the normal range. If the pointer remains on the “H”,
turn the engine off immediately and call an authorized
dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or others
could be badly burned by steam or boiling coolant. You
may want to call an authorized dealer for service if your
vehicle overheats. If you decide to look under the hood
yourself, see “Maintaining Your Vehicle.” Follow the
warnings under the “Cooling System Pressure Cap”
paragraph.
20 UNDERSTANDING YOUR INSTRUMENT PANEL

3. Oil Pressure Gauge•The pointer should always indicate some oil pres-
sure when the engine is running. A continuous high
or low reading under normal driving conditions may
indicate a lubrication system malfunction. Immedi-
ate service should be obtained from an authorized
dealer.
4. Speedometer •Indicates vehicle speed.
5. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel filler door is located. 6. Driver Information Display (DID)
•When the appropriate conditions exist, this display
shows the Driver Information Display (DID) mes-
sages. Refer to “Driver Information Display” in
“Understanding Your Instrument Panel” for further
information.
7. DEF Gauge •The DEF Gauge displays the actual level of Diesel
Exhaust Fluid in the DEF tank. Diesel Exhaust Fluid
(DEF) is required to maintain normal vehicle opera-
tion and emissions compliance. If something is
wrong with the gauge, a DEF Warning Message or
Malfunction Indicator Light (MIL) will be displayed.
More information is available in the Electronic Ve-
hicle Information (EVIC) or Driver Information Dis-
play (DID) section under the heading of Diesel
Exhaust Fluid (DEF) Warning Messages.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 21

NOTE:
•The gauge may take up to five seconds to update after
adding a gallon or more of Diesel Exhaust Fluid (DEF)
to the DEF tank. If you have a fault related to the DEF
system, the gauge may not update to the new level. See
your authorized dealer for service.
• The DEF gauge may also not immediately update after
a refill if the temperature of the DEF fluid is below 12F
(-11C). The DEF line heater will possibly warm up the
DEF fluid and allow the gauge to update after a period
of run time. Under very cold conditions, it is possible
that the gauge may not reflect the new fill level for
several drives.
• Outside temperature can affect DEF consumption. In
cold conditions, 12° F (-11° C) and below, the DEF
gauge needle can stay on a fixed position and may not
move for extended periods of time. This is a normal
function of the system.WARNING AND INDICATOR LIGHTS
IMPORTANT: The warning / indicator lights switch on
in the instrument panel together with a dedicated mes-
sage and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such
must not be considered as exhaustive and/or alternative
to the information contained in the Owner ’s Manual,
which you are advised to read carefully in all cases.
Always refer to the information in this chapter in the
event of a failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
