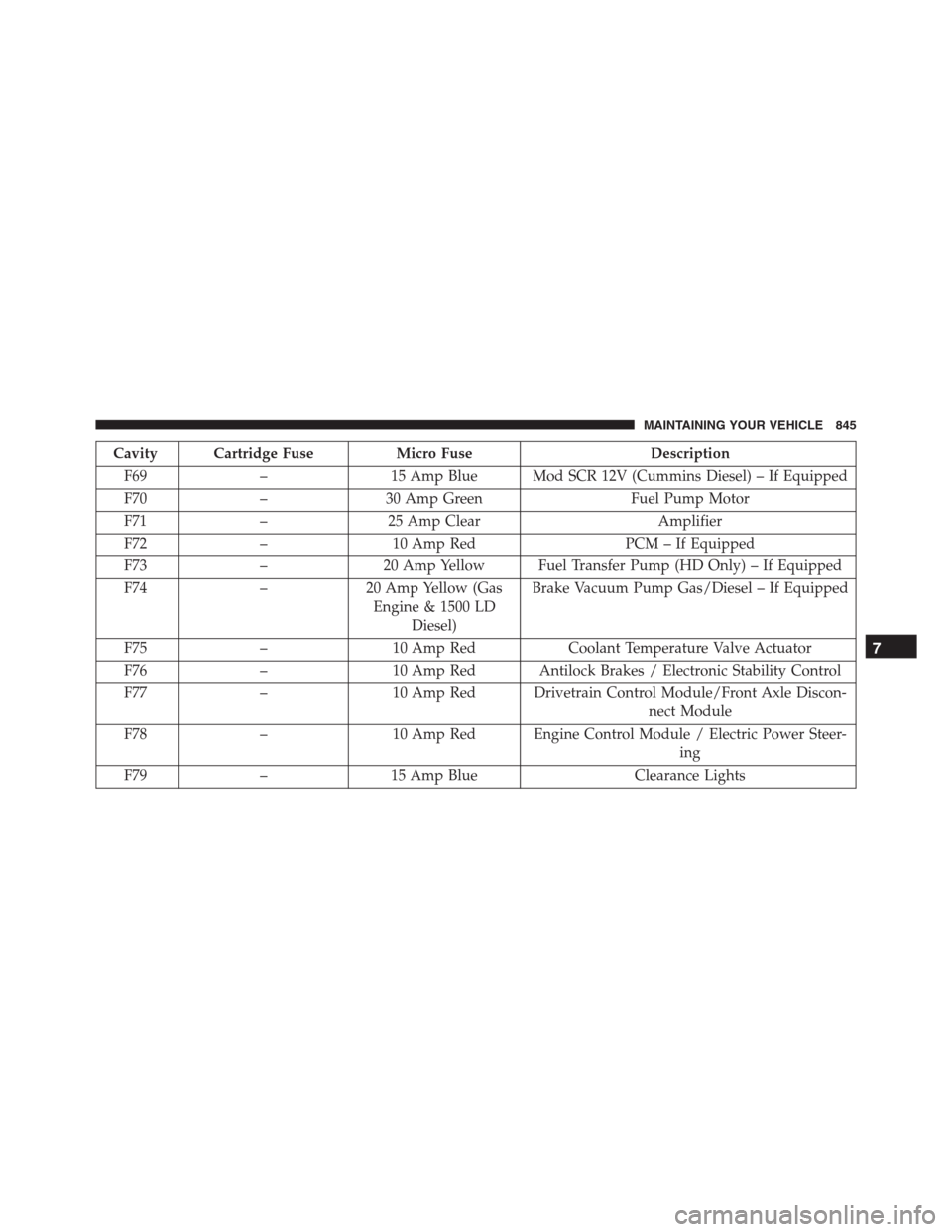

Cavity Cartridge Fuse Micro Fuse Description
F69 – 15 Amp Blue Mod SCR 12V (Cummins Diesel) – If Equipped
F70 – 30 Amp Green Fuel Pump Motor
F71 – 25 Amp Clear Amplifier
F72 – 10 Amp Red PCM – If Equipped
F73 – 20 Amp Yellow Fuel Transfer Pump (HD Only) – If Equipped
F74 – 20 Amp Yellow (Gas
Engine & 1500 LD
Diesel)Brake Vacuum Pump Gas/Diesel – If Equipped
F75 – 10 Amp Red Coolant Temperature Valve Actuator
F76 – 10 Amp Red Antilock Brakes / Electronic Stability Control
F77 – 10 Amp Red Drivetrain Control Module/Front Axle Discon-
nect Module
F78 – 10 Amp Red Engine Control Module / Electric Power Steer-
ing
F79 – 15 Amp Blue Clearance Lights
7
MAINTAINING YOUR VEHICLE 845
