LIGHTS
Dome Light
The special service dome light has three positions. Position
one is used for white light, and position two is used for red
LED light. Always remember to return the dome light
switch to the OFF (center) position when finished using to
prevent discharging the vehicle battery.NOTE:
If your vehicle is equipped with illuminated ap-
proach lights under the outside mirrors they can be turned
off through the Instrument Cluster Display or the Uconnect
radio. For further information refer to “Instrument Cluster
Display” and “Uconnect Settings” in “Understanding Your
Instrument Panel” in your owners manual on the DVD.
Dome Light
16 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 19 of 28
UNDERSTANDING YOUR INSTRUMENT PANEL

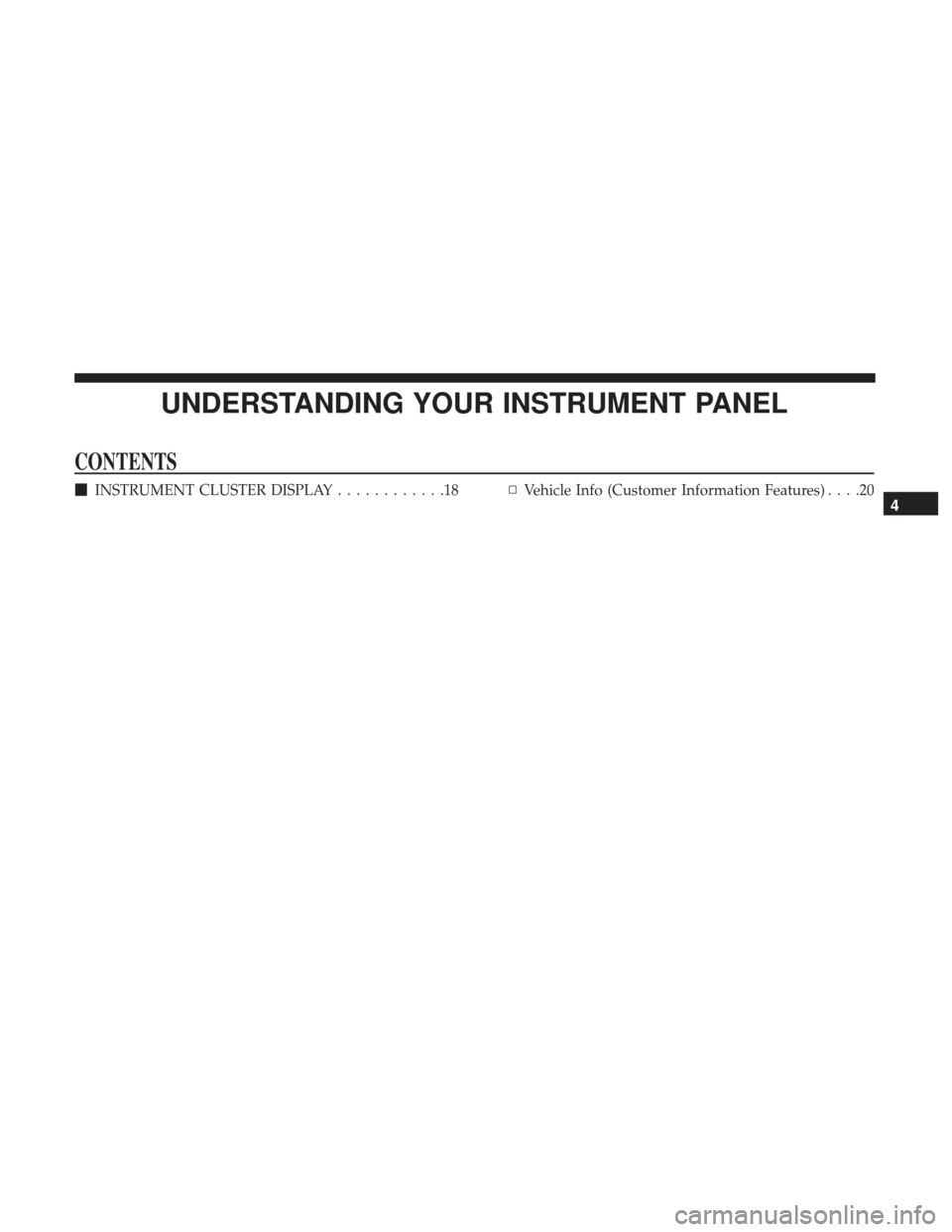

CONTENTS
INSTRUMENT CLUSTER DISPLAY ............18▫Vehicle Info (Customer Information Features) ....204
Page 20 of 28
INSTRUMENT CLUSTER DISPLAY
The Instrument Cluster Display features a driver-
interactive display that is located in the instrument cluster.
Instrument Cluster Display — Base
Instrument Cluster Display — Premium
18 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 21 of 28
This system allows the driver to select a variety of useful
information by pushing the switches mounted on the
steering wheel. The Instrument Cluster Display may con-
sist of the following:
•Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip A
• Trip B
• Stop/Start Info (If Equipped)
• Trailer Tow
• Audio
• Stored Messages
• Screen Setup
• Vehicle Settings (Not Equipped with a Uconnect 5.0 &
8.4 radio)
• Settings
• Turn Menu Off The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:
•
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu and submenus
(Fuel Economy, Trip A, Trip B, Audio, Stored
Messages, Screen Set Up).
Steering Wheel Buttons
4
UNDERSTANDING YOUR INSTRUMENT PANEL 19
Page 22 of 28
•DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu and
submenus (Fuel Economy, Trip A, Trip B, Audio,
Stored Messages, Screen Set Up).
• RIGHT Arrow Button
Push and release the RIGHTarrow button to
access/select the information screens or sub-
menu screens of a main menu item. Push and
hold the RIGHTarrow button for two seconds to
reset displayed/selected features that can be reset.
• LEFT Arrow Button
Push the LEFTarrow button to access/select the
information screens or submenu screens of a
main menu item or to return to the main menu
from an info screen or submenu item.Vehicle Info (Customer Information Features)
Push and release the UPorDOWN
arrow button until the Vehicle Info icon is
highlighted in the Instrument Cluster Display.
Push and release the RIGHT
arrow button
and Coolant Temp will be displayed. Push the
RIGHT
arrow button to scroll to the Engine Hour
information submenu:
Engine Hours
The Engine Hours submenu will display the following:
• Idle Hours
• Drive Hours
20 UNDERSTANDING YOUR INSTRUMENT PANEL
