Ram 1500 2019 Owner's Manual

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ..................293
▫ Automatic Transmission ..................293
▫ Tip Start Feature ...................... .294
▫ Keyless Enter-N-Go — Ignition .............294
▫ Normal Starting Using ENGINE START/STOP
Button ............................. .294
▫ Cold Weather Operation
(Below –22°F Or 30°C) ..................299
▫ After Starting ......................... .299
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .299
 ENGINE BREAK-IN RECOMMENDATIONS . . . .299
 PARKING BRAKE ...................... .300
▫ Electric Park Brake (EPB) .................300
 AUTOMATIC TRANSMISSION ..............304
▫ Ignition Park Interlock ...................306 ▫
Brake/Transmission Shift Interlock System . . . .306
▫ Eight-Speed Automatic Transmission .........306
 FOUR-WHEEL DRIVE OPERATION —
IF EQUIPPED ......................... .313
▫ Four-Position Electronically Shifted Transfer Case
(Eight Speed Transmission Only) —
If Equipped ......................... .314
▫ Five-Position Electronically Shifted Transfer Case
(Eight Speed Transmission Only) —
If Equipped ......................... .318
 ACTIVE-LEVEL FOUR CORNER AIR SUSPENSION
SYSTEM — IF EQUIPPED .................322
▫ Description .......................... .322
▫ Air Suspension Modes ...................325
▫ Instrument Cluster Display Messages .........326
▫ Operation ........................... .326
6

ACTIVE-LEVEL FOUR CORNER AIR SUSPENSION
SYSTEM (REBEL MODELS ONLY) —
IF EQUIPPED ......................... .328
▫ Description .......................... .328
▫ Air Suspension Modes ...................331
▫ Instrument Cluster Display Messages .........332
▫ Operation ........................... .332
 AXLE LOCKER SYSTEM — IF EQUIPPED ......334
 LIMITED-SLIP DIFFERENTIAL — IF EQUIPPED .335
 POWER STEERING ...................... .336
▫ Electric Power Steering ..................336
 FUEL SAVER TECHNOLOGY 5.7L ENGINES
ONLY — IF EQUIPPED ....................337
 STOP/START SYSTEM — IF EQUIPPED .......337
▫ Automatic Mode ...................... .337
▫ Possible Reasons The Engine Does Not
Autostop ............................ .338
▫ To Start The Engine While In Autostop Mode . . .338 ▫
To Manually Turn Off The Stop Start System . . .339
▫ To Manually Turn On The Stop Start System. . . .340
▫ System Malfunction .....................340
 SPEED CONTROL — IF EQUIPPED ..........340
▫ To Activate .......................... .341
▫ To Set A Desired Speed ...................341
▫ To Vary The Speed Setting ................341
▫ To Accelerate For Passing .................343
▫ To Resume Speed ..................... .343
▫ To Deactivate ........................ .343
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED ........................... .343
▫ Adaptive Cruise Control (ACC) Operation .....345
▫ Activating
Adaptive Cruise Control (ACC) .....346
▫ To Activate/Deactivate ...................346
▫ To Set A Desired ACC Speed ...............347
▫ To Cancel ........................... .348
290 STARTING AND OPERATING

▫ToTurnOff.......................... .348
▫ To Resume .......................... .348
▫ To Vary The Speed Setting ................349
▫ Setting The Following Distance In ACC .......351
▫ Overtake Aid ......................... .353
▫ ACC Operation At Stop ..................354
▫ Adaptive Cruise Control (ACC) Menu ........354
▫ Display Warnings And Maintenance .........355
▫ Precautions While Driving With ACC .........357
▫ General Information .....................361
▫ Normal (Fixed Speed) Cruise Control Mode . . . .361
 PARKSENSE FRONT AND REAR PARK ASSIST . .364
▫ ParkSense Sensors ..................... .366
▫ ParkSense Warning Display ................366
▫ ParkSense Display ..................... .366
▫ Enabling And Disabling Front And/Or Rear
ParkSense ........................... .368▫
Service The ParkSense Park Assist System .....368
▫ Cleaning The ParkSense System .............369
▫ ParkSense System Usage Precautions .........369
 PARKSENSE ACTIVE PARK ASSIST SYSTEM — IF
EQUIPPED ........................... .371
▫ Enabling And Disabling The ParkSense Active Park
Assist System ......................... .372
▫ Parallel Parking Space Assistance
Operation/Display ..................... .374
▫ Perpendicular Parking Space Assistance
Operation/Display ..................... .382
 LANESENSE — IF EQUIPPED ..............391
▫ LaneSense Operation ....................391
▫ T
urning LaneSense On Or Off ..............392
▫ LaneSense Warning Message ...............393
▫ Changing LaneSense Status ................395
 PARKVIEW REAR BACK UP CAMERA ........396
 SURROUND VIEW CAMERA SYSTEM — IF
EQUIPPED ........................... .398
6
STARTING AND OPERATING 291

REFUELING THE VEHICLE ................404
 VEHICLE LOADING .....................406
▫ Gross Vehicle Weight Rating (GVWR) ........406
▫ Payload ............................. .406
▫ Gross Axle Weight Rating (GAWR) ..........406
▫ Tire Size ............................ .406
▫ Rim Size ............................ .406
▫ Inflation Pressure ...................... .406
▫ Curb Weight ......................... .407
▫ Loading ............................ .407
 TRAILER TOWING ..................... .407
▫ Common Towing Definitions ...............408
▫ Trailer Hitch Type and Maximum Trailer
Weight ............................. .413
▫ Trailer Towing Weights (Maximum Trailer Weight
Ratings) ............................ .414▫
Trailer And Tongue Weight ...............414
▫ Towing Requirements ...................414
▫ Towing Tips ......................... .422
 SNOWPLOW .......................... .423
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................424
▫ Towing This Vehicle Behind Another Vehicle. . . .424
▫ Recreational Towing — Two-Wheel Drive
Models ............................. .425
▫ Recreational Towing — Four-Wheel Drive
Models ............................. .425
 DRIVING TIPS ......................... .429
▫ Driving On Slippery Surfaces ..............429
▫ Driving Through Water ..................430
▫ Of

f-Road Driving Tips ...................431
292 STARTING AND OPERATING

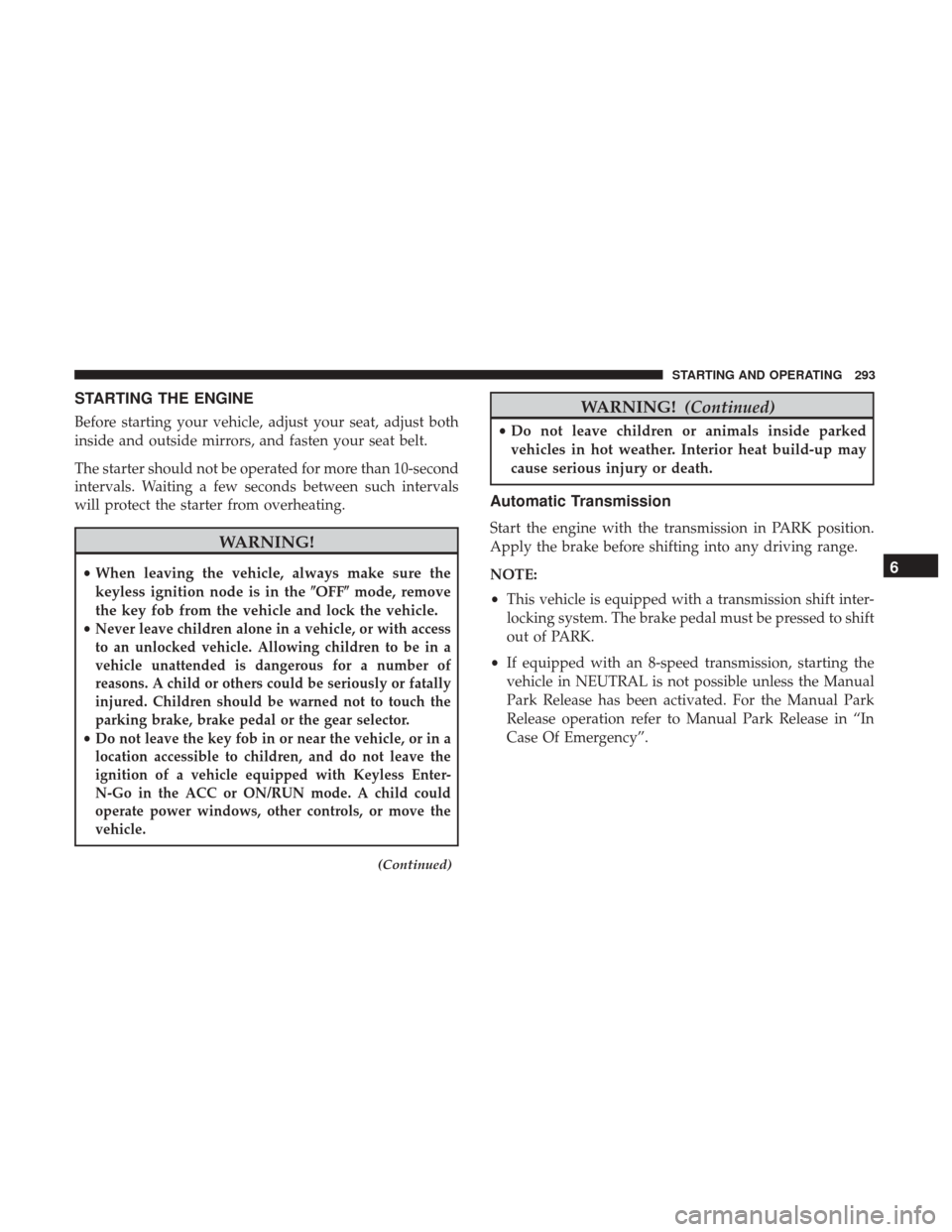

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belt.
The starter should not be operated for more than 10-second
intervals. Waiting a few seconds between such intervals
will protect the starter from overheating.
WARNING!
•When leaving the vehicle, always make sure the
keyless ignition node is in the OFFmode, remove
the key fob from the vehicle and lock the vehicle.
•
Never leave children alone in a vehicle, or with access
to an unlocked vehicle. Allowing children to be in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or fatally
injured. Children should be warned not to touch the
parking brake, brake pedal or the gear selector.
•Do not leave the key fob in or near the vehicle, or in a
location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
(Continued)
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Automatic Transmission
Start the engine with the transmission in PARK position.
Apply the brake before shifting into any driving range.
NOTE:
• This vehicle is equipped with a transmission shift inter-
locking system. The brake pedal must be pressed to shift
out of PARK.
• If equipped with an 8-speed transmission, starting the
vehicle in NEUTRAL is not possible unless the Manual
Park Release has been activated. For the Manual Park
Release operation refer to Manual Park Release in “In
Case Of Emergency”.
6
STARTING AND OPERATING 293

Tip Start Feature
Do notpress the accelerator. Cycle the ignition switch
briefly to the START position and release it. The starter
motor will continue to run and will automatically disen-
gage when the engine is running.
Keyless Enter-N-Go — Ignition
This feature allows the driver to operate the ignition switch
with the push of a button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the passenger
compartment.
Normal Starting Using ENGINE START/STOP
Button
To Turn On The Engine Using The ENGINE START/
STOP Button
1. The transmission must be in PARK.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE START/STOP
Button
1. Place the gear selector in PARK, then push and release the ENGINE START/STOP button.
2. The ignition will return to the OFF mode.
Keyless Push Button Ignition
294 STARTING AND OPERATING

3. If the gear selector is not in PARK, the ENGINE START/STOP button must be held for two seconds or three short
pushes in a row with the vehicle speed above 5 MPH
(8 km/h) before the engine will shut off. The ignition
will remain in the ACC mode until the gear selector is in
PARK and the button is pushed twice to the OFF mode.
4. If the gear selector is not in PARK and the ENGINE START/STOP button is pushed once with the vehicle
speed above 5 MPH (8 km/h), the instrument cluster
will display a “ Vehicle Not In Park” message and the
engine will remain running. Never leave a vehicle out of
the PARK position, or it could roll.
NOTE: If the gear selector is not in PARK, and the ENGINE
START/STOP button is pushed once with the vehicle
speed below 5 MPH (8 km/h), the engine will shut off and
the ignition will remain in the ACC position. If vehicle
speed drops below 1.2 MPH (1.9 km/h), the vehicle may
AutoPark. See AutoPark section for further details. ENGINE START/STOP Button Functions — With Driv-
er ’s Foot OFF The Brake Pedal (In PARK Or NEUTRAL
Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has three modes: OFF, ACC, and RUN.
To change the ignition modes without starting the vehicle
and use the accessories, follow these directions:
1. Start with the ignition in the OFF mode.
2. Push the ENGINE START/STOP button once to place
the ignition to the ACC mode.
3. Push the ENGINE START/STOP button a second time to place the ignition to the RUN mode.
4. Push the ENGINE START/STOP button a third time to return the ignition to the OFF mode.
AutoPark — Rotary Shifter and 8-Speed Trans Only
AutoPark is a supplemental feature to assist in placing the
vehicle in PARK should the situations on the following
pages occur. It is a back up system and should not be relied
upon as the primary method by which the driver shifts the
vehicle into PARK.
6
STARTING AND OPERATING 295

The conditions under which AutoPark will engage are
outlined on the following pages.
WARNING!
•Driver inattention could lead to failure to place the
vehicle in PARK. ALWAYS DO A VISUAL CHECK
that your vehicle is in PARK by verifying that a solid
(not blinking) “P” is indicated in the Instrument
Cluster Display and near the gear selector. If the P
indicator is blinking, your vehicle is not in PARK. As
an added precaution, always apply the parking brake
when exiting the vehicle.
• AutoPark is a supplemental feature. It is not de-
signed to replace the need to shift your vehicle into
PARK. It is a back up system and should not be
relied upon as the primary method by which the
driver shifts the vehicle into PARK.
If the vehicle is not in PARK and the driver turns off the
engine, the vehicle may AutoPark.
AutoPark will engage when all of these conditions are met:
• Vehicle is equipped with a rotary shifter and an 8-speed
transmission
• Vehicle is not in PARK •
Vehicle Speed is 1.2 MPH (1.9 km/h) or less
• Ignition switched from RUN to ACC
NOTE: For Keyless Go equipped vehicles, The engine will
turn off and the ignition switch will change to ACC mode.
After 30 minutes the ignition switches to OFF automati-
cally, unless the driver turns the ignition switch OFF.
If the vehicle is not in PARK and the driver exits the
vehicle with the engine running, the vehicle may Au-
toPark.
AutoPark will engage when all of these conditions are met:
• Vehicle is equipped with a rotary shifter and an 8-speed
transmission
• Vehicle is not in PARK
• Vehicle speed is 1.2 MPH (1.9 km/h) or less
• Driver ’s seat belt is unbuckled
• Driver ’s door is ajar
• Brake Pedal is not depressed
The MESSAGE “ AutoPark Engaged Shift to P then Shift
to Gear” will display in the instrument cluster.
296 STARTING AND OPERATING

NOTE:In some cases the ParkSense graphic will be
displayed in the instrument cluster, causing the “ Au-
toPark Engaged Shift to P then Shift to Gear ” to not be
seen. In these cases, the shifter must be returned to “P” to
select desired gear.
If the driver shifts into PARK while moving, the vehicle
may AutoPark.
AutoPark will engage ONLYwhen vehicle speed is
1.2 MPH (1.9 km/h) or less.
The MESSAGE “ Vehicle Speed is Too High to Shift to
P”will be displayed in the instrument cluster if vehicle
speed is above 1.2 MPH (1.9 km/h).
WARNING!
If vehicle speed is above 1.2 MPH (1.9 km/h), the
transmission will default to NEUTRAL until the ve-
hicle speed drops below 1.2 MPH (1.9 km). A vehicle
left in the NEUTRAL position can roll. As an added
precaution, always apply the parking brake when
exiting the vehicle. 4WD LOW — If Equipped
AutoPark will be disabled when operating the vehicle in
4WD LOW.
The MESSAGE “
AutoPark Disabled” will be displayed in
the instrument cluster.
Additional customer warnings will be given when all of
these conditions are met:
• Vehicle is not in PARK
• Driver ’s Door is ajar
• Vehicle is in 4WD LOW range
The MESSAGE “ AutoPark Not Engaged” will be dis-
played in the instrument cluster. A warning chime will
continue until you shift the vehicle into PARK or the
Driver ’s Door is closed.
ALWAYS DO A VISUAL CHECK that your vehicle is in
PARK by looking for the Pin the Instrument Cluster
Display and near the shifter. As an added precaution,
always apply the parking brake when exiting the vehicle.
6
STARTING AND OPERATING 297

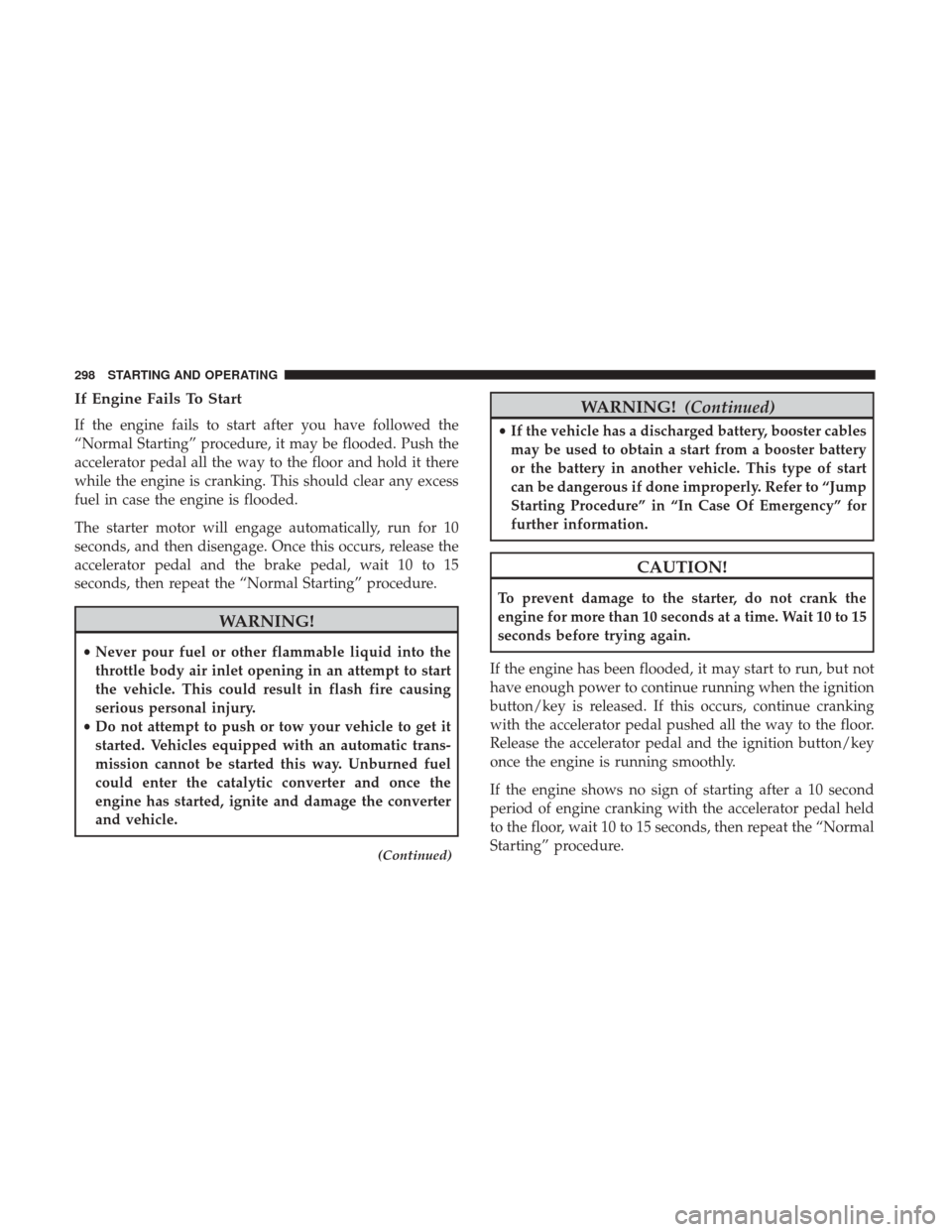

If Engine Fails To Start
If the engine fails to start after you have followed the
“Normal Starting” procedure, it may be flooded. Push the
accelerator pedal all the way to the floor and hold it there
while the engine is cranking. This should clear any excess
fuel in case the engine is flooded.
The starter motor will engage automatically, run for 10
seconds, and then disengage. Once this occurs, release the
accelerator pedal and the brake pedal, wait 10 to 15
seconds, then repeat the “Normal Starting” procedure.
WARNING!
•Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
• Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
(Continued)
WARNING! (Continued)
•If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to “Jump
Starting Procedure” in “In Case Of Emergency” for
further information.
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 10 seconds at a time. Wait 10 to 15
seconds before trying again.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the ignition
button/key is released. If this occurs, continue cranking
with the accelerator pedal pushed all the way to the floor.
Release the accelerator pedal and the ignition button/key
once the engine is running smoothly.
If the engine shows no sign of starting after a 10 second
period of engine cranking with the accelerator pedal held
to the floor, wait 10 to 15 seconds, then repeat the “Normal
Starting” procedure.
298 STARTING AND OPERATING
