WARNING!(Continued)
the ParkSense Active Park Assist system. Always
check carefully behind and in front of your vehicle,
look behind and in front of you, and be sure to check
for pedestrians, animals, other vehicles, obstructions,
and blind spots before backing up and moving for-
ward. You are responsible for safety and must continue
to pay attention to your surroundings. Failure to do so
can result in serious injury or death.
CAUTION!
•The ParkSense Active Park Assist system is only a
parking aid and it is unable to recognize every
obstacle, including small obstacles. Parking curbs
might be temporarily detected or not detected at all.
Obstacles located above or below the sensors will
not be detected when they are in close proximity.
• The vehicle must be driven slowly when using the
ParkSense Active Park Assist system in order to be
able to stop in time when an obstacle is detected. It is
recommended that the driver looks over his/her
shoulder when using the ParkSense Active Park
Assist system.
LANESENSE — IF EQUIPPED
LaneSense Operation
The LaneSense system is operational at speeds above
37 mph (60 km/h) and below 112 mph (180 km/h). It uses
a forward looking camera to detect lane markings and
measure vehicle position within the lane boundaries.
When both lane markings are detected and the driver
unintentionally drifts out of the lane while no turn signal
has been applied OR the driver departs the lane on the
opposite side of the applied turn signal (if the left turn
signal is applied and the vehicle departs to the right), the
LaneSense system provides a haptic warning in the form of
torque applied to the steering wheel to prompt the driver
to remain within the lane boundaries. The LaneSense
system will also provide a visual warning through the
instrument cluster display to prompt the driver to remain
within the lane boundaries.
The driver may manually override the haptic warning by
applying torque into the steering wheel at any time.
When only a single lane marking is detected and the driver
unintentionally drifts across that lane marking (no turn
signal applied), the LaneSense system provides a visual
warning through the instrument cluster display to prompt
6
STARTING AND OPERATING 391

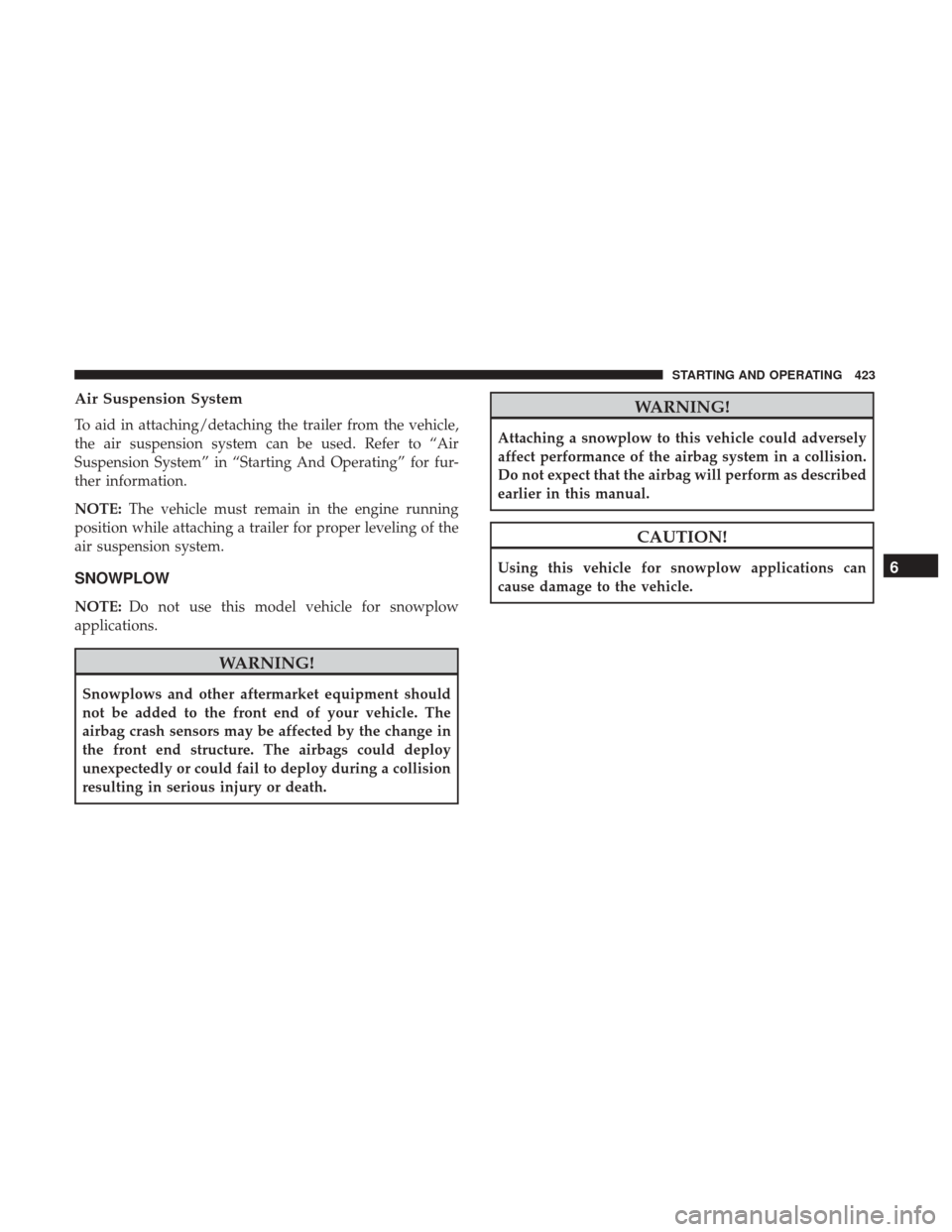

Air Suspension System
To aid in attaching/detaching the trailer from the vehicle,
the air suspension system can be used. Refer to “Air
Suspension System” in “Starting And Operating” for fur-
ther information.
NOTE:The vehicle must remain in the engine running
position while attaching a trailer for proper leveling of the
air suspension system.
SNOWPLOW
NOTE: Do not use this model vehicle for snowplow
applications.
WARNING!
Snowplows and other aftermarket equipment should
not be added to the front end of your vehicle. The
airbag crash sensors may be affected by the change in
the front end structure. The airbags could deploy
unexpectedly or could fail to deploy during a collision
resulting in serious injury or death.
WARNING!
Attaching a snowplow to this vehicle could adversely
affect performance of the airbag system in a collision.
Do not expect that the airbag will perform as described
earlier in this manual.
CAUTION!
Using this vehicle for snowplow applications can
cause damage to the vehicle.6
STARTING AND OPERATING 423

CavityCartridge Fuse Micro Fuse Description
F53 –10 Amp Red Supply / Purging Pump – If Equipped
F54 –15 Amp Blue PCM – If Equipped
F55 –15 Amp Blue Right HID Headlamp
F56 –– Spare
F57 –20 Amp Yellow Horn
F58 –– Spare
F59 –25 Amp Clear Injectors / IGN Coil / Glow Plug Module
F60 –20 Amp Yellow ECM / PCM / ACT Short Running Valve
F61 –15 Amp Blue Left HID Headlamp
F62 60 Amp Blue –Glow Plug – If Equipped
F63 –– Spare
F64 –10 Amp Red PM Sensor – If Equipped
CAUTION!
•When installing the power distribution center cover,
it is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
7
IN CASE OF EMERGENCY 453

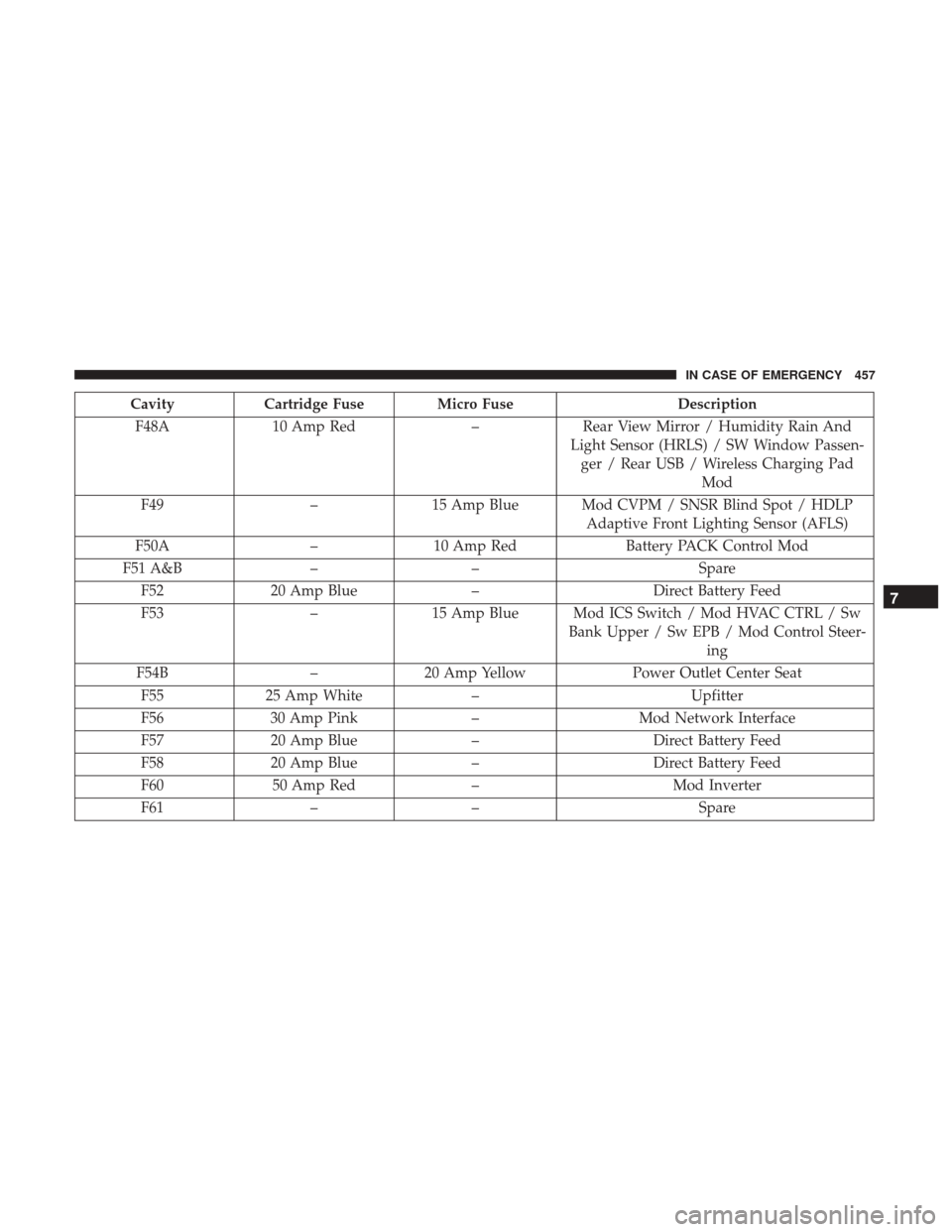

CavityCartridge Fuse Micro Fuse Description
F48A 10 Amp Red –Rear View Mirror / Humidity Rain And
Light Sensor (HRLS) / SW Window Passen- ger / Rear USB / Wireless Charging Pad Mod
F49 –15 Amp Blue Mod CVPM / SNSR Blind Spot / HDLP
Adaptive Front Lighting Sensor (AFLS)
F50A –10 Amp Red Battery PACK Control Mod
F51 A&B –– Spare
F52 20 Amp Blue –Direct Battery Feed
F53 –15 Amp Blue Mod ICS Switch / Mod HVAC CTRL / Sw
Bank Upper / Sw EPB / Mod Control Steer- ing
F54B –20 Amp Yellow Power Outlet Center Seat
F55 25 Amp White – Upfitter
F56 30 Amp Pink –Mod Network Interface
F57 20 Amp Blue –Direct Battery Feed
F58 20 Amp Blue –Direct Battery Feed
F60 50 Amp Red – Mod Inverter
F61 –– Spare
7
IN CASE OF EMERGENCY 457

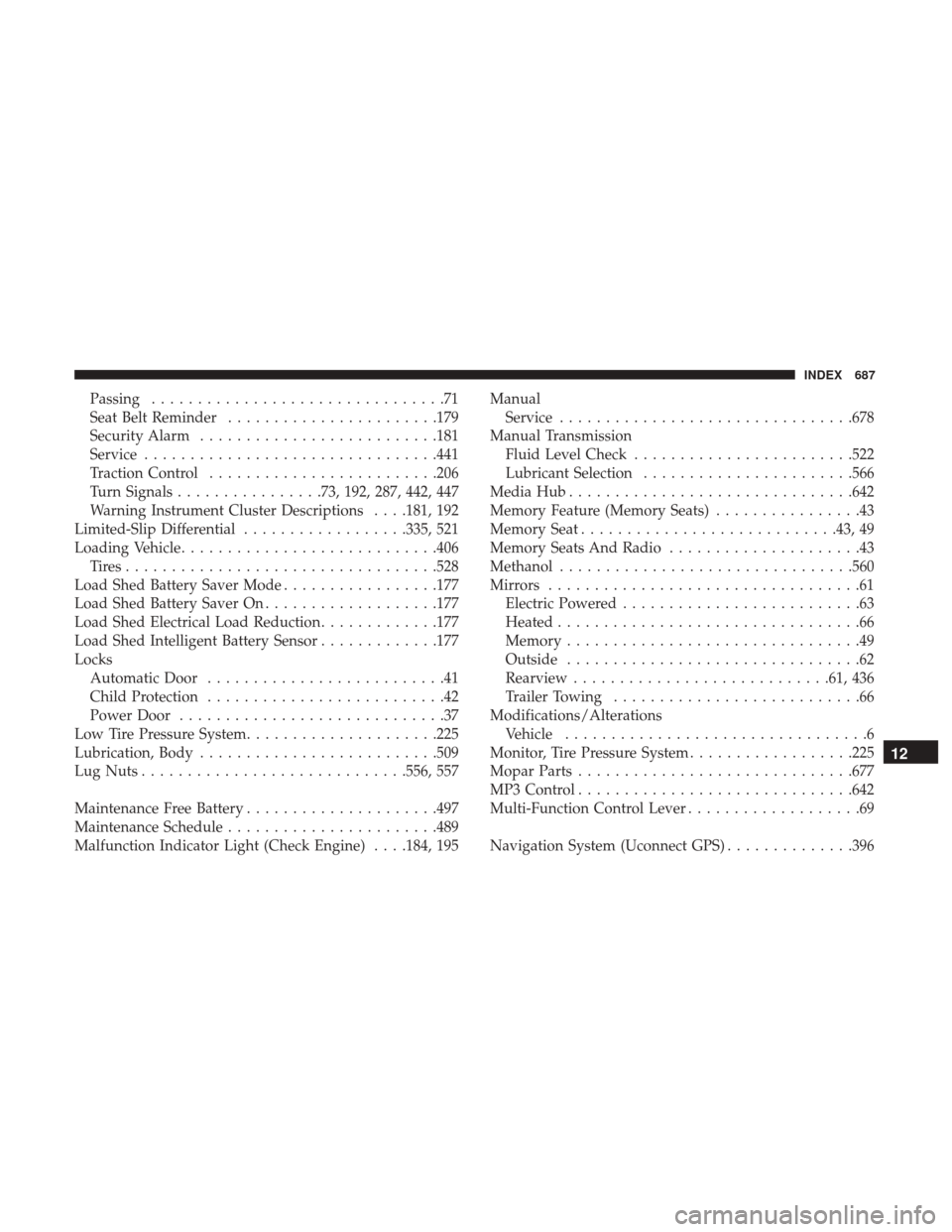

Passing................................71
Seat Belt Reminder ...................... .179
Security Alarm ......................... .181
Service ............................... .441
Traction Control ........................ .206
Turn Signals ................73, 192, 287, 442, 447
Warning Instrument Cluster Descriptions . . . .181, 192
Limited-Slip Differential ..................335, 521
Loading Vehicle ........................... .406
Tires................................. .528
Load Shed Battery Saver Mode .................177
Load Shed Battery Saver On ...................177
Load Shed Electrical Load Reduction .............177
Load Shed Intelligent Battery Sensor .............177
Locks Automatic Door ..........................41
Child Protection ..........................42
Power Door .............................37
Low Tire Pressure System .....................225
Lubrication, Body ......................... .509
Lug Nuts ............................ .556, 557
Maintenance Free Battery .....................497
Maintenance Schedule ...................... .489
Malfunction Indicator Light (Check Engine) . . . .184, 195 Manual
Service ............................... .678
Manual Transmission Fluid Level Check ....................... .522
Lubricant Selection ...................... .566
Media Hub .............................. .642
Memory Feature (Memory Seats) ................43
Memory Seat ........................... .43, 49
Memory Seats And Radio .....................43
Methanol ............................... .560
Mirrors ..................................61
Electric Powered ..........................63
Heated .................................66
Memory ................................49
Outside ................................62
Rearview ........................... .61, 436
Trailer Towing ...........................66
Modifications/Alterations V

ehicle .................................6
Monitor, Tire Pressure System ..................225
Mopar Parts ............................. .677
MP3 Control ............................. .642
Multi-Function Control Lever ...................69
Navigation System (Uconnect GPS) ..............396
