2. Using a small screwdriver or similar tool, remove theManual Park Release access cover, which is just below
the Electric Park Brake switch, below and to the left of
the steering column.
3. Press and maintain firm pressure on the brake pedal.
4. Using the screwdriver or similar tool, push the Manual Park Release lever locking tab (just below the middle of
the lever) to the right. 5. While holding the locking tab in the disengaged posi-
tion, pull the tether strap to rotate the lever rearward,
until it locks in place pointing towards the driver’s seat.
Release the locking tab and verify that the Manual Park
Release lever is locked in the released position.
6. The vehicle is now out of PARK and can be towed. Release the parking brake only when the vehicle is
securely connected to a tow vehicle.
To Reset The Manual Park Release:
1. Push the locking tab to the right, to unlock the lever.
2. Rotate the Manual Park Release lever forward to its original position, until the locking tab snaps into place
to secure the lever.
3. Pull gently on the tether strap to confirm that the lever is locked in its stowed position.
4. Re-install the access cover.
Manual Park Release Access Cover
7
IN CASE OF EMERGENCY 479

FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Then shift back and forth between DRIVE and
REVERSE, while gently pressing the accelerator. Use the
least amount of accelerator pedal pressure that will main-
tain the rocking motion, without spinning the wheels or
racing the engine.
NOTE:Shifts between DRIVE and REVERSE can only be
achieved at wheel speeds of 5 mph (8 km/h) or less.
Whenever the transmission remains in NEUTRAL for more
than two seconds, you must press the brake pedal to
engage DRIVE or REVERSE.
NOTE: Push the ESC Off switch, to place the Electronic
Stability Control (ESC) system in Partial Offmode, before
rocking the vehicle. Refer to “Electronic Brake Control” in
“Safety” for further information. Once the vehicle has been
freed, push the ESC Offswitch again to restore ESC On
mode.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.
CAUTION!
• Racing the engine or spinning the wheels may lead
to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of transmission failure during pro-
longed efforts to free a stuck vehicle.
• When “rocking” a stuck vehicle by shifting between
DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may
result.
(Continued)
480 IN CASE OF EMERGENCY

CAUTION!(Continued)
•Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).
TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
If the transmission and drivetrain are operable, disabled
vehicles may also be towed as described under “Recre-
ational Towing” in the “Starting And Operating” section. NOTE:
Vehicles equipped with the Active-Level Four Cor-
ner Air Suspension System must be placed in Transport
mode, before tying them down (from the body) on a trailer
or flatbed truck. If the vehicle cannot be placed in Trans-
port mode (for example, engine will not run), tie-downs
must be fastened to the axles (not to the body). Failure to
follow these instructions may cause fault codes to be set
and/or cause loss of proper tie-down tension.
7
IN CASE OF EMERGENCY 481

Refer toActive-Level Four Corner Air Suspension System
— If Equipped inStarting And Operating for more
information.
Towing
Condition Wheels
OFF The Ground 2WD Models 4WD Models
Flat Tow NONE If transmission is operable:
•Transmission in NEUTRAL
• 30 mph (48 km/h) max speed
• 30 miles (48 km) maxdistance See instructions in “Recreational Tow-
ing” under “Starting And Operating”
•
Automatic Transmission in PARK
• Transfer Case in NEUTRAL (N)
• To w i n forward direction
Wheel Lift
Or Dolly To w Front
NOT ALLOWED
Rear OK NOT ALLOWED
Flatbed ALL BEST METHOD BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer ’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.
If the key fob is unavailable or the vehicle’s battery is
discharged, refer to ”Manual Park Release” in this section
for instructions on shifting the transmission out of PARK
for towing.
482 IN CASE OF EMERGENCY

CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flat bed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
Two-Wheel Drive Models
The manufacturer recommends towing your vehicle with
all four wheels OFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmission
is operable, the vehicle may be towed (with rear wheels on
the ground) under the following conditions:
• The transmission must be in NEUTRAL.
NOTE: Refer to Manual Park Release in this section for
instructions on shifting the transmission to NEUTRAL
when the engine is OFF.
• The towing speed must not exceed 30 mph (48 km/h).
• The towing distance must not exceed 30 miles (48 km).
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 30 miles (48 km), tow with the rear wheels
OFFthe ground.
Acceptable methods are to tow the vehicle on a flatbed, or
with the front wheels raised and the rear wheels on a
towing dolly, or (when using a suitable steering wheel
stabilizer to hold the front wheels in the straight position)
with the rear wheels raised and the front wheels on the
ground.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Damage
from improper towing is not covered under the New
Vehicle Limited Warranty.
Four-Wheel Drive Models
The manufacturer recommends towing with all wheels
OFF the ground. Acceptable methods are to tow the vehicle
on a flatbed or with one end of vehicle raised and the
opposite end on a towing dolly.
If flatbed equipment is not available, and the transfer case
is operable, the vehicle may be towed (in the forward
direction, with ALLwheels on the ground), IFthe transfer
case is in NEUTRAL (N) and the transmission is in PARK.
7
IN CASE OF EMERGENCY 483

Refer to “Recreational Towing” in “Starting And Operat-
ing” for further information and detailed instructions.
CAUTION!
•Front or rear wheel lifts must not be used (if the
remaining wheels are on the ground). Internal dam-
age to the transmission or transfer case will occur if
a front or rear wheel lift is used when towing.
• Towing this vehicle in violation of the above require-
ments can cause severe transmission and/or transfer
case damage. Damage from improper towing is not
covered under the New Vehicle Limited Warranty.
Emergency Tow Hooks — If Equipped
Your vehicle may be equipped with emergency tow hooks.
NOTE: For off-road recovery, it is recommended to use
both of the front tow hooks to minimize the risk of damage
to the vehicle.
WARNING!
• Do not use a chain for freeing a stuck vehicle. Chains
may break, causing serious injury or death.
(Continued)
WARNING! (Continued)
•Stand clear of vehicles when pulling with tow hooks.
Tow straps may become disengaged, causing serious
injury.
CAUTION!
Tow hooks are for emergency use only, to rescue a
vehicle stranded off road. Do not use tow hooks for
tow truck hookup or highway towing. You could
damage your vehicle.
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Enhanced Accident Re-
sponse System (EARS) function.
484 IN CASE OF EMERGENCY

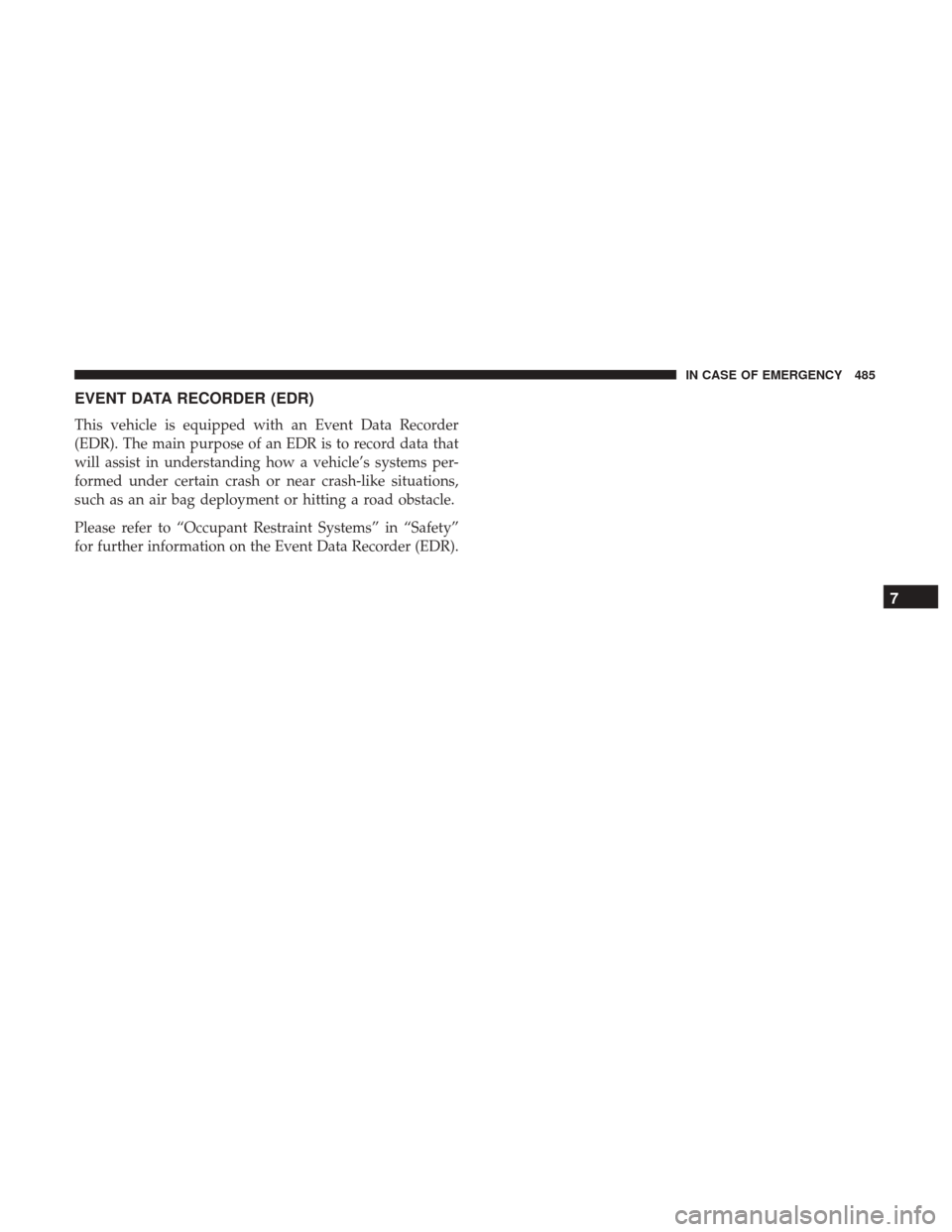

EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data that
will assist in understanding how a vehicle’s systems per-
formed under certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle.
Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Event Data Recorder (EDR).
7
IN CASE OF EMERGENCY 485

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................489
▫ Maintenance Plan ...................... .490
▫ Heavy Duty Use Of The Vehicle ............493
 ENGINE COMPARTMENT .................494
▫ 3.6L Engine With Stop/Start ...............494
▫ 5.7L Engine Without Stop/Start ............495
▫ 5.7L Engine With Stop/Start ...............496
▫ Checking Oil Level .....................497
▫ Adding Washer Fluid ...................497
▫ Maintenance-Free Battery .................497
 DEALER SERVICE ...................... .498
▫ Engine Oil — Gas Engine .................499
▫ Engine Oil Filter ...................... .501
▫ Engine Air Cleaner Filter .................501 ▫
Air Conditioner Maintenance ..............503
▫ Accessory Drive Belt Inspection ............508
▫ Body Lubrication ..................... .509
▫ Windshield Wiper Blades .................509
▫ Exhaust System ........................511
▫ Cooling System ....................... .513
▫ Brake System ........................ .519
▫ Automatic Transmission ..................520
▫ Rear Axle And 4x4 Front Driving Axle Fluid
Level .............................. .521
▫ Transfer Case ........................ .522
 HOISTING ........................... .522
 TIRES ............................... .522
▫ T

ire Safety Information ..................522
8

▫Tires — General Information ..............532
▫ Tire Types ........................... .538
▫ Spare Tires — If Equipped ................539
▫ Wheel And Wheel Trim Care ..............542
▫ Tire Chains (Traction Devices) .............543
▫ Tire Rotation Recommendations ............544
 DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES ..................545
▫ Treadwear ........................... .545
▫ Traction Grades ....................... .546
▫ Temperature Grades .....................546
STORING THE VEHICLE ..................546
 BODYWORK .......................... .547
▫ Protection From Atmospheric Agents ........547
▫ Body And Underbody Maintenance ..........547
▫ Preserving The Bodywork .................548
 INTERIORS ........................... .550
▫ Seats And Fabric Parts ...................550
▫ Plastic And Coated Parts ..................552
▫ Leather Parts ......................... .552
▫ Glass Surfaces ........................ .553
488 SERVICING AND MAINTENANCE
