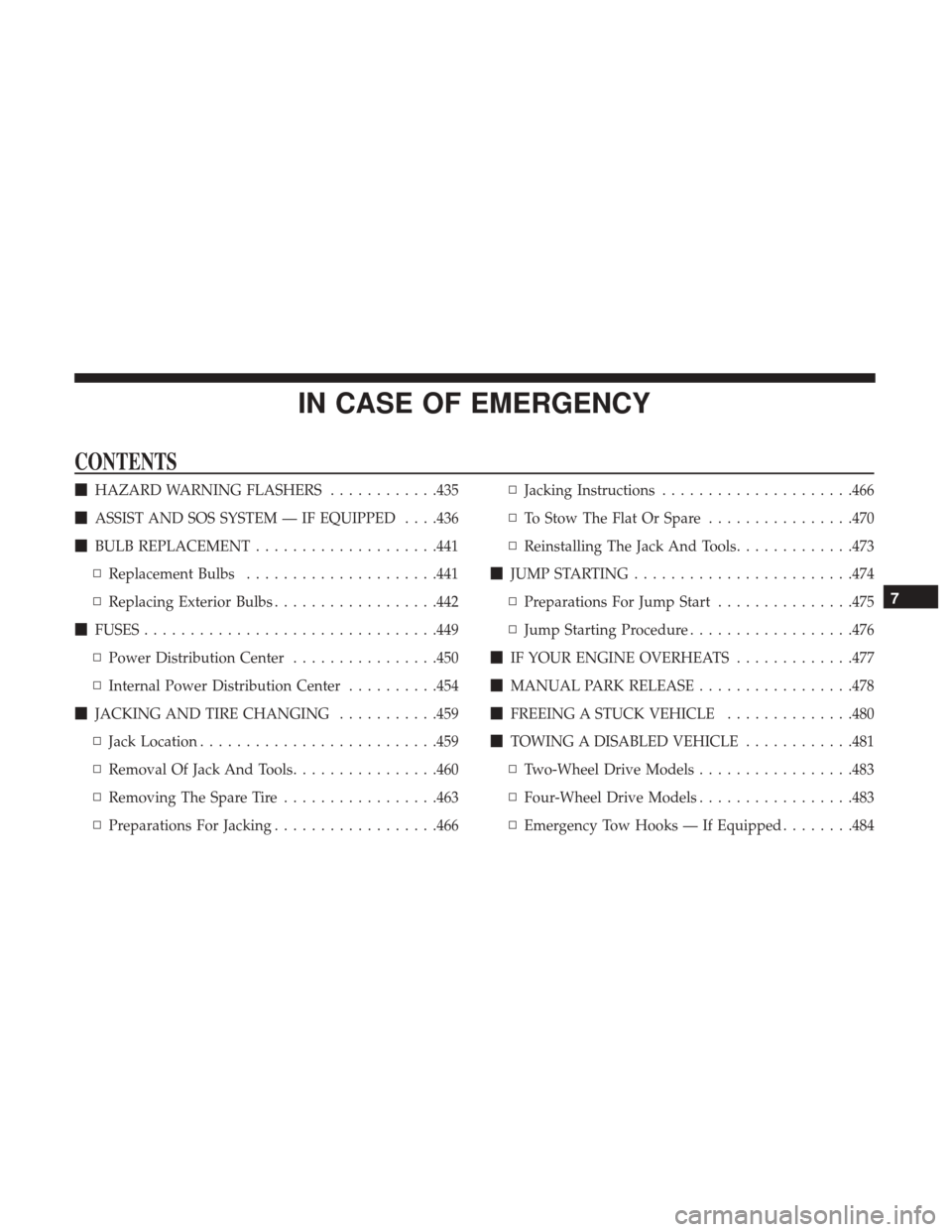

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............435
 ASSIST AND SOS SYSTEM — IF EQUIPPED . . . .436
 BULB REPLACEMENT ....................441
▫ Replacement Bulbs .....................441
▫ Replacing Exterior Bulbs ..................442
 FUSES ............................... .449
▫ Power Distribution Center ................450
▫ Internal Power Distribution Center ..........454
 JACKING AND TIRE CHANGING ...........459
▫ Jack Location ......................... .459
▫ Removal Of Jack And Tools ................460
▫ Removing The Spare Tire .................463
▫ Preparations For Jacking ..................466 ▫
Jacking Instructions .....................466
▫ To Stow The Flat Or Spare ................470
▫ Reinstalling The Jack And Tools .............473
 JUMP STARTING ....................... .474
▫ Preparations For Jump Start ...............475
▫ Jump Starting Procedure ..................476
 IF YOUR ENGINE OVERHEATS .............477
 MANUAL PARK RELEASE .................478
 FREEING A STUCK VEHICLE ..............480
 TOWING A DISABLED VEHICLE ............481
▫ Two-Wheel Drive Models .................483
▫ Four-Wheel Drive Models .................483
▫ Emergency Tow Hooks — If Equipped ........484
7

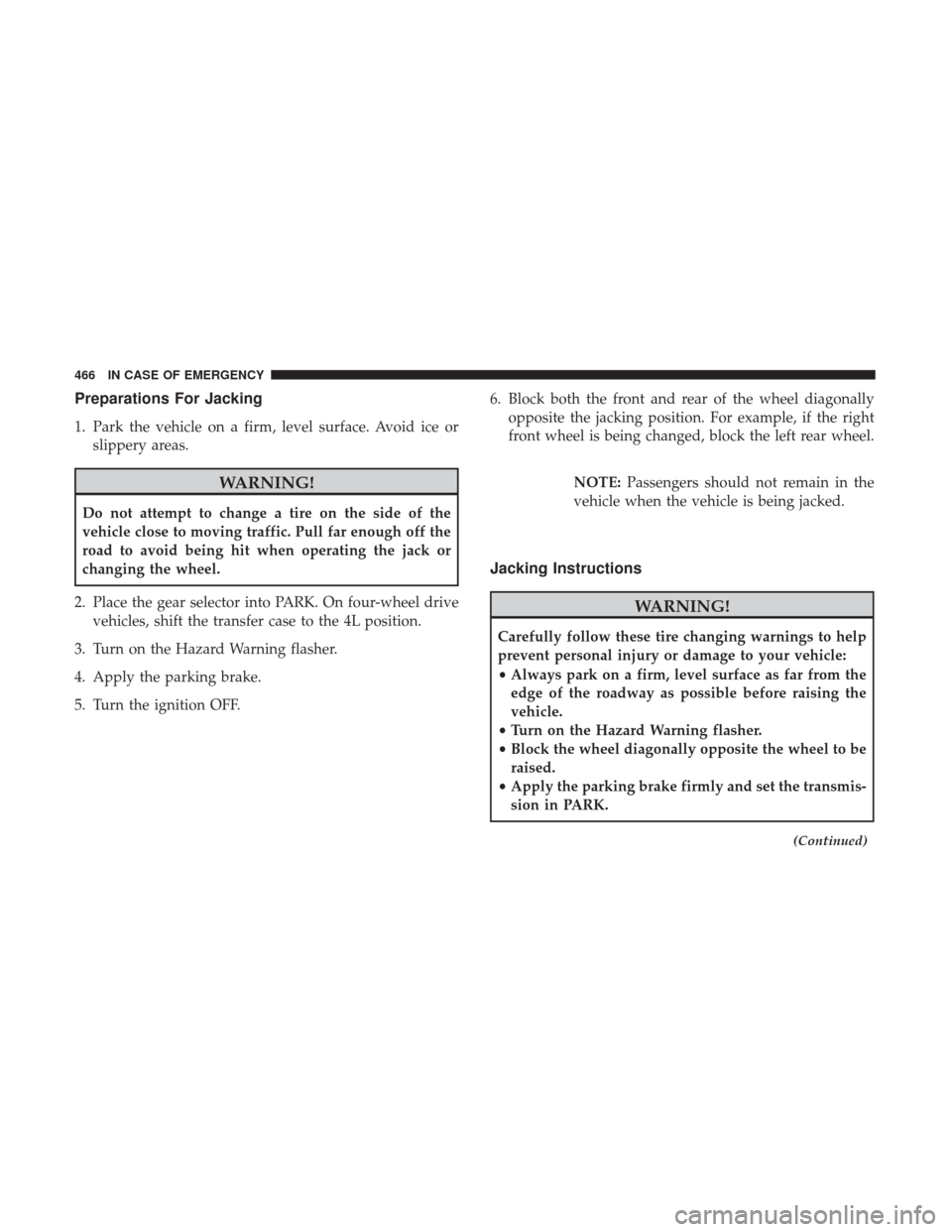

Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice orslippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.
2. Place the gear selector into PARK. On four-wheel drive vehicles, shift the transfer case to the 4L position.
3. Turn on the Hazard Warning flasher.
4. Apply the parking brake.
5. Turn the ignition OFF. 6. Block both the front and rear of the wheel diagonally
opposite the jacking position. For example, if the right
front wheel is being changed, block the left rear wheel.
NOTE:Passengers should not remain in the
vehicle when the vehicle is being jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
• Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
• Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the wheel to be
raised.
• Apply the parking brake firmly and set the transmis-
sion in PARK.
(Continued)
466 IN CASE OF EMERGENCY

WARNING!(Continued)
•Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that spare tires, flat or inflated, are securely
stowed, spares must be stowed with the valve stem
facing the ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare wheel, jack, and tools from storage.
2. Using the lug wrench, loosen, but do not remove, the wheel nuts by turning them counterclockwise one turn
while the wheel is still on the ground.
Jack Warning Label
7
IN CASE OF EMERGENCY 467
