climate control Ram 1500 2020 Owner's Guide

538 SERVICING AND MAINTENANCE
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire's manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger vehicle tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate. Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire's ability to stop on wet
pavement, as measured under controlled conditions on spec
-
ified government test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
Temperature Grades
The Temperature grades are A (the highest), B, and C, repre -
senting the tire's resistance to the generation of heat and its
ability to dissipate heat, when tested under controlled condi -
tions on a specified indoor laboratory test wheel.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or peak
traction characteristics.
2020_DT_1500_OM_US.book Page 538

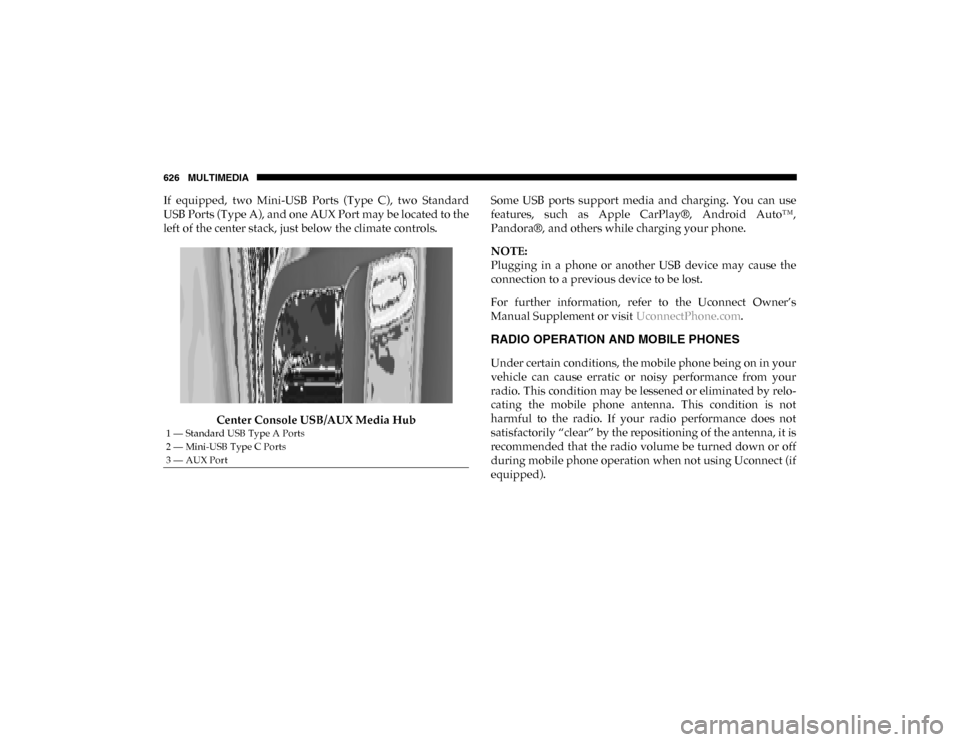

626 MULTIMEDIA
If equipped, two Mini-USB Ports (Type C), two Standard
USB Ports (Type A), and one AUX Port may be located to the
left of the center stack, just below the climate controls.Center Console USB/AUX Media Hub Some USB ports support media and charging. You can use
features, such as Apple CarPlay®, Android Auto™,
Pandora®, and others while charging your phone.
NOTE:
Plugging in a phone or another USB device may cause the
connection to a previous device to be lost.
For further information, refer to the Uconnect Owner’s
Manual Supplement or visit
UconnectPhone.com.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in your
vehicle can cause erratic or noisy performance from your
radio. This condition may be lessened or eliminated by relo -
cating the mobile phone antenna. This condition is not
harmful to the radio. If your radio performance does not
satisfactorily “clear” by the repositioning of the antenna, it is
recommended that the radio volume be turned down or off
during mobile phone operation when not using Uconnect (if
equipped).
1 — Standard USB Type A Ports
2 — Mini-USB Type C Ports
3 — AUX Port
2020_DT_1500_OM_US.book Page 626

638 MULTIMEDIA
Climate
Too hot? Too cold? Adjust vehicle temperatures hands-free
and keep everyone comfortable while you keep moving
ahead. (If vehicle is equipped with climate control.)
Push the VR button . After the beep, say one of the
following commands:
• “Set driver temperature to 70 degrees ”
• “Set passenger temperature to 70 degrees ”
TIP:
Voice Command for Climate may only be used to adjust the
interior temperature of your vehicle. Voice Command will
not work to adjust the heated seats or steering wheel if
equipped. Uconnect 4/4C/4C NAV With 8.4-inch Display Climate
2020_DT_1500_OM_US.book Page 638

659
Cargo Light ................................................................................ 72
Cellular Phone ......................................................................... 626
Center High Mounted Stop Light......................................... 443
Center Seat Storage Compartment ....................................... 118
Chart, Tire Sizing .................................................................... 517
Check Engine Light (Malfunction Indicator Light) ........... 196
Checking Your Vehicle For Safety ........................................ 285
Checks, Safety .......................................................................... 285
Child Restraint ........................................................................ 265
Child Restraints Booster Seats ........................................................................ 269
Child Seat Installation ................................................ 278, 280
How To Stow An unused ALR Seat Belt ......................... 276Infant And Child Restraints .............................................. 266Locating The LATCH Anchorages ................................... 274
Lower Anchors And Tethers For Children ..................... 270Older Children And Child Restraints .............................. 268
Seating Positions ................................................................. 270
Clean Air Gasoline .................................................................. 549
Cleaning Wheels................................................................................... 535
Climate Control ......................................................................... 78 Automatic ............................................................................... 82
Manual .................................................................................... 78
Cold Weather Operation........................................................ 296
Compact Spare Tire ................................................................ 533 Contract, Service......................................................................654
Cooling Pressure Cap (Radiator Cap) ..................................509
Cooling System ........................................................................506
Adding Coolant (Antifreeze) .............................................508
Coolant Level ...............................................................507, 510Cooling Capacity .................................................................553
Disposal Of Used Coolant..................................................509Drain, Flush, And Refill .....................................................507
Inspection ............................................................................. 510
Points To Remember ........................................................... 511Pressure Cap ........................................................................509Radiator Cap ........................................................................509Selection Of Coolant (Antifreeze) .....................507, 553, 554
Corrosion Protection ...............................................................539
Cruise Control (Speed Control) ............................................340
Cruise Light .....................................................................193, 194
Cupholders...............................................................................126
Customer Assistance ..............................................................652
Cybersecurity ...........................................................................558 D
Daytime Running Lights ..........................................................67
Dealer Service ..........................................................................492
Defroster, Rear Window ..........................................................78
Defroster, Windshield ......................................................78, 287
Delay (Intermittent) Wipers ....................................................76
Diagnostic System, Onboard .................................................195
11
2020_DT_1500_OM_US.book Page 659
