3. Insert the extension tube through the access hole betweenthe lower tailgate and the top of the bumper and into the
winch mechanism tube.
Winch Mechanism Tube Inserting The Extension Tubes Into The Access Hole
6
2020_DT_1500_OM_US.book Page 459

460 IN CASE OF EMERGENCY
4. Rotate the lug wrench handle counterclockwise until thespare tire is on the ground with enough cable slack to
allow you to pull it out from under the vehicle.
Rotating The Lug Wrench Handle 5. Pull the spare tire out from under the vehicle to gain
access to the spare tire retainer.
Pulling The Spare Tire Out
2020_DT_1500_OM_US.book Page 460

IN CASE OF EMERGENCY 461
6. Lift the spare tire with one hand to give clearance to tiltthe retainer at the end of the cable.
Gaining Access To The Retainer 7. Pull the retainer through the center of the wheel.
Pulling The Retainer Through The Center Of The Wheel
NOTE:
The winch mechanism is designed for use with the extension
tubes only. Use of an air wrench or other power tools is not
recommended and can damage the winch.
6
2020_DT_1500_OM_US.book Page 461

462 IN CASE OF EMERGENCY
Preparations For Jacking
1. Park on a firm, level surface. Avoid ice or slippery areas.
2. Turn on the Hazard Warning flasher.
3. Apply the parking brake.
4. Shift the transmission into Park (P).
5. Turn the ignition OFF.
6. Block both the front and rear of the wheel diagonallyopposite the jacking position. For example, if the right
front wheel is being changed, block the left rear wheel. Wheel Blocked
NOTE:
Passengers should not remain in the vehicle when the
vehicle is being raised or lifted.
WARNING!
Do not attempt to change a tire on the side of the vehicle
close to moving traffic. Pull far enough off the road to
avoid being hit when operating the jack or changing the
wheel.
2020_DT_1500_OM_US.book Page 462

IN CASE OF EMERGENCY 463
Jacking Instructions
Jack Warning Label
1. Remove the spare tire, jack, and tools from the stored location.
2. Using the lug wrench, loosen the wheel nuts (but do not remove), by turning them counterclockwise one turn
while the wheel is still on the ground.
WARNING!

Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
• Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle.
• Turn on the Hazard Warning flasher.

• Block the wheel diagonally opposite the wheel to be raised.

• Apply the parking brake firmly and set the transmission in PARK.
• Never start or run the engine with the vehicle on a jack.
• Do not let anyone sit in the vehicle when it is on a jack.
• Do not get under the vehicle when it is on a jack. If you need to get under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Only use the jack in the positions indicated and for lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely careful of motor traffic.
• To assure that spare tires, flat or inflated, are securely stowed, spares must be stowed with the valve stem facing
the ground.

CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
6
2020_DT_1500_OM_US.book Page 463

464 IN CASE OF EMERGENCY

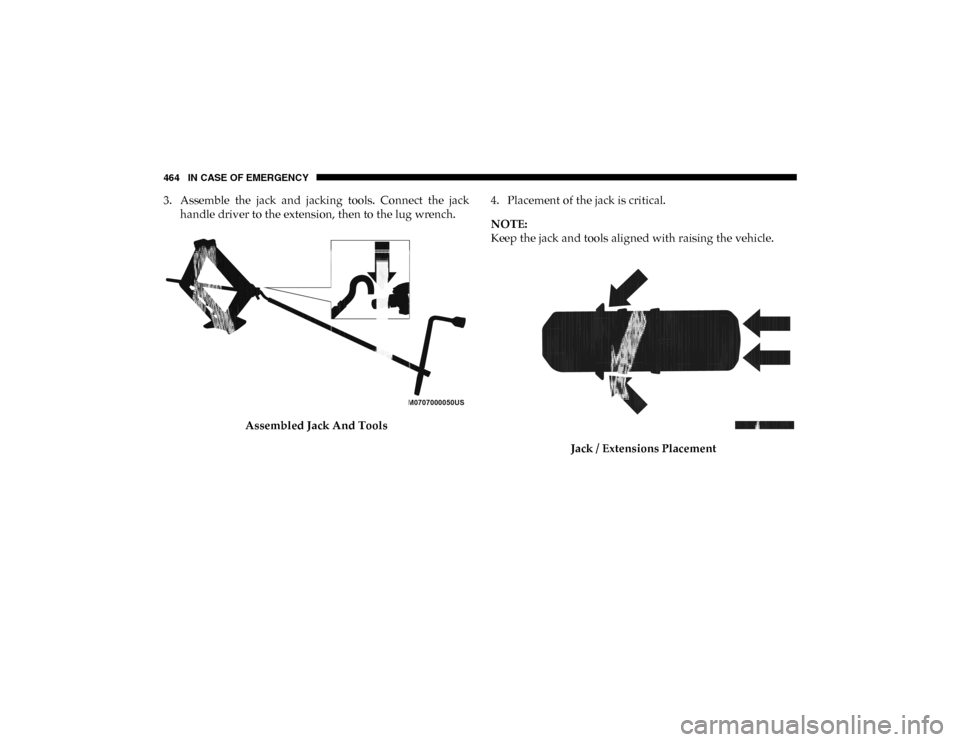

3. Assemble the jack and jacking tools. Connect the jackhandle driver to the extension, then to the lug wrench.
Assembled Jack And Tools 4. Placement of the jack is critical.
NOTE:
Keep the jack and tools aligned with raising the vehicle.
Jack / Extensions Placement
2020_DT_1500_OM_US.book Page 464

IN CASE OF EMERGENCY 465
Front Jacking Location
When changing a front wheel, place the scissor jack under
the rear portion of the lower control arm as shown. Ac-
cess the front jacking location from behind the front
tire.
Front Lifting Point Front Jacking Location
Rear Jacking Location
Operate the jack using the extension with jack hook and
the lug wrench. The extension tubes may be used but is
not required.
When changing a rear wheel, assemble the extension with
jack hook to the jack and connect the extension tubes. Ac-
cess the rear jacking location from behind the rear tire.
Place the jack under the Jack Lifting Point located on the
rear axle lower control arm bracket. Then locate the slot in
6
2020_DT_1500_OM_US.book Page 465

466 IN CASE OF EMERGENCY
the jack lift plate onto the rear axle Jack Lifting Point. At-
tach the extension with jack hook extending to the rear of
the vehicle.
Rear Lifting Point Rear Jacking Location
Connect the long extensions to the lug wrench.
5. By rotating the lug wrench clockwise, raise the vehicle until the wheel just clears the ground surface.
CAUTION!
Before raising the wheel off the ground, make sure that
the jack will not damage surrounding truck parts and
adjust the jack position as required.
2020_DT_1500_OM_US.book Page 466

IN CASE OF EMERGENCY 467
6. Remove the lug nuts and pull the wheel off. Install thespare wheel and lug nuts with the cone shaped end of the
lug nuts toward the wheel. Hand tighten the lug nuts
with vehicle lifted. To avoid the risk of forcing the vehicle
off the jack, do not fully tighten the lug nuts until the
vehicle has been lowered.
7. Lower vehicle to ground, finish tightening the lug nuts. Push down on the wrench while at the end of the handle
for increased leverage. Tighten the lug nuts in a star
pattern until each nut has been tightened twice.
NOTE:
For the correct lug nut torque refer to “Technical Specifica -
tions” in “Torque Specifications.” If in doubt about the
correct tightness, have them checked with a torque wrench
by an authorized dealer or service station. 8. If your vehicle is equipped with a wheel center cap, install
the cap and remove the wheel blocks. Do not install
chrome or aluminum wheel center caps on the spare
wheel. This may result in cap damage.
9. Lower the jack to its fully closed position. Stow the replaced tire, and secure the jack and tools in the proper
location.
10. Adjust the tire pressure when possible.
WARNING!
Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.WARNING!
A loose tire or jack thrown forward in a collision or hard
stop, could endanger the occupants of the vehicle.
Always stow the jack parts and the spare tire in the
places provided.
6
2020_DT_1500_OM_US.book Page 467

468 IN CASE OF EMERGENCY
To Stow The Flat Or Spare
1. Turn the wheel so that the valve stem is facing upwardand toward the rear of the vehicle for convenience in
checking the spare tire inflation. Slide the wheel retainer
through the center of the wheel. Reinstalling The Retainer
WARNING!
A loose tire or jack thrown forward in a collision or hard
stop could endanger the occupants of the vehicle.
Always stow the jack parts and the spare tire in the
places provided. Have the deflated (flat) tire repaired or
replaced immediately.
