windshield wipers Ram 1500 2020 Owner's Manual

3

Ventilated Seats — If Equipped .................................. 52
Plastic Grocery Bag Retainers ..................................... 54
 HEAD RESTRAINTS ......................................................... 54
Front Head Restraints ................................................... 54
Rear Head Restraints .................................................... 55
 STEERING WHEEL ............................................................ 56
Tilt/Telescoping Steering Column ............................. 56
Heated Steering Wheel — If Equipped ..................... 57
 DRIVER ADJUSTABLE PEDALS — IF EQUIPPED ...... 58
 MIRRORS ............................................................................ 59
Inside Day/Night Mirror — If Equipped ................. 59
Automatic Dimming Mirror — If Equipped ............ 60
Outside Mirrors ............................................................ 61
Driver's Outside Automatic Dimming Mirror — If
Equipped......................................................................... 61
Power Mirrors — If Equipped .................................... 61
Power Folding Outside Mirrors For Standard And
Trailer Tow — If Equipped .......................................... 62
Trailer Towing Mirrors — If Equipped ..................... 64
Heated Mirrors — If Equipped ................................... 65
Tilt Side Mirrors In Reverse — If Equipped .............. 65
Illuminated Vanity Mirror — If Equipped ................ 65
 EXTERIOR LIGHTS ............................................................ 66
Headlight Switch ........................................................... 66
Daytime Running Lights (DRLs) — If Equipped ..... 67
Multifunction Lever .....................................................68
High/Low Beam Switch ...............................................68
Automatic High Beam Headlamp Control — If
Equipped ........................................................................68
Flash-To-Pass..................................................................69
Automatic Headlights — If Equipped........................70
Parking Lights And Panel Lights ................................70
Headlights On With Wipers (Available With
Automatic Headlights Only)........................................70
Headlight Delay .............................................................70
Lights-On Reminder......................................................71
Front Fog Lights — If Equipped .................................71
Turn Signals ...................................................................71
Lane Change Assist — If Equipped ............................71
Cargo Light With Bed Lights — If Equipped ............72
Battery Saver...................................................................73
 INTERIOR LIGHTS ............................................................73
Courtesy Lights ..............................................................73
Illuminated Entry ..........................................................75
 WINDSHIELD WIPERS AND WASHERS ......................75
Windshield Wipers........................................................75
Rain Sensing Wipers — If Equipped ..........................77
 CLIMATE CONTROLS .....................................................78
Manual Climate Control Overview ............................78
Automatic Climate Control Overview .......................82
2020_DT_1500_OM_US.book Page 3

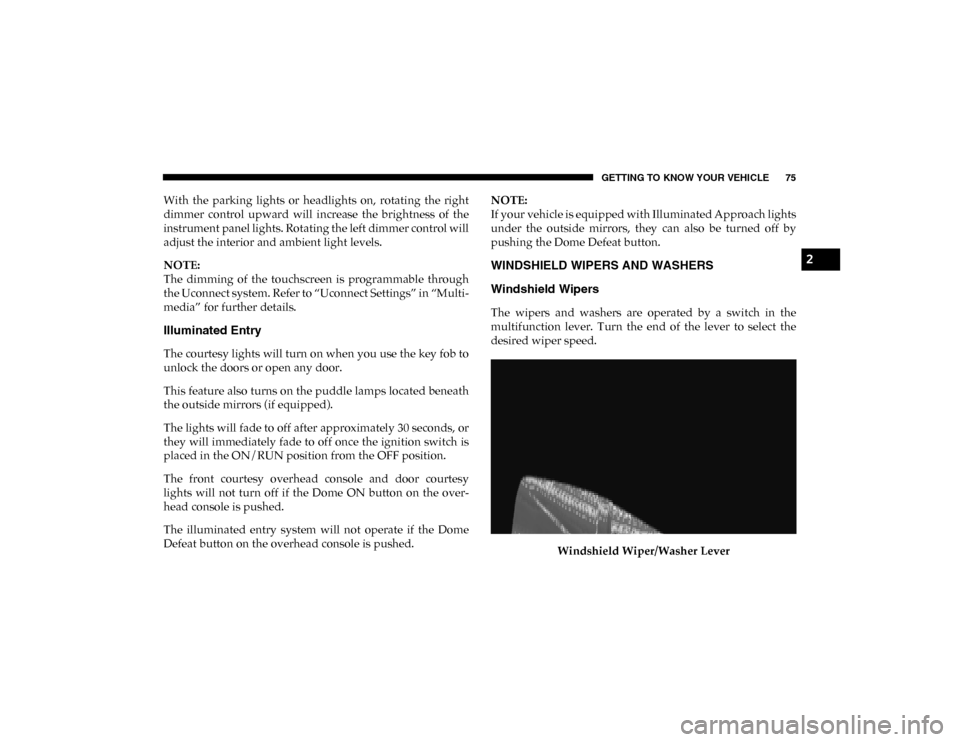

GETTING TO KNOW YOUR VEHICLE 75
With the parking lights or headlights on, rotating the right
dimmer control upward will increase the brightness of the
instrument panel lights. Rotating the left dimmer control will
adjust the interior and ambient light levels.
NOTE:
The dimming of the touchscreen is programmable through
the Uconnect system. Refer to “Uconnect Settings” in “Multi-
media” for further details.
Illuminated Entry
The courtesy lights will turn on when you use the key fob to
unlock the doors or open any door.
This feature also turns on the puddle lamps located beneath
the outside mirrors (if equipped).
The lights will fade to off after approximately 30 seconds, or
they will immediately fade to off once the ignition switch is
placed in the ON/RUN position from the OFF position.
The front courtesy overhead console and door courtesy
lights will not turn off if the Dome ON button on the over -
head console is pushed.
The illuminated entry system will not operate if the Dome
Defeat button on the overhead console is pushed. NOTE:
If your vehicle is equipped with Illuminated Approach lights
under the outside mirrors, they can also be turned off by
pushing the Dome Defeat button.
WINDSHIELD WIPERS AND WASHERS
Windshield Wipers
The wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the lever to select the
desired wiper speed.
Windshield Wiper/Washer Lever
2
2020_DT_1500_OM_US.book Page 75

76 GETTING TO KNOW YOUR VEHICLE
Rotate the end of the lever upward, to the first detent past the
intermittent settings for low-speed wiper operation. Rotate
the end of the lever upward to the second detent past the
intermittent settings for high-speed wiper operation.
Intermittent Wiper System
The intermittent feature of this system was designed for use
when weather conditions make a single wiping cycle, with a
variable pause between cycles, desirable. For maximum
delay between cycles, rotate the control knob upward to the
first detent.
The delay interval decreases as you rotate the knob until it
enters the low continual speed position. The delay can be
regulated from a maximum of about 18 seconds between
cycles, to a cycle every one second. The delay intervals will
double in duration when the vehicle speed is 10 mph
(16 km/h) or less.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward and
hold. Washer fluid will be sprayed and the wiper will
operate for two to three cycles after the washer knob is
released.If the washer knob is depressed while in the delay range, the
wiper will operate for several seconds after the washer knob
is released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while in
the off position, the wiper will turn on and cycle approxi
-
mately three times after the wash knob is released.
To prevent freeze-up of your windshield washer system in
cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This rating
information can be found on most washer fluid containers.
Mist Feature
When a single wipe to clear off road mist or spray from a
passing vehicle is needed, push the washer knob, located on
the end of the multifunction lever, inward briefly and
release. The wipers will cycle one time and automatically
shut off.
WARNING!
Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the windshield
during freezing weather, warm the windshield with the
defroster before and during windshield washer use.
2020_DT_1500_OM_US.book Page 76

GETTING TO KNOW YOUR VEHICLE 77
NOTE:
The mist feature does not activate the washer pump; there-
fore, no washer fluid will be sprayed on the windshield. The
wash function must be used in order to spray the windshield
with washer fluid.
Rain Sensing Wipers — If Equipped
This feature senses rain and snowfall on the windshield and
automatically activates the wipers for the driver. The feature
is especially useful for road splash or overspray from the
windshield washers of the vehicle ahead. Rotate the end of
the multifunction lever to one of four settings to activate this
feature.
NOTE:
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
The sensitivity of the system can be adjusted with the multi -
function lever. Wiper delay position 1 is the least sensitive,
and wiper delay position 4 is the most sensitive.
NOTE:
Position 3 should be used for normal rain conditions. Positions 1 and 2 can be used if the driver desires less wiper
sensitivity. Position 4 can be used if the driver desires more
sensitivity. Place the wiper switch in the O (off) position
when not using the system.
NOTE:
• The Rain Sensing feature will not operate when the wiper
switch is in the low or high-speed position.
• The Rain Sensing feature may not function properly when ice, or dried salt water is present on the windshield.
• Use of Rain-X or products containing wax or silicone may reduce Rain Sensing performance.
The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
• Low Ambient Temperature — When the ignition is first
placed in the ON position, the Rain Sensing system will
not operate until the wiper switch is moved, vehicle speed
is greater than 0 mph (0 km/h), or the outside temperature
is greater than 32°F (0°C).
• Transmission In NEUTRAL (N) Position — When the
ignition is ON, and the transmission is in the NEUTRAL
position, the Rain Sensing system will not operate until the
2
2020_DT_1500_OM_US.book Page 77

SERVICING AND MAINTENANCE 503
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the wind-
shield periodically with a sponge or soft cloth and a mild
nonabrasive cleaner. This will remove accumulations of salt
or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a dry
windshield.
Avoid using the wiper blades to remove frost or ice from the
windshield. Keep the blade rubber out of contact with petro -
leum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending on
geographical area and frequency of use. Poor performance of
blades may be present with chattering, marks, water lines or
wet spots. If any of these conditions are present, clean the
wiper blades or replace as necessary. The wiper blades and wiper arms should be inspected peri
-
odically, not just when wiper performance problems are
experienced. This inspection should include the following
points:
• Wear or uneven edges
• Foreign material
• Hardening or cracking
• Deformation or fatigue
If a wiper blade or wiper arm is damaged, replace the
affected wiper arm or blade with a new unit. Do not attempt
to repair a wiper arm or blade that is damaged.
7
2020_DT_1500_OM_US.book Page 503

564 MULTIMEDIA
ParkView Backup Camera Active GuidelinesOnOff
NOTE:
Your vehicle may be equipped with the ParkView Backup Camera Active Guidelines that allows you to see active guidelines
over the ParkView Back up camera display whenever the gear selector is put into REVERSE. The image will be displayed on
the radio touchscreen display along with a caution note to “check entire surroundings” across the top of the screen. After
five seconds, this note disappears. ParkView Backup Camera Delay OnOff
NOTE:
When the vehicle is shifted out of REVERSE (with camera delay turned OFF), the rear camera mode is exited and the navi -
gation or audio screen appears again. When the vehicle is shifted out of REVERSE (with camera delay turned ON), the rear
view image with dynamic grid lines will be displayed for up to 10 seconds after shifting out of REVERSE unless the forward
vehicle speed exceeds 8 mph (12 km/h), the transmission is shifted into PARK or the ignition is switched to the OFF position.
Rain Sensing Auto Wipers — If Equipped OnOff
NOTE:
When the “Rain Sensing Auto Wipers” feature is selected, the system automatically activates the windshield wipers if it
senses moisture on the windshield. Trailer Length For Blind Spot Alert — If Equipped Auto
Max (39.5 feet)
Hill Start Assist — If Equipped OnOff
NOTE:
When the “Hill Start Assist” feature is selected, the Hill Start Assist (HSA) system becomes active. Setting Name
Selectable Options
2020_DT_1500_OM_US.book Page 564

659
Cargo Light ................................................................................ 72
Cellular Phone ......................................................................... 626
Center High Mounted Stop Light......................................... 443
Center Seat Storage Compartment ....................................... 118
Chart, Tire Sizing .................................................................... 517
Check Engine Light (Malfunction Indicator Light) ........... 196
Checking Your Vehicle For Safety ........................................ 285
Checks, Safety .......................................................................... 285
Child Restraint ........................................................................ 265
Child Restraints Booster Seats ........................................................................ 269
Child Seat Installation ................................................ 278, 280
How To Stow An unused ALR Seat Belt ......................... 276Infant And Child Restraints .............................................. 266Locating The LATCH Anchorages ................................... 274
Lower Anchors And Tethers For Children ..................... 270Older Children And Child Restraints .............................. 268
Seating Positions ................................................................. 270
Clean Air Gasoline .................................................................. 549
Cleaning Wheels................................................................................... 535
Climate Control ......................................................................... 78 Automatic ............................................................................... 82
Manual .................................................................................... 78
Cold Weather Operation........................................................ 296
Compact Spare Tire ................................................................ 533 Contract, Service......................................................................654
Cooling Pressure Cap (Radiator Cap) ..................................509
Cooling System ........................................................................506
Adding Coolant (Antifreeze) .............................................508
Coolant Level ...............................................................507, 510Cooling Capacity .................................................................553
Disposal Of Used Coolant..................................................509Drain, Flush, And Refill .....................................................507
Inspection ............................................................................. 510
Points To Remember ........................................................... 511Pressure Cap ........................................................................509Radiator Cap ........................................................................509Selection Of Coolant (Antifreeze) .....................507, 553, 554
Corrosion Protection ...............................................................539
Cruise Control (Speed Control) ............................................340
Cruise Light .....................................................................193, 194
Cupholders...............................................................................126
Customer Assistance ..............................................................652
Cybersecurity ...........................................................................558 D
Daytime Running Lights ..........................................................67
Dealer Service ..........................................................................492
Defroster, Rear Window ..........................................................78
Defroster, Windshield ......................................................78, 287
Delay (Intermittent) Wipers ....................................................76
Diagnostic System, Onboard .................................................195
11
2020_DT_1500_OM_US.book Page 659

670
U
Uconnect Uconnect Settings ................ 559, 566, 569, 586, 590, 610, 612
Uconnect Settings Customer Programmable
Features .................................. 37, 566, 569, 586, 590, 610, 612
Passive Entry Programming ........................ 37, 566, 586, 610
Uniform Tire Quality Grades ................................................ 538
Universal Garage Door Opener (HomeLink) ..................... 109
Universal Transmitter ............................................................ 109
Unleaded Gasoline.................................................................. 548
Untwisting Procedure, Seat Belt ........................................... 241
USB ............................................................................................ 623
Utility Rails, Rear Cargo Area............................................... 144 V
Vehicle Identification Number (VIN) .................................. 546
Vehicle Loading .............................................................. 405, 522
Vehicle Modifications/Alterations......................................... 15
Vehicle Storage .................................................................. 92, 539
Vehicle User Guide In Vehicle Help ...................................................................... 16
Navigation.............................................................................. 16
Operating Instructions ......................................................... 16
Searching User Guide ........................................................... 16
Viscosity, Engine Oil .............................................................. 493
Voice Recognition System (VR) ............................................ 628 W
Warning Lights (Instrument Cluster Descriptions) ...........185
Warnings And Cautions ..........................................................14
Warranty Information ............................................................ 655
Washers, Windshield........................................................76, 490
Washing Vehicle ......................................................................540
Water Driving Through .................................................................427
Wheel And Wheel Tire Care..................................................535
Wheel And Wheel Tire Trim .................................................535
Wind Buffeting ............................................................ 97, 99, 104
Window Fogging.......................................................................93
Windows ....................................................................................94 Power ......................................................................................94
Rear Sliding ............................................................................97
Reset Auto-Up .......................................................................96
Windshield Defroster .............................................................287
Windshield Washers ................................................... 75, 76, 490 Fluid ................................................................................75, 490
Windshield Wiper Blades ......................................................503
Windshield Wipers ...................................................................75
Wipers Blade Replacement ....................................................503
Wipers, Intermittent .................................................................76
Wipers, Rain Sensitive ..............................................................77
Wireless Charging Pad ........................................................... 134
2020_DT_1500_OM_US.book Page 670
