398SERVICING AND MAINTENANCE
SCHEDULED SERVICING — DIESEL ENGINE
Your vehicle is equipped with an automatic oil
change indicator system. The oil change indicator
system will remind you that it is time to take your
vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil
change indicator message will illuminate. This
means that service is required for your vehicle.
Operating conditions such as frequent short-trips,
trailer tow, extremely hot or cold ambient
temperatures will influence when the “Oil Change
Required” message is displayed. Have your vehicle
serviced as soon as possible, within the next
500 miles (805 km). An authorized dealer will reset the oil change
indicator message after completing the scheduled
oil change. If a scheduled oil change is performed
by someone other than an authorized dealer, the
message can be reset by referring to the steps
described under Instrument Cluster Display
Ú
page 114.
NOTE:Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 km) or
12 months, whichever comes first. Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check the tire inflation pressures and look for
unusual wear or damage.
Check the fluid levels of the coolant reservoir,
brake master cylinder, and power steering, and
fill as needed.
Check function of all interior and exterior lights.

22_DT_OM_EN_USC_t.book Page 398

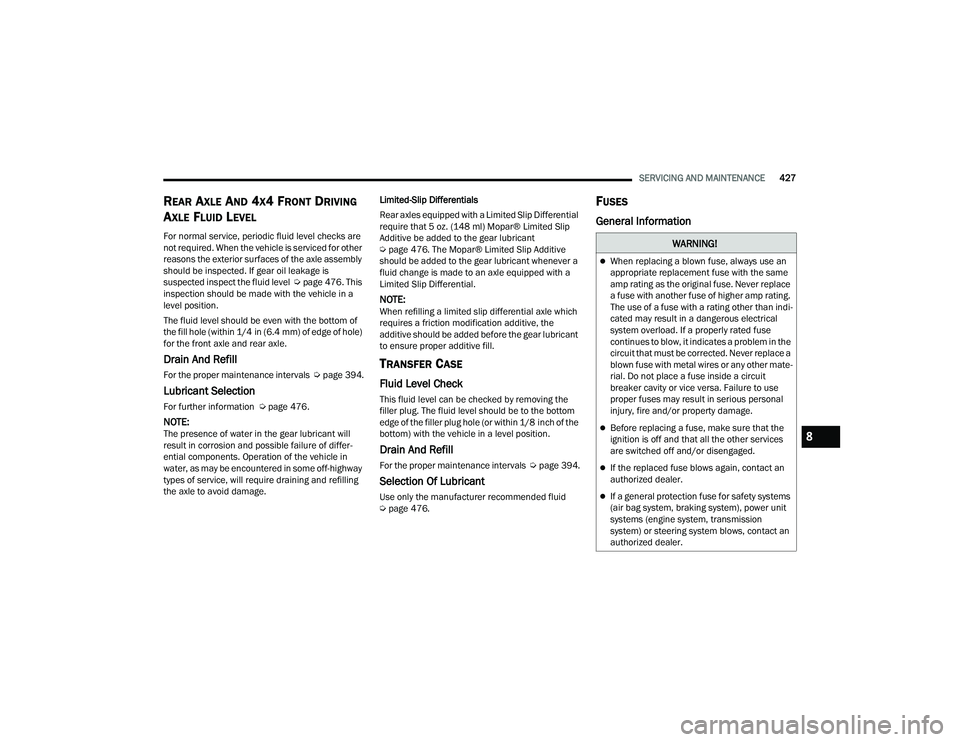

SERVICING AND MAINTENANCE427
REAR AXLE AND 4X4 FRONT DRIVING
A
XLE FLUID LEVEL
For normal service, periodic fluid level checks are
not required. When the vehicle is serviced for other
reasons the exterior surfaces of the axle assembly
should be inspected. If gear oil leakage is
suspected inspect the fluid level Úpage 476. This
inspection should be made with the vehicle in a
level position.
The fluid level should be even with the bottom of
the fill hole (within 1/4 in (6.4 mm) of edge of hole)
for the front axle and rear axle.
Drain And Refill
For the proper maintenance intervals Úpage 394.
Lubricant Selection
For further information Ú page 476.
NOTE:The presence of water in the gear lubricant will
result in corrosion and possible failure of differ -
ential components. Operation of the vehicle in
water, as may be encountered in some off-highway
types of service, will require draining and refilling
the axle to avoid damage. Limited-Slip Differentials
Rear axles equipped with a Limited Slip Differential
require that 5 oz. (148 ml) Mopar® Limited Slip
Additive be added to the gear lubricant
Ú
page 476. The Mopar® Limited Slip Additive
should be added to the gear lubricant whenever a
fluid change is made to an axle equipped with a
Limited Slip Differential.
NOTE:When refilling a limited slip differential axle which
requires a friction modification additive, the
additive should be added before the gear lubricant
to ensure proper additive fill.
TRANSFER CASE
Fluid Level Check
This fluid level can be checked by removing the
filler plug. The fluid level should be to the bottom
edge of the filler plug hole (or within 1/8 inch of the
bottom) with the vehicle in a level position.
Drain And Refill
For the proper maintenance intervals Úpage 394.
Selection Of Lubricant
Use only the manufacturer recommended fluid
Úpage 476.
FUSES
General Information
WARNING!
When replacing a blown fuse, always use an
appropriate replacement fuse with the same
amp rating as the original fuse. Never replace
a fuse with another fuse of higher amp rating.
The use of a fuse with a rating other than indi -
cated may result in a dangerous electrical
system overload. If a properly rated fuse
continues to blow, it indicates a problem in the
circuit that must be corrected. Never replace a
blown fuse with metal wires or any other mate -
rial. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to use
proper fuses may result in serious personal
injury, fire and/or property damage.
Before replacing a fuse, make sure that the
ignition is off and that all the other services
are switched off and/or disengaged.
If the replaced fuse blows again, contact an
authorized dealer.
If a general protection fuse for safety systems
(air bag system, braking system), power unit
systems (engine system, transmission
system) or steering system blows, contact an
authorized dealer.
8

22_DT_OM_EN_USC_t.book Page 427

483
Cruise Control Accel/Decel
............................................... 177Cancel....................................................... 177Resume..................................................... 177Cruise Control (Speed Control)... 133, 176, 178Cruise Light......................................... 136, 137Customer Assistance..................................... 477Cybersecurity................................................. 233
D
Daytime Running Lights................................... 55Dealer Service............................................... 408Defroster, Windshield...................... 62, 65, 368Deleting A Phone........................................... 276Diagnostic System, Onboard......................... 138Diesel Exhaust Fluid...................................... 209Adding....................................................... 209Fill Procedure............................................ 210Storage...................................................... 209Diesel Fuel..................................................... 469Diesel Fuel Requirements............................. 469Bulk Storage Of......................................... 209Diesel Fuel System, Re-Priming..................... 414Differential, Limited Slip................................ 173Dimmer Control Switch.................................... 60Disable Vehicle Towing.................................. 390
Disc Drive..................................................... 270Disconnecting............................................... 276DisposalAntifreeze (Engine Coolant)...................... 423Disturb.......................................................... 279Door Ajar Light..................................... 129, 130Door LocksAutomatic.................................................... 32Doors............................................................... 28Draining Fuel/Water Separator Filter............ 412Driver Memory Presets................................. 268Driver’s Seat Back Tilt...................................... 35DrivingThrough Flowing, Rising, Or ShallowStanding Water
.................................... 231Driving Tips................................................... 230Dual Rear Wheels......................................... 466
E
Electric Brake Control System....................... 313Anti-Lock Brake System............................ 312Electronic Roll Mitigation................. 314, 319Electric Parking Brake................................... 150Electric Power Steering................................. 173Electrical Power Outlets................................... 76Electronic Range Select (ERS)...................... 158Electronic Stability Control
(ESC)........................................... 131, 132, 314
Electronic Throttle Control Warning Light...... 129Electronically Shifted Transfer Case.... 160, 162Emergency Braking....................................... 327Emergency Gas Can Refueling...................... 386Emergency, In Case OfFreeing Vehicle When Stuck..................... 389Hazard Warning Flasher........................... 371Jump Starting........................................... 384Emission Control System Maintenance......... 139Engine........................................................... 403Air Cleaner................................................ 410Block Heater............................................. 149Break-In Recommendations..................... 150Compartment............... 403, 404, 405, 406CompartmentIdentification............ 403, 404, 405, 406Coolant (Antifreeze).................................. 473Exhaust Gas Caution................................ 370Fails To Start............................................. 143Flooded, Starting...................................... 143Fuel Requirements.......................... 467, 472Idling......................................................... 147Jump Starting........................................... 384Oil...........................................409, 472, 473Oil Filler Cap............................................. 403Oil Filter.................................................... 409
11

22_DT_OM_EN_USC_t.book Page 483

486 Air Suspension Payload Protection
............ 134Air Suspension Ride Height Lowering........ 135Air Suspension Ride Height Raising..........134Anti-Lock Brake System............................. 131Brake Assist Warning................................ 316Brake Warning.......................................... 128Bulb Replacement..................................... 438Cargo.................................................. 57, 135Center Mounted Stop................................ 443Courtesy/Reading....................................... 59Cruise.............................................. 136, 137Daytime Running......................................... 55ECO Mode................................................. 136Electric Power Steering............................. 130Electronic Park Brake................................ 131Electronic Stability Control........................ 131Electronic Throttle Control......................... 129Engine Coolant Temperature..................... 130Exterior............................................... 54, 370Fog.................................................. 136, 442Forward Collision Warning......................... 135Hazard Warning Flasher............................ 371Headlights............................................ 54, 56High Beam......................................... 55, 137High Beam/Low Beam Select..................... 55Hill Descent Control Indicator.......... 137, 316Hood Open................................................ 130Illuminated Entry......................................... 60Interior........................................................ 59LaneSense...................................... 136, 137
Lights On Reminder..................................... 56Low Diesel Exhaust Fluid.......................... 135Low Fuel................................................... 136Malfunction Indicator (Check Engine)....... 132NEUTRAL.................................................. 135Oil Temperature........................................ 130Passing........................................................ 55Rear Axle Lock.......................................... 135Rear Axle Lock Fault................................. 133Rear Tail Lamps....................................... 442Seat Belt Reminder.................................. 130Security Alarm.......................................... 131Service..................................................... 438Service Stop Start..................................... 133Stop Start Active....................................... 136TOW HAUL................................................ 135Traction Control........................................ 316Transmission Temperature....................... 131Turn Signals.................................... 137, 440Wait To Start............................................. 135Warning Instrument ClusterDescriptions......................................... 137Limited-Slip Differential....................... 173, 427Load Shed Battery Saver Mode.................... 127Load Shed Battery Saver On......................... 127Load Shed Electrical Load Reduction........... 127Load Shed Intelligent Battery Sensor............ 127Loading Vehicle............................................ 211Tires......................................................... 448
LocksAutomatic Door............................................32Child Protection...........................................32Power Door..................................................29Low Tire Pressure System............................. 328Lubrication, Body.......................................... 418Lug Nuts........................................................ 466Lug Nuts/Bolts.............................................. 466
M
Maintenance.............................................83, 85Maintenance Free Battery............................ 408Maintenance Schedule............... 393, 398, 399Malfunction Indicator Light
(Check Engine).............................................. 132ManualService...................................................... 480Media Hub.......................................................75Media Mode.................................................. 270Memory Seat....................................................34Memory Settings..............................................34Methanol....................................................... 468Mirrors.............................................................45Automatic Dimming.....................................45Digital..........................................................46Electric Powered..........................................48Heated.........................................................49Manual Dimming.........................................45Memory.......................................................34Outside........................................................47
