SERVICING AND MAINTENANCE355
The fuses protect electrical systems against excessive
current.
When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.
Also, please be aware that using power outlets for
extended periods of time with the engine off may result in
vehicle battery discharge.

Blade Fuses

Underhood Power Distribution Center
The Power Distribution Center is located in the engine
compartment near the battery. This center contains
cartridge fuses, micro fuses, relays, and circuit breakers.
A description of each fuse and component may be
stamped on the inside cover, otherwise the cavity number
of each fuse is stamped on the inside cover that
corresponds to the following chart.CAUTION!
If it is necessary to wash the engine compartment, take
care not to directly hit the fuse box, and the windshield
wiper motors with water.
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade Fuse with a bad/not functional fuse element
(blown fuse)
CAUTION!
When installing the power distribution center cover, it is
important to ensure the cover is properly positioned
and fully latched. Failure to do so may allow water to get
into the power distribution center and possibly result in
an electrical system failure.
8

23_DT_OM_EN_USC_t.book Page 355

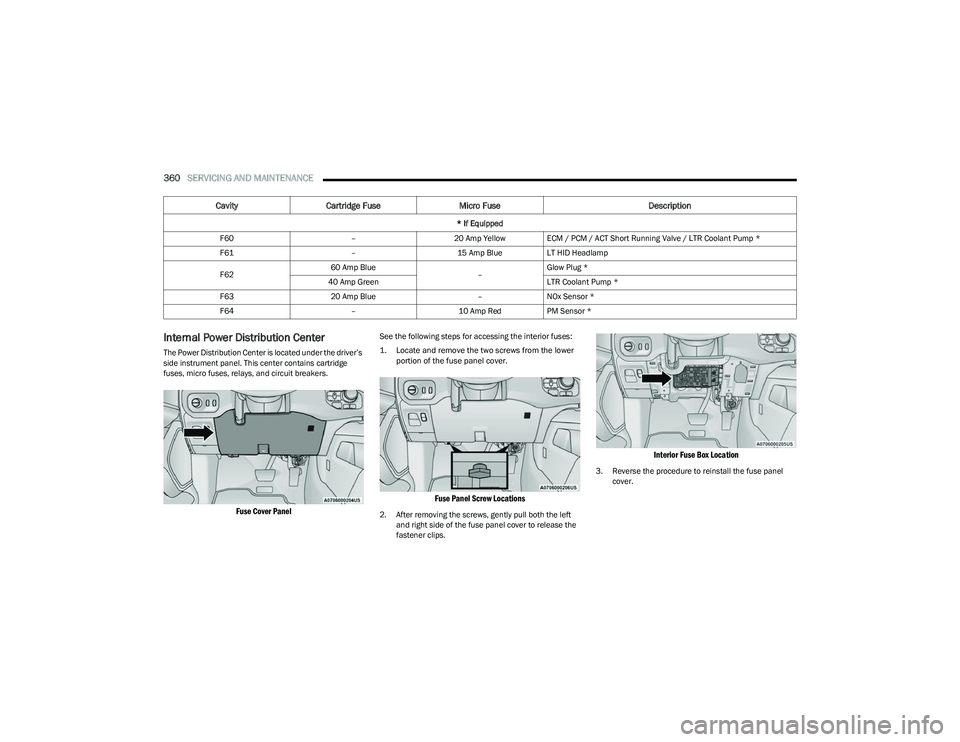

360SERVICING AND MAINTENANCE
Internal Power Distribution Center
The Power Distribution Center is located under the driver’s
side instrument panel. This center contains cartridge
fuses, micro fuses, relays, and circuit breakers.

Fuse Cover Panel

See the following steps for accessing the interior fuses:

1. Locate and remove the two screws from the lower
portion of the fuse panel cover.

Fuse Panel Screw Locations

2. After removing the screws, gently pull both the left and right side of the fuse panel cover to release the
fastener clips.

Interior Fuse Box Location

3. Reverse the procedure to reinstall the fuse panel cover.
F60
–20 Amp Yellow ECM / PCM / ACT Short Running Valve / LTR Coolant Pump *
F61 –15 Amp BlueLT HID Headlamp
F62 60 Amp Blue
–Glow Plug *
40 Amp Green LTR Coolant Pump *
F63 20 Amp Blue –NOx Sensor *
F64 –10 Amp RedPM Sensor *
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped

23_DT_OM_EN_USC_t.book Page 360

SERVICING AND MAINTENANCE363
F41 A&B –15 Amp BlueLumbar Support & Pass SW / Steering Column Control Module / HVAC
Control Module / ICS Switch Bank / Upper Switch Bank
F42 A&B –10 Amp RedMod Transfer Case Switch Module (TCSM) / SBW / Electric Park Brake
SW / Module TPM Trailer / Module Gateway Can-C Trailer TPM / Seat
LT & RT Vent
F43 A&B –10 Amp RedPort Diagnostics / Front & Rear USB
F44 –20 Amp Yellow Radio / DCSD / Telematics Box Mod / Trailer Gateway Module (360)
F45 30 Amp Pink –Mod Door MUX Driver
F46 30 Amp Pink –Mod Door MUX Passenger
F47 ––Spare
F48A –10 Amp RedRear View Mirror / SW Window Passenger / Rear USB / Wireless
Charging Pad Mod
F49 –15 Amp BlueMod CVPM / SNSR Blind Spot / HDLP Adaptive Front Lighting Sensor
(AFLS)
F50A –10 Amp RedBattery PACK Control Mod (BPCM) *
F51 A&B ––Spare
F52 20 Amp Blue –Direct Battery Feed *
F53 –10 Amp RedTrailer Reverse Steering Control / Trailer Steering Control Knob
F54 A&B –20 Amp YellowPower Outlet Center Seat Battery Feed Position
Power Outlet Center Seat Ignition Feed Position
F55 25 Amp White –Upfitter *
F56 30 Amp Pink –Mod Network Interface *
F57 20 Amp Blue –Direct Battery Feed *
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped
8

23_DT_OM_EN_USC_t.book Page 363

408 N
