Ram 2500 2014 Diesel Supplement

TABLE OF CONTENTSSECTIONPAGE
1
INTRODUCTION............................................................141
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE...........................145
3
UNDERSTANDING YOUR INSTRUMENT PANEL..................................151
4
STARTING AND OPERATING.................................................199
5
WHAT TO DO IN EMERGENCIES..............................................281
6
MAINTAINING YOUR VEHICLE...............................................287
7
MAINTENANCE SCHEDULE..................................................333
1
2
3
4
5
6
7

INTRODUCTION
CONTENTS
A MESSAGE FROM FCA US LLC...........142
1

A MESSAGE FROM FCA US LLC
FCA US LLC and Cummins® welcome you as a Cum-
mins® turbocharged diesel-powered truck owner. Your
diesel truck will sound, feel, drive, and operate differ-
ently from a gasoline-powered truck. It is important that
you read and understand this manual.
Almost 100% of the heavy duty trucks in the United
States and Canada are diesel-powered because of the fuel
economy, rugged durability, and high torque which per-
mits pulling heavy loads. Cummins® engines power well
over half of these trucks. Now this same technology and
proven performance is yours in your truck equipped
with the Cummins® turbocharged diesel engine.You may find that some of the starting, operating, and
maintenance procedures are different. However, they are
simple to follow and careful adherence to them will
ensure that you take full advantage of the features of this
engine.
NOTE:
•Some aftermarket products may cause severe engine/
transmission and/or exhaust system damage. Your
vehicle’s Powertrain Control Systems can detect and
store information about vehicle modifications that
increase horsepower and torque output such as
whether or not performance-enhancing powertrain
components, commonly referred to as downloaders,
power boxes, or performance chips have been used.
142 INTRODUCTION

•Any chassis/suspension or tire size modifications to the
vehicle will effect the performance of the Adaptive
Cruise Control and Forward Collision Warning System.
This information cannot be erased and will stay in the
system’s memory even if the modification is removed.
This information can be retrieved by FCA US LLC, and
service and repair facilities, when servicing your vehicle.
This information may be used to determine if repair will
be covered by the New Vehicle Limited Warranty.There is a probability that the use of a “performance
chip” will prohibit the engine from starting. In this
instance, the vehicle will need to be serviced by a
authorized dealer in order to return the vehicle to it’s
factory settings.
1
INTRODUCTION 143

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
REMOTE STARTING SYSTEM — IF
EQUIPPED...........................146
▫How To Use Remote Start...............146ENGINE BREAK-IN RECOMMENDATIONS . . .149
2

REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m).
NOTE:
•The vehicle must be equipped with an automatic
transmission to be equipped with Remote Start.
•The remote start system will wait for the “Wait To
Start” telltale to extinguish before cranking the engine.
This allows time for the intake heater to pre-heat the
incoming air, and is normal operation in cold weather.
Refer to “Electronic Vehicle Information Center/EVICWarning Lights” in “Understanding Your Instrument
Panel” for further information on and “Wait To Start”
telltale and pre-heat cycle.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•HAZARD switch off
•BRAKE switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
146 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•Fuel meets minimum requirement
•Water In Fuel Indicator Light is not illuminated
•Wait To Start Light is not illuminated
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious in-
jury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted - Door Ajar
•Remote Start Aborted - Hood Ajar
•Remote Start Aborted - Fuel Low
•Remote Start Aborted - System Fault
The EVIC message stays active until the ignition is turned
to the ON/RUN position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 147

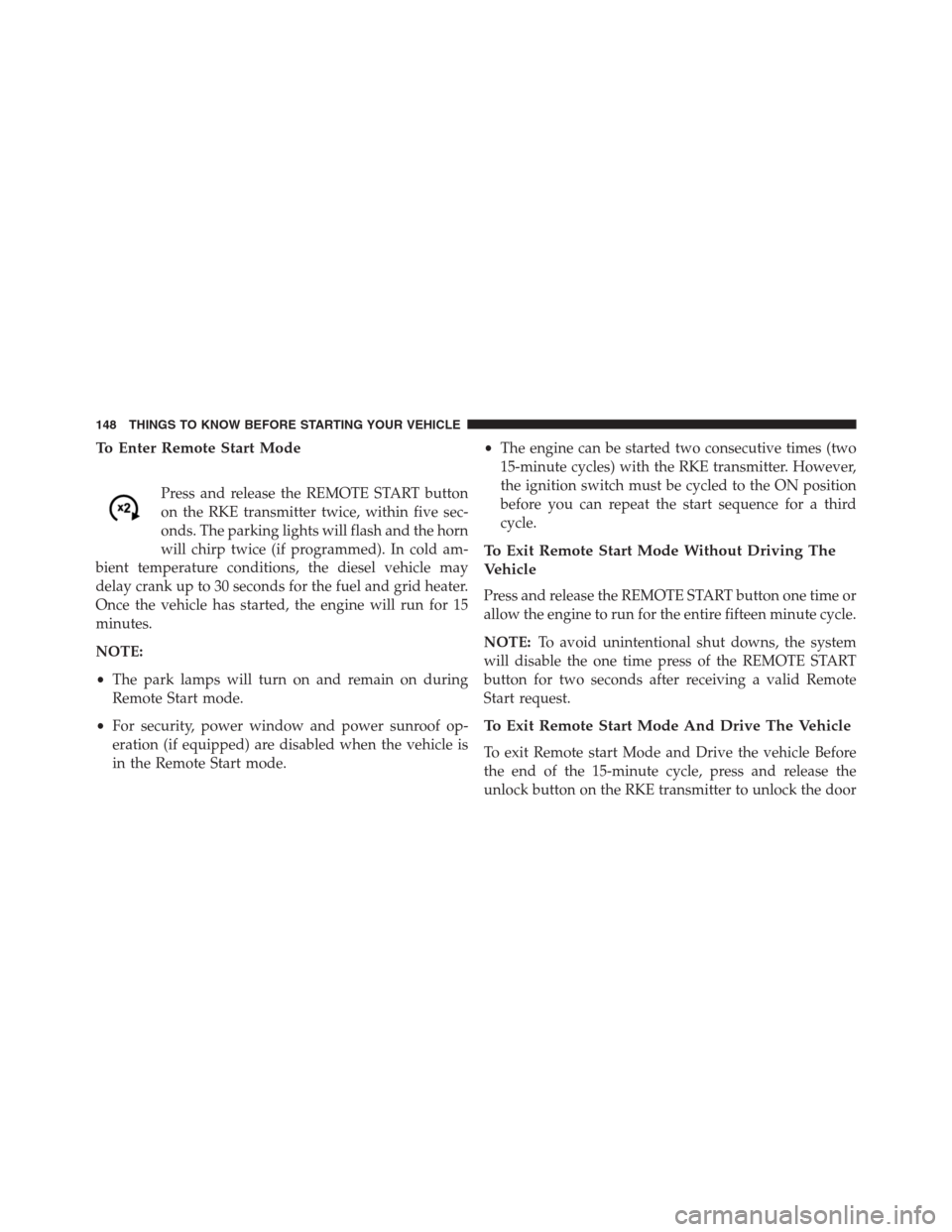

To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). In cold am-
bient temperature conditions, the diesel vehicle may
delay crank up to 30 seconds for the fuel and grid heater.
Once the vehicle has started, the engine will run for 15
minutes.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time or
allow the engine to run for the entire fifteen minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
To exit Remote start Mode and Drive the vehicle Before
the end of the 15-minute cycle, press and release the
unlock button on the RKE transmitter to unlock the door
148 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
