Page 384 of 790
FUEL REQUIREMENTS ..................568
▫ 3.6L/6.4L Engine ..................... .568
▫ 5.7L Engines ........................ .568
▫ Reformulated Gasoline .................569
▫ Gasoline/Oxygenate Blends ..............569
▫ E-85 Usage In Non-Flex Fuel Vehicles .......570
▫ MMT In Gasoline .....................570
▫ Materials Added To Fuel ................571
▫ Fuel System Cautions ...................571
▫ Carbon Monoxide Warnings .............572
FLEXIBLE FUEL (3.6L ENGINE ONLY) —
IF EQUIPPED ........................ .573
▫ E-85 General Information ...............573 ▫
Ethanol Fuel (E-85) ....................574
▫ Fuel Requirements ....................574
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles .............575
▫ Starting ........................... .575
▫ Cruising Range ...................... .576
▫ Replacement Parts ....................576
▫ Maintenance ....................... .576
ADDING FUEL ....................... .577
▫ Loose Fuel Filler Cap Message ............579
VEHICLE LOADING ....................579
▫ Certification Label ....................579
TRAILER TOWING .....................581
382 STARTING AND OPERATING

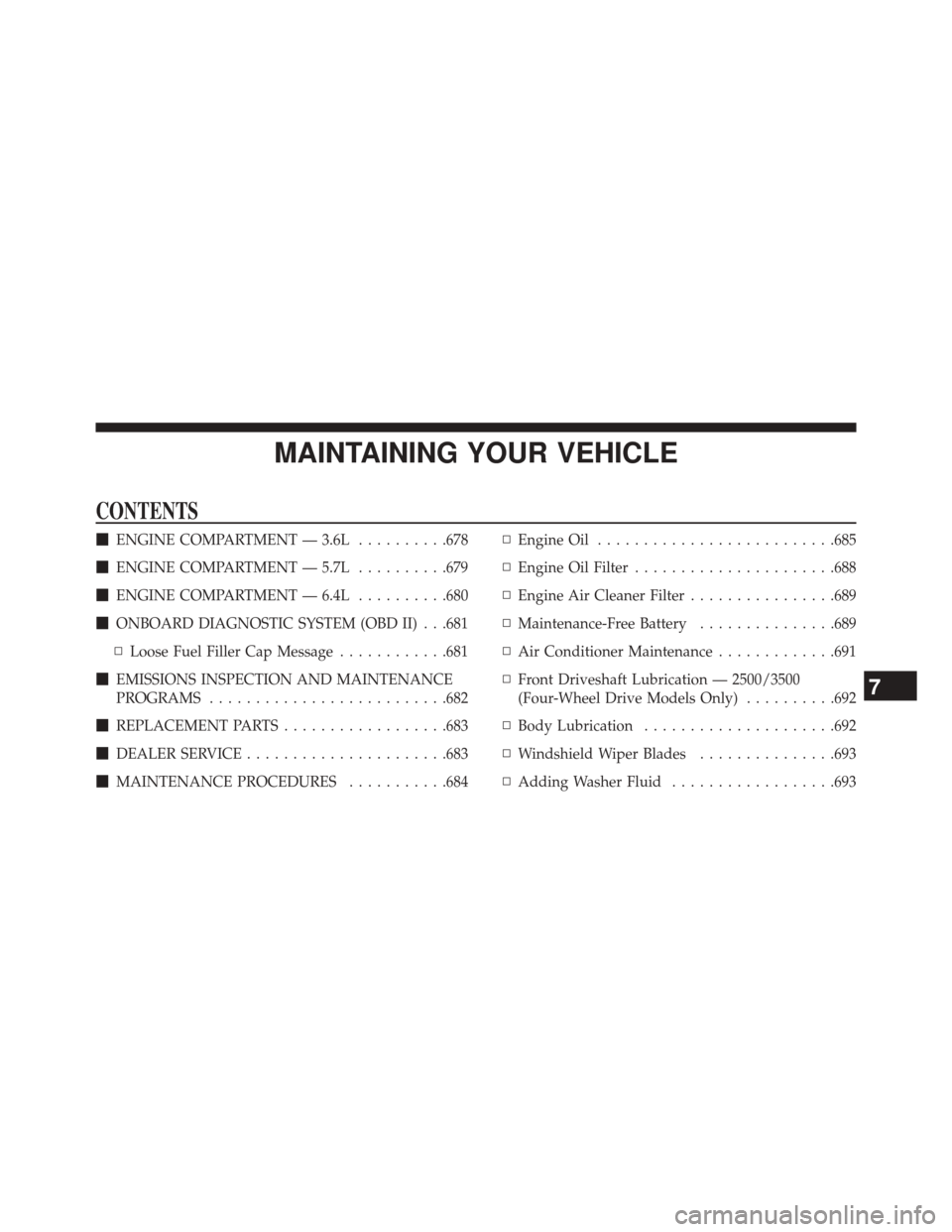

Page 677 of 790
MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........678
ENGINE COMPARTMENT — 5.7L ..........679
ENGINE COMPARTMENT — 6.4L ..........680
ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .681
▫ Loose Fuel Filler Cap Message ............681
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .682
REPLACEMENT PARTS ..................683
DEALER SERVICE ..................... .683
MAINTENANCE PROCEDURES ...........684▫
Engine Oil ......................... .685
▫ Engine Oil Filter ..................... .688
▫ Engine Air Cleaner Filter ................689
▫ Maintenance-Free Battery ...............689
▫ Air Conditioner Maintenance .............691
▫ Front Driveshaft Lubrication — 2500/3500
(Four-Wheel Drive Models Only) ..........692
▫ Body Lubrication .....................692
▫ Windshield Wiper Blades ...............693
▫ Adding Washer Fluid ..................693
7
Page 687 of 790
CAUTION!(Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, power steering or air conditioning.
Such damage is not covered by the New Vehicle
Limited Warranty. If a flush is needed because of
component malfunction, use only the specified
fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals, such as every fuel stop. The best time to check the engine oil level is about five
minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Always
maintain the oil level within the SAFE zone on the
dipstick. Adding one quart of oil when the reading is at
the bottom of the SAFE zone will result in a reading at the
top of the safe zone on these engines.
CAUTION!
Overfilling or underfilling the crankcase will cause
oil aeration or loss of oil pressure. This could damage
your engine.
7
MAINTAINING YOUR VEHICLE 685
Page 695 of 790
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reser-
voir, take some washer fluid and apply it to a cloth or
towel and wipe the wiper blades clean. This will help
blade performance.
7
MAINTAINING YOUR VEHICLE 693
Page 713 of 790
7. Remove the dipstick again and note the fluid level onboth sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
Note that the holes in the dipstick will be full of fluid
if the actual level is at or above the hole. The fluid level
should be between the “HOT” (upper) reference holes
on the dipstick at normal operating temperature. If the
fluid level is low, add fluid through the dipstick tube
to bring it to the proper level. Do not overfill.Use
ONLY the recommended fluid (see Fluids, Lubri-
cants, and Genuine Parts for fluid specifications).
After adding any quantity of oil through the dipstick
tube, wait a minimum of two minutes for the oil to
fully drain into the transmission before rechecking the
fluid level. NOTE:
If it is necessary to check the transmission below
the operating temperature, the fluid level should be
between the two “COLD” (lower) holes on the dipstick
with the fluid at 60-70°F / 16-21°C. Only use the COLD
region of the dipstick as a rough reference when setting
the fluid level after a transmission service or fluid
change. Re-check the fluid level, and adjust as required,
once the transmission reaches normal operating tempera-
ture.
CAUTION!
If the fluid temperature is below 50°F (10°C) it may
not register on the dipstick. Do not add fluid until
the temperature is elevated enough to produce an
accurate reading. Run the engine at idle, in PARK, to
warm the fluid.
8. Check for leaks. Release the parking brake.
7
MAINTAINING YOUR VEHICLE 711
