headlamp Ram 2500 2014 Owner's Manual

▫Power Lumbar — If Equipped ............144
▫ Heated Seats — If Equipped ..............145
▫ Ventilated Seats — If Equipped ............147
▫ Manual Seat Adjuster — If Equipped ........149
▫ 40-20-40 Front Bench Seat — If Equipped . . . .150
▫ Mega Cab® Rear Seat Features ............150
▫ Head Restraints ..................... .154
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .156
▫ Programming The Memory Feature .........157
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory .............158
▫ Memory Position Recall .................159
 TO OPEN AND CLOSE THE HOOD .........160
LIGHTS ............................ .162
▫ Headlights ......................... .163
▫ Automatic Headlights — If Equipped .......163
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ..............164
▫ Daytime Running Lights (DRL) —
If Equipped ........................ .164
▫ Headlight Delay ..................... .164
▫ Automatic High Beam Headlamp Control —
If Equipped ........................ .165
▫ Parking Lights And Panel Lights ...........167
▫ Fog Lights — If Equipped ...............167
▫ Lights-On Reminder ...................168
▫ Battery Saver ........................ .168
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Headlight delay can be cancelled by either turning the
headlight switch on then off, or by turning the ignition
ON.
The headlight delay time is programmable on vehicles
equipped with an Electronic Vehicle Information Center
(EVIC) or a Uconnect® system screen. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/Customer-
Programmable Features” or “Customer- Programmable
Features — Uconnect® Access 8.4 Settings” in “Under-
standing Your Instrument Panel” for further information.
Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This cameradetects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.
NOTE:
•
Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect® System, refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Auto Wipers — If Equipped
When ON is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the SELECT button until a check-mark appears next to
the feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated. When the system is deactivated, the system
reverts to the standard intermittent wiper operation.
Hill Start Assist (HSA)
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, press and release the
SELECT button until a check-mark appears next to thefeature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, scroll
up or down until the preferred setting is highlighted,
then press and release the SELECT button until a check-
mark appears next to the setting, showing that the setting
has been selected.
Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for 0, 30, 60, or 90 seconds when the doors
are unlocked with the RKE transmitter. To make your
selection, scroll up or down until the preferred setting is
4
UNDERSTANDING YOUR INSTRUMENT PANEL 325

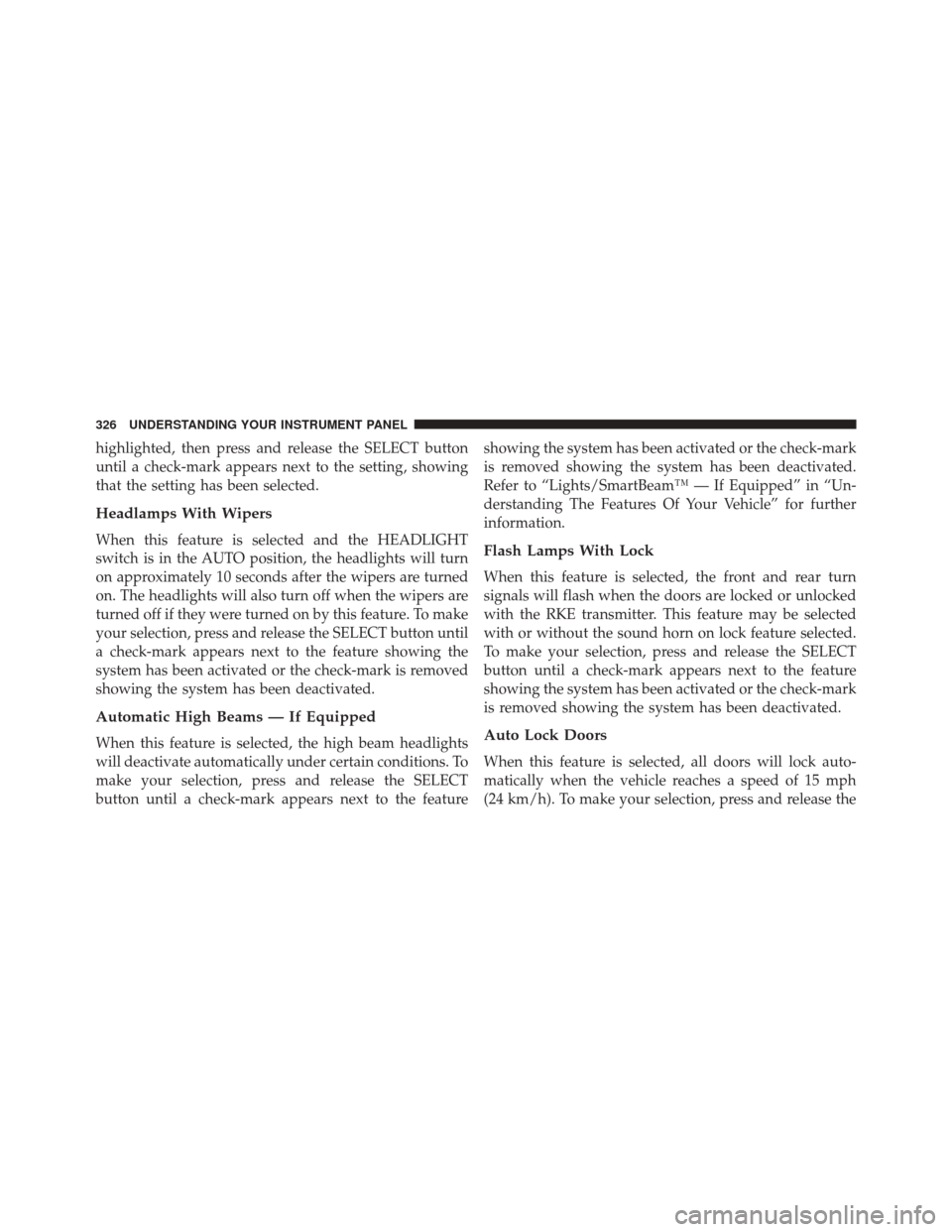

highlighted, then press and release the SELECT button
until a check-mark appears next to the setting, showing
that the setting has been selected.
Headlamps With Wipers
When this feature is selected and the HEADLIGHT
switch is in the AUTO position, the headlights will turn
on approximately 10 seconds after the wipers are turned
on. The headlights will also turn off when the wipers are
turned off if they were turned on by this feature. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Automatic High Beams — If Equipped
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, press and release the SELECT
button until a check-mark appears next to the featureshowing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Refer to “Lights/SmartBeam™ — If Equipped” in “Un-
derstanding The Features Of Your Vehicle” for further
information.
Flash Lamps With Lock
When this feature is selected, the front and rear turn
signals will flash when the doors are locked or unlocked
with the RKE transmitter. This feature may be selected
with or without the sound horn on lock feature selected.
To make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Auto Lock Doors
When this feature is selected, all doors will lock auto-
matically when the vehicle reaches a speed of 15 mph
(24 km/h). To make your selection, press and release the
326 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Exhaust System ..................... .694
▫ Cooling System ..................... .697
▫ Brake System ....................... .704
▫ Rear Axle And 4x4 Front Driving Axle Fluid
Level ............................. .706
▫ Transfer Case ....................... .708
▫ Automatic Transmission ................708
▫ Appearance Care And Protection From
Corrosion .......................... .712
 FUSES ............................. .720
▫ Power Distribution Center ...............721
 VEHICLE STORAGE ....................730
REPLACEMENT BULBS .................730
 BULB REPLACEMENT ..................732
▫ Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park
And Turn — If Equipped ...............732
▫ Fog Lamps — If Equipped ..............734
▫ Rear Tail/Stop, Turn Signal And Backup
Lamps ............................ .735
▫ Center High-Mounted Stoplamp (CHMSL)
With Cargo Lamp .....................736
▫ Cab Top Clearance Lamps — If Equipped . . . .738
▫ Rear Lamp Bar ID Marker (Dual Rear
Wheels) — If Equipped .................740
676 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the negative cable from battery.
• Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
Interior Bulbs
Bulb Number
Overhead Console
Lamps TS 212–9
Dome Lamp 7679
For lighted switches, see your authorized dealer for
replacement instructions.
Exterior Bulbs
Bulb Number
Base Quad Headlamp –
Low Beam H11
Base Quad Headlamp –
High Beam 9005
Front Turn Signal Lamp
(Base Quad Headlamp) 3157NA
730 MAINTAINING YOUR VEHICLE

Bulb Number
Premium Bi Halogen
Projector Headlamp -
Low Beam HIR2
Premium Bi Halogen
Projector Headlamp -
High Beam 9005
Front Turn Signal Lamp
(Premium Headlamp) LED (Serviced at Autho-
rized Dealer)
Fog Lamp (Horizontal
shape) 9145
Fog Lamp (Vertical
shape) 9006
Center High Mounted
Stop Lamp (CHMSL) 921
Rear Cargo Lamp 921Bulb Number
LED Center High
Mounted Stop Lamp
(CHMSL)/Cargo Lamp LED (Serviced at Autho-
rized Dealer)
Cab Roof Marker Lamps 194NA
Base Rear Tail/Turn and
Stop Lamp 3157K
Premium Rear Tail/Turn
and Stop Lamp LED (Serviced at Autho-
rized Dealer)
Premium Backup Lamp T20
Rear Lamp Bar ID
Marker Lamp 194
Side Marker Lamps
(Dual Rear Wheels) 194
Backup Lamp 921
Rear License Plate Lamp 194
7
MAINTAINING YOUR VEHICLE 731

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park And
Turn — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the four plastic push-in fasteners that secure the upper radiator seal to the grille support and both
fender ledges.
4. Remove the two plastic push-in rivets that secure the upper radiator seal to the radiator. 5. Remove the upper radiator seal from the vehicle.
6. Remove the two headlamp assembly attachment
screws.
Headlamp Assembly Attachment Screw Locations
732 MAINTAINING YOUR VEHICLE

7. Reach into the front wheel house ahead of the frontwheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash
shield. Access to the rear of the lamp can be gained
through this access hole.
8. Reach through the access hole of the wheel house splash shield and lift the slide lock upward far enough
to disengage it from the lock post on the back of the
front lamp unit housing.
9. Remove the headlamp assembly. Grasp the outboardedge of the lamp and pull it straight forward to
disengage the ball stud from the plastic grommet.
Slide Lock
7
MAINTAINING YOUR VEHICLE 733

10. Disconnect the wiring harness connectors from thebulb socket.
11. Replace bulb(s) as necessary.
CAUTION!
• Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
• Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the bulb
socket, or the lamp wiring.
NOTE: There are access covers over both headlamp bulb
access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the
bulb has been replaced.
Fog Lamps — If Equipped
1. Reach under and behind the front bumper to access the back of the front fog lamp housing.
2. Disconnect the fog lamp wiring harness connector from the fog lamp bulb.
3. Rotate the bulb counterclockwise ¼ turn to unlock the bulb from the housing.
4. Pull the bulb straight out from the housing.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
734 MAINTAINING YOUR VEHICLE
