Ram 2500 2017 Owner's Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ............................ .104
▫ Inside Day/Night Mirror — If Equipped ......104
▫ Automatic Dimming Mirror — If Equipped . . . .104
▫ Automatic Dimming Mirror With Rear View
Camera Display — If Equipped ............110
▫ Outside Mirrors ........................111
▫ Outside Mirrors Folding Feature ............111
▫ Tilt Side Mirrors In Reverse — If Equipped .....112
▫ Power Folding Outside Mirrors For Standard
And Trailer Tow — If Equipped ............112
▫ Power Mirrors — If Equipped .............114
▫ Heated Mirrors — If Equipped .............115
▫ Driver’s Outside Automatic Dimming Mirror —
If Equipped ...........................115
▫ Trailer Towing Mirrors — If Equipped ........116▫
Illuminated Vanity Mirror — If Equipped ......117
▫ “Slide-On-Rod” Features Of Sun Visor —
If Equipped ...........................117
 SEATS................................118
▫ Driver’s Power Seat — If Equipped ..........118
▫ Passenger ’s Power Seat — If Equipped .......120
▫ Power Lumbar — If Equipped .............120
▫ Heated Seats — If Equipped ..............121
▫ Ventilated Seats — If Equipped .............123
▫ Manual Seat Adjuster — If Equipped ........124
▫ 40-20-40 Front Bench Seat — If Equipped .....125
▫ Mega Cab Rear Seat Features ..............125
▫ Head Restraints ...................... .1293

DRIVER MEMORY SEAT — IF EQUIPPED .....132
▫ Programming The Memory Feature ..........133
▫ Linking And Unlinking The Remote Keyless
Entry Key Fob To Memory ................133
▫ Memory Position Recall ..................134
▫ Easy Entry/Exit Seat ....................135
 TO OPEN AND CLOSE THE HOOD ..........136
 LIGHTS ............................. .138
▫ Headlights .......................... .139
▫ Automatic Headlights — If Equipped ........139
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ...............140
▫ Daytime Running Lights (DRL) —
If Equipped ......................... .140
▫ Headlight Delay ....................... .140
▫ Automatic High Beam Headlamp Control —
If Equipped ......................... .141
▫ Parking Lights And Panel Lights ............142▫
Fog Lights — If Equipped ................142
▫ Lights-On Reminder .....................143
▫ Battery Saver ......................... .143
▫ Interior Lights ........................ .143
▫ Cargo Light With Bed Lights — If Equipped . . .146
▫ Multifunction Lever ....................146
▫ Turn Signals ......................... .146
▫ Lane Change Assist .....................147
▫ Flash-To-Pass ........................ .147
▫ High/Low Beam Switch .................147
 WINDSHIELD WIPERS AND WASHERS .......148
▫ W

indshield Wipers .....................148
▫ Windshield Wiper Operation ...............148
▫ Intermittent Wiper System ................148
▫ Windshield Washers ....................148
▫ Mist Feature ......................... .149
▫ Rain Sensing Wipers — If Equipped .........149
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

TILT STEERING COLUMN .................150
 HEATED STEERING WHEEL —
IF EQUIPPED ......................... .151
 DRIVER ADJUSTABLE PEDALS —
IF EQUIPPED ......................... .152
 SPEED CONTROL ...................... .154
▫ To Activate .......................... .154
▫ To Set A Desired Speed ...................155
▫ To Deactivate ........................ .155
▫ To Resume Speed ..................... .155
▫ To Vary The Speed Setting ................155
▫ To Accelerate For Passing .................155
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ......................... .156
▫ ParkSense Sensors ..................... .156
▫ ParkSense Warning Display ................157
▫ ParkSense Display ..................... .157
▫ Enabling And Disabling ParkSense ..........160▫
Service The ParkSense Rear Park
Assist System ......................... .161
▫ Cleaning The ParkSense System .............161
▫ ParkSense System Usage Precautions .........162
 PARKSENSE FRONT AND REAR PARK
ASSIST — IF EQUIPPED ..................163
▫ ParkSense Sensors ..................... .164
▫ ParkSense Warning Display ................164
▫ ParkSense Display ..................... .165
▫ Enabling And Disabling Front And/Or Rear
ParkSense ........................... .167
▫ Service The ParkSense Park Assist System .....168
▫ Cleaning

The ParkSense System .............169
▫ ParkSense System Usage Precautions .........169
 PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ......................... .171
 OVERHEAD CONSOLE — IF EQUIPPED ......173
▫ Courtesy/Reading Lights .................174
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

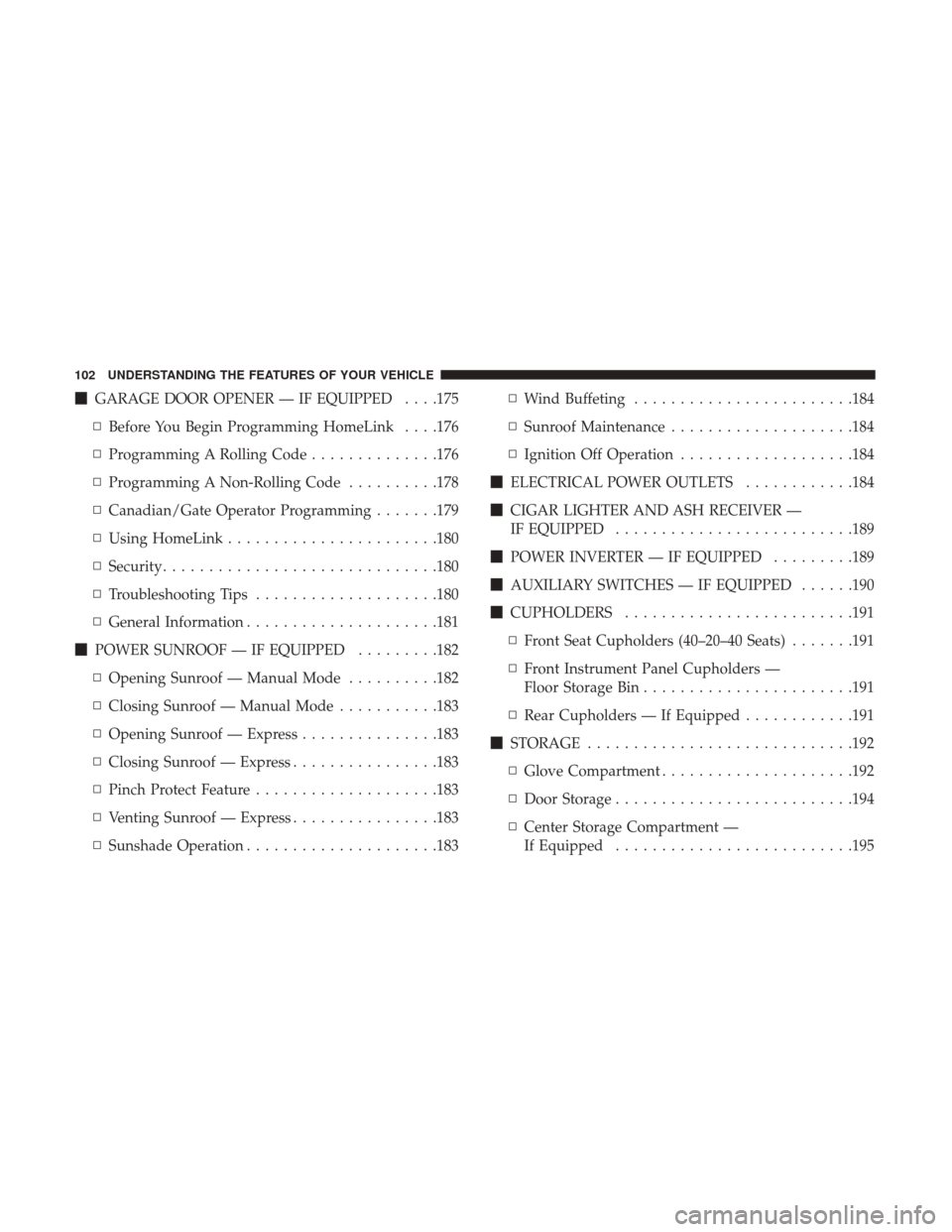

GARAGE DOOR OPENER — IF EQUIPPED . . . .175
▫ Before You Begin Programming HomeLink . . . .176
▫ Programming A Rolling Code ..............176
▫ Programming A Non-Rolling Code ..........178
▫ Canadian/Gate Operator Programming .......179
▫ Using HomeLink ...................... .180
▫ Security ............................. .180
▫ Troubleshooting Tips ....................180
▫ General Information .....................181
 POWER SUNROOF — IF EQUIPPED .........182
▫ Opening Sunroof — Manual Mode ..........182
▫ Closing Sunroof — Manual Mode ...........183
▫ Opening Sunroof — Express ...............183
▫ Closing Sunroof — Express ................183
▫ Pinch Protect Feature ....................183
▫ Venting Sunroof — Express ................183
▫ Sunshade Operation .....................183 ▫
Wind Buffeting ....................... .184
▫ Sunroof Maintenance ....................184
▫ Ignition Off Operation ...................184
 ELECTRICAL POWER OUTLETS ............184
 CIGAR LIGHTER AND ASH RECEIVER —
IF EQUIPPED ......................... .189
 POWER INVERTER — IF EQUIPPED .........189
 AUXILIARY SWITCHES — IF EQUIPPED ......190
 CUPHOLDERS ........................ .191
▫ Front Seat Cupholders (40–20–40 Seats) .......191
▫ Fr

ont Instrument Panel Cupholders —
Floor Storage Bin ...................... .191
▫ Rear Cupholders — If Equipped ............191
 STORAGE ............................ .192
▫ Glove Compartment .....................192
▫ Door Storage ......................... .194
▫ Center Storage Compartment —
If Equipped ......................... .195
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Second Row In-Floor Storage Bin —
If Equipped .......................... .197
▫ Seatback Storage ...................... .198
▫ Storage (Regular Cab) ....................199
▫ Storage and Seats (Crew Cab/Quad Cab) ......199
▫ Plastic Grocery Bag Retainers
(Regular Cab Models) ...................200
 REAR WINDOW FEATURES ...............200
▫ Rear Window Defroster ..................200
▫ Power Sliding Rear Window —
If Equipped ......................... .201
▫ Manual Sliding Rear Window —
If Equipped ......................... .202
 FOLD FLAT LOAD FLOOR — IF EQUIPPED . . . .202
 PICKUP BOX .......................... .206
▫ Cargo Camera — If Equipped .............208
▫ Turning Cargo Camera On Or Off —
With Uconnect 8.4/8.4 NAV ...............208
RAMBOX — IF EQUIPPED .................209
▫ RamBox Integrated Box Side Storage Bins ......209
▫ Locking And Unlocking RamBox ............211
▫ RamBox Safety Warning ..................212
▫ Bed Extender — If Equipped ...............213
▫ Bed Rail Tie-Down System ................219
 SLIDE-IN CAMPERS .....................220
▫ Camper Applications ....................220
 EASY-OFF TAILGATE ....................220
▫ Disconnecting The Rear Camera Or
Remote Keyless Entry — If Equipped .........221
▫ Removing The Tailgate ...................222
▫ Locking Tailgate ....................... .223
 TRI-FOLD

TONNEAU COVER —
IF EQUIPPED .......................... .223
▫ Tri-Fold Tonneau Cover Removal ...........223
▫ Tri-Fold Tonneau Cover Installation ..........227
▫ Tri-Fold Tonneau Cover Cleaning ...........232
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

MIRRORS
Inside Day/Night Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror should
be adjusted while set in the day position (toward the
windshield).
Automatic Dimming Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.
This mirror automatically adjusts for headlight glare from
vehicles behind you.
NOTE:The Automatic Dimming Mirror feature is disabled
when the vehicle is in reverse gear to improve rear view
viewing.
The Automatic Dimming Mirror feature can be turned On
or Off through the touchscreen.
• Press the Mirror Dimmer button once to turn the feature
On.
• Press the Mirror Dimmer button a second time to turn
the feature Off.
Adjusting Rearview Mirror
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If equipped, the rearview mirror contains an ASSIST and a
9-1-1 button.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.NOTE:
•
Your vehicle may be transmitting data as authorized by
the subscriber.
• The 9–1–1 and ASSIST buttons will only function if you
are connected to an operable 1X(voice/data) or 3G(data)
network. Other Uconnect services will only be operable
if your Uconnect Access service is active and you are
connected to an operable 1X(voice/data) or 3G(data)
network.
ASSIST Call
The ASSIST Button is used to automatically connect you to
any one of the following support centers:
• Roadside Assistance – If you get a flat tire, or need a tow,
just push the ASSIST button and you’ll be connected to
someone who can help. Roadside Assistance will know
what vehicle you’re driving and its location. Additional
fees may apply for roadside Assistance.
• Uconnect Access Customer Care – In-vehicle support for
Uconnect Access and Uconnect Access Via Mobile fea-
tures.
• Vehicle Customer Care – Total support for all other
vehicle issues.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

9-1-1 Call
1. Push the 9-1-1 Call button on the rearview mirror.
NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call system
initiates a call to a 9-1-1 operator. To cancel the 9-1-1 Call
connection, push the 9-1-1 Call button on the rearview
mirror or press the cancellation button on the device
screen. Termination of the 9-1-1 Call will turn off the green
LED light on the rearview mirror.
2. The LED light located between the ASSIST and 9-1-1 buttons on the Rearview Mirror will turn green once a
connection to a 9-1-1 operator has been made.
3. Once a connection between the vehicle and a 9-1-1 operator is made, the 9-1-1 Call system may transmit the
following important vehicle information to a 9-1-1 op-
erator:
• Indication that the occupant placed a 9-1-1 Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle. 4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if addi-
tional help is needed.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.
NOTE: •Your vehicle may be transmitting data as authorized
by the subscriber.
• Once a connection is made between the vehicle’s 9-1-1
Call system and the 9-1-1 operator, the 9-1-1 operator
may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able
to speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1
Call system will attempt to remain connected with the
9-1-1 operator until the 9-1-1 operator terminates the
connection.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. The 9-1-1 operator may attempt to contact appropriateemergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
WARNING!
•If anyone in the vehicle could be in danger (e.g., fire
or smoke is visible, dangerous road conditions or
location), do not wait for voice contact from a 9-1-1
operator. All occupants should exit the vehicle im-
mediately and move to a safe location.
• Never place anything on or near the vehicle’s oper-
able 1X(voice/data) or 3G(data) network and GPS
antennas. You could prevent operable 1X(voice/data)
or 3G(data) network and GPS signal reception,
which can prevent your vehicle from placing an
emergency call. An operable 1X(voice/data) or
3G(data) network and GPS signal reception is re-
quired for the 9-1-1 Call system to function properly.
(Continued)
WARNING! (Continued)
•The 9-1-1 Call system is embedded into the vehicle’s
electrical system. Do not add aftermarket electrical
equipment to the vehicle’s electrical system. This
may prevent your vehicle from sending a signal to
initiate an emergency call. To avoid interference that
can cause the 9-1-1 Call system to fail, never add
aftermarket equipment (e.g., two-way mobile radio,
CB radio, data recorder, etc.) to your vehicle’s electri-
cal system or modify the antennas on your vehicle. IF
YOUR VEHICLE LOSES BATTERY POWER FOR
ANY REASON (INCLUDING DURING OR AFTER
AN ACCIDENT), THE UCONNECT FEATURES,
APPS AND SERVICES, AMONG OTHERS, WILL
NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you need
it. You could be injured if the air bag system is not
there to help protect you.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle:
• The rearview mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated red.
• The device screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
• An in-vehicle audio message will state “Vehicle device
requires service. Please contact your dealer.”WARNING!
• Ignoring the rearview mirror light could mean you
will not have 9-1-1 Call services. If the rearview
mirror light is illuminated, have an authorized dealer
service the 9-1-1 Call system immediately.
• The Occupant Restraint Control module turns on the
Air Bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the Air Bag Warning Light is illuminated, have an
authorized dealer service the Occupant Restraint
Control system immediately.
Even if the 9-1-1 Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the
9-1-1 Call system operation. These include, but are not
limited to, the following factors:
• Delayed accessories mode is active.
• The ignition is in the OFF position.
• The vehicle’s electrical systems are not intact.
• The 9-1-1 Call system software and/or hardware are
damaged during a crash.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
