Ram 2500 2017 Owner's Manual

CAUTION!
Never park your vehicle over dry grass or other com-
bustible materials. The heat from your vehicle exhaust
system could cause a fire.
WARNING!
Always wear your seat belt and firmly tie down cargo.
Unsecured cargo can become projectiles in an off-road
situation.
When To Use Low Range
When driving off-road, shift into 4LO (Low Range) for
additional traction or to improve handling and control on
slippery or difficult terrain. Due to the lower gearing, low
range will allow the engine to operate in a higher power
range. This will allow you to idle over obstacles and down
hills, with improved control and less effort. Also, use 4LO
(Low Range) in rain, ice, snow, mud, sand, to get heavy
loads rolling, improve traction, or whenever 4HI (High
Range) traction will not do the job.
Driving In Snow, Mud And Sand
There is a drastic reduction in traction when driving in
snow, mud or sand. The vehicle will be less responsive to
steering, acceleration and braking inputs. Therefore you
should accelerate slowly, leave greater stopping distances
and avoid abrupt vehicle maneuvers. You want to keep a
slow constant steady pace. The key is to maintain the
vehicle’s momentum.
•Snow – In heavy snow or for additional control and
traction at slower speeds, shift the transmission to a low
gear and shift the transfer case to 4LO (Low Range) if
necessary. Do not shift to a lower gear than necessary to
maintain headway. Over-revving the engine can spin the
wheels and traction will be lost. If you start to slow to a
stop, try turning your steering wheel no more than a ¼
turn quickly back and forth, while still applying throttle.
This will allow the tires to get a fresh biteand help
maintain your momentum.
CAUTION!
On icy or slippery roads, do not downshift at high
engine RPMs or vehicle speeds because engine brak-
ing may cause skidding and loss of control.
5
STARTING AND OPERATING 459

•Mud – Deep mud creates a great deal of suction around
the tires and is very difficult to get through. You should
use 4LO (Low Range) with a gear low enough to
maintain your momentum without shifting. If you start
to slow to a stop, try turning your steering wheel no
more than a ¼ turn quickly back and forth for additional
traction. Mud holes pose an increased threat of vehicle
damage and getting stuck. They are normally full of
debris from previous vehicles getting stuck. As a good
practice before entering any mud hole, get out and
determine how deep it is, if there are any hidden
obstacles and if the vehicle can be safely recovered if
stuck.
• Sand – Soft sand is very difficult to travel through with
full tire pressure. When crossing soft sandy spots in a
trail maintain your vehicle’s momentum and do not
stop. The key to driving in soft sand using the appro-
priate tire pressure, accelerating slowly, avoiding abrupt
maneuvers and maintaining the vehicle’s momentum. If
you are going to be driving on large soft sandy areas or
dunes, reduce your tire pressure to a minimum of 15 psi
(103 kPa) to allow for a greater tire surface area. Reduced
tire pressure will drastically improve your traction and
handling, while driving on the soft sand, but you must
return the tires to normal air pressure before driving on pavement or other hard surfaces. Be sure you have a
way to air the tires back up prior to reducing the
pressure.
CAUTION!
Reduced tire pressures may cause tire unseating and
total loss of air pressure. To reduce the risk of tire
unseating, while at a reduced tire pressure, reduce your
speed and avoid sharp turns or abrupt maneuvers.
Crossing Obstacles (Rocks And Other High Points)
While driving off road, you will encounter many types of
terrain. These varying types of terrain bring different types
of obstacles. Before proceeding review the path ahead to
determine the correct approach and your ability to safely
recover the vehicle if something goes wrong. Keeping a
firm grip on the steering wheel, bring the vehicle to a
complete stop and then inch the vehicle forward until it
makes contact with the object. Apply the throttle lightly
while holding a light brake pressure and ease the vehicle
up and over the object.
460 STARTING AND OPERATING

WARNING!
Crossing obstacles can cause abrupt steering system
loading which could cause you to loose control of your
vehicle.
Using A Spotter
There are many times where it is hard to see the obstacle or
determine the correct path. Determining the correct path
can be extremely difficult when you are confronting many
obstacles. In these cases have someone guide you over,
through, or around the obstacle. Have the person stand a
safe distance in front of you where they can see the
obstacle, watch your tires and undercarriage, and guide
you through.
Crossing Large Rocks
When approaching large rocks, choose a path which en-
sures you drive over the largest with your tires. This will
lift your undercarriage over the obstacle. The tread of the
tire is tougher and thicker than the side wall and is
designed to take the abuse. Always look ahead and make
every effort to cross the large rocks with your tires.
CAUTION!
•Never attempt to straddle a rock that is large enough
to strike your axles or undercarriage.
• Never attempt to drive over a rock which is large
enough to contact the door sills.
Crossing A Ravine, Gully, Ditch, Washout Or Rut
When crossing a ravine, gully, ditch, washout or a large rut,
the angled approach is the key to maintaining your vehi-
cle’s mobility. Approach these obstacles at a 45-degree
angle and let each tire go through the obstacle indepen-
dently. You need to use caution when crossing large
obstacles with steep sides. Do not attempt to cross any
large obstacle with steep sides at an angle great enough to
put the vehicle at risk of a rollover. If you get caught in a
rut, dig a small trench to the right or left at a 45-degree
angle ahead of the front tires. Use the removed dirt to fill
the rut ahead of the turnout you just created. You should
now be able to drive out following the trench you just
created at a 45-degree angle.
5
STARTING AND OPERATING 461

WARNING!
There is an increased risk of rollover when crossing an
obstacle, at any angle, with steep sides.
Crossing Logs
To cross a log, approach it at a slight angle (approximately
10 to 15 degrees). This allows one front tire to be on top of
the log while the other just starts to climb the log. While
climbing the log, modulate your brake and accelerator to
avoid spinning the log out from under your tires. Then
ease the vehicle off the log using your brakes.
CAUTION!
Do not attempt to cross a log with a greater diameter
than the running ground clearance or the vehicle will
become high centered.
Getting High Centered
If you get hung up or high centered on an object, get out of
the vehicle and try to determine what the vehicle is hung
up on, where it is contacting the underbody and what is the
best direction to recover the vehicle. Depending on what
you are in contact with, jack the vehicle up and place a fewrocks under the tires so the weight is off of the high point
when you let the vehicle down. You can also try rocking the
vehicle or winching the vehicle off the object.
CAUTION!
Winching or rocking the vehicle off hard objects in-
creases the risk of underbody damage.
Hill Climbing
Hill climbing requires good judgment and a good under-
standing of your abilities and your vehicle’s limitations.
Hills can cause serious problems. Some are just too steep to
climb and should not be attempted. You should always feel
confident with the vehicle and your abilities. You should
always climb hills straight up and down. Never attempt to
climb a hill on an angle.
•
Before Climbing A Steep Hill – As you approach a hill
consider its grade or steepness. Determine if it is too
steep. Look to see what the traction is on the hill side
trail. Is the trail straight up and down? What is on top
and the other side? Are there ruts, rocks, branches or
other obstacles on the path? Can you safely recover the
vehicle if something goes wrong? If everything looks
good and you feel confident, then change transmission
462 STARTING AND OPERATING

into a lower gear, shift the transfer case into 4LO (Low)
and proceed with caution. You should use first gear and
4LO (Low Range) for very steep hills.
• Driving Up Hill – Once you have determined your
ability to proceed and have shifted into the appropriate
gear, line your vehicle up for the straightest possible run.
Accelerate with an easy constant throttle and apply
more power as you start up the hill. Do not race forward
into a steep grade, the abrupt change of grade could
cause you to lose control. If the front end begins to
bounce, ease off the throttle slightly to bring all four tires
back on the ground. As you approach the crest of the hill
ease off the throttle and slowly proceed over the top. If
the wheels start to slip as you approach the crest of a hill,
ease off the accelerator and maintain headway by turn-
ing the steering wheel no more than a ¼ turn quickly
back and forth. This will provide a fresh biteinto the
surface and will usually provide enough traction to
complete the climb. If you do not make it to the top,
place the vehicle in REVERSE and back straight down
the grade using engine resistance along with the vehicle
brakes.WARNING!
Never attempt to climb a hill at an angle or turn around
on a steep grade. Driving across an incline increases
the risk of a roll over, which may result in severe injury
or death.
• Driving Down Hill – Before driving down a steep hill
you need to determine if it is too steep for a safe descent.
What is the surface traction? Is the grade too steep to
maintain a slow controlled descent? Are there obstacles?
Is it a straight descent? Is there plenty of distance at the
base of the hill to regain control if the vehicle descends
too fast? If you feel confident in your ability to proceed
then make sure you are in 4LO (Low Range) with the
transmission in first gear (manually select first gear on
automatic transmissions) and proceed with caution.
Allow engine braking to control the descent and apply
your brakes if necessary, but do not allow the tires to
lock.
5
STARTING AND OPERATING 463

WARNING!
Do not descend a steep grade in NEUTRAL. Use
vehicle brakes in conjunction with engine braking.
Descending a grade too fast could cause you to lose
control and be seriously injured or killed.
• Driving Across An Incline – If at all possible avoid
driving across an incline. If it is necessary, know your
vehicle’s abilities. Driving across an incline places more
weight on the down hill wheels, which increases the
possibilities of a down hill slide or rollover. Make sure
the surface has good traction with firm and stable soils.
If possible transverse the incline at an angle heading
slightly up or down.
WARNING!
Driving across an incline increases the risk of a roll-
over, which may result in severe injury.
• If You Stall Or Begin To Lose Headway – If you stall or
begin to lose headway while climbing a steep hill, allow
your vehicle to come to a stop and immediately apply
the brake. Restart the engine and shift into REVERSE.
Back slowly down the hill allowing the compression braking of the engine and transmission to help regulate
your speed. If the brakes are required to control vehicle
speed, apply them lightly and avoid locking or skidding
the tires.
WARNING!
If the engine stalls or you lose headway or cannot
make it to the top of a steep hill or grade, never attempt
to turn around. To do so may result in tipping and
rolling the vehicle, which may result in severe injury.
Always back carefully straight down a hill in RE-
VERSE. Never back down a hill in NEUTRAL using
only the vehicle brakes. Never drive diagonally across
a hill, always drive straight up or down.
Driving Through Water
Extreme care should be taken crossing any type of water.
Water crossings should be avoided if possible and only be
attempted when necessary, in a safe responsible manner.
You should only drive through areas which are designated
and approved. You should tread lightly and avoid damage
to the environment. You should know your vehicle’s
abilities and be able to recover it if something goes wrong.
You should never stop or shut a vehicle off when crossing
464 STARTING AND OPERATING

deep water unless you ingested water into the engine air
intake. If the engine stalls do not attempt to restart it.
Determine if it has ingested water first. The key to any
crossing is low and slow. You want to use first gear in 4L
(Low Range) and proceed very slowly with a constant slow
speed (3-5 mph [5–8 km/h] maximum) and light throttle.
Keep the vehicle moving; do not try to accelerate through
the crossing. After crossing any water higher than the
bottom of the axle differentials, you should inspect all of
the vehicle fluids for signs of water ingestion.
CAUTION!
Water ingestion into the axles, transmission, transfer
case, engine or vehicle interior can occur if you drive
too fast or through too deep of water. Water can cause
permanent damage to engine, driveline or other ve-
hicle components and your brakes will be less effec-
tive once wet and/or muddy.
• Before You Cross Any Type Of Water – As you ap-
proach any type of water you need to determine if you
can cross it safely and responsibly. If necessary, get out
and walk through the water or probe it with a stick. You
need to be sure of its depth, approach angle, current and
bottom condition. Be careful of murky or muddy waters, check for hidden obstacles. Make sure you will not be
intruding on any wildlife and you can recover the
vehicle if necessary. The key to a safe crossing is the
water depth, current and bottom conditions. On soft
bottoms the vehicle will sink in, effectively increasing
the water level on the vehicle. Be sure to consider this
when determining the depth and the ability to safely
cross.
• Crossing Puddles, Pools, Flooded Areas Or Other
Standing Water – Puddles, pools, flooded or other
standing water areas normally contain murky or muddy
waters. These water types normally contain hidden
obstacles and make it difficult to determine an accurate
water depth, approach angle, and bottom condition.
Murky or muddy water holes are where you want to
hook up tow straps prior to entering. This makes for a
faster, cleaner and easier vehicle recovery. If you are able
to determine you can safely cross, than proceed using
the low and slow method.
CAUTION!
Muddy waters can reduce the cooling system effective-
ness by depositing debris onto the radiator.
5
STARTING AND OPERATING 465

•Crossing Ditches, Streams, Shallow Rivers Or Other
Flowing Water – Flowing water can be extremely dan-
gerous. Never attempt to cross a fast running stream or
river even in shallow water. Fast moving water can
easily push your vehicle downstream sweeping it out of
control. Even in very shallow water, a high current can
still wash the dirt out from around your tires putting
you and your vehicle in jeopardy. There is still a high
risk of personal injury and vehicle damage with slower
water currents in depths greater than the vehicle’s
running ground clearance. You should never attempt to
cross flowing water which is deeper than the vehicle’s
running ground clearance. Even the slowest current can
push the heaviest vehicle downstream out of control if
the water is deep enough to push on the large surface
area of the vehicle’s body. Before you proceed determine
the speed of the current, the water’s depth, approach
angle, bottom condition and if there are any obstacles,
then cross at an angle heading slightly upstream using
the low and slow technique.WARNING!
Never drive through fast moving deep water. It can
push your vehicle downstream, sweeping it out of
control. This could put you and your passengers at risk
of injury or drowning.
Airing Down For Off-Road Driving
Running lower tire pressure off-road can improve your
ride comfort and vehicle traction. Reducing the tire air
pressure allows the tire to bulge slightly, improving its
surface area for better flotation and ability to mold or form
to the ground contour. Different terrain, tires, and vehicles
require different tire pressure. Hard surfaces like rock and
heavier vehicles require higher pressures than softer sur-
faces such as sand and lighter vehicles. You will need to
experiment to determine what is right for your situation. It
is easier and faster to let air out than it is to replace it so,
start high and lower it as required. Remember you must
return the tires to normal air pressure before driving on
road or at highway conditions. Be sure you have a way to
return the tires to their normal on road air pressure.
466 STARTING AND OPERATING

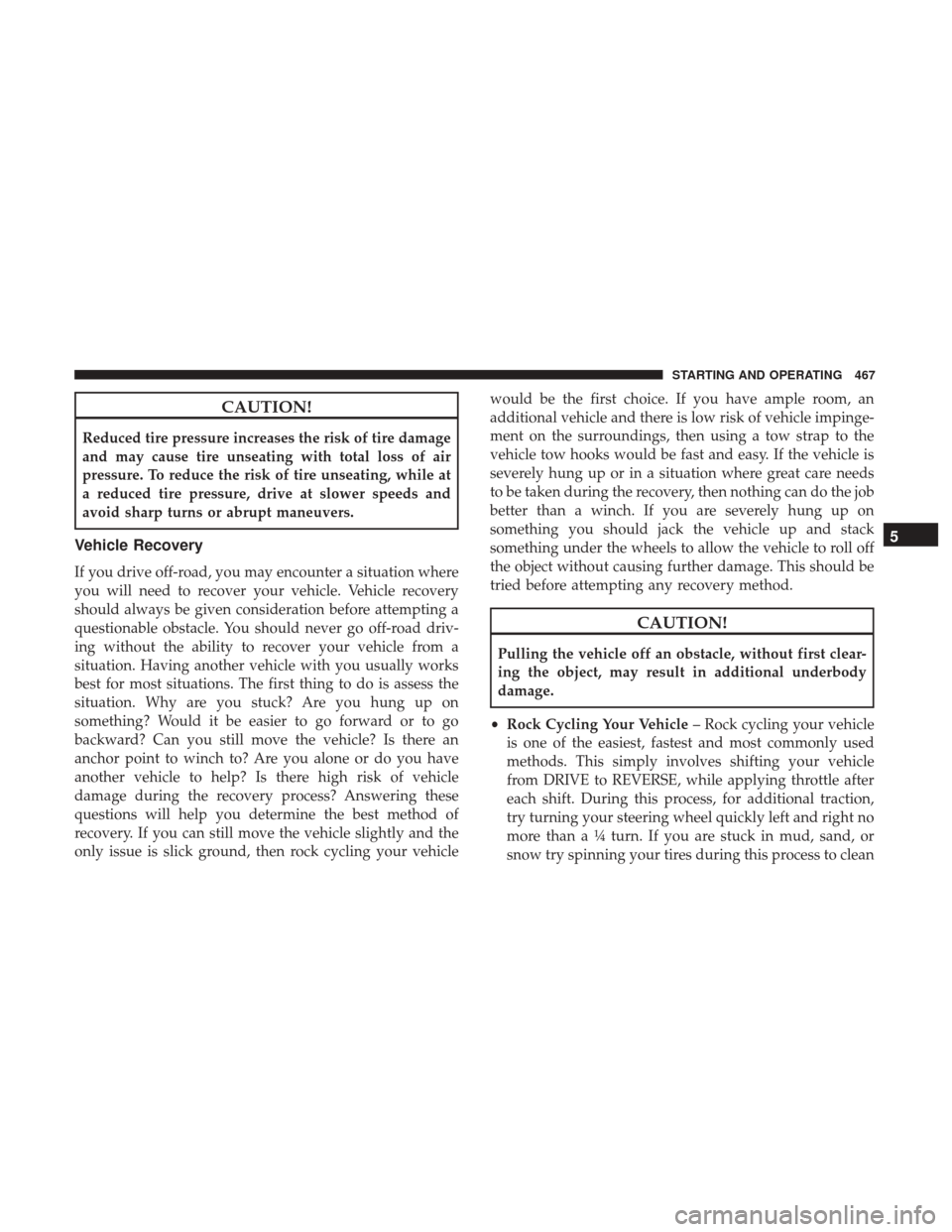

CAUTION!
Reduced tire pressure increases the risk of tire damage
and may cause tire unseating with total loss of air
pressure. To reduce the risk of tire unseating, while at
a reduced tire pressure, drive at slower speeds and
avoid sharp turns or abrupt maneuvers.
Vehicle Recovery
If you drive off-road, you may encounter a situation where
you will need to recover your vehicle. Vehicle recovery
should always be given consideration before attempting a
questionable obstacle. You should never go off-road driv-
ing without the ability to recover your vehicle from a
situation. Having another vehicle with you usually works
best for most situations. The first thing to do is assess the
situation. Why are you stuck? Are you hung up on
something? Would it be easier to go forward or to go
backward? Can you still move the vehicle? Is there an
anchor point to winch to? Are you alone or do you have
another vehicle to help? Is there high risk of vehicle
damage during the recovery process? Answering these
questions will help you determine the best method of
recovery. If you can still move the vehicle slightly and the
only issue is slick ground, then rock cycling your vehiclewould be the first choice. If you have ample room, an
additional vehicle and there is low risk of vehicle impinge-
ment on the surroundings, then using a tow strap to the
vehicle tow hooks would be fast and easy. If the vehicle is
severely hung up or in a situation where great care needs
to be taken during the recovery, then nothing can do the job
better than a winch. If you are severely hung up on
something you should jack the vehicle up and stack
something under the wheels to allow the vehicle to roll off
the object without causing further damage. This should be
tried before attempting any recovery method.
CAUTION!
Pulling the vehicle off an obstacle, without first clear-
ing the object, may result in additional underbody
damage.
• Rock Cycling Your Vehicle – Rock cycling your vehicle
is one of the easiest, fastest and most commonly used
methods. This simply involves shifting your vehicle
from DRIVE to REVERSE, while applying throttle after
each shift. During this process, for additional traction,
try turning your steering wheel quickly left and right no
more than a ¼ turn. If you are stuck in mud, sand, or
snow try spinning your tires during this process to clean
5
STARTING AND OPERATING 467

the debris from the tread and improve the traction. You
want to create a rocking motion with the vehicle. This
helps build vehicle momentum, which hopefully gets
you out. Remember to ease off and on the accelerator
before and after the shift. If after a few rock cycles your
vehicle is not free, stop and try another method of
recovery. Continuous rock cycling will only cause un-
necessary damage to your vehicle and the environment.
CAUTION!
Damage can occur when spinning your tires at an
excessive high speed. Do not spin your tires faster than
an indicated 30 mph (48 km/h).
• Using The Tow Hooks With A Tow Strap – Tow straps
are a quick and easy way to recover your vehicle from
minor situations if you have a secondary vehicle which
is not stuck. The tow hooks on your vehicle are designed
to take the abusive force generated during vehicle
recovery. Do not use the bumper or any other vehicle
component as an attachment point. Using tow straps
requires coordination between the two drivers. Good
communication and line of sight are required for a safe
recovery. First connect the tow strap to the correct
attachment points on both vehicles. There should be at least 20 to 30 feet (6 to 9 meters) between the vehicles to
allow for a safe recovery. If necessary join two tow straps
together usinga1½inch hard wood dowel. This will
keep the straps from becoming knotted and is safer than
using a clevis pin if the strap breaks. Next have the tow
vehicle backup, leaving two to three feet worth of slack
in the strap. Then the tow vehicle, using light throttle,
should accelerate tightening the strap providing the
pulling force needed to free the vehicle. The vehicle
being recovered should assist in the recovery, at the time
of the snap, by slowly spinning the tires in the same
direction as the pulling vehicle. After the vehicle be-
comes free, the driver of the previously stuck vehicle
should signal they are free and should hit their brakes
stopping both vehicles. The driver of the pulling vehicle
should let off the throttle without using the brakes, once
signaled by the other driver. This sequence is important
to avoid having the recovered vehicle hit the pulling
vehicle.
468 STARTING AND OPERATING
