Page 151 of 700
5. Lock the center handle to secure the panel into place.
Extender Position
The extender position allows you to load the bed of the
truck beyond the tail gate. The bed extender will add an
additional 15 inches (38 cm) in the back of the truck when
additional cargo room is needed. The extender position
utilizes a locating pin and rotating handle located on both
sides of the truck bed near the tailgate.To install the bed extender into the extender position,
perform the following:
1. Lower the tailgate.
2. Make sure the center handle is unlocked and rotate the
center handle vertically in order to release the extender
side gates.
Side Gates ClosedExtender Position
3
GETTING TO KNOW YOUR VEHICLE 149
Page 152 of 700
3. Fit the end of the side gate ends onto the pin and handle.
4. Rotate the handles to the horizontal position to secureinto place.
WARNING!
To reduce the risk of potential injury or property
damage:
•Cargo must be secured.
• Do not exceed cargo load rating of your vehicle.
• Secure all loads to truck utilizing cargo tie downs.
• Extender should not be used as cargo tie down.
(Continued)
Extender Installation
Locking Tab
150 GETTING TO KNOW YOUR VEHICLE
Page 153 of 700

WARNING!(Continued)
•When vehicle is in motion do not exceed 150 lbs
(68 kg) load on the tailgate.
• The bed extender is not intended for off road use.
• When not in use, the extender/divider should be in
stowed or divider position with the tailgate closed.
• When in use all handles are to be in the locked
position.
Bed Rail Tie-Down System
CAUTION!
The maximum load per cleat should not exceed 250 lbs
(113 kg) and the angle of the load on each cleat should
not exceed 45 degrees above horizontal, or damage to
the cleat or cleat rail may occur.
There are two adjustable cleats on each side of the bed that
can be used to assist in securing cargo. Each cleat must be located and tightened down in one of
the detents, along either rail, in order to keep cargo
properly secure.
To move the cleat to any position on the rail, turn the nut
counterclockwise, approximately three turns. Then pull out
on the cleat and slide it to the detent nearest the desired
location. Make sure the cleat is seated in the detent and
tighten the nut.
Adjustable Cleats
3
GETTING TO KNOW YOUR VEHICLE 151
Page 154 of 700
To remove the cleats from the utility rail, remove the end
cap screw located in the center of the end cap, using a #T30
Torx head driver. Remove the end cap and slide the cleat
off the end of the rail.
SLIDE-IN CAMPERS
Camper Applications
Certain truck models are not recommended for slide-in
campers. To determine if your vehicle is excluded, please
refer to the “Consumer Information Truck-Camper Load-
ing” document available from your authorized dealer. For
safety reasons, follow all instructions in this important
document.
NOTE:When a cap or pickup camper is installed on a
vehicle, an alternate Center High-Mounted Stop Light
(CHMSL) must be provided.
Adjustable Cleat Assembly
1 — Utility Rail Detent
2 — Cleat Retainer Nut
3 — Utility Rail Cleat
Utility Rail End Cap
152 GETTING TO KNOW YOUR VEHICLE
Page 155 of 700
EASY-OFF TAILGATE
To simplify mounting of a camper unit with an overhang,
the tailgate can be removed.
NOTE:If your vehicle is equipped with a rear camera or
Remote Keyless Entry, the electrical connector must be
disconnected prior to removing the tailgate.
Disconnecting The Rear Camera Or Remote
Keyless Entry — If Equipped
1. Open the tailgate to access the rear camera or Remote Keyless Entry connector bracket located on the rear sill.
2. Remove the connector bracket from the sill by pushinginward in the locking tab.
Connector Bracket
3
GETTING TO KNOW YOUR VEHICLE 153

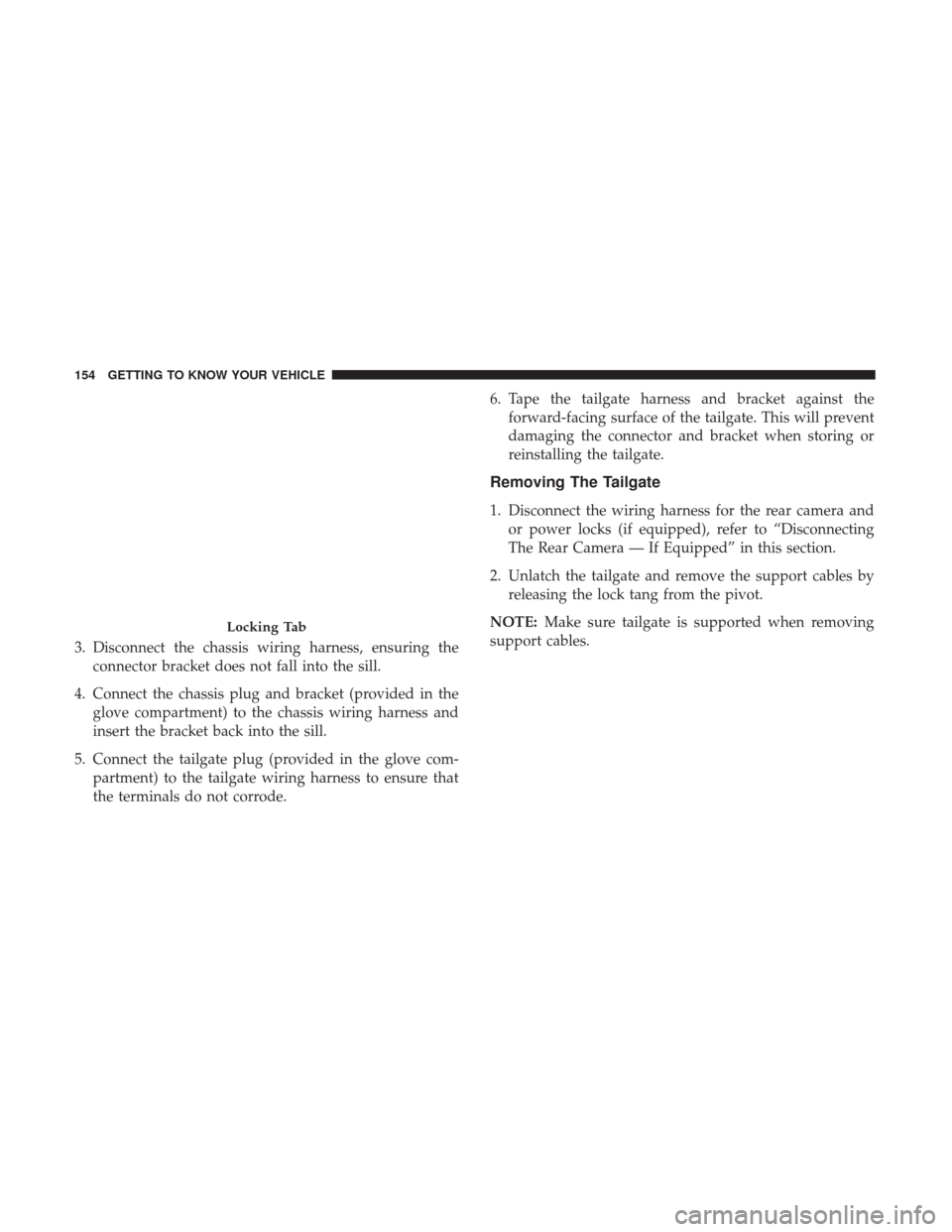

Page 156 of 700
3. Disconnect the chassis wiring harness, ensuring theconnector bracket does not fall into the sill.
4. Connect the chassis plug and bracket (provided in the glove compartment) to the chassis wiring harness and
insert the bracket back into the sill.
5. Connect the tailgate plug (provided in the glove com- partment) to the tailgate wiring harness to ensure that
the terminals do not corrode. 6. Tape the tailgate harness and bracket against the
forward-facing surface of the tailgate. This will prevent
damaging the connector and bracket when storing or
reinstalling the tailgate.
Removing The Tailgate
1. Disconnect the wiring harness for the rear camera andor power locks (if equipped), refer to “Disconnecting
The Rear Camera — If Equipped” in this section.
2. Unlatch the tailgate and remove the support cables by releasing the lock tang from the pivot.
NOTE: Make sure tailgate is supported when removing
support cables.
Locking Tab
154 GETTING TO KNOW YOUR VEHICLE
Page 157 of 700

3. Position the tailgate on a 45 degree angle.
4. Raise the right side of the tailgate until the right sidepivot clears the hanger bracket.
5. Slide the entire tailgate to the right to free the left side pivot.
6. Remove the tailgate from the vehicle.
NOTE: Do not carry the tailgate loose in the truck pickup
box.
WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with “Cap or
Slide-In Campers” should extend beyond the over-
hanging camper compartment and be free of leaks.
Locking Tailgate
The lock is located next to the tailgate handle. The tailgate
can be locked using the vehicle key or by locking the truck
with the key fob if equipped with remote keyless entry.
TRI-FOLD TONNEAU COVER — IF EQUIPPED
Your vehicle may be equipped with a Tri-Fold Tonneau
Cover which consists of different features:
• Easy Tri-Fold cover
• Tonneau fore aft locator
• Crosscar inside bed locator
• Front and rear clamps
• Stowage strap
• Locking Capability
Locking Tang
3
GETTING TO KNOW YOUR VEHICLE 155
Page 158 of 700
NOTE:The Tonneau Cover can be folded up and secured
at the front of the box without removing completely.
Tri-Fold Tonneau Cover Removal
To remove the Tonneau Cover follow the following steps:
1. Lower the tailgate to gain access to the first set of two Tonneau Cover clamps located on the driver and pas-
senger underside of the Tonneau Cover.
2. Pull down on the first set of clamps on both driver and passenger sides to the semi clamped position. 3. Pull down on the clamp wire and push the clamp up
into the proper released position.
Clamped Position
NOTE: If clamp wire is damaged replace immediately.
Semi Clamped Position
156 GETTING TO KNOW YOUR VEHICLE
Page 159 of 700
CAUTION!
Make sure the tonneau cover clamp and clamp wire are
in the proper released position. If the clamp and clamp
wire are not properly released, damage to the tonneau
cover material will result.
4. Pick up on the Tonneau Cover and fold it back onto the second panel. 5. Pick up on the cover and fold it back onto the third
panel.
Proper Released PositionSecond Panel Position
3
GETTING TO KNOW YOUR VEHICLE 157
Page 160 of 700
6. Once in the third panel position, pull down on thesecond set of clamps on both driver and passenger sides
to the semi clamped position. 7. Pull down on the clamp wire and push the clamp up
into the proper released position.
Third Panel PositionSemi Clamped Position
158 GETTING TO KNOW YOUR VEHICLE
