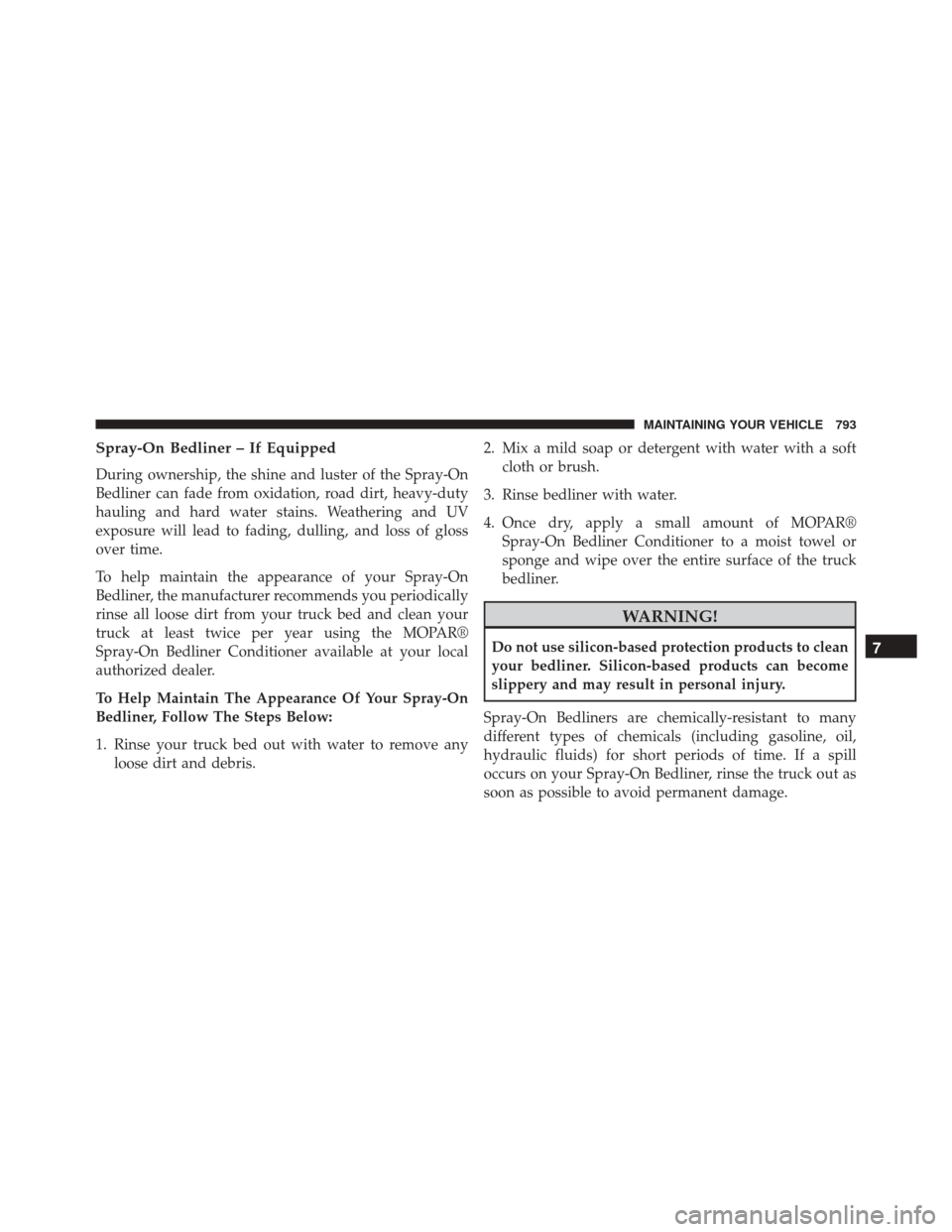

Spray-On Bedliner – If Equipped
During ownership, the shine and luster of the Spray-On
Bedliner can fade from oxidation, road dirt, heavy-duty
hauling and hard water stains. Weathering and UV
exposure will lead to fading, dulling, and loss of gloss
over time.
To help maintain the appearance of your Spray-On
Bedliner, the manufacturer recommends you periodically
rinse all loose dirt from your truck bed and clean your
truck at least twice per year using the MOPAR®
Spray-On Bedliner Conditioner available at your local
authorized dealer.
To Help Maintain The Appearance Of Your Spray-On
Bedliner, Follow The Steps Below:
1. Rinse your truck bed out with water to remove anyloose dirt and debris. 2. Mix a mild soap or detergent with water with a soft
cloth or brush.
3. Rinse bedliner with water.
4. Once dry, apply a small amount of MOPAR® Spray-On Bedliner Conditioner to a moist towel or
sponge and wipe over the entire surface of the truck
bedliner.
WARNING!
Do not use silicon-based protection products to clean
your bedliner. Silicon-based products can become
slippery and may result in personal injury.
Spray-On Bedliners are chemically-resistant to many
different types of chemicals (including gasoline, oil,
hydraulic fluids) for short periods of time. If a spill
occurs on your Spray-On Bedliner, rinse the truck out as
soon as possible to avoid permanent damage.7
MAINTAINING YOUR VEHICLE 793

Repairing The Spray-On Bedliner
While extremely tough, it is possible to damage a
Spray-On Bedliner. One common condition is when
loading a heavy pallet and dragging that pallet across the
floor of the bed. If a nail or sharp point is exposed under
the weight of the pallet a scratch or tear is possible. While
not covered by your new vehicle warranty, a cosmetic fix
to cover the metal exposed by the scratch is required. To
repair a tear or gouge, follow the directions provided in
the MOPAR® Quick Repair Kit.
FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
(Continued)
WARNING! (Continued)
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
• Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
794 MAINTAINING YOUR VEHICLE

Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Inspect and replace PCV valve if
necessary. X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.
WARNING!
•
You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
(Continued)
WARNING! (Continued)
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
• Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
8
MAINTENANCE SCHEDULES 829

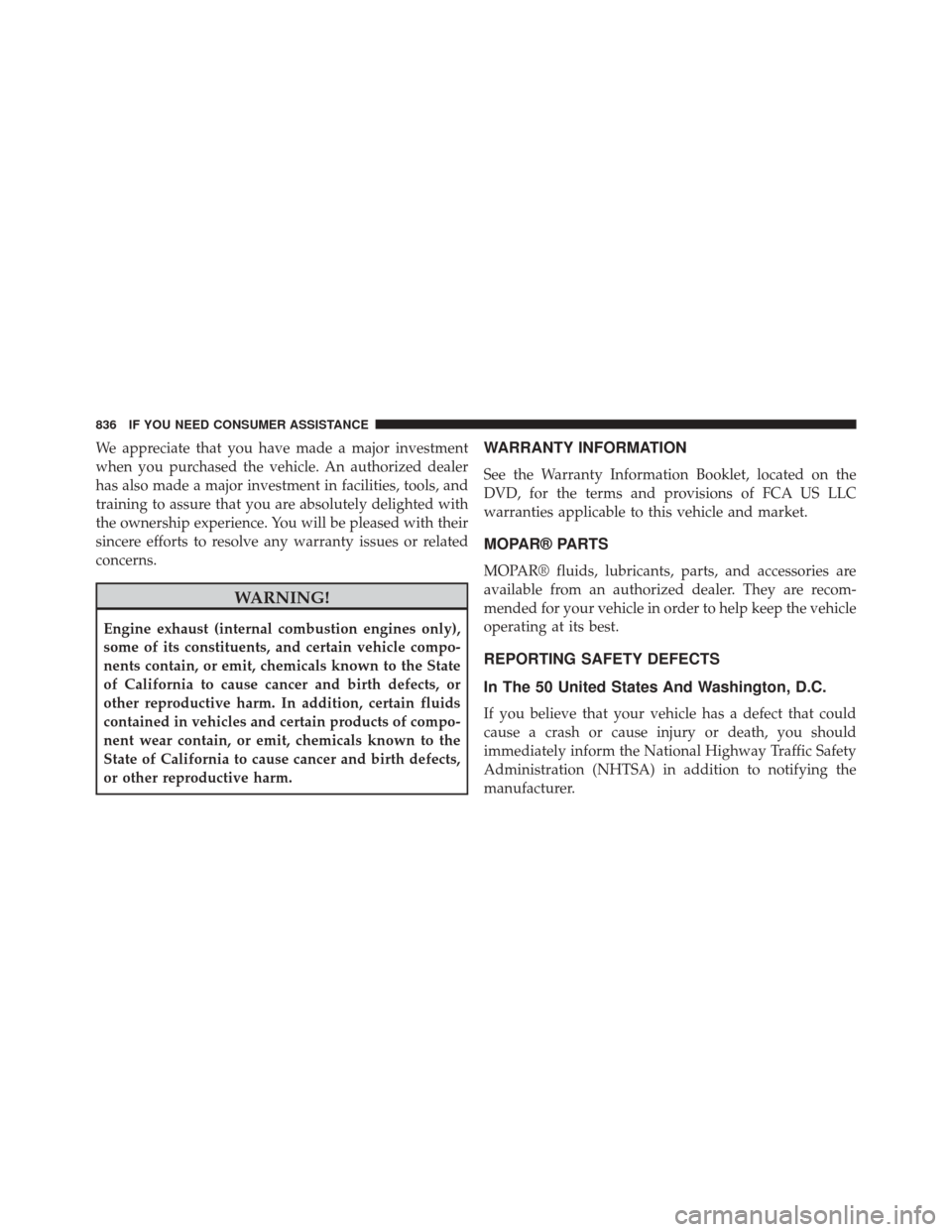

We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
the ownership experience. You will be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
WARNING!
Engine exhaust (internal combustion engines only),
some of its constituents, and certain vehicle compo-
nents contain, or emit, chemicals known to the State
of California to cause cancer and birth defects, or
other reproductive harm. In addition, certain fluids
contained in vehicles and certain products of compo-
nent wear contain, or emit, chemicals known to the
State of California to cause cancer and birth defects,
or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of FCA US LLC
warranties applicable to this vehicle and market.
MOPAR® PARTS
MOPAR® fluids, lubricants, parts, and accessories are
available from an authorized dealer. They are recom-
mended for your vehicle in order to help keep the vehicle
operating at its best.
REPORTING SAFETY DEFECTS
In The 50 United States And Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
836 IF YOU NEED CONSUMER ASSISTANCE

DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may departsignificantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.9
IF YOU NEED CONSUMER ASSISTANCE 839

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
840 IF YOU NEED CONSUMER ASSISTANCE

Adding Engine Coolant (Antifreeze)............773
Adding Fuel ............................ .636
Adjustable Pedals ........................ .183
Airbag.............................. .67, 68
Air Bag Advance Front Air Bag ....................68
Air bag Operation .......................70
Air Bag Warning Light ....................78
Enhanced Accident Response ................78
Event Data Recorder (EDR) .................81
FrontAirBag ........................67, 68
If A Deployment Occurs ...................76
Knee Impact Bolsters .....................71
Maintaining Your Air Bag System ............80
Side Air Bags ...........................72
Air bag Deployment ........................67
Air bag Light ..................... .78, 116, 285
Air bag Maintenance ........................80
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .755 Air Conditioner Maintenance
.................761
Air Conditioning ..................... .395, 400
Air Conditioning Controls ................395, 400
Air Conditioning, Operating Tips ...........414, 416
Air Conditioning Refrigerant ..........761, 762, 763
Air Conditioning System ..........395, 400, 413, 761
Air Pressure, Tires .....................602, 613
Air Suspension .......................... .510
Alarm Light ............................ .285
Alarm, Panic .............................28
Alarm (Security Alarm) ......................21
Alarm System (Security Alarm) ................21
Alterations/Modifications, Vehicle ...............7
Antifreeze (Engine Coolant) ...............772, 815
Disposal ............................. .775
Anti-Lock Brake System (ABS) ................576
Anti-Lock Warning Light .................285, 577
Appearance Care ........................ .786
Ashtray ............................... .229
842 INDEX

Auto Down Power Windows..................47
Automatic Door Locks ......................39
Automatic Headlights ..................... .166
Automatic High Beams .....................168
Automatic Temperature Control (ATC) ..........413
Automatic Transmission .................455, 786
Adding Fluid ...................... .785, 786
Fluid and Filter Changes ..................786
Fluid Change ......................... .786
Fluid Level Check ................782, 783, 784
Fluid Type ........................ .782, 820
Shifting .......................... .464, 476
Special Additives ...................... .783
Axle Fluid .......................... .780, 820
Axle Lubrication ......................... .780
Back-Up Camera ......................... .207
Bar, Stabilizer/Sway System ..................524
Battery ................................ .760Keyless Transmitter Replacement (RKE)
........30
Belts, Seat ...............................115
Body Builders Guide ........................6
Body Mechanism Lubrication .................763
B-Pillar Location ......................... .597
Brake Assist System ...................... .577
Brake Control System, Electronic ..............575
Brake Fluid ......................... .779, 820
Brake System ........................ .575, 778
Anti-Lock (ABS) ....................... .576
Fluid Check .......................... .779
Master Cylinder ....................... .779
Parking ............................. .572
Warning Light ........................ .285
Brake/Transmission Interlock .................454
Bulb Replacement ..................... .804, 805
Bulbs, Light ..........................117,804
Cab Top Clearance Lights ...................811
10

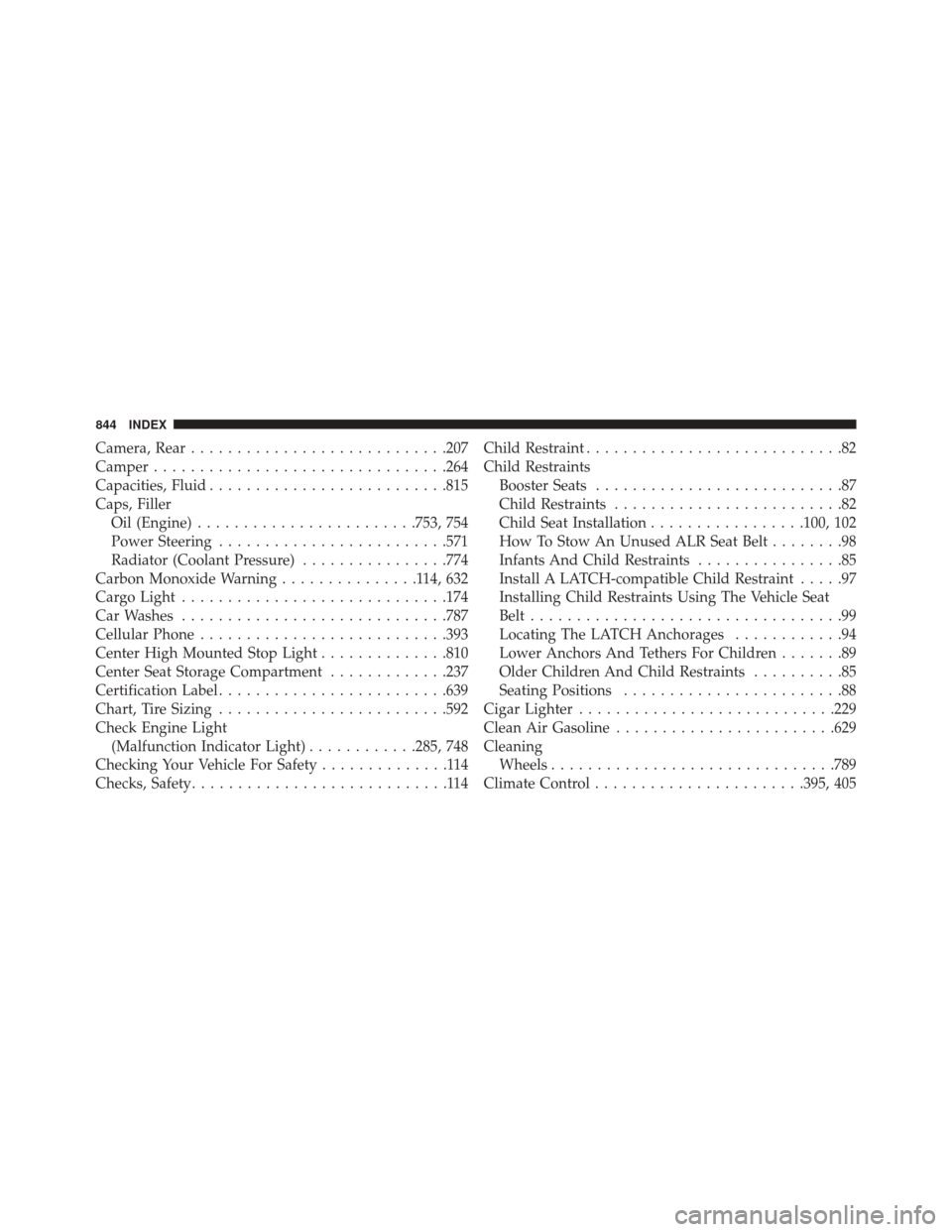

INDEX 843

Camera, Rear........................... .207
Camper ............................... .264
Capacities, Fluid ......................... .815
Caps, Filler Oil (Engine) ....................... .753, 754
Power Steering ........................ .571
Radiator (Coolant Pressure) ................774
Carbon Monoxide Warning ...............114,632
Cargo Light ............................ .174
Car Washes ............................ .787
Cellular Phone .......................... .393
Center High Mounted Stop Light ..............810
Center Seat Storage Compartment .............237
Certification Label ........................ .639
Chart, Tire Sizing ........................ .592
Check Engine Light (Malfunction Indicator Light) ............285, 748
Checking Your Vehicle For Safety ..............114
Checks, Safety ............................114 Child Restraint
............................82
Child Restraints Booster Seats ...........................87
Child Restraints .........................82
Child Seat Installation .................100, 102
How To Stow An Unused ALR Seat Belt ........98
Infants And Child Restraints ................85
Install A LATCH-compatible Child Restraint .....97
Installing Child Restraints Using The Vehicle Seat
Belt ..................................99
Locating The LATCH Anchorages ............94
Lower Anchors And Tethers For Children .......89
Older Children And Child Restraints ..........85
Seating Positions ........................88
Cigar Lighter ........................... .229
Clean Air Gasoline ....................... .629
Cleaning Wheels .............................. .789
Climate Control ...................... .395, 405
844 INDEX

Remote...............................37
Remote Keyless Entry (RKE) ................37
Door Locks, Automatic ......................39
Door Opener, Garage .......................211
Driving Off-Pavement ......................... .526
Off-Road ............................ .526
Through Flowing, Rising, or Shallow Standing
Water ............................... .547
Dual Rear Wheels ..................... .617, 680
E-85 Fuel .............................. .633
Electrical Power Outlets .....................224
Electric Rear Window Defrost .................242
Electronically Shifted Transfer Case ......491, 498, 503
Electronic Brake Control System ...............575
Anti-Lock Brake System ..................576
Brake Assist System .....................577
Traction Control System ...................577 Electronic Range Select (ERS)
..........462, 471, 483
Electronic Speed Control (Cruise Control) ........185
Electronic Stability Control (ESC) ..............581
Electronic Vehicle Information Center (EVIC) . .207, 297 Electronic Vehicle Information Center (EVIC) . . . .297
Electronic Vehicle Information Center (EVIC) Setup
Menu ............................... .297
EVIC Messages ........................ .297
Selectable Menu Items ....................312
Emergency Brake ........................ .572
Emergency, In Case of Freeing Vehicle When Stuck ................730
Hazard Warning Flasher ..................679
Jump Starting ......................... .725
Tow Hooks ........................... .732
Emission Control System Maintenance ..........748
Engine ............................. .745, 746
Air Cleaner .......................... .755
Block Heater ......................... .451
846 INDEX
