climate control Ram 3500 2015 Owner's Guide

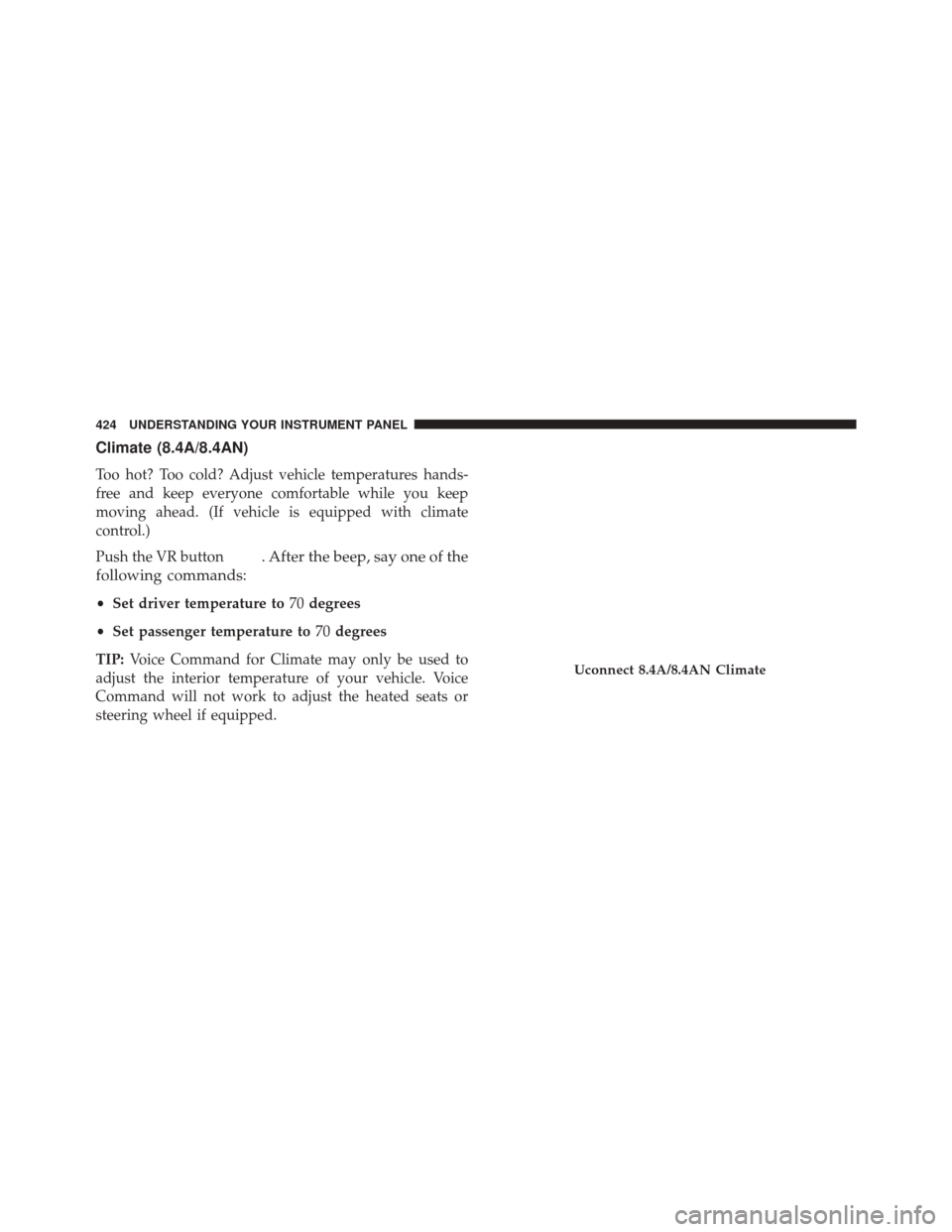

Climate (8.4A/8.4AN)
Too hot? Too cold? Adjust vehicle temperatures hands-
free and keep everyone comfortable while you keep
moving ahead. (If vehicle is equipped with climate
control.)
Push the VR button
. After the beep, say one of the
following commands:
• Set driver temperature to 70degrees
• Set passenger temperature to 70degrees
TIP: Voice Command for Climate may only be used to
adjust the interior temperature of your vehicle. Voice
Command will not work to adjust the heated seats or
steering wheel if equipped.
Uconnect 8.4A/8.4AN Climate
424 UNDERSTANDING YOUR INSTRUMENT PANEL

Autostop, the Climate Controls system may automati-
cally adjust airflow to maintain cabin comfort. Customer
settings will be maintained upon return to an engine
running condition.
Possible Reasons The Engine Does Not Autostop
Prior to engine shut down, the system will check many
safety and comfort conditions to see if they are fulfilled.
In following situations the engine will not stop:
•Driver ’s seat belt is not buckled
• Driver ’s door is not closed
• Outside temperature is less than 1°F (–17°C) or greater
than 104°F (40°C)
• Battery temperature too warm or cold
• The vehicle is on a steep grade •
Cabin heating or cooling is in process and an accept-
able cabin temperature has not been achieved
• HVAC is set to full defrost mode at a high blower
speed
• Engine has not reached normal operating temperature
• Battery discharged
• The transmission is not in DRIVE
• Hood is open
• Vehicle is in 4LO transfer case mode
Other factors which can inhibit AutoStop include: fuel
level, accelerator pedal input, engine temp too high and
steering angle.
It may be possible for the vehicle to be driven several
times without the STOP/START system going into a
STOP/START READY state under more extreme condi-
tions of the items listed above.
448 STARTING AND OPERATING

Cavity Cartridge Fuse Micro FuseDescription
F85 10 Amp Red Airbag Module
F86 10 Amp Red Airbag Module
F87 10 Amp Red Air Suspension-If Equipped / Trailer Tow / Steering
Column Control Module
F88 15 Amp BlueInstrument Panel Cluster
F90/F91 20 Amp Yellow Power Outlet (Rear seats) Customer Selectable
F93 20 Amp Yellow Cigar Lighter
F94 10 Amp RedShifter / Transfer Case Module
F95 10 Amp RedRear Camera / Park Assist
F96 10 Amp RedRear Seat Heater Switch
F97 25 Amp Clear Rear Heated Seats & Heated Steering Wheel – If
Equipped
F98 25 Amp ClearFront Heated Seats – If Equipped
F99 10 Amp Red Climate Control
F100 10 Amp RedUpfitters – If Equipped
802 MAINTAINING YOUR VEHICLE

DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may departsignificantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.9
IF YOU NEED CONSUMER ASSISTANCE 839

Camera, Rear........................... .207
Camper ............................... .264
Capacities, Fluid ......................... .815
Caps, Filler Oil (Engine) ....................... .753, 754
Power Steering ........................ .571
Radiator (Coolant Pressure) ................774
Carbon Monoxide Warning ...............114,632
Cargo Light ............................ .174
Car Washes ............................ .787
Cellular Phone .......................... .393
Center High Mounted Stop Light ..............810
Center Seat Storage Compartment .............237
Certification Label ........................ .639
Chart, Tire Sizing ........................ .592
Check Engine Light (Malfunction Indicator Light) ............285, 748
Checking Your Vehicle For Safety ..............114
Checks, Safety ............................114 Child Restraint
............................82
Child Restraints Booster Seats ...........................87
Child Restraints .........................82
Child Seat Installation .................100, 102
How To Stow An Unused ALR Seat Belt ........98
Infants And Child Restraints ................85
Install A LATCH-compatible Child Restraint .....97
Installing Child Restraints Using The Vehicle Seat
Belt ..................................99
Locating The LATCH Anchorages ............94
Lower Anchors And Tethers For Children .......89
Older Children And Child Restraints ..........85
Seating Positions ........................88
Cigar Lighter ........................... .229
Clean Air Gasoline ....................... .629
Cleaning Wheels .............................. .789
Climate Control ...................... .395, 405
