warning Ram 3500 2015 Service Manual

Any seat belt system will loosen with time, so check the
belt occasionally, and pull it tight if necessary.
If the buckle or the cinching latch plate is too close to the belt
path opening of the child restraint, you may have trouble
tightening the seat belt. If this happens, disconnect the latch
plate from the buckle and twist the short buckle-end belt up
to three full turns to shorten it. Insert the latch plate into the
buckle with the release button facing out, away from the
child restraint. Repeat steps 4 to 6, above, to complete the
installation of the child restraint.
If the belt still cannot be tightened after you shorten the
buckle, disconnect the latch plate from the buckle, turn
the buckle around one half turn, and insert the latch plate
into the buckle again. If you still cannot make the child
restraint installation tight, try a different seating position.
Installing Child Restraints Using The Top Tether
Anchorage
WARNING!
Do not attach a tether strap for a rear-facing car seat
to any location in front of the car seat, including the
seat frame or a tether anchorage. Only attach the
tether strap of a rear-facing car seat to the tether
anchorage that is approved for that seating position,
located behind the top of the vehicle seat. See the
section “Lower Anchors and Tethers for CHildren
(LATCH) Restraint System” for the location of ap-
proved tether anchorages in your vehicle.
104 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

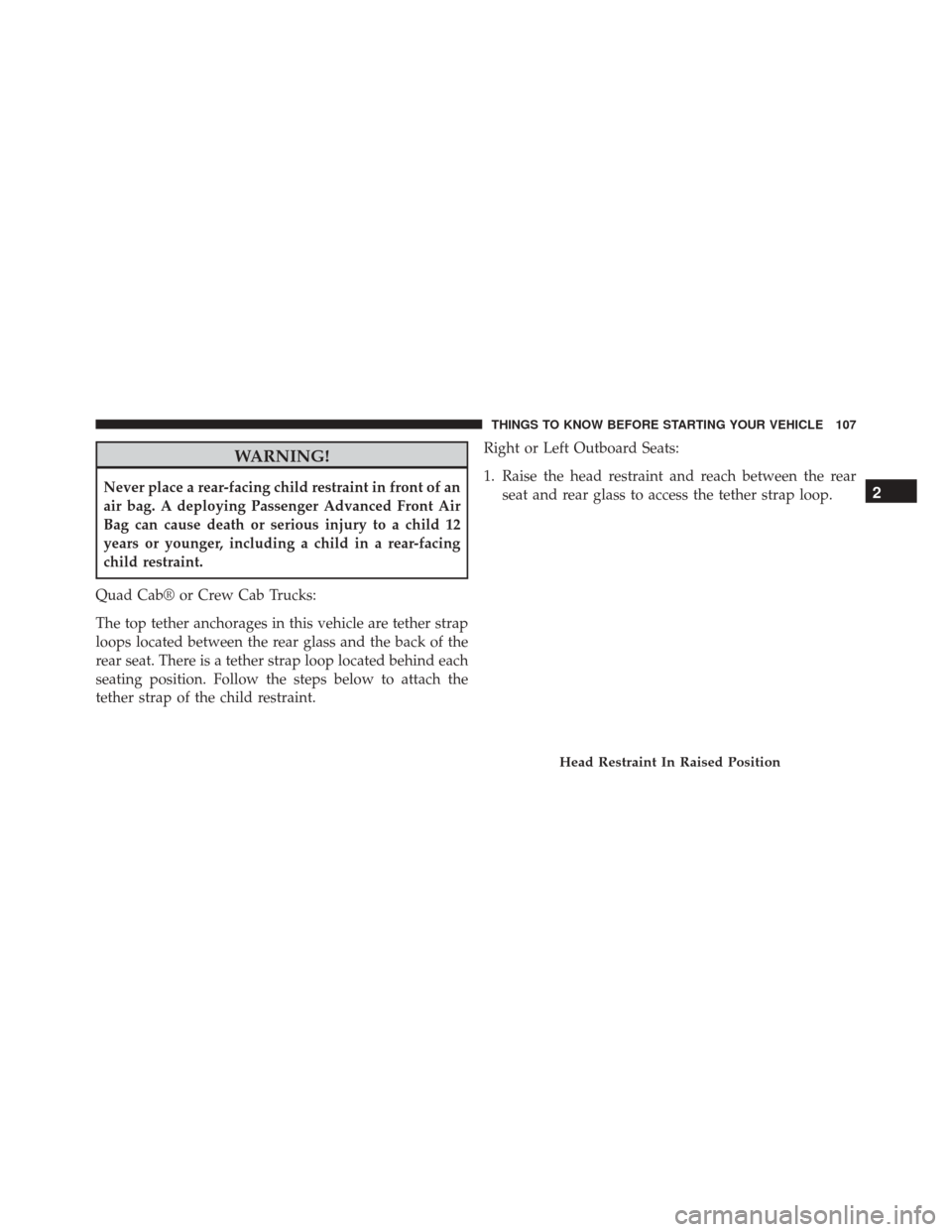

WARNING!
Never place a rear-facing child restraint in front of an
air bag. A deploying Passenger Advanced Front Air
Bag can cause death or serious injury to a child 12
years or younger, including a child in a rear-facing
child restraint.
Quad Cab® or Crew Cab Trucks:
The top tether anchorages in this vehicle are tether strap
loops located between the rear glass and the back of the
rear seat. There is a tether strap loop located behind each
seating position. Follow the steps below to attach the
tether strap of the child restraint. Right or Left Outboard Seats:
1. Raise the head restraint and reach between the rear
seat and rear glass to access the tether strap loop.
Head Restraint In Raised Position
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 107

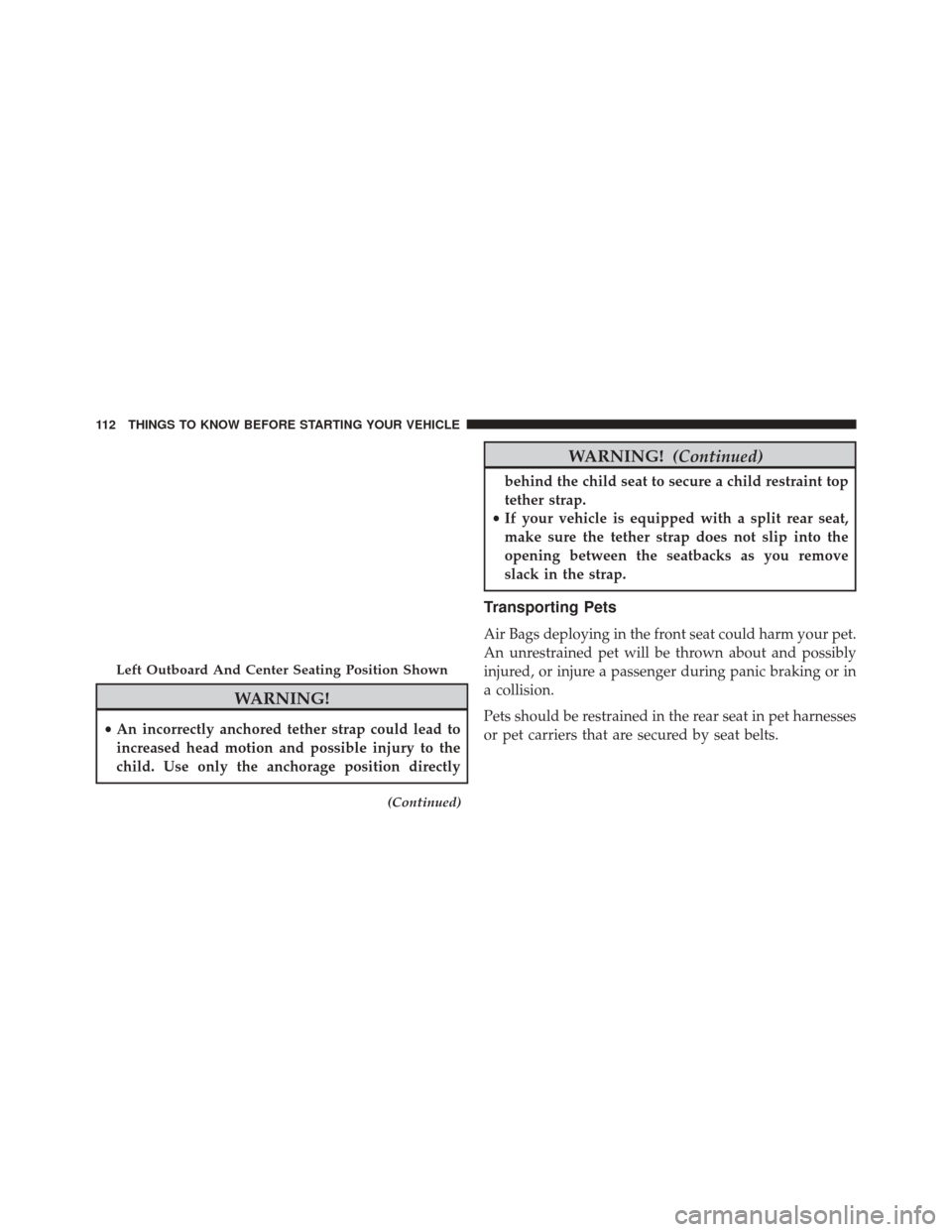

WARNING!
•An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchorage position directly
(Continued)
WARNING! (Continued)
behind the child seat to secure a child restraint top
tether strap.
• If your vehicle is equipped with a split rear seat,
make sure the tether strap does not slip into the
opening between the seatbacks as you remove
slack in the strap.
Transporting Pets
Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.
Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.
Left Outboard And Center Seating Position Shown
112 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

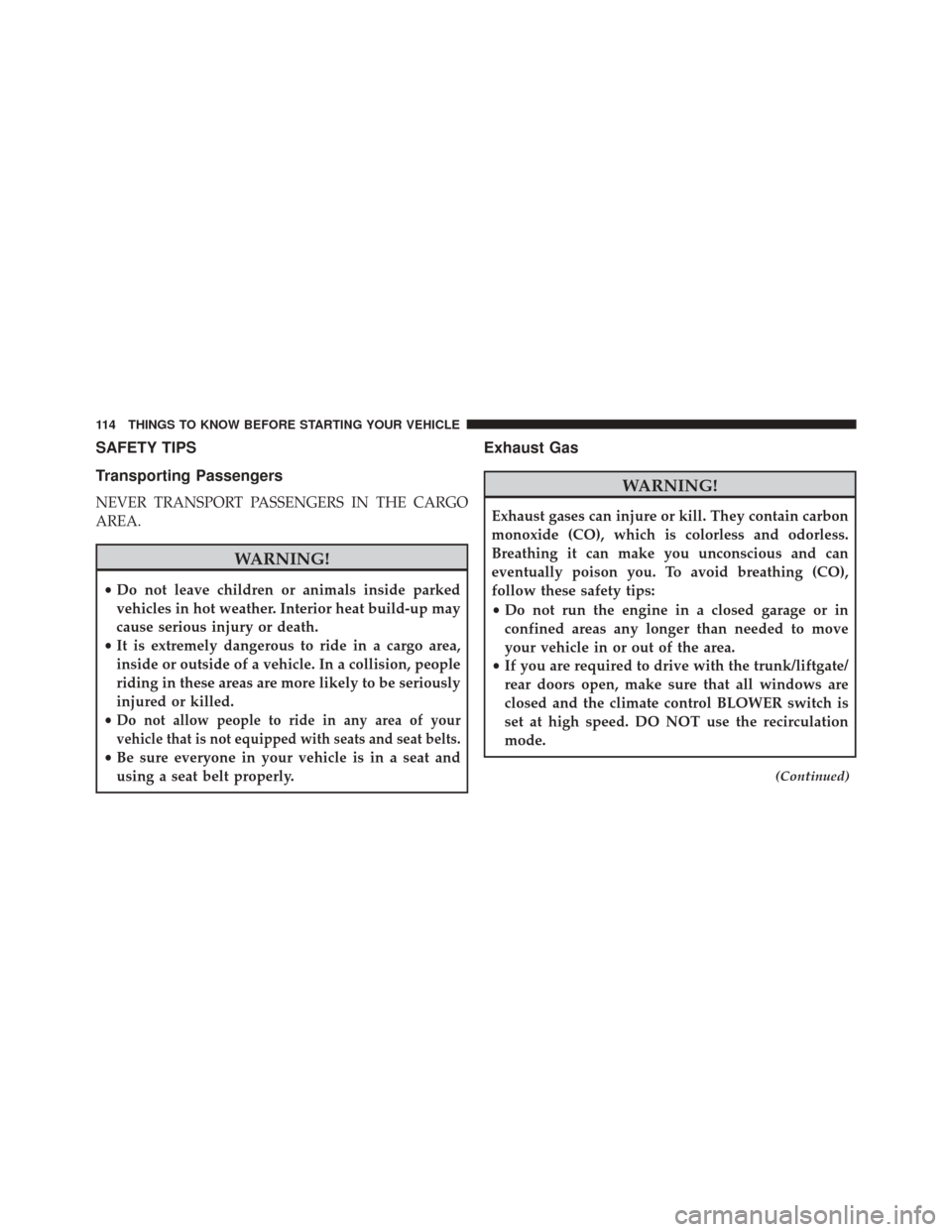

SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
• Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is
set at high speed. DO NOT use the recirculation
mode.
(Continued)
114 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding seat
belt or retractor condition, replace the seat belt.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 115

Air Bag Warning Light
The light should come on and remain on for
four to eight seconds as a bulb check when the
ignition switch is first turned ON. If the light is
not lit during starting, see your authorized
dealer. If the light stays on, flickers, or comes on while
driving, have the system checked by an authorized
dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
• Always make sure that floor mats are properly
attached to the floor mat fasteners.
•
Never place or install floor mats or other floor cover-
ings in the vehicle that cannot be properly secured to
prevent them from moving and interfering with the
pedals or the ability to control the vehicle.
(Continued)
116 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
•Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
•
Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Objects
can become trapped under the brake pedal and
accelerator pedal causing a loss of vehicle control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel bolts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 117

▫To Accelerate For Passing ................188
 PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED .......................... .189
▫ ParkSense® Sensors ....................190
▫ ParkSense® Warning Display .............190
▫ ParkSense® Display ....................191
▫ Enabling And Disabling ParkSense® .......194
▫ Service The ParkSense® Rear Park Assist
System ............................ .195
▫ Cleaning The ParkSense® System ..........196
▫ ParkSense® System Usage Precautions .......196
 PARKSENSE® FRONT AND REAR PARK ASSIST
— IF EQUIPPED ...................... .198
▫ ParkSense® Sensors ....................199 ▫
ParkSense® Warning Display .............199
▫ ParkSense® Display ....................200
▫ Enabling And Disabling Front And/Or Rear
ParkSense® ......................... .202
▫ Service The ParkSense® Park Assist System . . .203
▫ Cleaning The ParkSense® System ..........204
▫ ParkSense® System Usage Precautions .......204
 PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED .......................... .207
 OVERHEAD CONSOLE — IF EQUIPPED .....209
▫ Courtesy/Reading Lights ...............209
 GARAGE DOOR OPENER — IF EQUIPPED . . .211
▫ Before You Begin Programming HomeLink® . .212
▫ Programming A Rolling Code ............213
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STORAGE ........................... .234
▫ Glove Compartment ...................234
▫ Door Storage ........................ .236
▫ Center Storage Compartment — If Equipped . .237
▫ Second Row In-Floor Storage Bin — If
Equipped .......................... .239
▫ Seatback Storage ..................... .240
▫ Storage (Regular Cab) ..................240
▫ Storage and Seats (Crew Cab) .............241
▫ Plastic Grocery Bag Retainers (Regular Cab
Models) ........................... .242
 REAR WINDOW FEATURES ..............242
▫ Rear Window Defroster .................242 ▫
Power Sliding Rear Window — If Equipped . .243
▫ Manual Sliding Rear Window —
If Equipped ........................ .244
 FOLD FLAT LOAD FLOOR — IF EQUIPPED . .244
 PICKUP BOX ........................ .248
▫ Cargo Camera — If Equipped .............250
▫ Turning Cargo Camera On Or Off — With
Uconnect® 8.4A/8.4AN .................250
 RAMBOX® — IF EQUIPPED ..............251
▫ RamBox® Integrated Box Side Storage Bins . . .251
▫ Locking And Unlocking RamBox® .........254
▫ RamBox® Safety Warning ................255
▫ Bed Extender — If Equipped .............256
▫ Bed Rail Tie-Down System ..............262
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

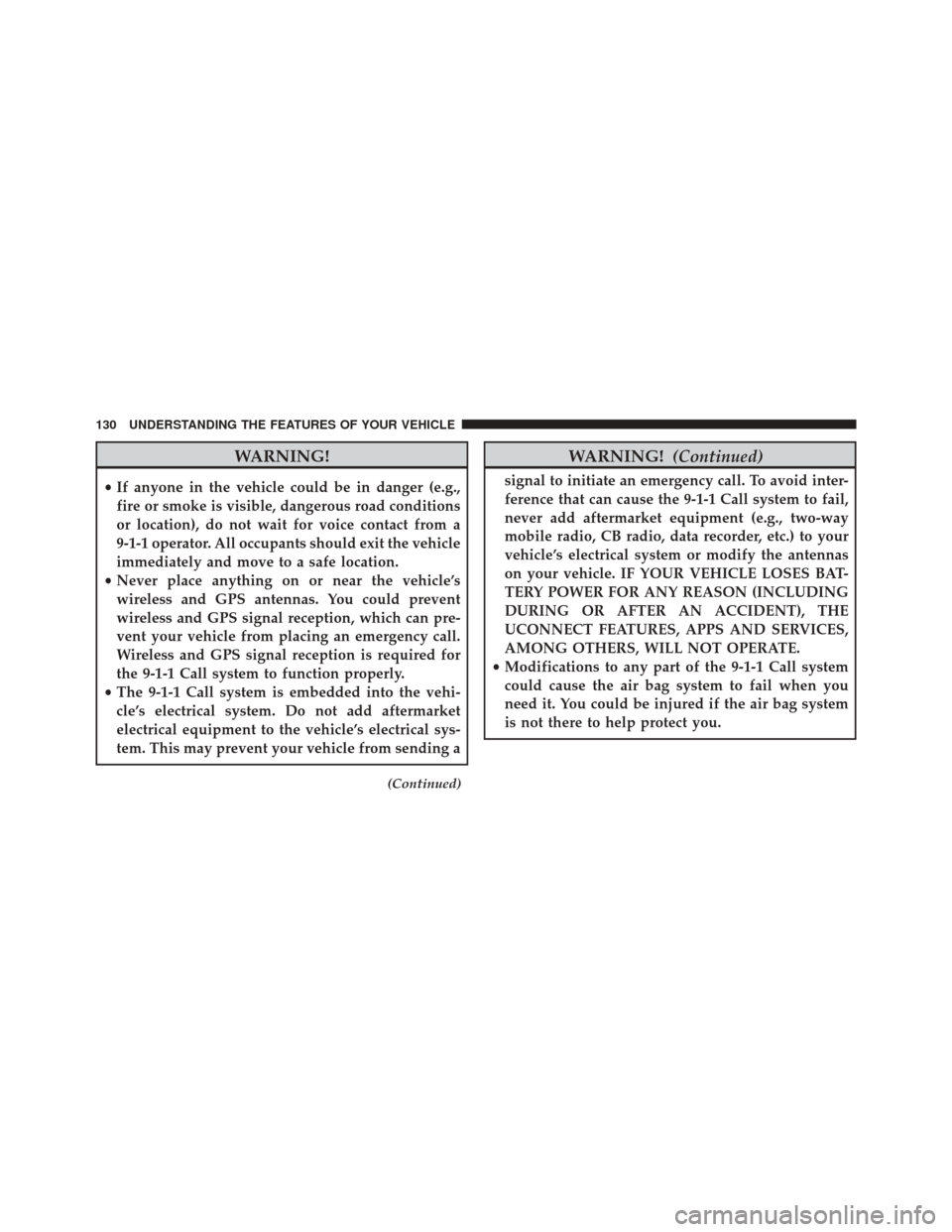

WARNING!
•If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
• Never place anything on or near the vehicle’s
wireless and GPS antennas. You could prevent
wireless and GPS signal reception, which can pre-
vent your vehicle from placing an emergency call.
Wireless and GPS signal reception is required for
the 9-1-1 Call system to function properly.
• The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
(Continued)
WARNING! (Continued)
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
