park assist Ram 3500 2015 Owner's Manual

▫To Accelerate For Passing ................188
 PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED .......................... .189
▫ ParkSense® Sensors ....................190
▫ ParkSense® Warning Display .............190
▫ ParkSense® Display ....................191
▫ Enabling And Disabling ParkSense® .......194
▫ Service The ParkSense® Rear Park Assist
System ............................ .195
▫ Cleaning The ParkSense® System ..........196
▫ ParkSense® System Usage Precautions .......196
 PARKSENSE® FRONT AND REAR PARK ASSIST
— IF EQUIPPED ...................... .198
▫ ParkSense® Sensors ....................199 ▫
ParkSense® Warning Display .............199
▫ ParkSense® Display ....................200
▫ Enabling And Disabling Front And/Or Rear
ParkSense® ......................... .202
▫ Service The ParkSense® Park Assist System . . .203
▫ Cleaning The ParkSense® System ..........204
▫ ParkSense® System Usage Precautions .......204
 PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED .......................... .207
 OVERHEAD CONSOLE — IF EQUIPPED .....209
▫ Courtesy/Reading Lights ...............209
 GARAGE DOOR OPENER — IF EQUIPPED . . .211
▫ Before You Begin Programming HomeLink® . .212
▫ Programming A Rolling Code ............213
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The Electronic Speed Control system maintains
speed up and down hills. A slight speed change on
moderate hills is normal.
On steep hills, a greater speed loss or gain may occur so
it may be preferable to drive without Electronic Speed
Control.
WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control and have an accident. Do not use
Electronic Speed Control in heavy traffic or on roads
that are winding, icy, snow-covered or slippery.
PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED
The ParkSense® Rear Park Assist system provides visual
and audible indications of the distance between the rear
fascia and a detected obstacle when backing up, e.g.
during a parking maneuver. Refer to ParkSense® System
Usage Precautions for limitations of this system and
recommendations.
ParkSense® will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the ON/RUN position.
ParkSense® can be active only when the shift lever/gear
selector is in REVERSE. If ParkSense® is enabled at this
shift lever/gear selector position, the system will remain
active until the vehicle speed is increased to approxi-
mately 7 mph (11 km/h) or above. When in REVERSE
and above the system’s operating speed, a warning will
appear within the Electronic Vehicle Information Center
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189

approximately five seconds. Refer to “Electronic Vehicle
Information Center (EVIC) or Driver Information Display
(DID)” in “Understanding Your Instrument Panel” for
further information. When the shift lever is moved to
REVERSE and the system is disabled, the EVIC/DID will
display the “PARKSENSE OFF” message for as long as
the vehicle is in REVERSE.
NOTE:The ParkSense® system will automatically dis-
able when the system detects that a trailer with trailer
brakes has been connected to the Integrated Trailer Brake
Module. The EVIC/DID will display “PARKSENSE OFF”
message for as long as the vehicle is in reverse.
The ParkSense® switch LED will be ON when
ParkSense® is disabled or defective. The ParkSense®
switch LED will be OFF when the system is enabled.
If the ParkSense switch is pushed, and the system is
disabled or requires service, the ParkSense switch LED
will blink momentarily, and then the LED will be ON.Service The ParkSense® Rear Park Assist
System
During vehicle start up, when the ParkSense® Rear Park
Assist System has detected a faulted condition, the
instrument cluster will actuate a single chime, once per
ignition cycle, and it will display the PARKSENSE
UNAVAILABLE WIPE REAR SENSORS or the
PARKSENSE UNAVAILABLE SERVICE REQUIRED
message. Refer to “Electronic Vehicle Information Center
(EVIC) or Driver Information Display (DID)” in “Under-
standing Your Instrument Panel” for further information.
When the shift lever is moved to REVERSE and the
system has detected a faulted condition, the EVIC/DID
will display the PARKSENSE UNAVAILABLE WIPE
REAR SENSORS or thePARKSENSE UNAVAILABLE
SERVICE REQUIRED message for as long as the vehicle
is in REVERSE. Under this condition, ParkSense® will
not operate.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195

WARNING!
•Drivers must be careful when backing up even
when using ParkSense®. Always check carefully
behind your vehicle, look behind you, and be sure
to check for pedestrians, animals, other vehicles,
obstructions, and blind spots before backing up.
You are responsible for safety and must continue to
pay attention to your surroundings. Failure to do so
can result in serious injury or death.
• Before using ParkSense®, it is strongly recom-
mended that the ball mount and hitch ball assem-
bly is disconnected from the vehicle when the
vehicle is not used for towing. Failure to do so can
result in injury or damage to vehicles or obstacles
because the hitch ball will be much closer to the
obstacle than the rear fascia when the loudspeaker
sounds the continuous tone. Also, the sensors
(Continued)
WARNING! (Continued)
could detect the ball mount and hitch ball assem-
bly, depending on its size and shape, giving a false
indication that an obstacle is behind the vehicle.
PARKSENSE® FRONT AND REAR PARK ASSIST
— IF EQUIPPED
The ParkSense® Park Assist system provides visual and
audible indications of the distance between the rear
and/or front fascia and a detected obstacle when backing
up or moving forward, e.g. during a parking maneuver.
Refer to ParkSense® System Usage Precautions for limi-
tations of this system and recommendations.
ParkSense® will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the ON/RUN position.
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Park Assist Audible Alerts
ParkSense® will turn off the Front Park Assist audible
alert (chime) after approximately three seconds when an
obstacle has been detected, the vehicle is stationary, and
brake pedal is applied.
Adjustable Chime Volume Settings
The Front and Rear chime volume settings are program-
mable.
•
If your vehicle is equipped with a touchscreen, the
settings may be programmed through the Uconnect®
System. Refer to “Uconnect® Settings ” in “Understand-
ing Your Instrument Panel” for further information.
•If your vehicle is not equipped with a touchscreen, the
settings may be programmed through the Electronic
Vehicle Information Center (EVIC) or Driver Information
Display (DID). Refer to “Electronic Vehicle Information Center (EVIC)” or “Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.
Enabling And Disabling Front And/Or Rear
ParkSense®
Front ParkSense® can be enabled and disabled with the
Front ParkSense® switch.
Rear ParkSense® can be enabled and disabled with the
Rear ParkSense® switch.
When the Front or Rear ParkSense® switch is
pushed to disable the system, the Electronic
Vehicle Information Center (EVIC) or Driver
Information Display (DID) will display the
“PARKSENSE OFF” message for approximately five sec-
onds. Refer to “Electronic Vehicle Information Center
(EVIC) or Driver Information Display (DID)” in “Under-
standing Your Instrument Panel” for further information.
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

When the shift lever is moved to REVERSE and the Front
or Rear system is disabled, the EVIC/DID will display the
FRONT PARKSENSE OFFor REAR PARKSENSE OFF
message for five seconds, followed by a car graphic with
OFF in the corresponding side. This car graphic will be
displayed for as long as the vehicle is in REVERSE.
NOTE: Arc alerts from the enabled ParkSense® system,
will interrupt the five second messages, and the EVIC/
DID will display the car graphic with the corresponding
arcs and OFFmessage.
The Front or Rear ParkSense® switch LED will be ON
when Front or Rear ParkSense® is disabled or requires
service. The Front or Rear ParkSense® switch LED will
be OFF when the Front or Rear system is enabled. If the
Front or Rear ParkSense® switch is pushed, and the
system requires service, the Front or Rear ParkSense®
switch LED will blink momentarily, and then the LED
will be ON.
Service The ParkSense® Park Assist System
During vehicle start up, when the ParkSense® System
has detected a faulted condition, the instrument cluster
will actuate a single chime, once per ignition cycle, and it
will display the PARKSENSE UNAVAILABLE WIPE
REAR SENSORS, PARKSENSE UNAVAILABLE WIPE
FRONT SENSORS,orthePARKSENSE UNAVAIL-
ABLE SERVICE REQUIRED message for five seconds.
When the shift lever/gear selector is moved to Reverse
and the system has detected a faulted condition, the
Electronic Vehicle Information Center (EVIC) or Driver
Information Display (DID) will display a PARKSENSE
UNAVAILABLE WIPE REAR SENSORS, PARKSENSE
UNAVAILABLE WIPE FRONT SENSORS or
PARKSENSE UNAVAILABLE SERVICE REQUIRED
pop up message for five seconds. After five seconds, a car
graphic will be displayed with UNAVAILABLEat ei-
ther the front or rear sensor location depending on where
the fault is detected. The system will continue to provide
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203

WARNING!
•Your motorized door or gate will open and close
while you are training the universal transceiver. Do
not train the transceiver if people, pets or other
objects are in the path of the door or gate. Only use
this transceiver with a garage door opener that has
a “stop and reverse” feature as required by Federal
safety standards. This includes most garage door
opener models manufactured after 1982. Do not use
a garage door opener without these safety features.
Call toll-free 1-800-355-3515 or, on the Internet at
www.HomeLink.com for safety information or as-
sistance.
• Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while training the transceiver. Exhaust gas can
cause serious injury or death. NOTE:
Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as required
by federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not use
a garage door opener without these safety features. Call
toll-free 1-800-355-3515 or, on the Internet at HomeLink-
.com for safety information or assistance.
Before You Begin Programming HomeLink®
Ensure your vehicle is parked outside of the garage
before you begin programming.
For efficient programming and accurate transmission of
the radio-frequency signal it is recommended that a new
battery be placed in the hand-held transmitter of the
device that is being programmed to the HomeLink®
system.
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

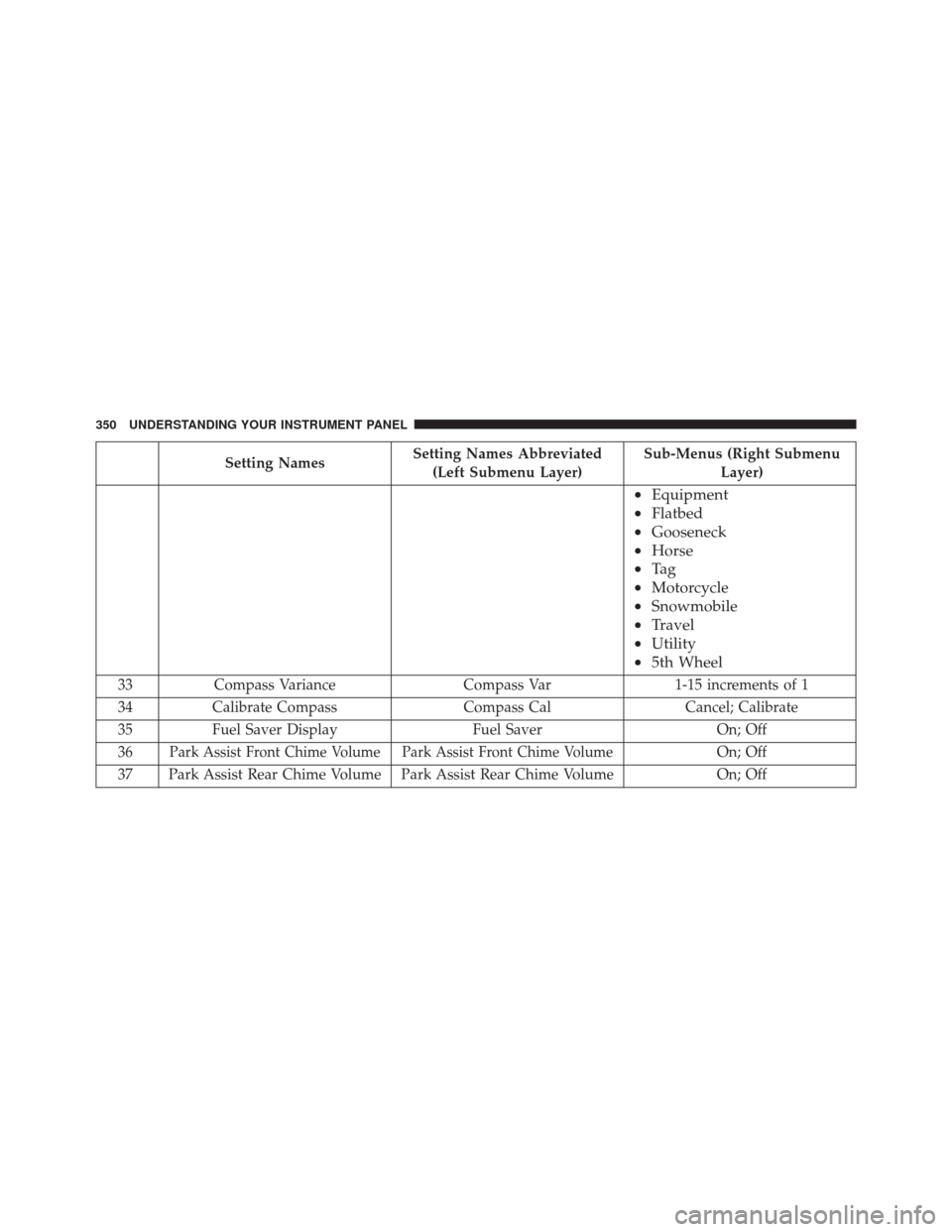

Setting NamesSetting Names
Abbreviated (Left Submenu Layer) Sub-Menus (Right Submenu Layer)
1 Language Select LanguageEnglish, Spanish, French, Italian, German, Dutch
2 Units Units U.S.; Metric
3 ParkSense ParkSense
•Notification — Sound Only; Sound & Display
• Front Volume — Low; Medium; High
• Rear Volume — Low; Medium; High
4 Tilt Mirror in Re-
verse Tilt Mirror in R
On; Off
5 Rain Sensing Wipers Auto Wipers On; Off
6 Hill Start Assist Hill Start Assist On; Off
7 Headlights Off Delay Lights Off Delay 0 seconds; 30 seconds; 60 seconds; 90 seconds
8 Illuminated Ap- proach Lights w/ Unlock 0 seconds; 30 seconds; 60 seconds; 90 seconds
9 Headlights On with Wipers Lights w/ Wipers
On; Off
320 UNDERSTANDING YOUR INSTRUMENT PANEL

Setting NamesSetting Names Abbreviated
(Left Submenu Layer) Sub-Menus (Right Submenu
Layer)
•Equipment
• Flatbed
• Gooseneck
• Horse
• Ta g
• Motorcycle
• Snowmobile
• Travel
• Utility
• 5th Wheel
33 Compass Variance Compass Var1-15 increments of 1
34 Calibrate Compass Compass CalCancel; Calibrate
35 Fuel Saver Display Fuel SaverOn; Off
36
Park Assist Front Chime Volume Park Assist Front Chime VolumeOn; Off
37 Park Assist Rear Chime Volume Park Assist Rear Chime Volume On; Off
350 UNDERSTANDING YOUR INSTRUMENT PANEL

Safety/Assistance
After pressing the “Safety/Assistance” button on the
touchscreen the following settings will be available:
•ParkSense®
The ParkSense® system will scan for objects behind the
vehicle when the transmission shift lever/gear selector is
in REVERSE and the vehicle speed is less than 11 mph (18
km/h). It will provide an alert (audible and/or visual) to
indicate the proximity to other objects. The system can be
enabled with Sound Only, or Sound and Display. To
change the ParkSense® status, press and release the
“Sound Only” or “Sounds and Display” button. Then
press the back arrow/Done button on the touchscreen.
Refer to “ParkSense®” in “Understanding The Features
Of Your Vehicle” for system function and operating
information. •
Tilt Mirrors In Reverse — If Equipped
When this feature is selected, the exterior sideview
mirrors will tilt downward when the ignition is in the
RUN position and the transmission shift lever/gear
selector is in the REVERSE position. The mirrors will
move back to their previous position when the transmis-
sion is shifted out of REVERSE. To make your selection,
press the “Tilt Mirrors In Reverse” button on the touch-
screen and make your selection. Press the back arrow/
Done button on the touchscreen to return to the previous
menu.
• ParkView® Backup Camera Active Guidelines
Your vehicle may be equipped with the ParkView® Rear
Back Up Camera Active Guidelines that allows you to see
active guidelines over the ParkView Back up camera
display whenever the shift lever/gear selector is put into
REVERSE. The image will be displayed on the radio
touchscreen display along with a caution note to “check
356 UNDERSTANDING YOUR INSTRUMENT PANEL
