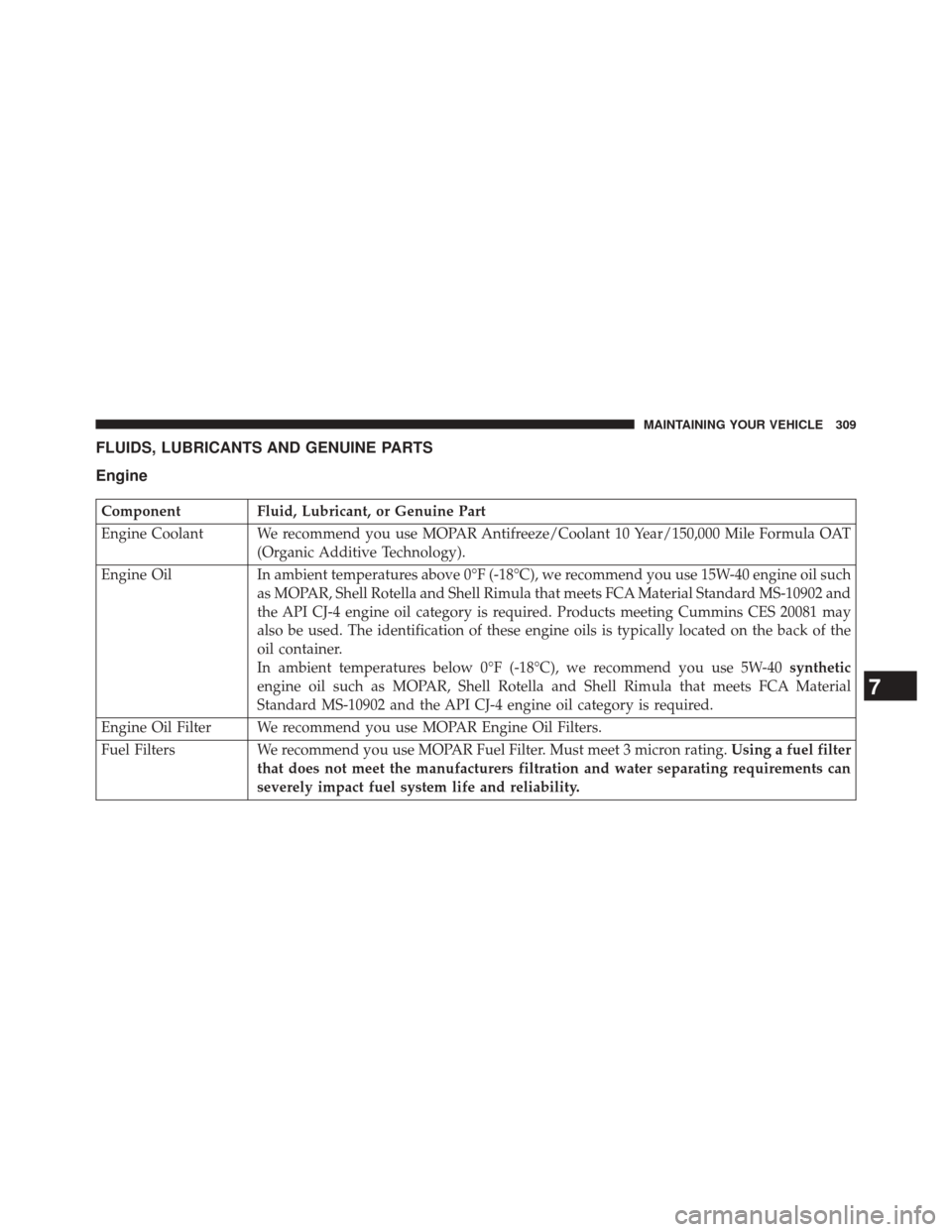

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology).
Engine Oil In ambient temperatures above 0°F (-18°C), we recommend you use 15W-40 engine oil such
as MOPAR, Shell Rotella and Shell Rimula that meets FCA Material Standard MS-10902 and
the API CJ-4 engine oil category is required. Products meeting Cummins CES 20081 may
also be used. The identification of these engine oils is typically located on the back of the
oil container.
In ambient temperatures below 0°F (-18°C), we recommend you use 5W-40 synthetic
engine oil such as MOPAR, Shell Rotella and Shell Rimula that meets FCA Material
Standard MS-10902 and the API CJ-4 engine oil category is required.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filters.
Fuel Filters We recommend you use MOPAR Fuel Filter. Must meet 3 micron rating. Using a fuel filter
that does not meet the manufacturers filtration and water separating requirements can
severely impact fuel system life and reliability.
7
MAINTAINING YOUR VEHICLE 309
Page 312 of 338
ComponentFluid, Lubricant, or Genuine Part

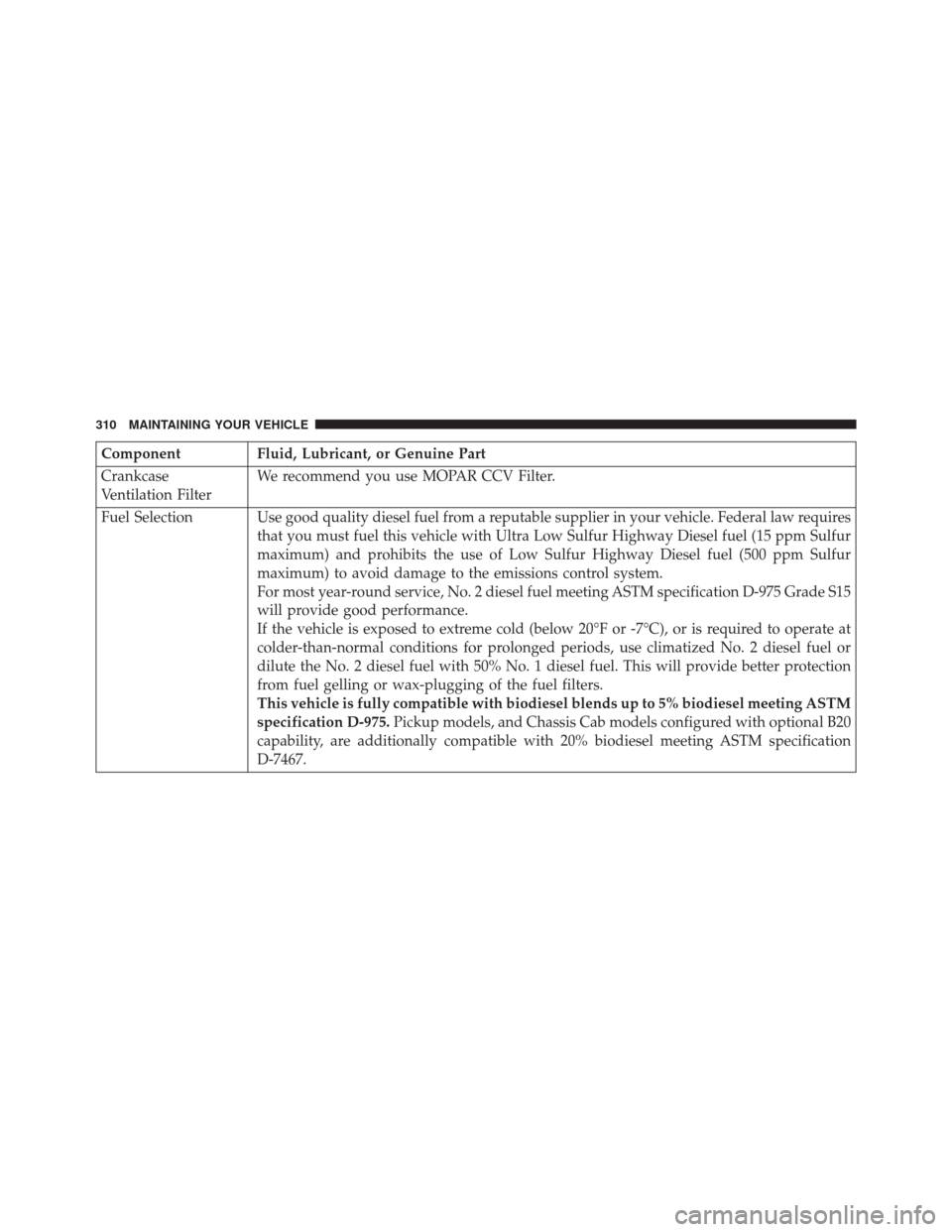

Crankcase
Ventilation Filter We recommend you use MOPAR CCV Filter.
Fuel Selection Use good quality diesel fuel from a reputable supplier in your vehicle. Federal law requires that you must fuel this vehicle with Ultra Low Sulfur Highway Diesel fuel (15 ppm Sulfur
maximum) and prohibits the use of Low Sulfur Highway Diesel fuel (500 ppm Sulfur
maximum) to avoid damage to the emissions control system.
For most year-round service, No. 2 diesel fuel meeting ASTM specification D-975 Grade S15
will provide good performance.
If the vehicle is exposed to extreme cold (below 20°F or -7°C), or is required to operate at
colder-than-normal conditions for prolonged periods, use climatized No. 2 diesel fuel or
dilute the No. 2 diesel fuel with 50% No. 1 diesel fuel. This will provide better protection
from fuel gelling or wax-plugging of the fuel filters.
This vehicle is fully compatible with biodiesel blends up to 5% biodiesel meeting ASTM
specification D-975.Pickup models, and Chassis Cab models configured with optional B20
capability, are additionally compatible with 20% biodiesel meeting ASTM specification
D-7467.
310 MAINTAINING YOUR VEHICLE
Page 313 of 338

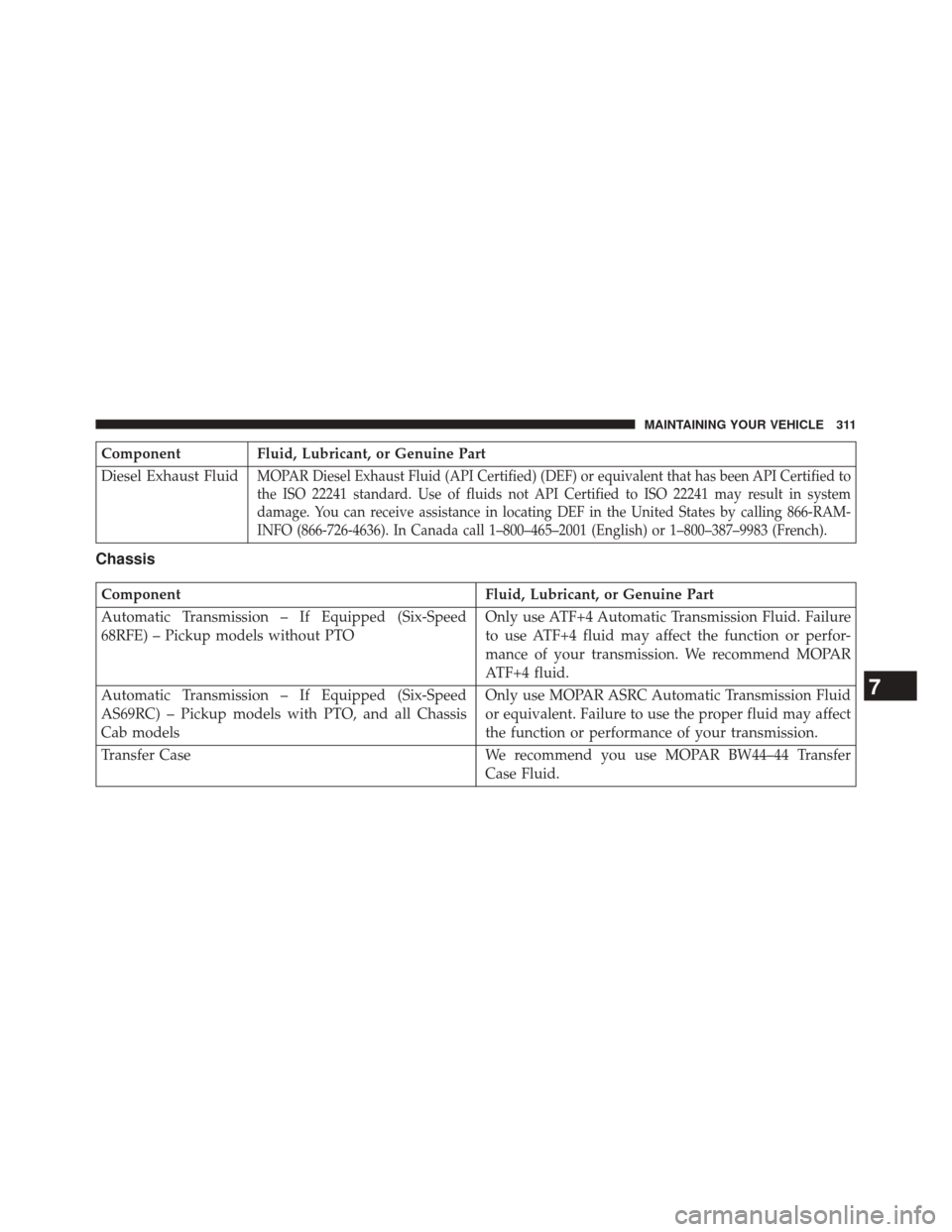

ComponentFluid, Lubricant, or Genuine Part
Diesel Exhaust Fluid
MOPAR Diesel Exhaust Fluid (API Certified) (DEF) or equivalent that has been API Certified to
the ISO 22241 standard. Use of fluids not API Certified to ISO 22241 may result in system
damage. You can receive assistance in locating DEF in the United States by calling 866-RAM-
INFO (866-726-4636). In Canada call 1–800–465–2001 (English) or 1–800–387–9983 (French).
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission – If Equipped (Six-Speed
68RFE) – Pickup models without PTO Only use ATF+4 Automatic Transmission Fluid. Failure
to use ATF+4 fluid may affect the function or perfor-
mance of your transmission. We recommend MOPAR
ATF+4 fluid.
Automatic Transmission – If Equipped (Six-Speed
AS69RC) – Pickup models with PTO, and all Chassis
Cab models Only use MOPAR ASRC Automatic Transmission Fluid
or equivalent. Failure to use the proper fluid may affect
the function or performance of your transmission.
Transfer Case We recommend you use MOPAR BW44–44 Transfer
Case Fluid.
7
MAINTAINING YOUR VEHICLE 311
Page 314 of 338

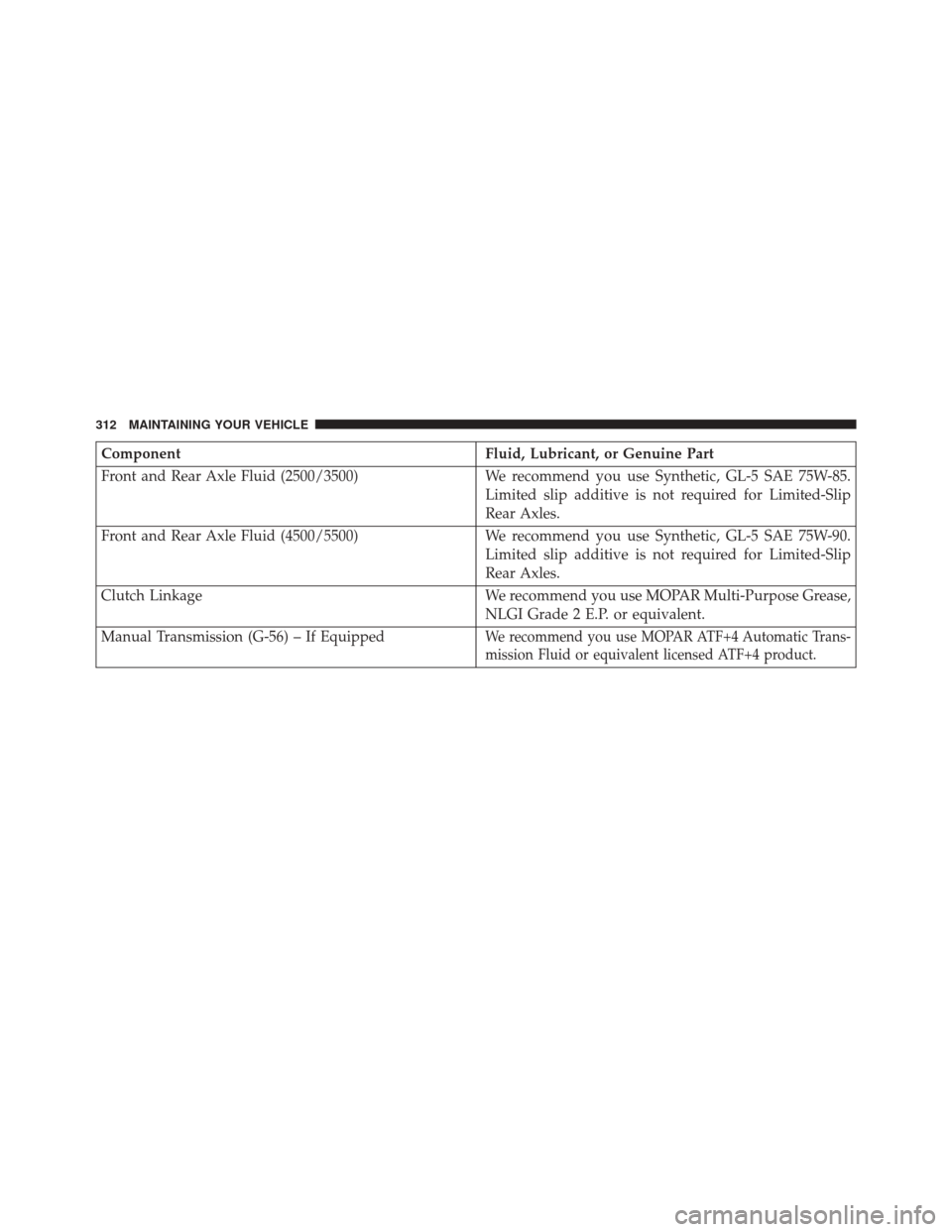

ComponentFluid, Lubricant, or Genuine Part
Front and Rear Axle Fluid (2500/3500) We recommend you use Synthetic, GL-5 SAE 75W-85.
Limited slip additive is not required for Limited-Slip
Rear Axles.
Front and Rear Axle Fluid (4500/5500) We recommend you use Synthetic, GL-5 SAE 75W-90.
Limited slip additive is not required for Limited-Slip
Rear Axles.
Clutch Linkage We recommend you use MOPAR Multi-Purpose Grease,
NLGI Grade 2 E.P. or equivalent.
Manual Transmission (G-56) – If Equipped
We recommend you use MOPAR ATF+4 Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
312 MAINTAINING YOUR VEHICLE
Page 315 of 338

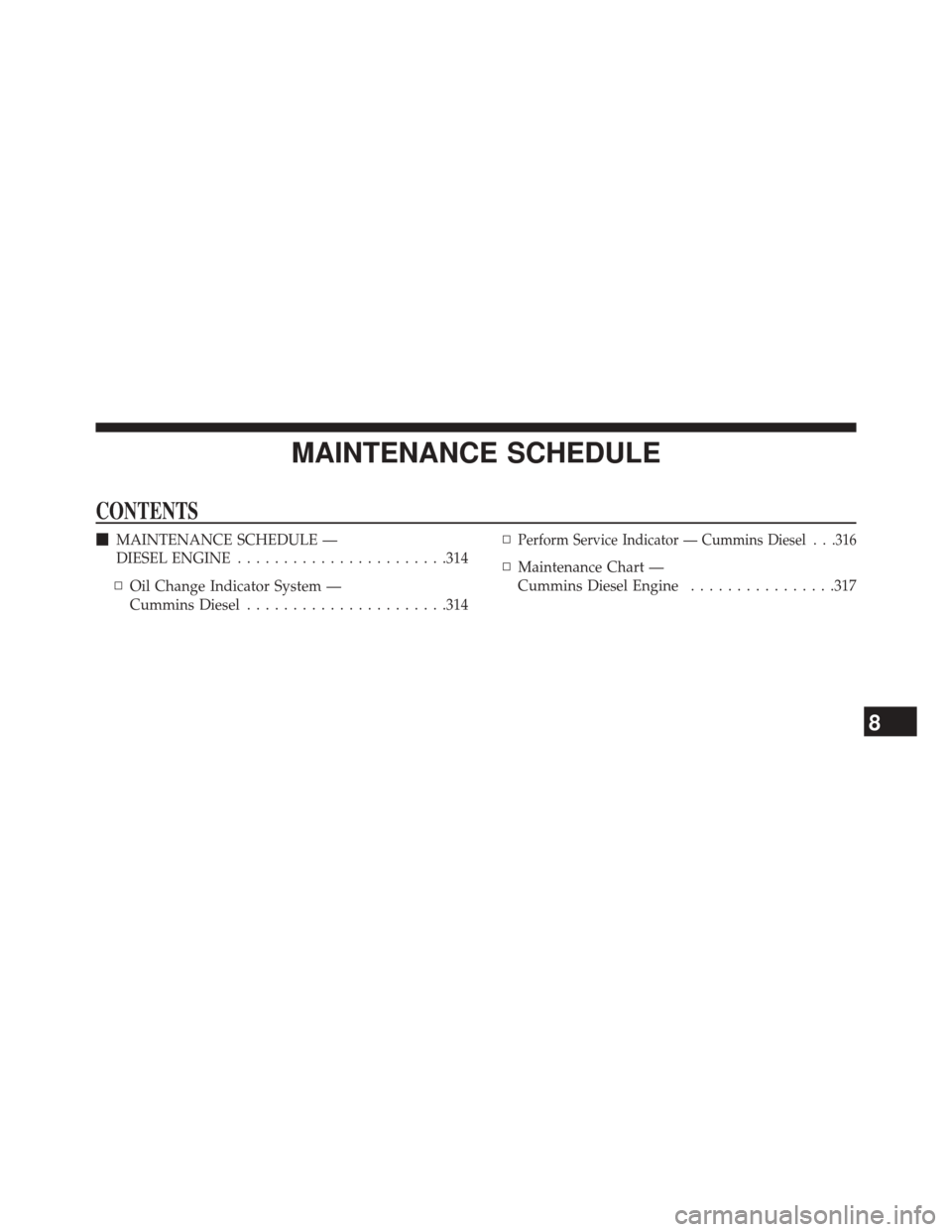

MAINTENANCE SCHEDULE
CONTENTS
MAINTENANCE SCHEDULE —
DIESEL ENGINE ...................... .314
▫ Oil Change Indicator System —
Cummins Diesel ..................... .314▫Perform Service Indicator — Cummins Diesel . . .316
▫
Maintenance Chart —
Cummins Diesel Engine ................317
8
Page 316 of 338

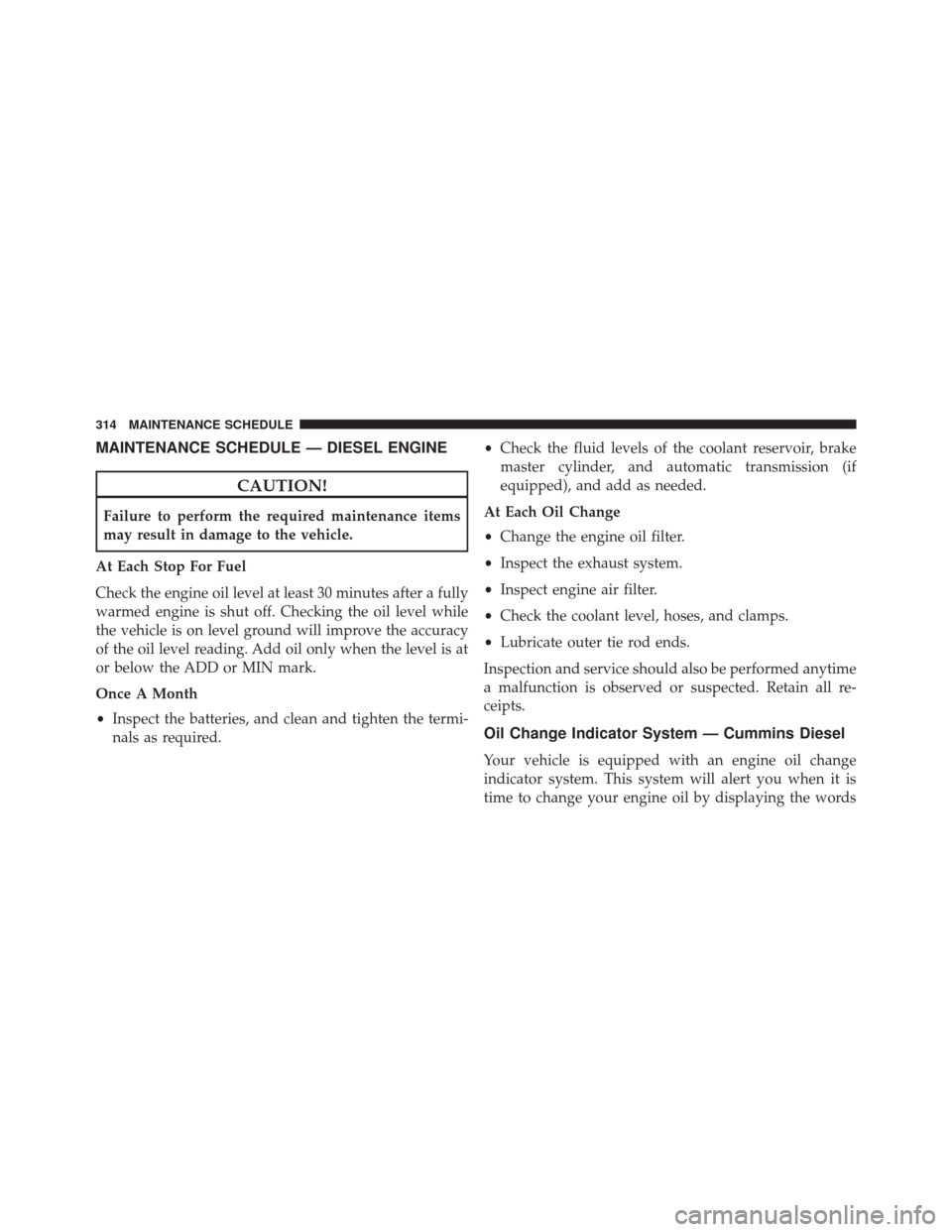

MAINTENANCE SCHEDULE — DIESEL ENGINE
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
At Each Stop For Fuel
Check the engine oil level at least 30 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accuracy
of the oil level reading. Add oil only when the level is at
or below the ADD or MIN mark.
Once A Month
• Inspect the batteries, and clean and tighten the termi-
nals as required. •
Check the fluid levels of the coolant reservoir, brake
master cylinder, and automatic transmission (if
equipped), and add as needed.
At Each Oil Change
• Change the engine oil filter.
• Inspect the exhaust system.
• Inspect engine air filter.
• Check the coolant level, hoses, and clamps.
• Lubricate outer tie rod ends.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
Oil Change Indicator System — Cummins Diesel
Your vehicle is equipped with an engine oil change
indicator system. This system will alert you when it is
time to change your engine oil by displaying the words
314 MAINTENANCE SCHEDULE
Page 317 of 338
“Oil Change Due” on your Electronic Vehicle Informa-
tion Center (EVIC) or Driver Information Display (DID).
The oil change reminder will remind the owner to change
the engine oil every 15,000 miles or 500 hours, whichever
comes first, except for the Chassis Cab models and
Pickup models configured with optional B20 capability
that are using B20 biodiesel, which are 12,500 miles or 400
hours, whichever comes first. Failure to change the
engine oil per the maintenance schedule can result in
internal engine damage.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)” or “Driver Information Dis-
play (DID)” in “Understanding Your Instrument Panel”
for further information.Replace the engine oil and oil filter every 15,000 miles
(24 000 km) or six months, or sooner if prompted by the
oil change indicator system. Under no circumstances
should oil change intervals exceed 15,000 miles
(24 000 km) or six months, whichever comes first.
NOTE:
•
Under no circumstances should oil change intervals
exceed 15,000 miles (24,000 km) or six months or 500
Hours, whichever comes first.
• Replace the engine oil and oil filter every 12,500 miles
(20 000 km) when running B20 fuel (Chassis Cab
Only).
If Chassis Cab models and Pickup models configured
with optional B20 capability are operated with greater
than 5% levels of Biodiesel, the oil change interval must
not exceed 12,500 miles (20 000 km) under any circum-
stances. See the Fuel Requirements section for more
8
MAINTENANCE SCHEDULE 315
Page 318 of 338
information regarding operation of Chassis Cab models
and Pickup models configured for use with Biodiesel
blend (B6-B20) fuel meeting ASTM specification D-7467.

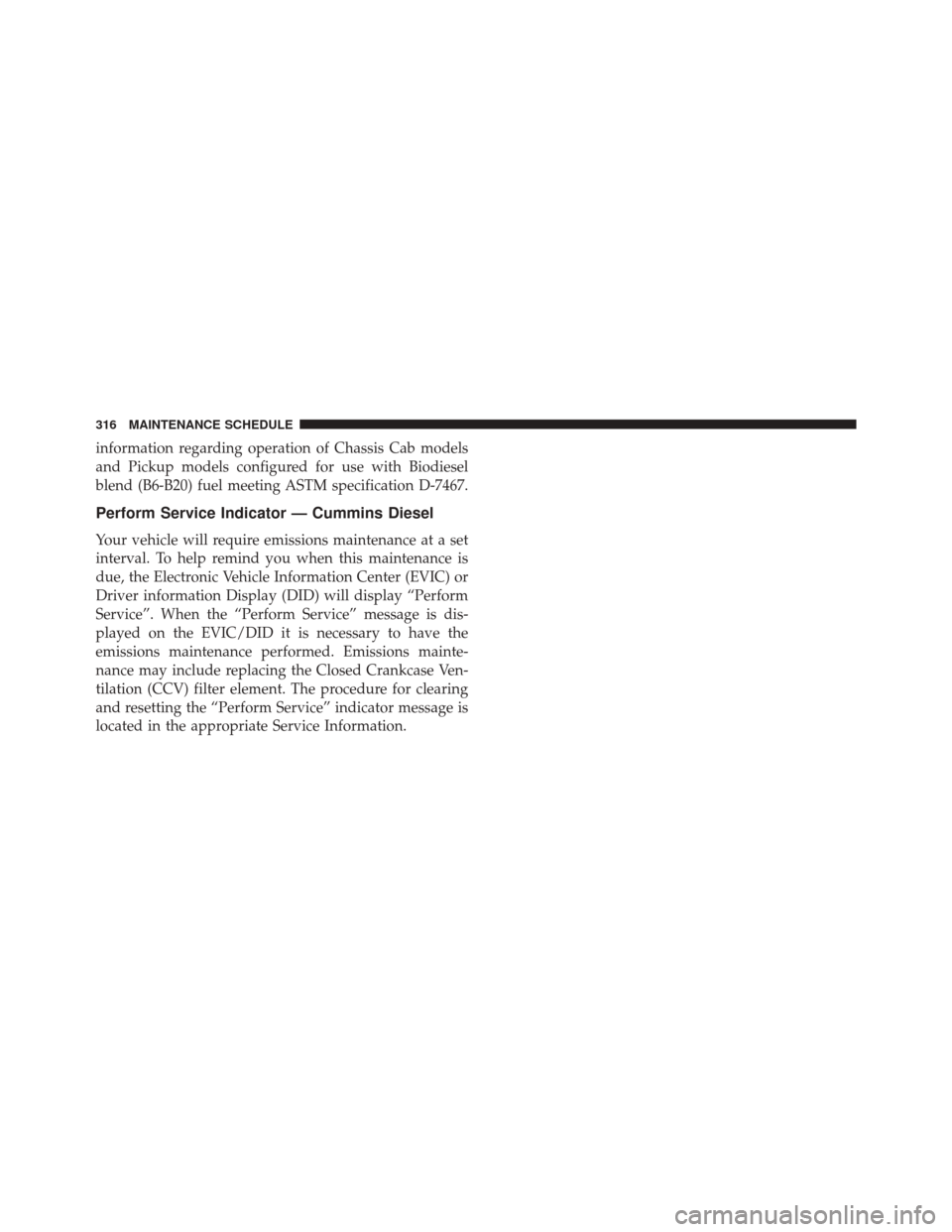

Perform Service Indicator — Cummins Diesel
Your vehicle will require emissions maintenance at a set
interval. To help remind you when this maintenance is
due, the Electronic Vehicle Information Center (EVIC) or
Driver information Display (DID) will display “Perform
Service”. When the “Perform Service” message is dis-
played on the EVIC/DID it is necessary to have the
emissions maintenance performed. Emissions mainte-
nance may include replacing the Closed Crankcase Ven-
tilation (CCV) filter element. The procedure for clearing
and resetting the “Perform Service” indicator message is
located in the appropriate Service Information.
316 MAINTENANCE SCHEDULE
Page 319 of 338

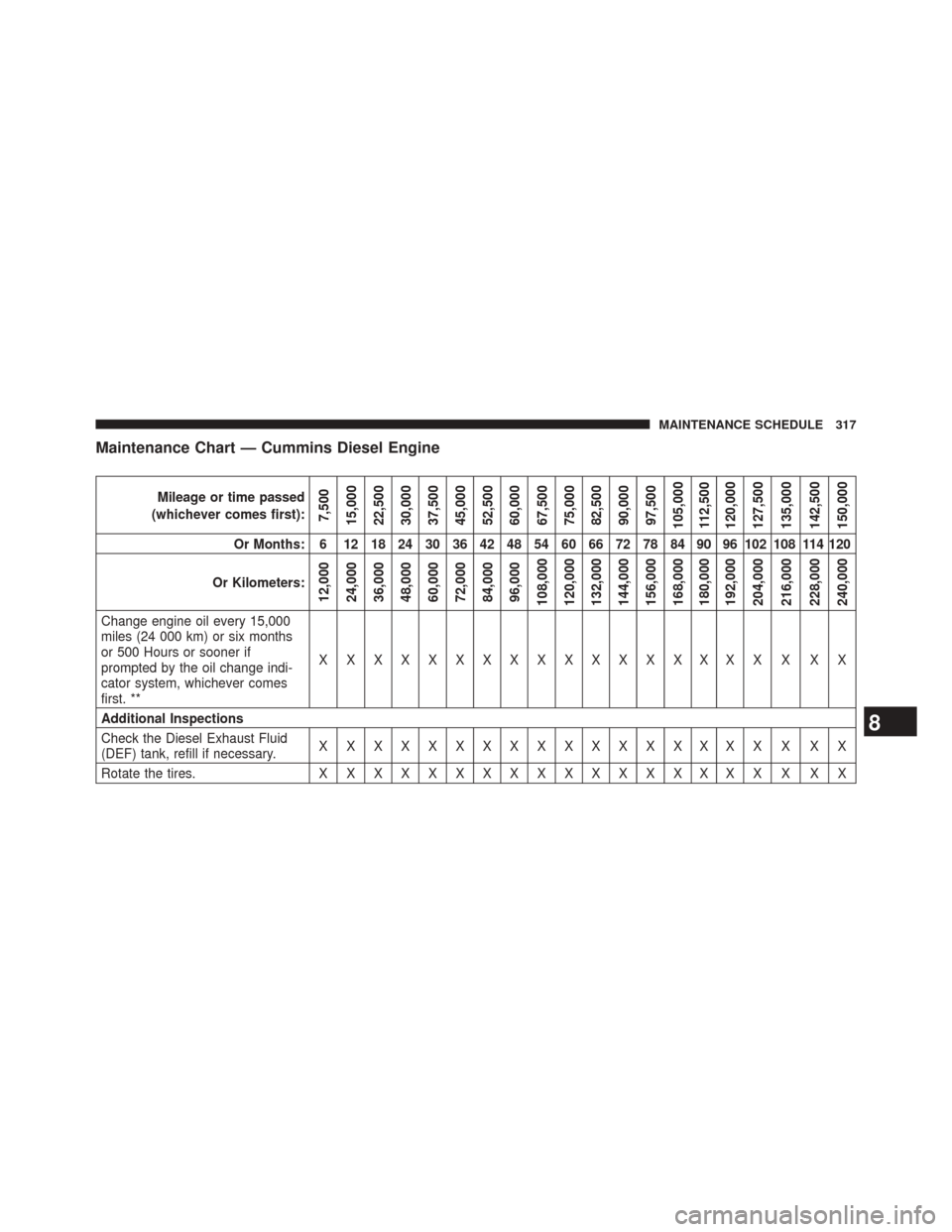

Maintenance Chart — Cummins Diesel Engine
Mileage or time passed
(whichever comes first):
7,500
15,000
22,500
30,000
37,500
45,000
52,500
60,000
67,500
75,000
82,500
90,000
97,500
105,000 112,500
120,000
127,500
135,000
142,500
150,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
Or Kilometers:
12,000
24,000
36,000
48,000
60,000
72,000
84,000
96,000
108,000
120,000
132,000
144,000
156,000
168,000
180,000
192,000
204,000
216,000
228,000
240,000
Change engine oil every 15,000
miles (24 000 km) or six months
or 500 Hours or sooner if
prompted by the oil change indi-
cator system, whichever comes
first. ** XXXXXXXXXXXXXXXXX X XX
Additional Inspections
Check the Diesel Exhaust Fluid
(DEF) tank, refill if necessary. XXXXXXXXXXXXXXXXX X XX
Rotate the tires. X X X X X X X X X X X X X X X X X X X X
8
MAINTENANCE SCHEDULE 317
Page 320 of 338

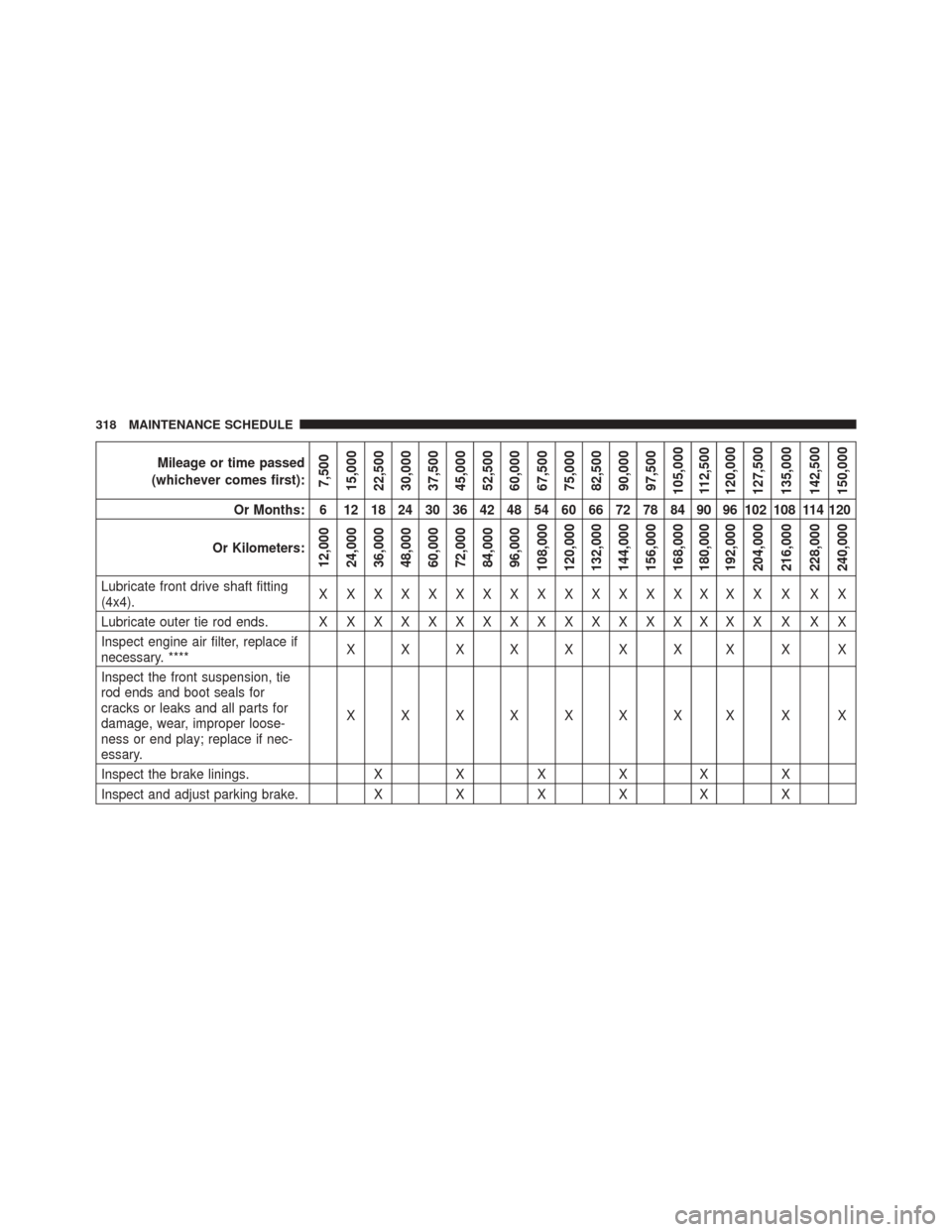

Mileage or time passed
(whichever comes first):
7,500
15,000
22,500
30,000
37,500
45,000
52,500
60,000
67,500
75,000
82,500
90,000
97,500
105,000 112,500
120,000
127,500
135,000
142,500
150,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
Or Kilometers:
12,000
24,000
36,000
48,000
60,000
72,000
84,000
96,000
108,000
120,000
132,000
144,000
156,000
168,000
180,000
192,000
204,000
216,000
228,000
240,000
Lubricate front drive shaft fitting
(4x4). XXXXXXXXXXXXXXXXX X XX
Lubricate outer tie rod ends. X X X X X X X X X X X X X X X X X X X X
Inspect engine air filter, replace if
necessary. **** XXXXXXXX X X
Inspect the front suspension, tie
rod ends and boot seals for
cracks or leaks and all parts for
damage, wear, improper loose-
ness or end play; replace if nec-
essary. XXXXXXXX X X
Inspect the brake linings. XXXXX X
Inspect and adjust parking brake. XXXXX X
318 MAINTENANCE SCHEDULE
